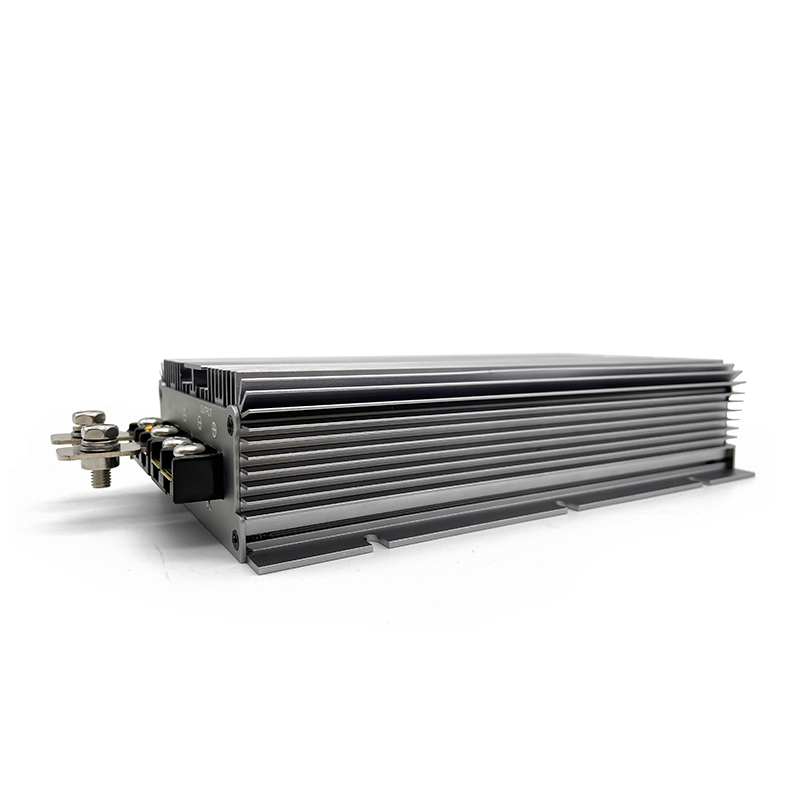

China Manufacturer Golf Cart Voltage Reducer 72V to 12V 80A 85A Step Down Converter

1 / 5

China Manufacturer Golf Cart Voltage Reducer 72V to 12V 80A 85A Step Down Converter

Send Inquiry

Product Description

More features include:

60V/72V (30Vdc ~ 90Vdc) to 12Vdc DCDC converter
12V 1~85A Output power
Conversion efficiency up to 95%
100% Stable voltage output
100% full real power
Good heat dissipation
Easy installation and high capacity
IP68 Waterproof level

Technical Specification

Model	VT-DD721280 & VT-DD721285
Efficiency	95%
Input Voltage	72VDC (30-90V)
Output Voltage	12VDC
Output Current	80A 85A
Ripple	100mVp
Line Regulation	±0.2%
Load Regulation	±0.2%
Voltage Accuracy	±1.5%
Enclosures	IP68

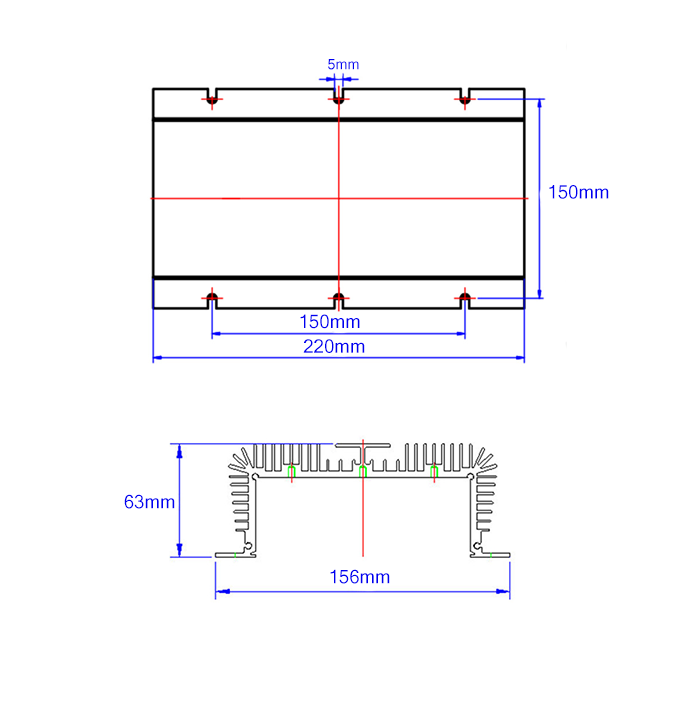

Dimension	220130 50mm
Net Weight	3kg
Ambient temperature	-20~60°C
Operation temperature	-40~80°C
Warranty	1 year

Frequently Asked Questions

Q1: What is the input voltage range for this DC-DC converter? A1: The converter supports a wide input voltage range from 30Vdc to 90Vdc, making it ideal for 60V and 72V battery systems.

Q2: Is this device waterproof for outdoor use? A2: Yes, it features an IP68 waterproof rating, ensuring complete protection against dust and high-pressure water jets, suitable for harsh environments.

Q3: What is the maximum conversion efficiency? A3: This DC-DC converter achieves an industry-leading efficiency of up to 95%, which minimizes heat generation and energy loss.

Q4: How does the unit handle heat dissipation? A4: The unit is designed with a high-quality enclosure that provides excellent natural heat dissipation, ensuring stable performance even under full load.

Q5: What safety protections are included? A5: It provides 100% full real power and stable voltage output, designed to protect connected 12V equipment from voltage fluctuations.

Q6: What is the operating temperature range? A6: The device can operate reliably in temperatures ranging from -40°C to 80°C, suitable for extreme weather conditions.
