Voita Electronic
Voita Electronic
| Specification | Details |
|---|---|
| Model | VT-DD482460 |
| Efficiency | 95% |
| Input Voltage | 48VDC(30V-60V) |
| Output Voltage | 24VDC |
| Output Current | 60A |
| Ripple | 100mVp |
| Line Regulation | ±0.2% |
| Load Regulation | ±0.2% |
| Voltage Accuracy | ±1.5% |
| Enclosures | IP68 |
| Dimension | 220*127*63mm |
| Net Weight | 2.3kg |
| Ambient temperature | -20~60°C |
| Operation temperature | -40~80°C |
| Warranty | 1 year |
| BUCK DC-DC CONVERTER MODEL LIST | |||
|---|---|---|---|
| Model series | Input-V | Output-V | Output Current |
| VT-DD12245 | 12V/24V | 5V | 3A|5A|10A|15A|20A|30A|40A|50A|60A |
| VT-DD2412 | 24V | 12V | 1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A |
| VT-DD2413.8 | 24V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A |
| VT-DD2419 | 24V | 19V | 5A|10A|15A |
| VT-DD3612 | 36V | 12V | 5A|10A|15A|20A|30A|50A|60A |
| VT-DD485 | 48V | 5V | 5A|10A|15A|20A |
| VT-DD4812 | 48V | 12V | 5A|10A|15A|20A|30A|50A|60A |
| VT-DD4813.8 | 48V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A |
| VT-DD4824 | 48V | 24V | 3A|5A|10A|15A|20A|30A|40A|50A |
| VT-DD6012 | 60V/72V | 12V | 5A|10A|15A|20A|30A|40A|50A |
| VT-DD6024 | 60V/72V | 24V | 5A|10A|20A|30A|40A |
| BOOT DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| VT-DD512 | 5V | 12V | 1A|3A|5A|10A|15A |
| VT-DD1224 | 12V | 24V | 1A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A|60A |
| VT-DD1219 | 12V | 19V | 5A|8A|10A|15A|20A |
| VT-DD1228 | 12V | 28V | 3A|5A|8A|10A|15A|20A|25A|30A|40A |
| VT-DD1236 | 12V | 36V | 1A|2A|3A|5A|6A|8A|10A|20A|30A|40A |
| VT-DD1248 | 12V | 48V | 1A|2A|3A|4A|8A|10A|15A|20A |
| VT-DD2448 | 24V | 48V | 3A|5A|10A|20A|30A|40A |
| BUCK & BOOT DC-DC CONVERTER MODEL LIST | |||
| Model series | Input-V | Output-V | Output Current |
| VT-DD1212 | 8-40V | 12V | 1A|2A|3A|5A|6A|10A|15A|20A|25A |
| VT-DD1213.8 | 8-40V | 13.8V | 3A|5A|10A|15A|20A|25A |
| VT-DD2424 | 9-40V | 24V | 2A|3A|4A|6A|10A|15A |
This converter supports a wide input voltage range from 30V to 60V DC (with a nominal input of 48V) and delivers a stable output voltage of 24V DC.

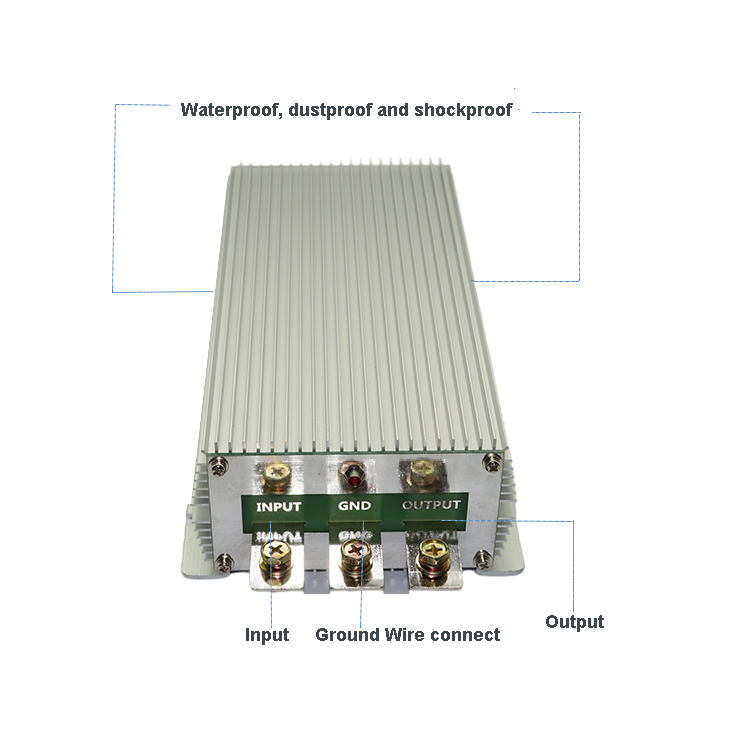

Yes, this step-down converter is designed with an IP68-rated sealed enclosure, making it completely waterproof, dustproof, and shockproof for harsh environments.
The converter includes multi-protection features: over-current protection, over-voltage protection, and over-temperature protection to guarantee safe operation.
The typical conversion efficiency of this step-down model reaches up to 95%, ensuring minimal energy loss and low heat generation during operation.
Yes, we support customization. You can choose from our wide range of Buck, Boost, and Buck-Boost model lists to match your specific voltage and current requirements.
We provide a 1-year warranty. Free replacement and maintenance services are guaranteed during this period under normal usage conditions.
