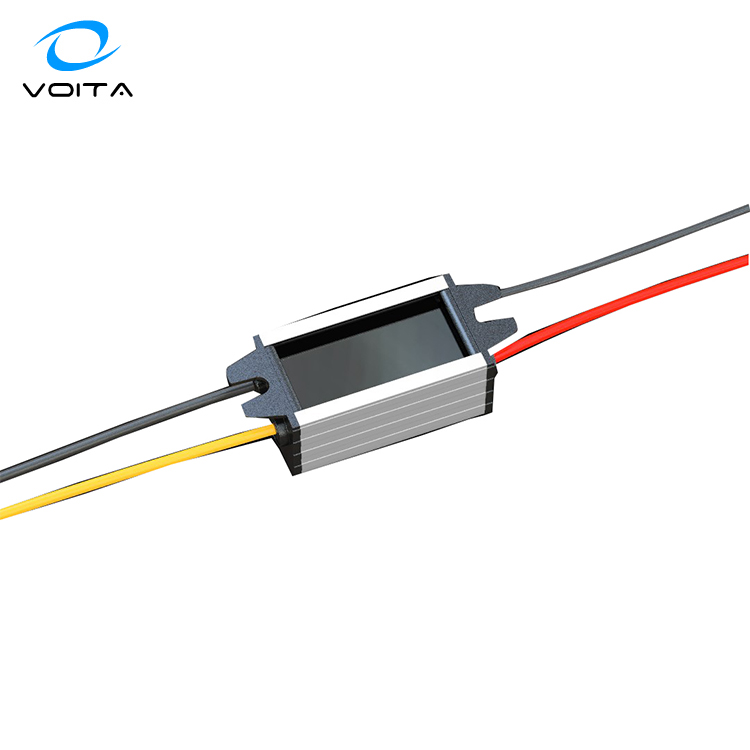

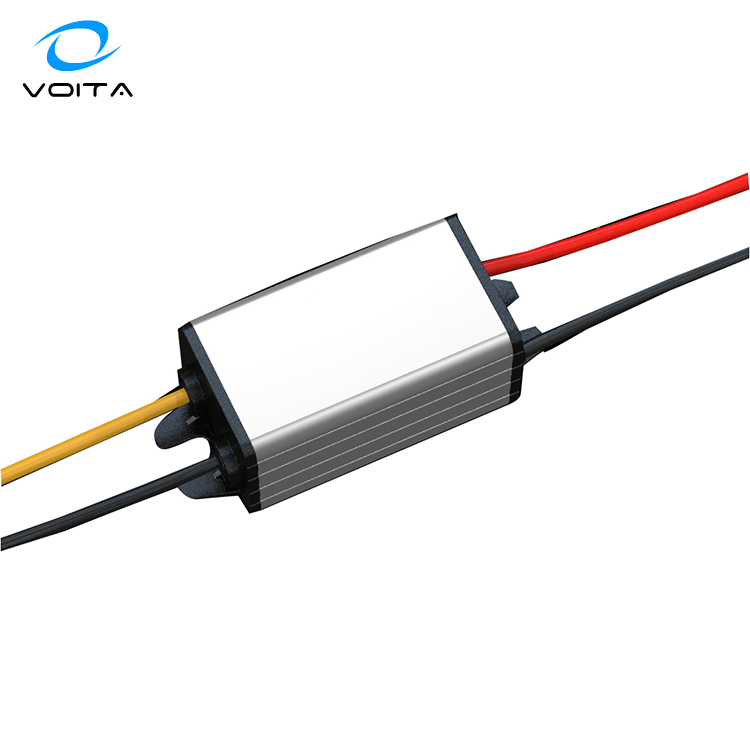

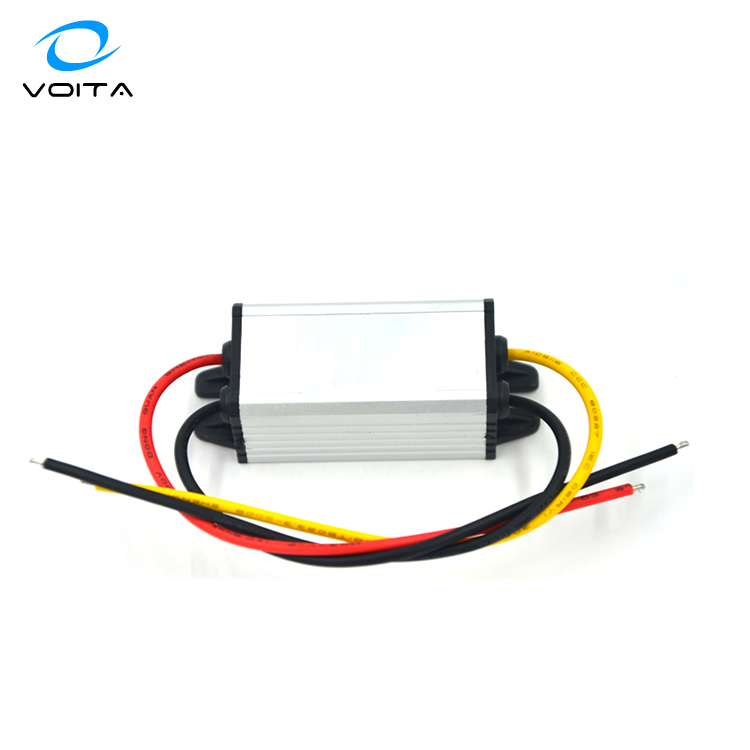

| Product Name | DC DC converter |
| Model | VT-DD122451 & VT-DD122452 & VT-DD122453 |
| Input voltage | DC12/24V(8V-35V) |
| Output voltage | DC5V±0.1V |
| Output current | 1A 2A 3A |
| Output power | 5W 10W 15W |
| Transfer efficiency | 96% |
| Working temperature | -20°C - 85°C |
| Overheating protection | 150°C |
| No load current | ≤0.55mA |
| Water proof | IP68 |
| Weight | 45g |

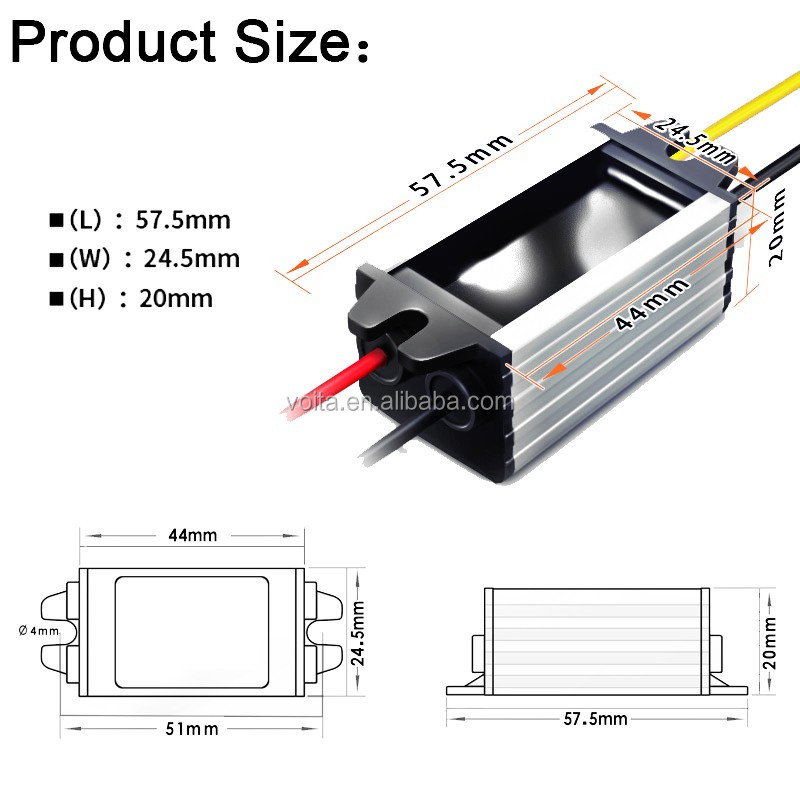

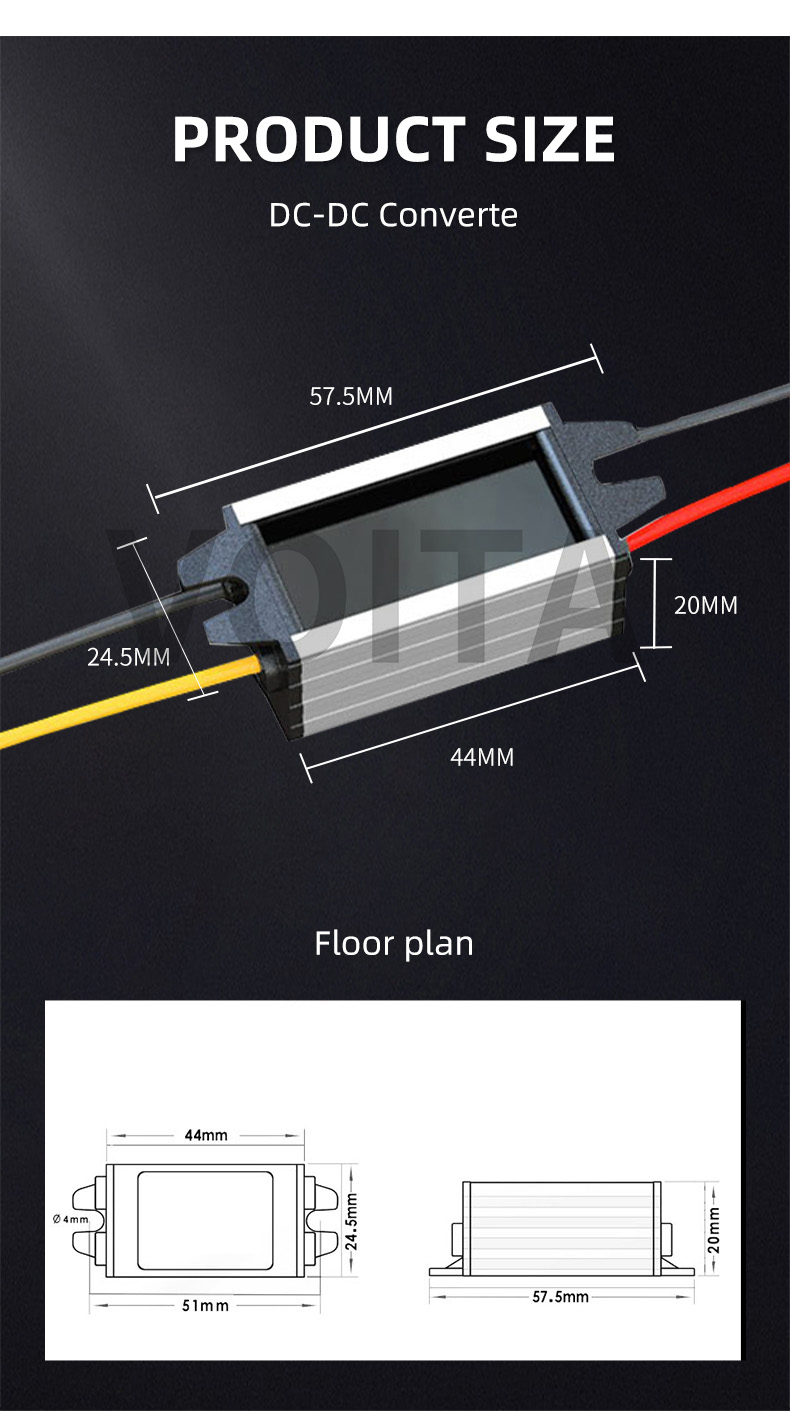

| Size | 45*25*21mm |
| Installation length | 15cm or customized |
| Application | Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment |
This converter utilizes synchronous rectification technology along with premium imported components to achieve an exceptionally high conversion efficiency of over 96%.
Yes, the converter has an IP68 protection rating, which means it is completely dustproof and waterproof, making it highly suitable for harsh outdoor and industrial environments.

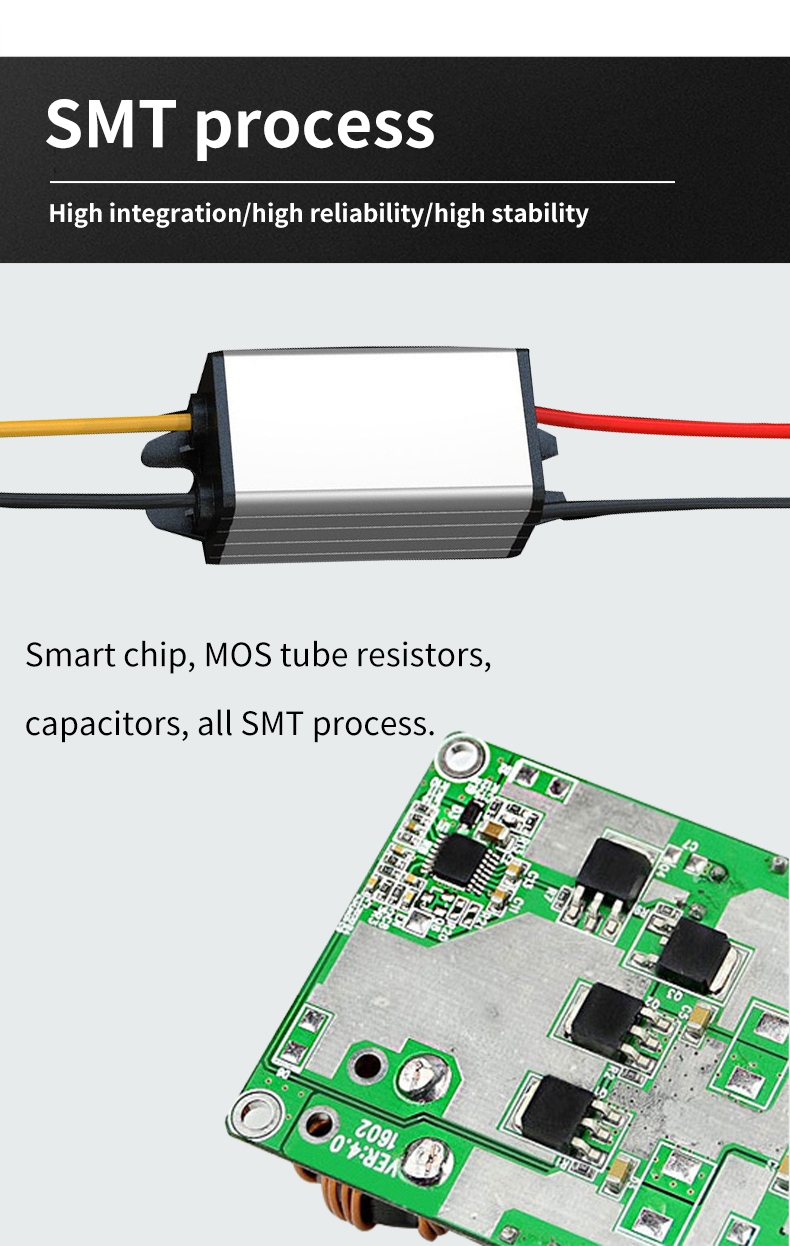

The built-in smart chip provides comprehensive protection, including anti-overheating protection (up to 150°C), overcurrent protection, and short-circuit protection for maximum safety.
It accepts a wide input voltage range of DC 12V/24V (from 8V to 35V) and converts it to a stable DC 5V±0.1V. Output currents are available in 1A, 2A, or 3A configurations.
Absolutely. The device is designed with imported internal resistance filters to withstand high temperatures, allowing it to function reliably in working temperatures ranging from -20°C to 85°C.
It is widely used in automotive electronics, motors, audios, GPS navigation systems, monitoring cameras, LED displays, air conditioning, electric fans, solar energy systems, photovoltaic equipment, and pumps.
