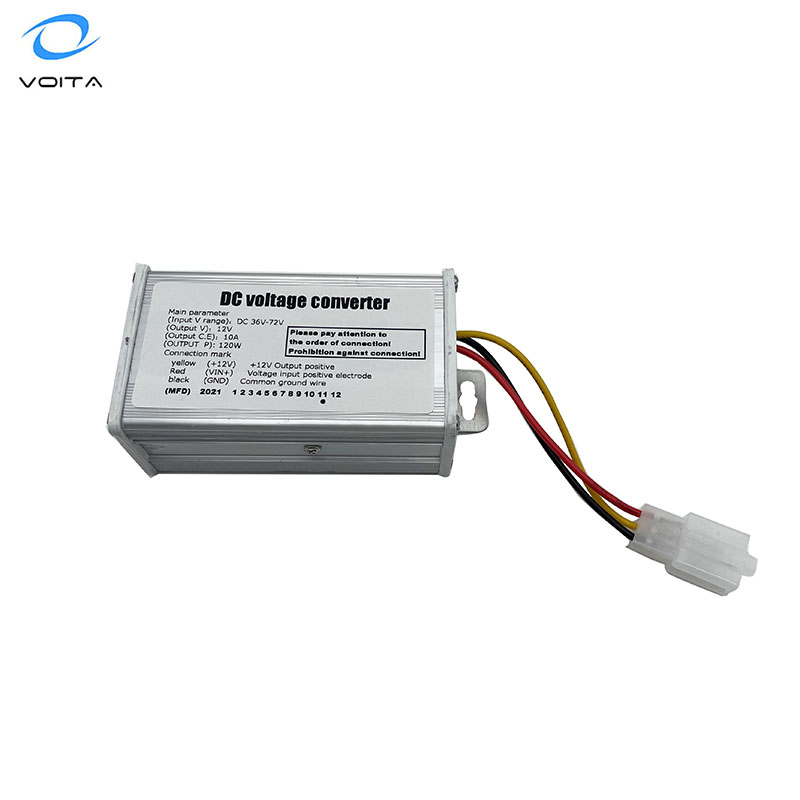

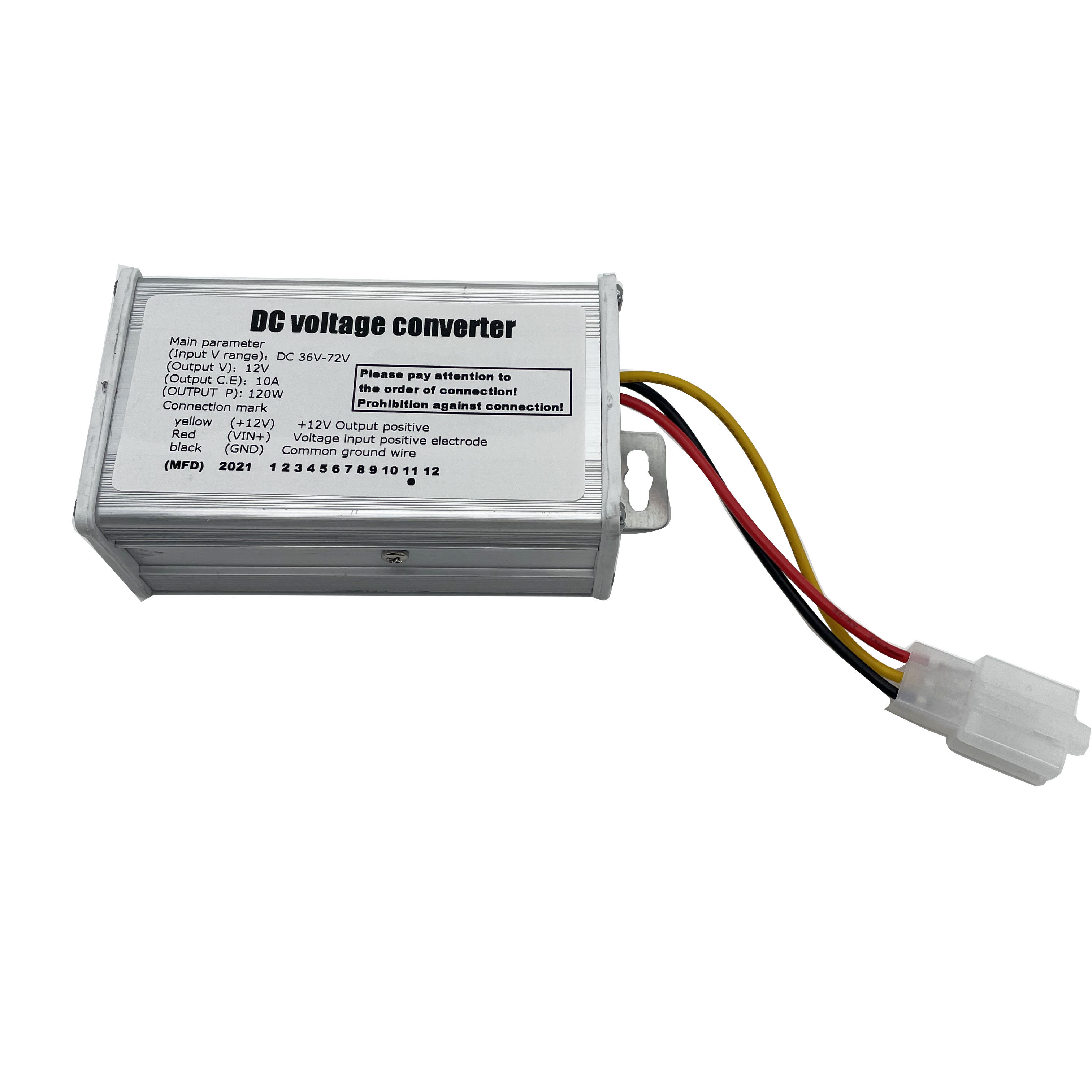

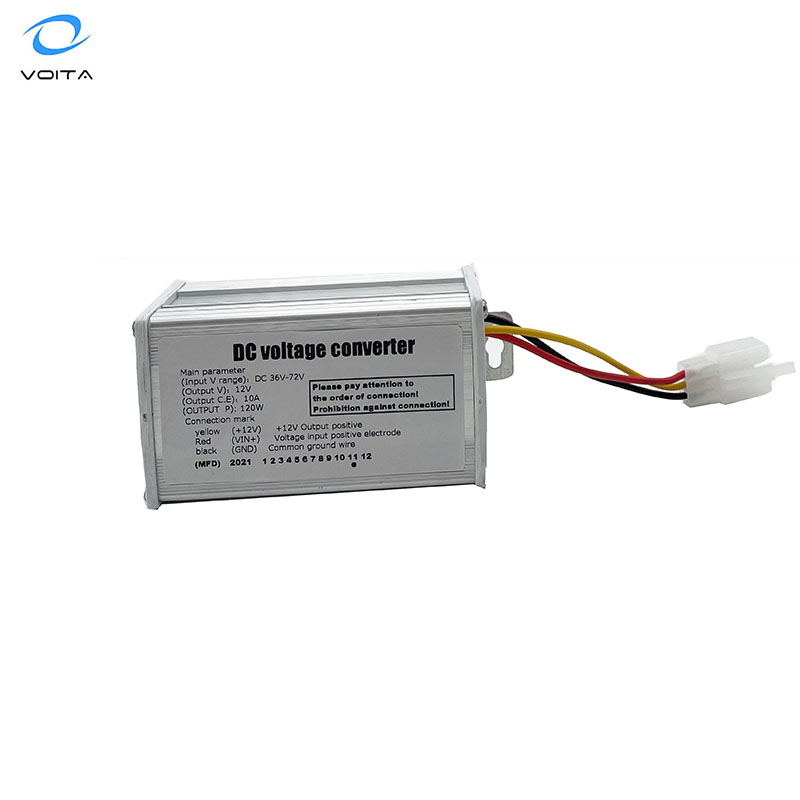

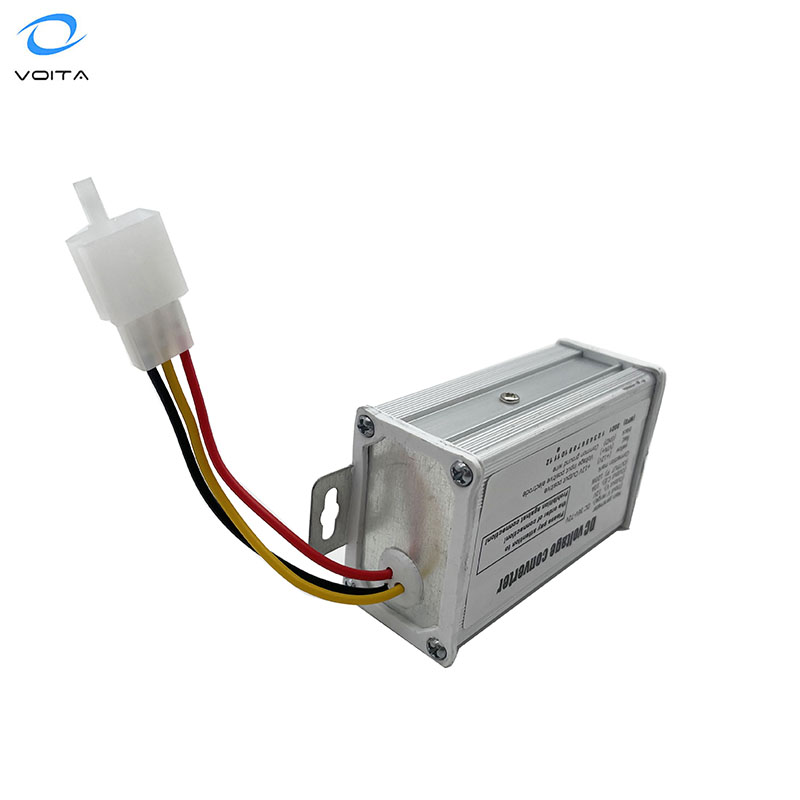

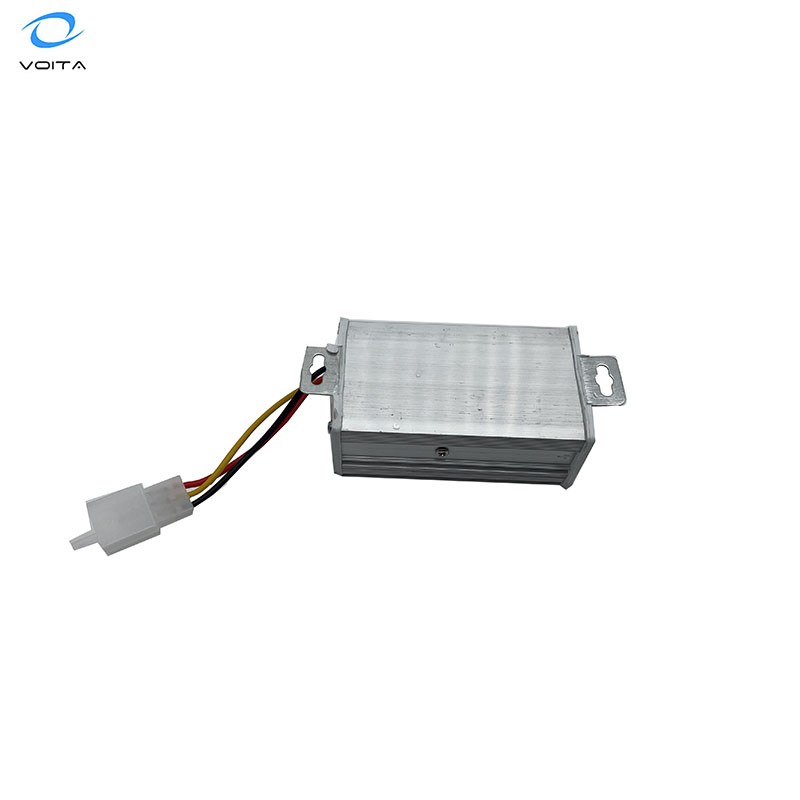

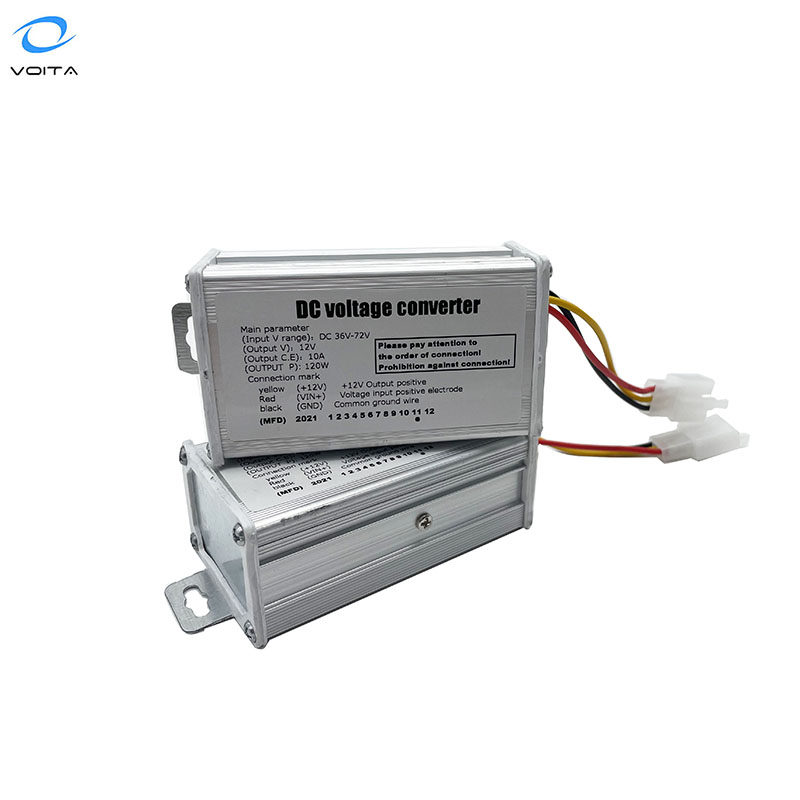

Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
1 / 5
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection
Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection

Intelligent DCDC Converter 36V 48V 72V 96V to 12V 10A with Short Circuit protection

Send Inquiry

Product Description

DC/DC Converter
Specification
⚡ High Power: Efficient energy conversion for demanding applications.
🛡️ Short Circuit Protection: Ensures device safety under fault conditions.
⚠️ Over Voltage & Current Protection: Safeguards your electronics from spikes.
🔒 Built-in Insurance: Enhanced security and reliability during use.
Wiring Description

Yellow: +12V Output positive

Red: Voltage input positive electrode

Black: Input GND

Model NumberVT-DD36721210 / VT-DD48961210
TypeDC/DC Converters
Input Voltage36v-72v ; 48v-96v
Output Voltage12V
Output Current10A
Output Power120W
Output Frequency50Hz/60Hz
Size90*50*33mm
Weight0.1kg
CertificateCE
Output TypeSingle
Warranty12 Months
ColorSilver
Full Load Efficiency86%
Load Rate70%
Shell MaterialAluminum Alloy
ApplicationElectric Vehicle/Scooter/Motorcycle
Product Description
Frequently Asked Questions
Q: What is the input voltage range for this DC/DC converter? A: There are two versions available: one supporting 36V-72V and another supporting 48V-96V input.
Q: What are the output specifications? A: Both models provide a stable 12V DC output with a maximum current of 10A and power of 120W.
Q: What safety features are built into the device? A: It includes short circuit protection, over-voltage protection, over-current protection, and built-in insurance for safe operation.
Q: What applications is this converter suitable for? A: It is ideal for electric vehicles, electric scooters, and electric motorcycles to convert high battery voltage to 12V for accessories.
Q: What is the material of the shell and its efficiency? A: The device features an Aluminum Alloy shell for durability and heat dissipation, with a full-load efficiency of approximately 86%.
Q: How do I wire the converter? A: The wiring is color-coded: Red for positive input, Black for GND, and Yellow for the +12V positive output.
