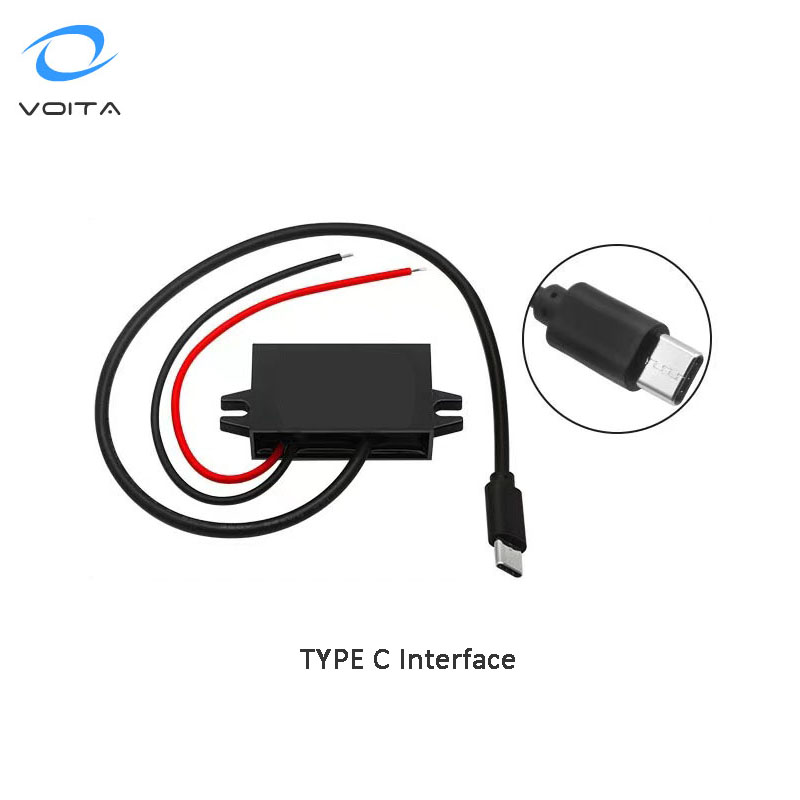

VOITA 12v to 5v 3A DC DC Converter Step Down Converter with Type C

1 / 5

VOITA 12v to 5v 3A DC DC Converter Step Down Converter with Type C

Send Inquiry

Product Description

★

Key Features

Advanced Technology: Synchronous rectification technology with imported components, conversion efficiency more than 96%.

High Durability: Imported internal resistance capacitor filter, built to withstand high temperatures.

Safety Design: Flame retardant plastic shell, generating almost no heat during use.

Smart Protection: Integrated chip for anti-overheating and overcurrent protection.

📋

Technical Specifications

Input	Rated voltage	DC 12V
	Voltage range	8-23V
	Efficiency	96% @ 12V input
	Cables (Red/Black)	20 AWG @ 15cm length
Output	Voltage	5V
	Max. rated current	3A
	Max. rated power	15W
	Cables (Yellow/Black)	20 AWG @ 15cm length
Environment	Working temperature	-40℃ ~ 80℃
Environment	Storage temperature	-40℃ ~ 80℃
Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof Rating	IP67
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	65g

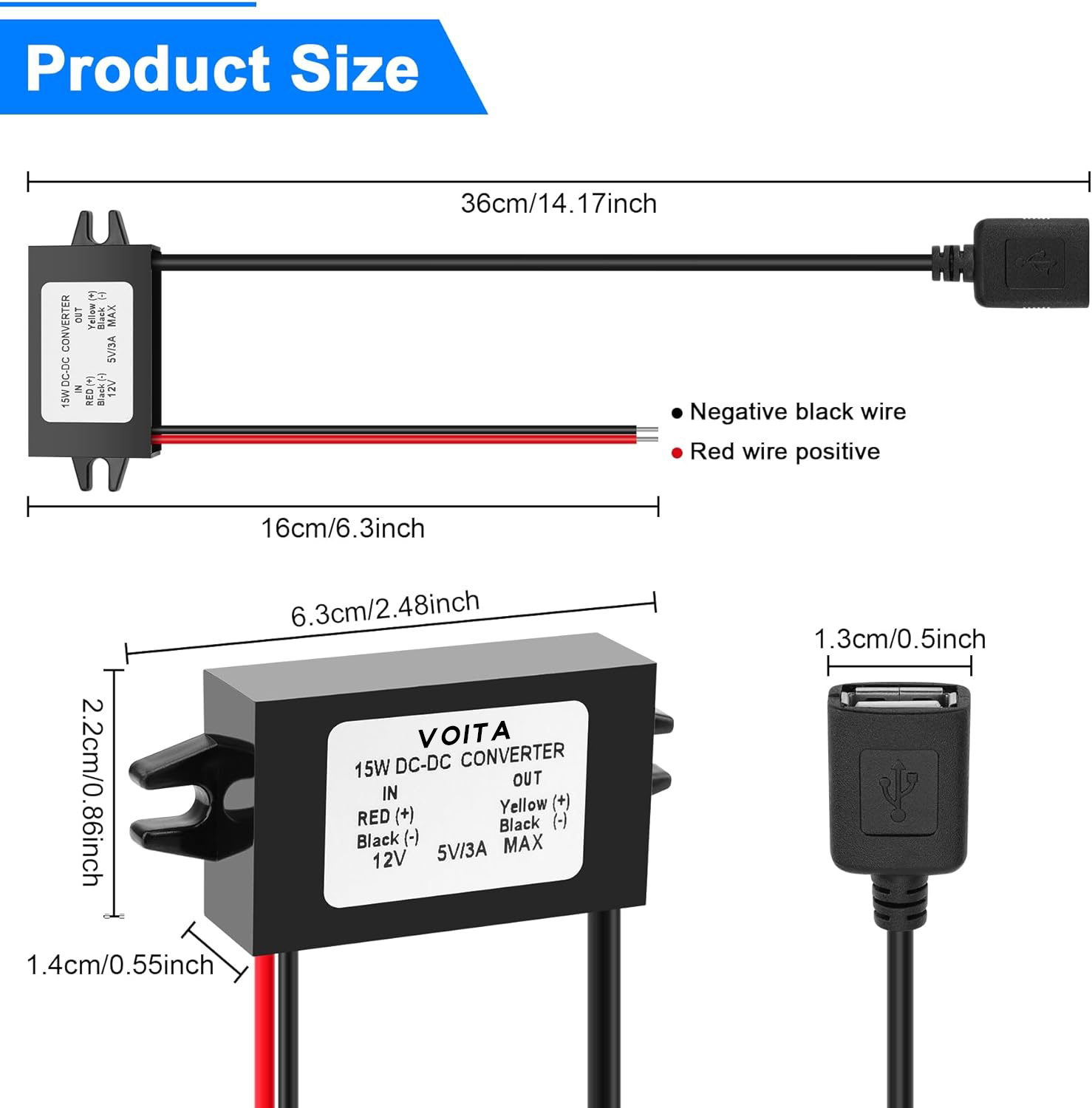

Mechanical	Size	462714mm

🖼️

Product Gallery

❓

Frequently Asked Questions

1. Is your DC DC converter isolated or non-isolated?

It is a Non-isolated converter.

2. Is it waterproof? What is the waterproof rating?

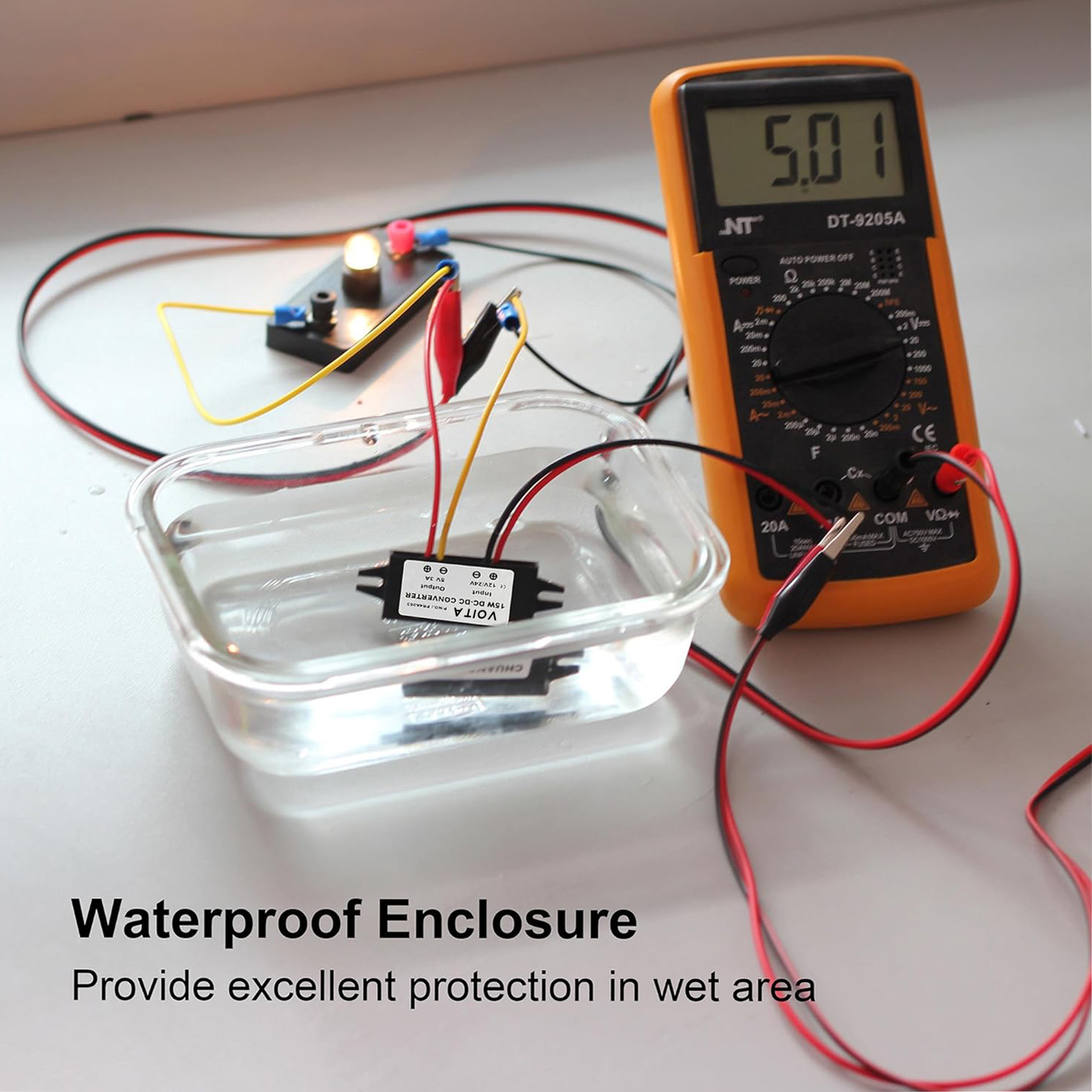

Yes, it is IP67 waterproof and potted with epoxy resin for maximum protection.

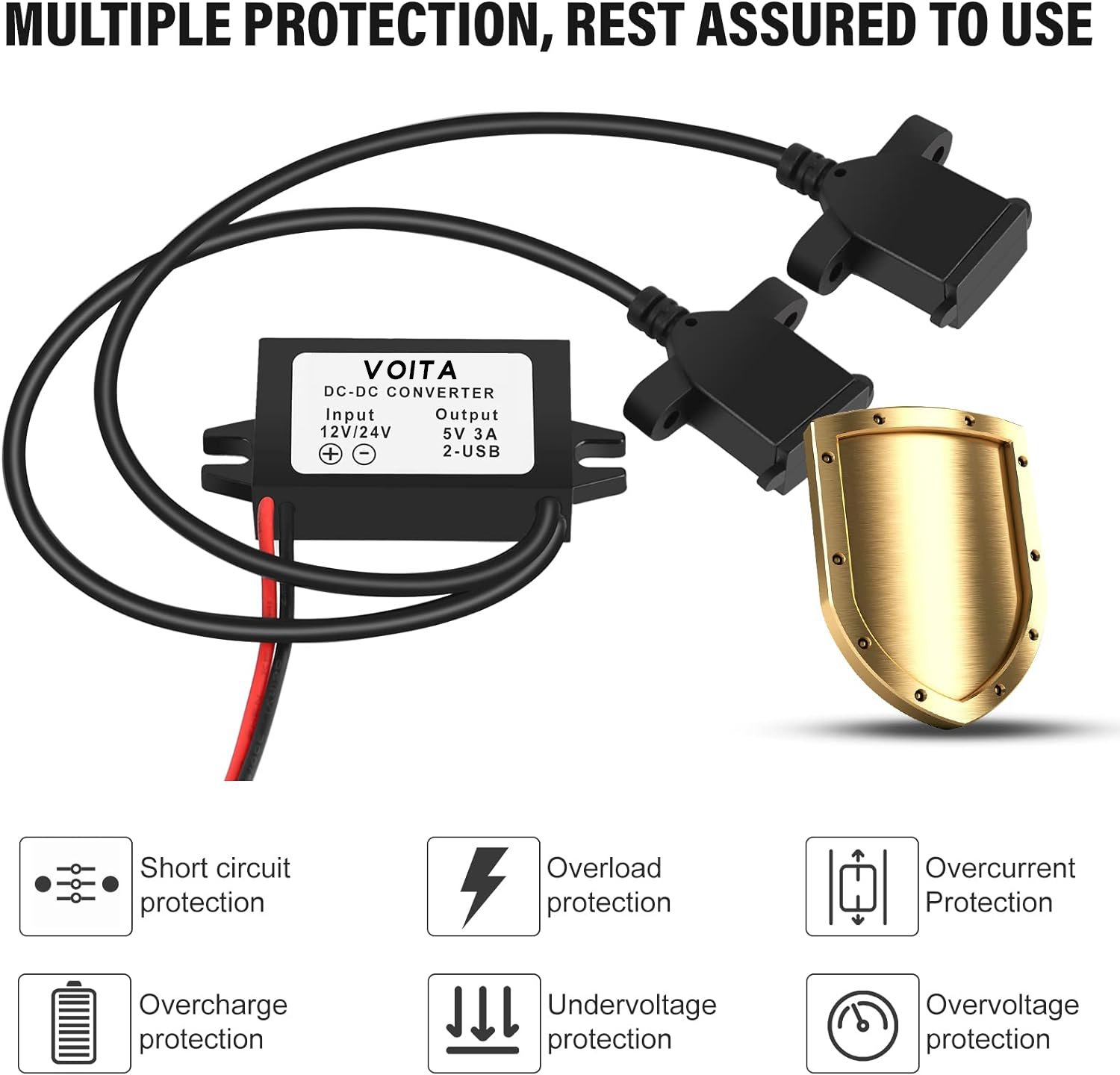

3. What protection functions does your product have?

The product includes short circuit protection, over current protection, over temperature protection, and over voltage protection.

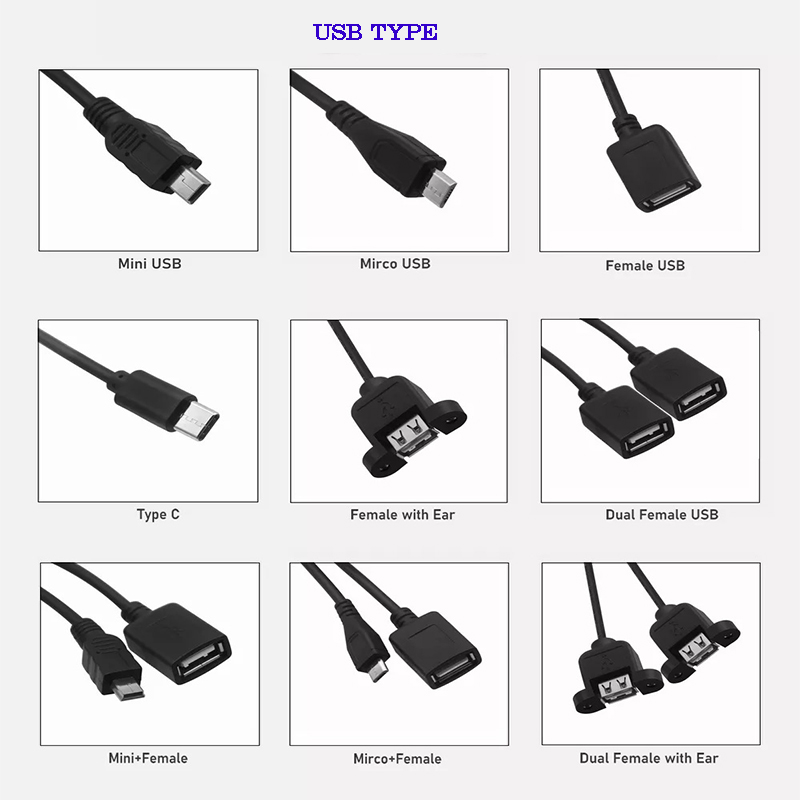

4. Can I customize the cable length and connectors?

Yes, the normal length is 15cm, but we can customize different cord lengths, specifications, and add different connectors as per your requirements.

5. What is the conversion efficiency?

Due to synchronous rectification technology and high-quality components, the conversion efficiency is more than 96%.

6. What kind of certification is available for this product?

We can provide CE certification for these DC-DC converters.
