VOITA High Quality 48V 12V 20A DC DC Converter 48V 12V Single Output Buck Converter for Car Motor LED Power 48V Step Converter

1 / 5

VOITA High Quality 48V 12V 20A DC DC Converter 48V 12V Single Output Buck Converter for Car Motor LED Power 48V Step Converter

Send Inquiry

Product Description

⚙️ Key Features

Synchronous rectification technology, imported components, conversion efficiency more than 96%
Imported internal resistance capacitor filter, withstand high temperature
Flame retardant aluminum shell, almost no heat generated when using
Chip smart protection, anti-overheating, overcurrent protection

📊 Technical Specifications

Model	VT-DD481220
Input Rated Voltage	DC 48V (Range: 30-60V)
Efficiency	96% @ 24V input
Input Cables	Red/Black: 14 AWG @ 15cm length
Output Voltage	12V
Max Rated Current	20A
Max Rated Power	240W
Output Cables	Yellow/Black: 14 AWG @ 15cm length
Environment	Working/Storage: -40℃ ~ 80℃

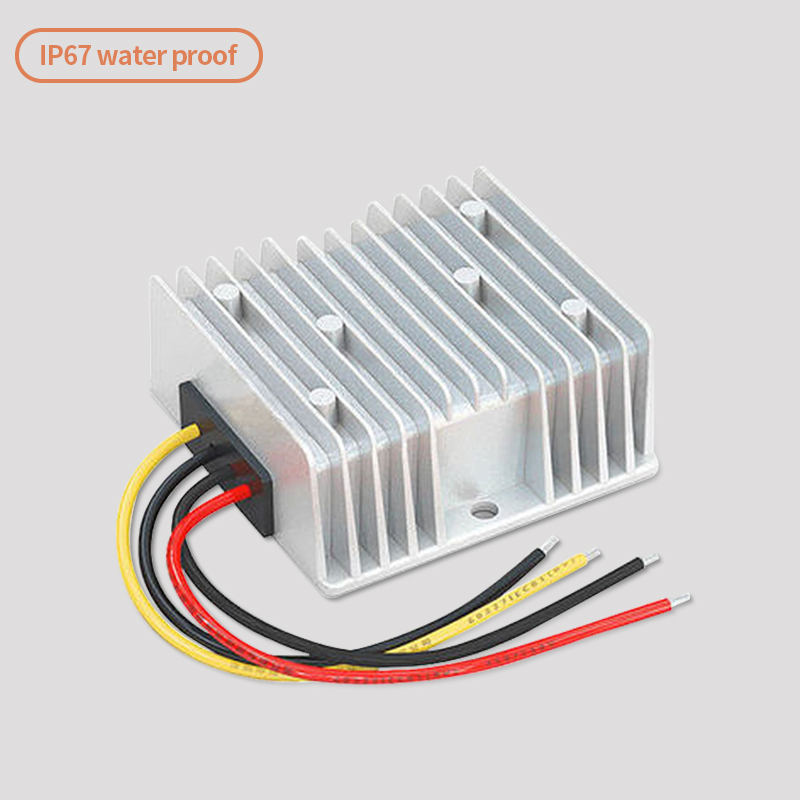

Waterproof Rating	IP67
Protection	Short circuit, Over current, Over temperature, Over voltage

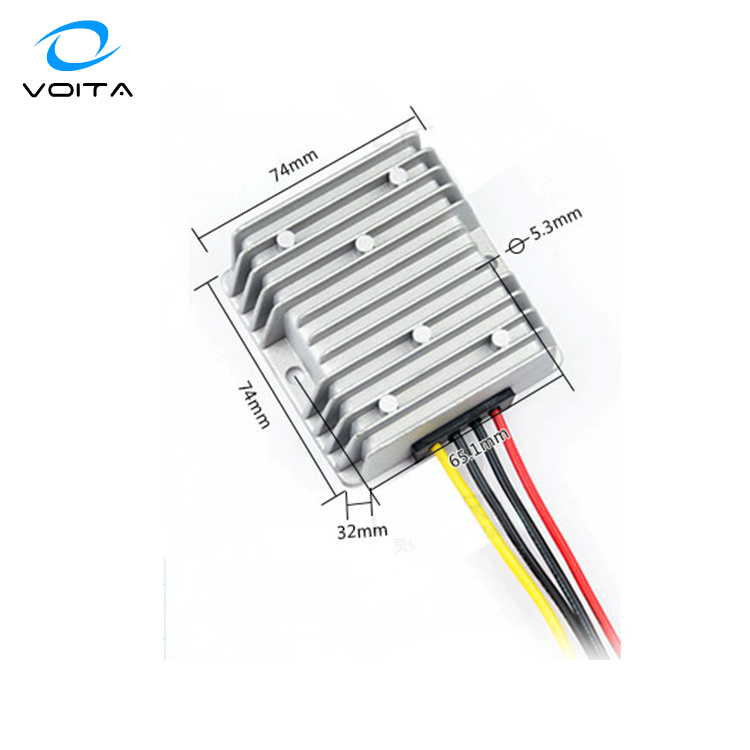

Mechanical	Weight: 260g \| Size: 747432mm

🖼️ Product Details

❓ Frequently Asked Questions

Q1: What is the maximum conversion efficiency of this converter? A: Thanks to synchronous rectification technology and high-quality imported components, the conversion efficiency exceeds 96%.

Q2: Can this device be used in harsh outdoor environments? A: Yes, it features an IP67 waterproof rating and a wide working temperature range from -40℃ to 80℃.

Q3: What safety protections are built into the chip? A: The chip includes smart protection against overheating, overcurrent, overvoltage, and short circuits.

Q4: Does the aluminum shell get very hot during operation? A: The flame retardant aluminum shell is designed for excellent heat dissipation, resulting in almost no heat generated during standard use.

Q5: What are the input and output voltage specifications? A: The rated input is DC 48V (range 30-60V) and the output is a stable DC 12V at 20A.

Q6: What type of wiring is used for the connections? A: The unit comes with 14 AWG cables, approximately 15cm in length, with specific color coding for positive and negative terminals.
