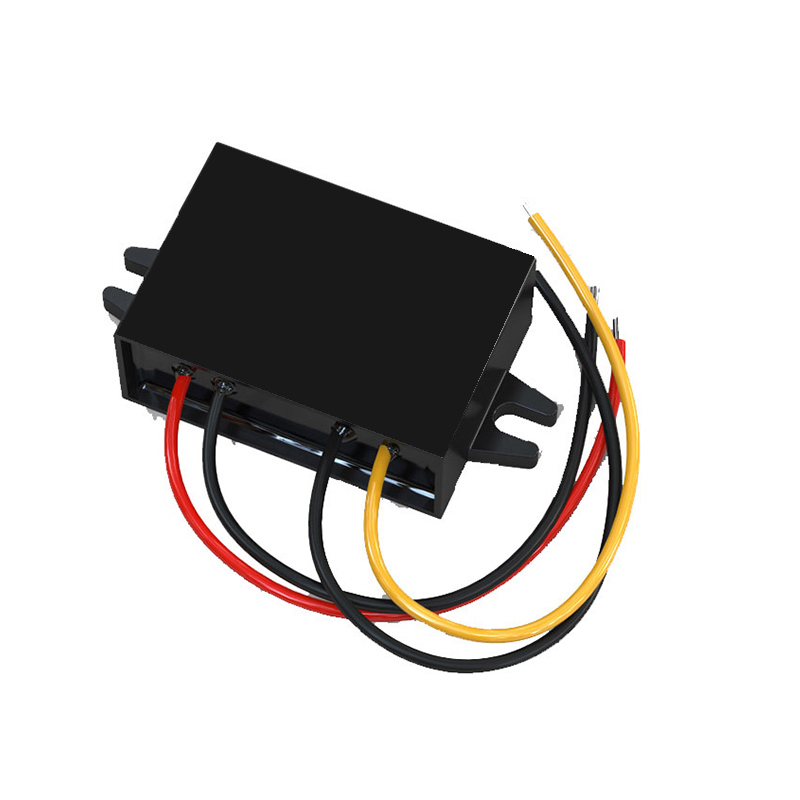

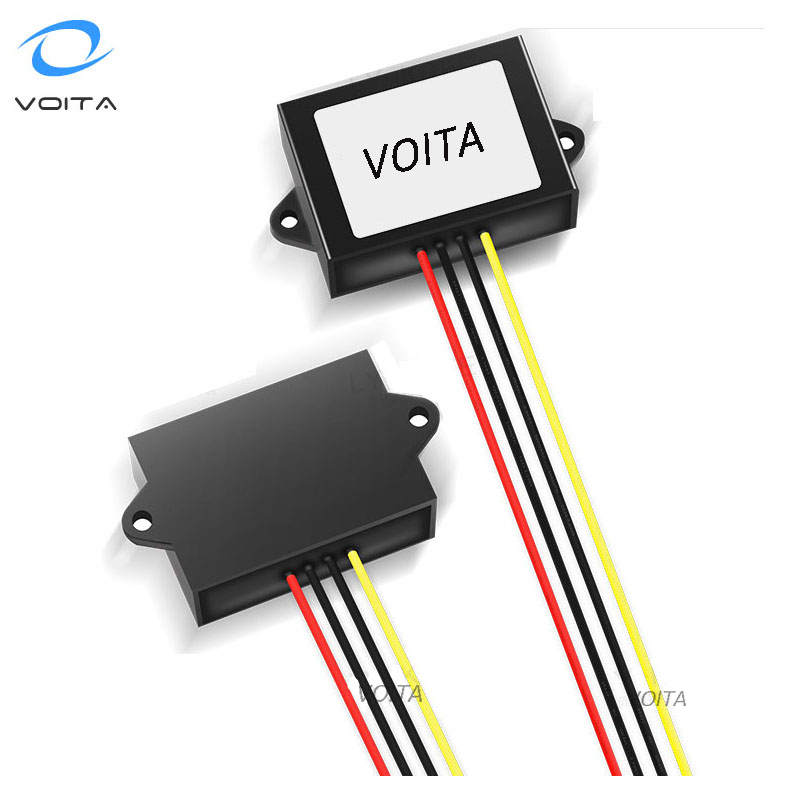

Voltage Regulator Power Converter 48v to 24v Dc Dc Step Down Converters CE Rohs to 24v 5a 1a 2a 3a Single Plastic Shell IP68 /

Send Inquiry

Product Description

Key Features

✔ Synchronous rectification technology, imported components, conversion efficiency more than 96%
✔ Imported internal resistance capacitor filter, withstand high temperature.
✔ Flame retardant plastic shell, Almost no heat generated when using.
✔ Chip smart protection, anti-overheating, overcurrent protection.

Technical Specifications

Product Name	DC DC converter
Model	VT-DD48245
Input voltage	DC48V (30V-60V)
Output voltage	DC24V ± 0.1V
Output current	1A	2A	5A
Output power	24W	48W	120W
Transfer efficiency	96%
Working temperature	-25℃ to 85℃
Overheating protection	150℃
No load current	≤0.55mA
Water proof	IP68
Weight	65g

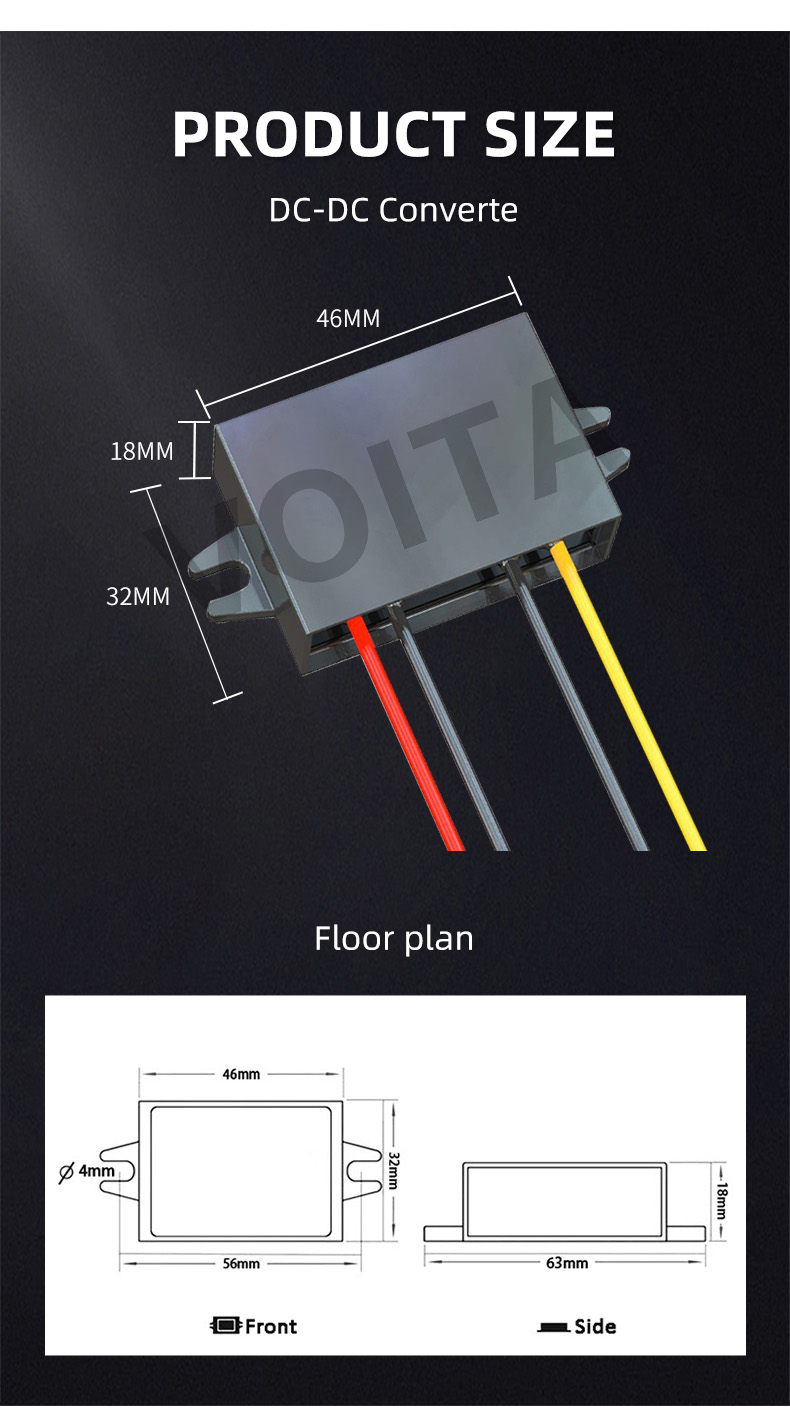

Size	463218mm
Installation length	15cm
Application	Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment

Product Gallery

Frequently Asked Questions

What is the energy conversion efficiency of this converter?

The converter utilizes advanced synchronous rectification technology and imported components to achieve an efficiency rate of more than 96%.

Is the device suitable for outdoor or wet environments?

Yes, the converter has an IP68 waterproof rating, making it highly resistant to water and dust, suitable for various demanding environments.

What kind of protection features are included?

The unit includes smart chip protection, featuring anti-overheating (up to 150℃) and overcurrent protection to ensure long-term stability and safety.

What is the input voltage range for this 24V output model?

While the nominal input is DC 48V, the device safely handles a wide input voltage range from DC 30V to 60V.

Does the device get very hot during operation?

Thanks to its flame-retardant plastic shell and high-efficiency design, it generates almost no heat during normal use.

What are the main applications for this DC-DC converter?

It is versatile and commonly used for motors, audio systems, GPS navigation, LED displays, solar energy systems, and industrial equipment.
