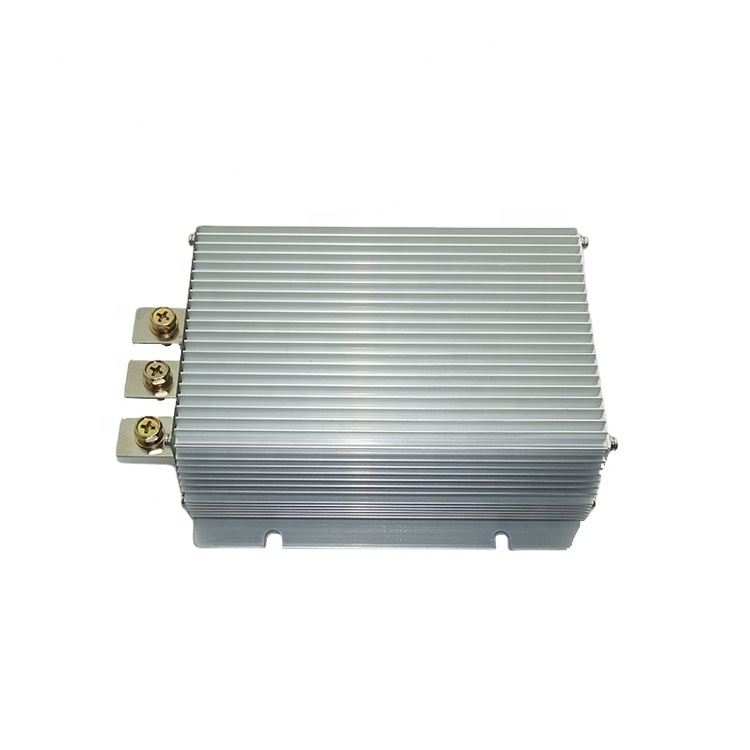

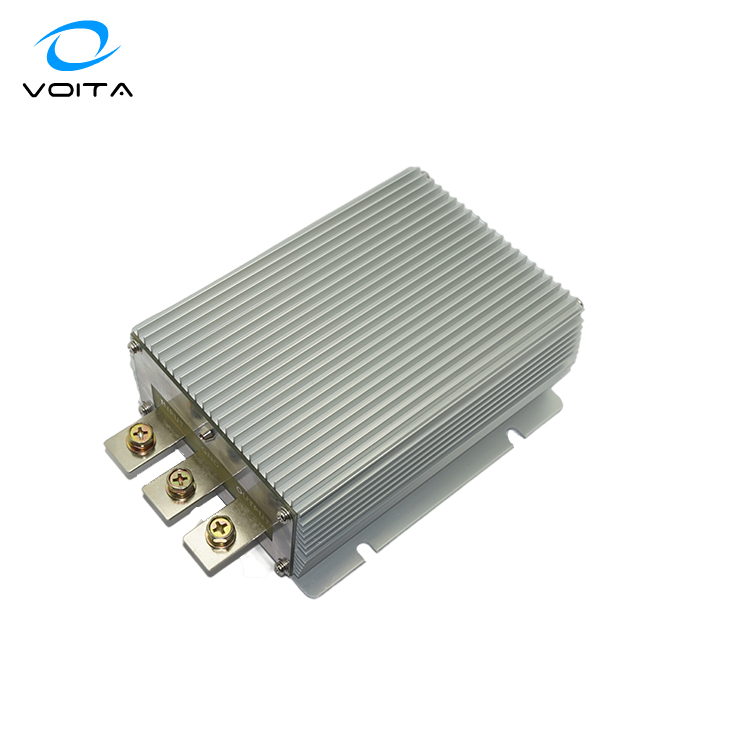

Factory Price 12v DC 24v DC Converter 12v to 24v 30A Boost Converter Power Converter

Send Inquiry

Product Description

Technical Characteristics

⚡

High Efficiency
Synchronous rectification technology with imported components, conversion efficiency more than 96%.

🛡️

Smart Protection
Chip smart protection including anti-overheating and overcurrent protection.

🌡️

Durable Filter
Imported internal resistance capacitor filter, built to withstand high temperatures.

🏢

Aluminum Shell
Flame retardant aluminum shell, ensures almost no heat generated during use.

Product Specifications
Model	VT-DD122430
Input	Rated voltage	DC 12V
	Voltage range	9-16V
	Efficiency	96% @ 12V input
Output	Voltage	24V
	Max. rated current	30A
	Max. rated power	720W
Environment	Working temperature	-40℃ ~ 80℃
Environment	Storage temperature	-40℃ ~ 80℃
Protection & Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof Level	IP67
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	1.6kg
Mechanical	Size	15012763mm

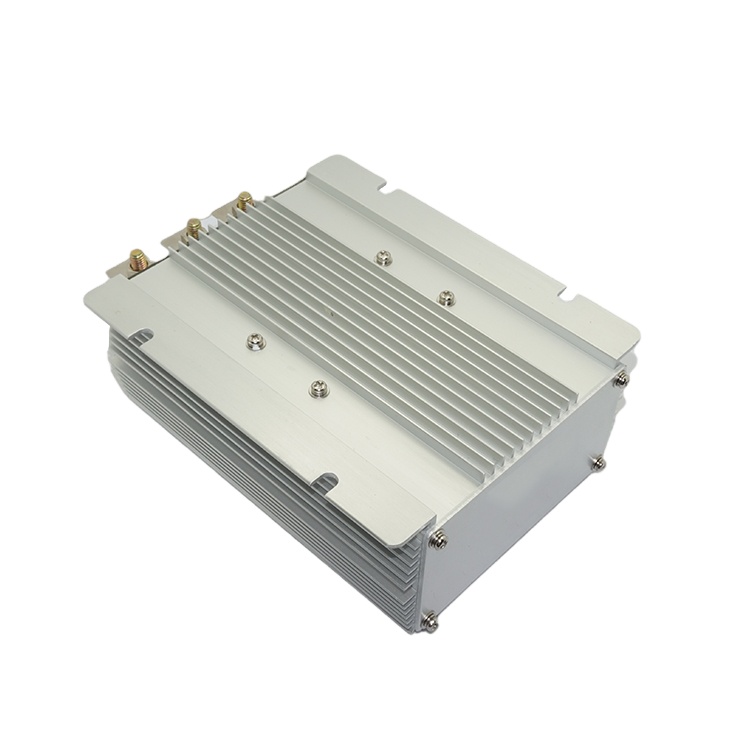

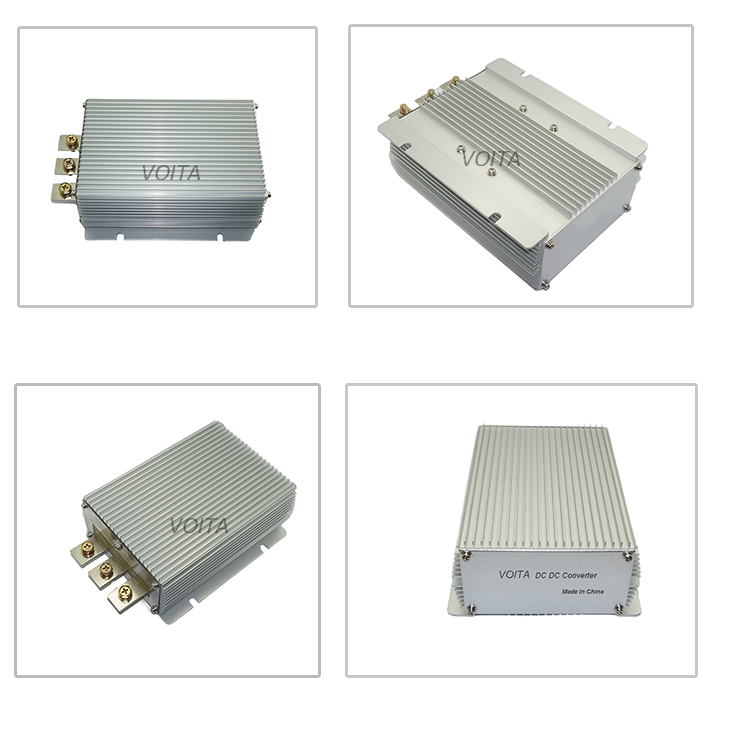

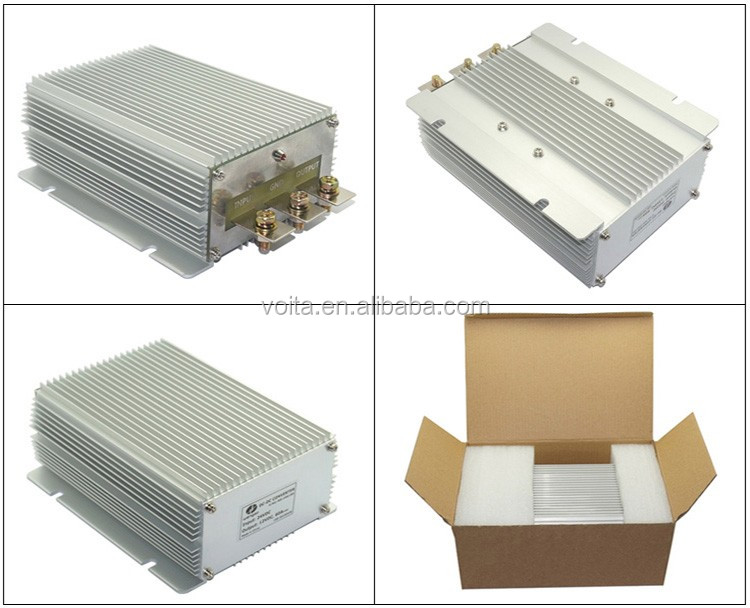

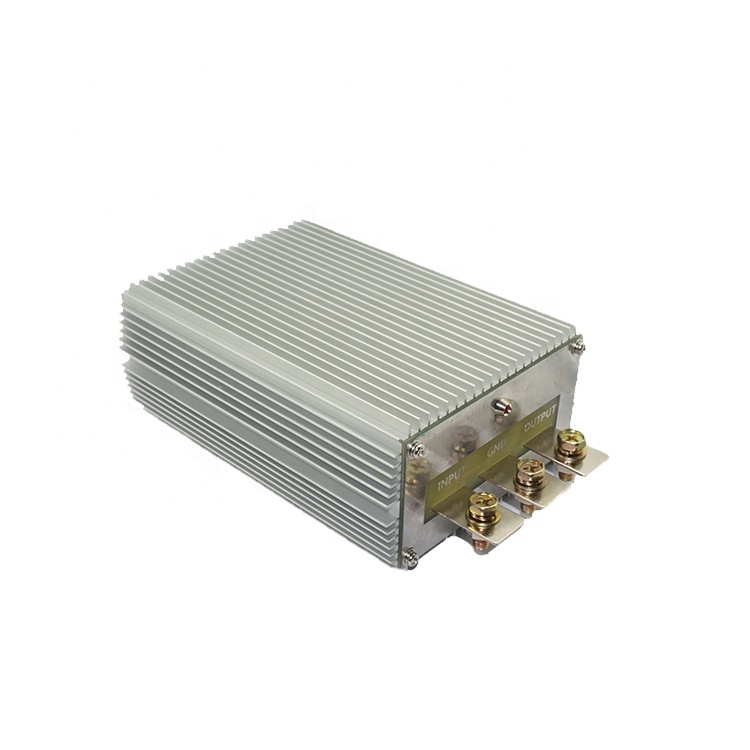

Detailed Images

Frequently Asked Questions

What is the maximum efficiency of this converter?

The converter utilizes advanced synchronous rectification technology, achieving a conversion efficiency of over 96%.

Is the unit waterproof for outdoor use?

Yes, the device is rated IP67 waterproof, making it suitable for harsh environments and outdoor applications.

What safety protections are included?

It features comprehensive smart protection, including short circuit, over-current, over-voltage, and over-temperature protections.

What are the operating temperature limits?

The unit is designed to operate reliably in temperatures ranging from -40℃ to 80℃.

How does the aluminum shell benefit the performance?

The flame-retardant aluminum shell provides excellent heat dissipation, ensuring almost no heat buildup during standard operation.

Can it handle input voltage fluctuations?

Yes, while the rated input is 12V DC, it supports a wide input voltage range from 9V to 16V.
