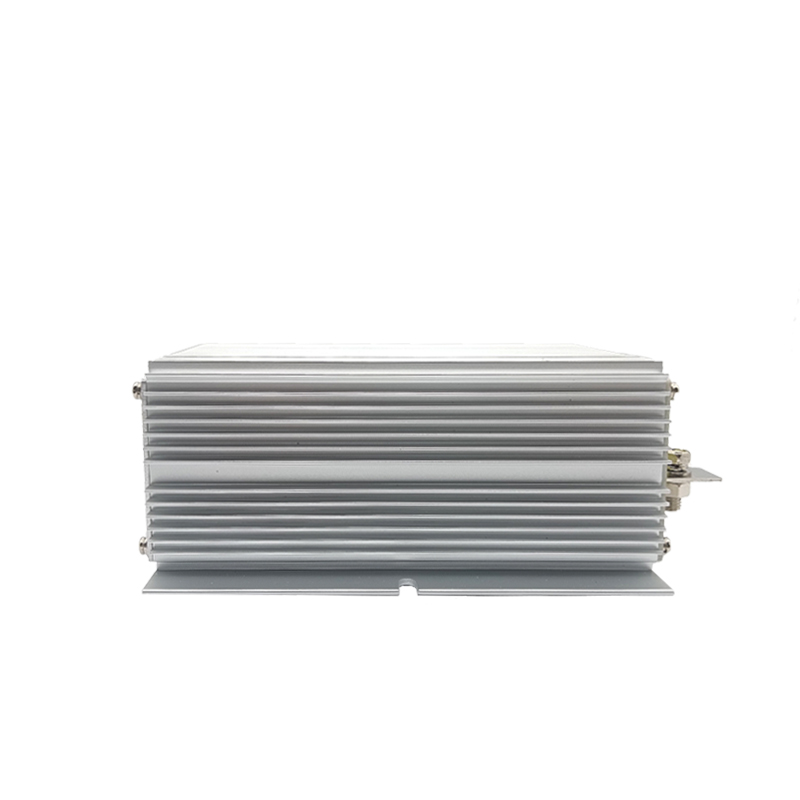

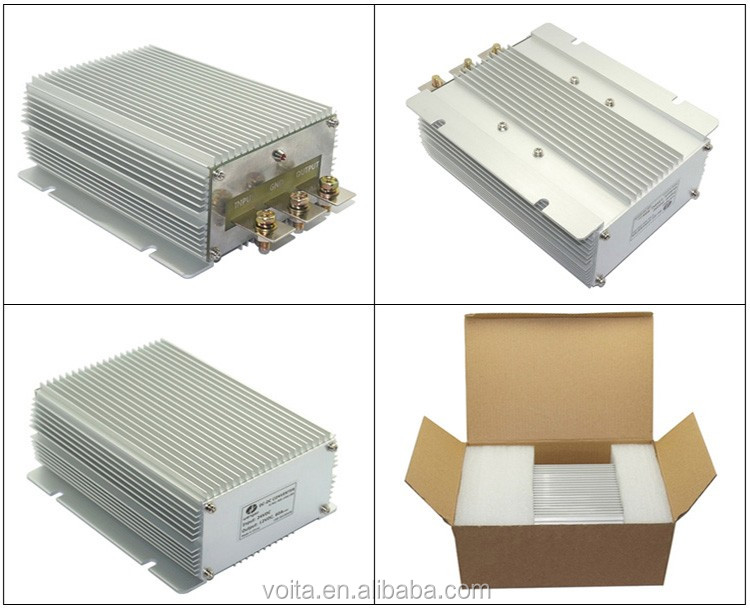

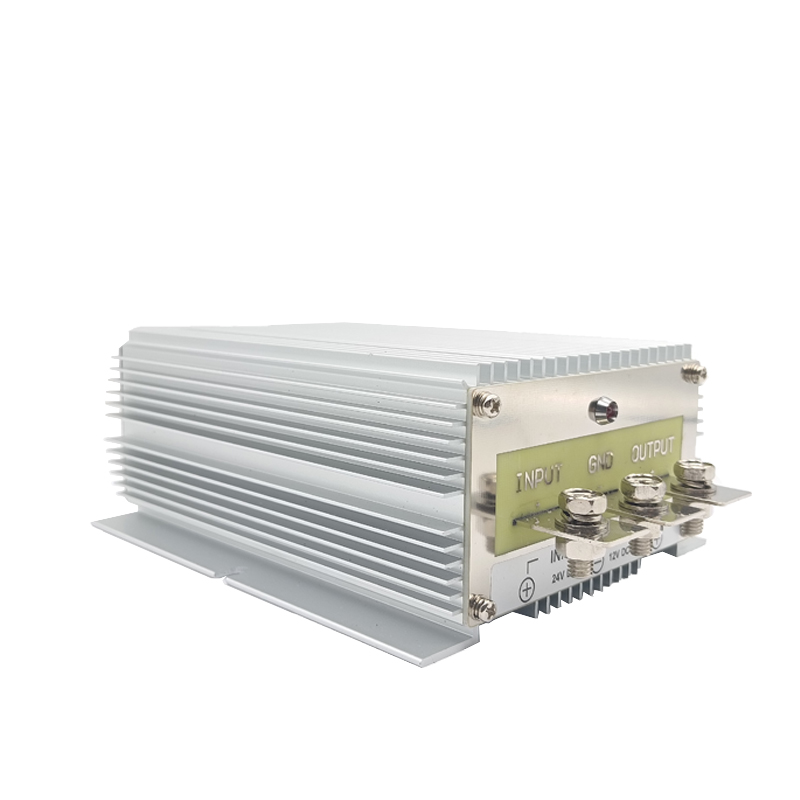

VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
1 / 5
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter
VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter

VOITA Brand 1 Year Warranty 12v to 48v 480w Dc Dc Converter

Send Inquiry

Product Description

Product Overview: 12V to 48V 480W DC-DC Converter
12v to 48v 480w dc dc converter
Key Features
1100% full power & stable current output
2100% Imported components
3Wide input voltage range from 8-36Vdc
4100% waterproof & anti-shock protection (IP68)
5High efficiency up to 92% (Step-down converter performance)
6Certified by CE/RoHS standards
7Die-cast aluminum shell with epoxy potting for cooling
8Ultra compact size and lightweight design
9Full Protection: Over-current, Over-voltage, Over-temperature, Over-load, and Short-circuit
10Non-Isolated Module with Auto-recovery
111 year warranty with lifetime up to 100,000 hours
Technical Specifications
Parameter Specification Details
ModelVT-DD124810
Input rated voltage12V DC
Input voltage range10-25V DC
Efficiency97% (half load) ; 96% (full load)
Output voltage48V DC
Output current10 Amps
Output rated power480 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 180mV
No-load current< 30mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP 68
ProtectionsOver-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size180*127*63mm
Package size230*152*100
Net Weight1.55kg
Gross Weight1.62kg
Cooling wayFree air convection
PackagingCarton package
Wide Applications
Electric motors Audio systems GPS Monitors LED car display Electric fans Photovoltaic energy DVD players LED lights Pumps
Application display
Product Gallery

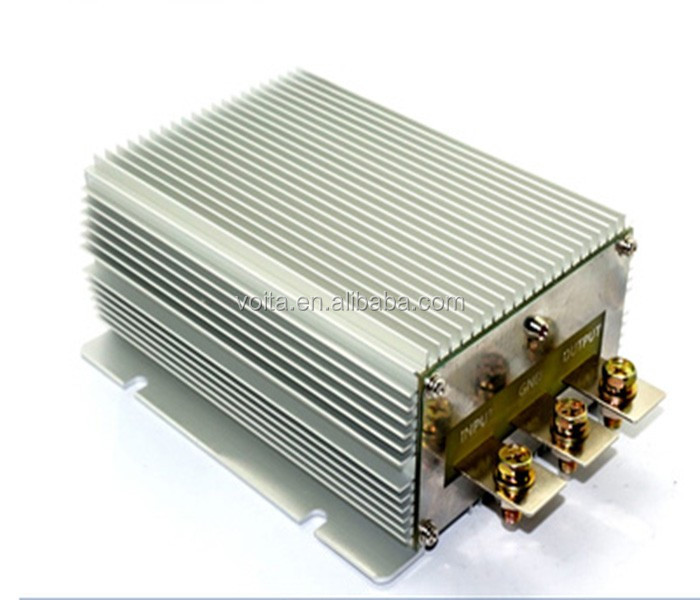

DC DC Converter Detail 1

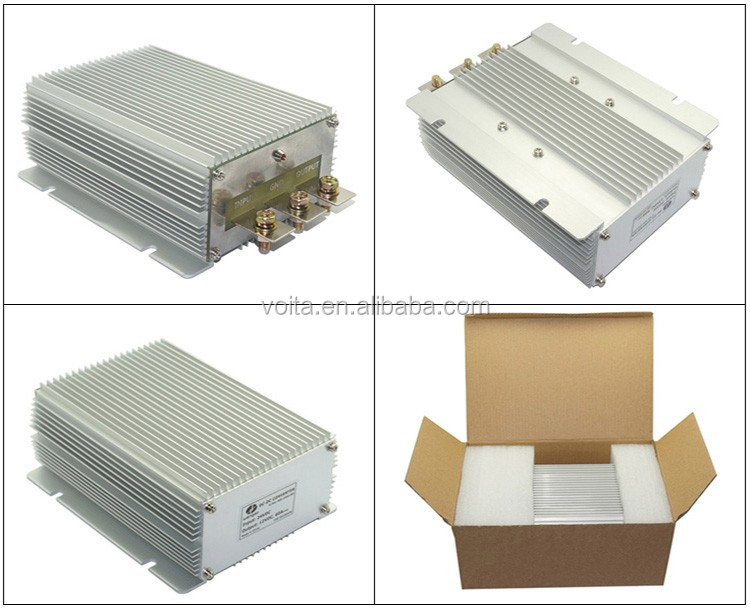

DC DC Converter Detail 2

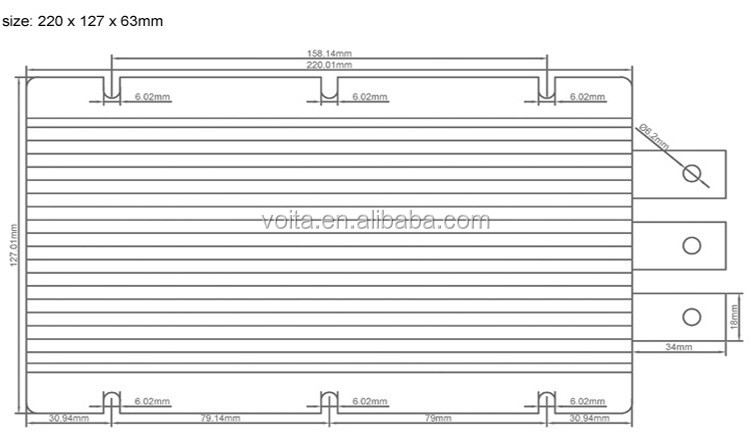

DC DC Converter Detail 3
Production & Quality Control

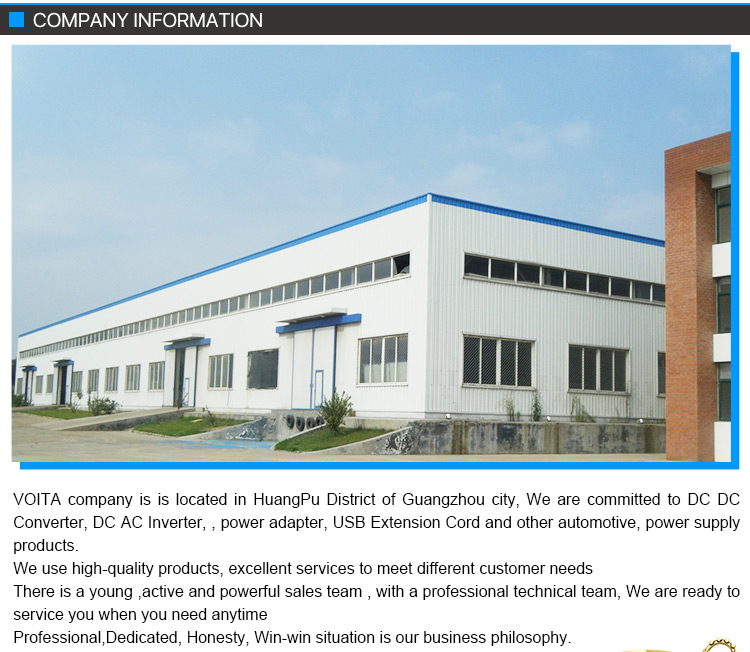

Production Image 1
Production Image 2
Production Image 3
Production Image 4
Production Image 5
Production Image 6
Frequently Asked Questions
What is the input voltage range for this 480W converter?
The device accepts a wide input voltage range from 10V to 25V DC, making it ideal for 12V battery systems.
Is this DC-DC converter suitable for outdoor use?
Yes, it features an IP68 waterproof rating and a die-cast aluminum shell with epoxy potting, providing 100% waterproof and anti-shock protection.
What safety protections are included?
The unit is equipped with comprehensive protection against over-current, over-voltage, over-temperature, over-load, and short-circuits, with auto-recovery functionality.
Can this converter be used for high-power electric motors?
Absolutely. With a 480W rated output and a peak power capacity of 125%, it is suitable for electric motors, pumps, and other high-demand equipment.
How does the cooling system work?
The converter utilizes free air convection cooling, facilitated by its efficient aluminum heat-sink shell design.
What certifications does this product hold?
This DC-DC converter is fully certified with CE and RoHS standards, ensuring high quality and safety compliance.
