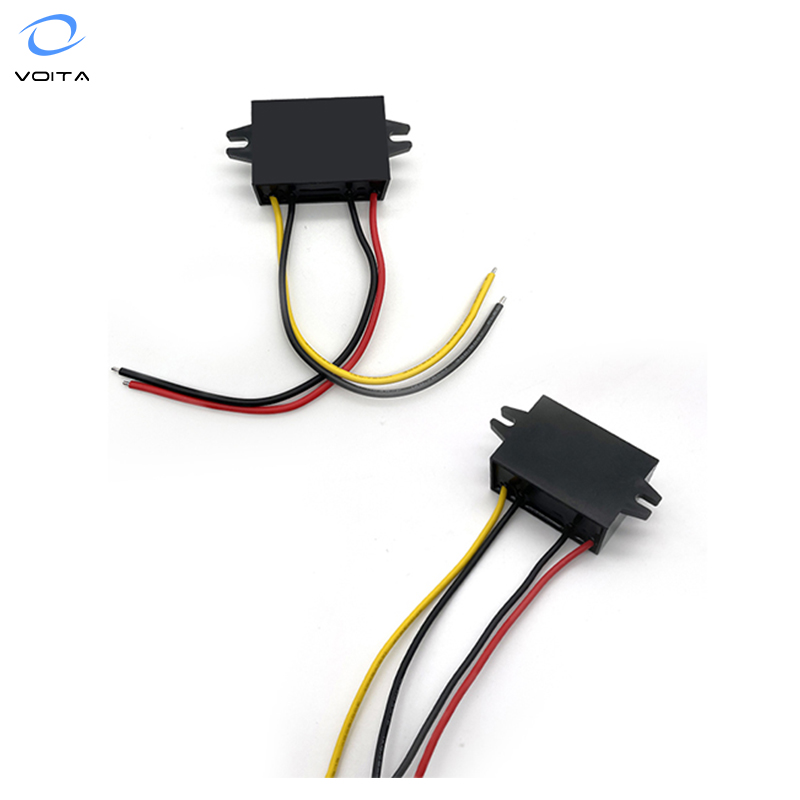

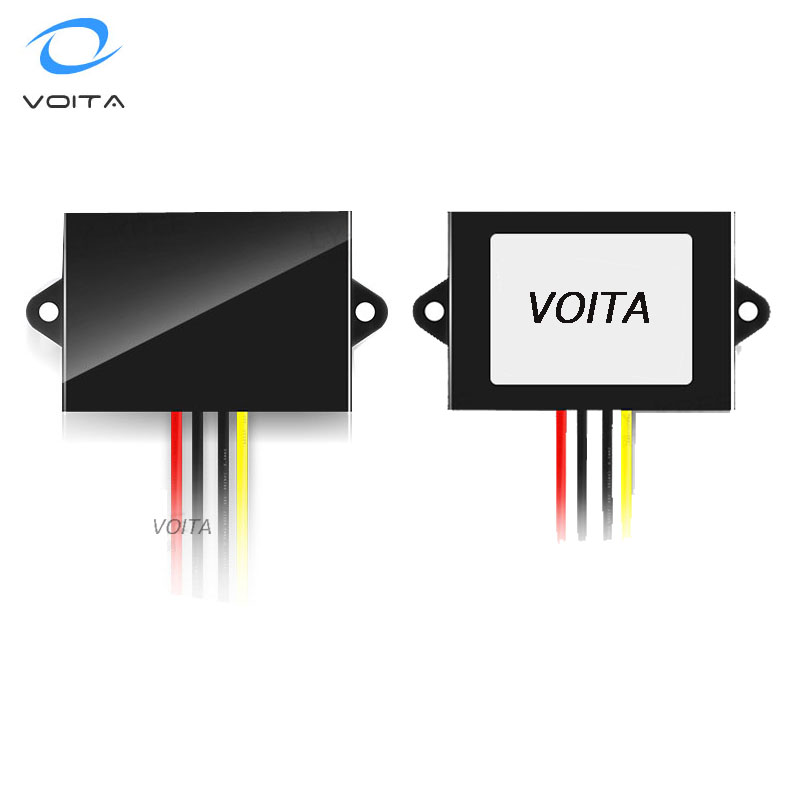

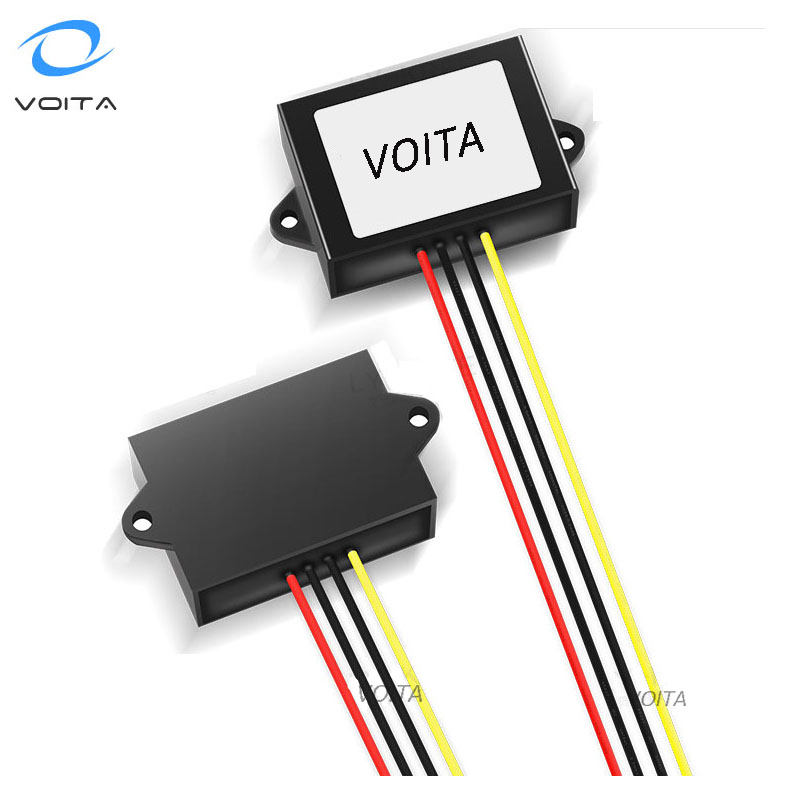

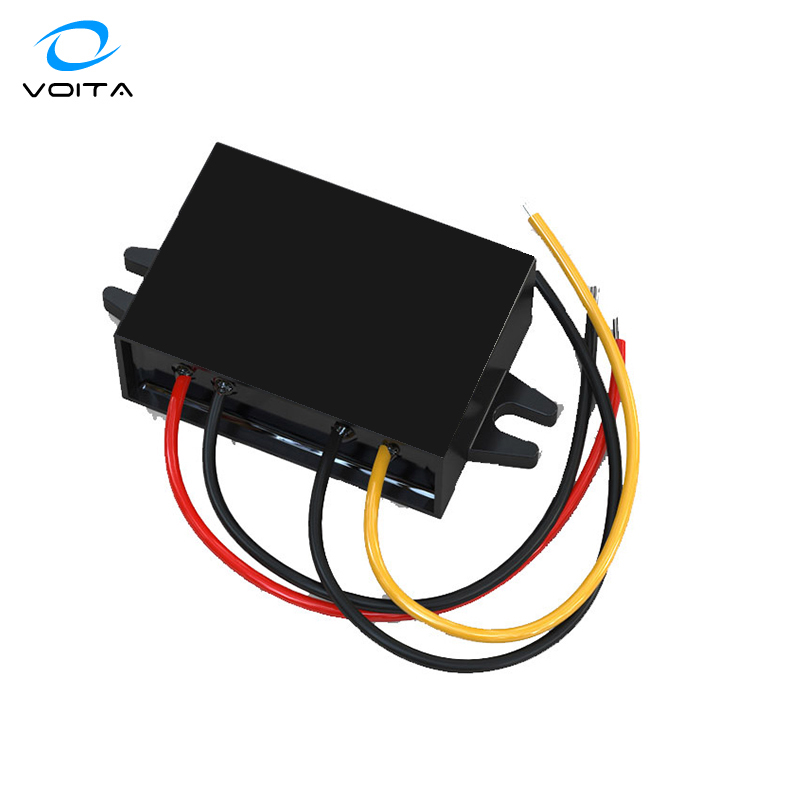

Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
1 / 5
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter
Hot Sell 12v to 24v Dc Step up Converter

Hot Sell 12v to 24v Dc Step up Converter

Send Inquiry

Product Description

DC DC Converter Banner
DC DC Converter Details
⚡
High Efficiency Power Conversion: Our DC-DC Step-Up converters provide stable 24V output with up to 96% transfer efficiency.
Technical Specifications Performance Parameters
Product Name DC DC converter
Input voltage DC12V (9V-20V) / (10-20V)
Output voltage DC24V ± 0.25V
Output current 1A 2A 3A 4A 5A
Output power 24W 48W 72W 96W 120W
Transfer efficiency 96%
Working temperature -25℃ to +85℃

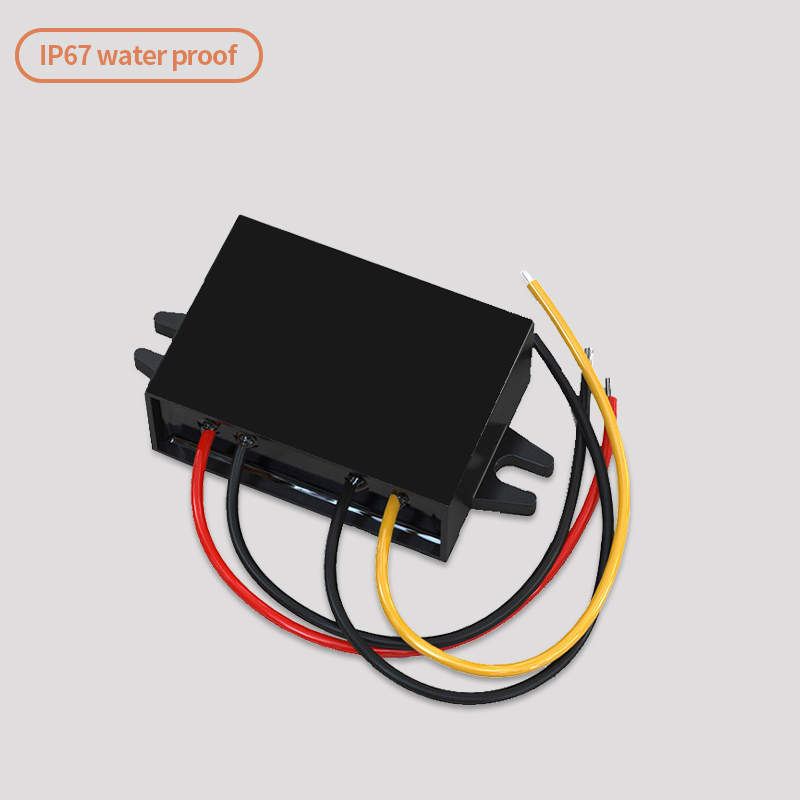

Water proof IP67
Overheating protection 180℃
Weight 97g
Size 58*40*22mm
Installation length 15cm
Application Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights, motors, pumps and industrial equipment
🛡️
Rugged Protection: IP67 waterproof rating ensures reliable operation in harsh environments, featuring built-in overheating protection at 180℃.
Frequently Asked Questions
What is the input voltage range for this DC-DC converter?
The converter accepts a wide input range from DC 9V to 20V, making it ideal for standard 12V battery systems.
Is the device suitable for outdoor or marine use?
Yes, the converter is rated IP67 waterproof, which means it is protected against dust and immersion in water, suitable for marine and outdoor applications.
What kind of power efficiency can I expect?
This model features high-efficiency power conversion technology, reaching a transfer efficiency of up to 96%.
What safety protections are built into the unit?
It includes integrated overheating protection that activates at 180℃ to prevent damage to the unit and connected equipment.
What are the common applications for a 12V to 24V converter?
It is widely used for motors, LED displays, navigation systems, solar energy setups, industrial pumps, and car audio equipment requiring stable 24V power.
How compact is the converter for tight installations?
The unit is very compact, measuring only 58*40*22mm with a weight of 97g, allowing for easy installation in small spaces.
