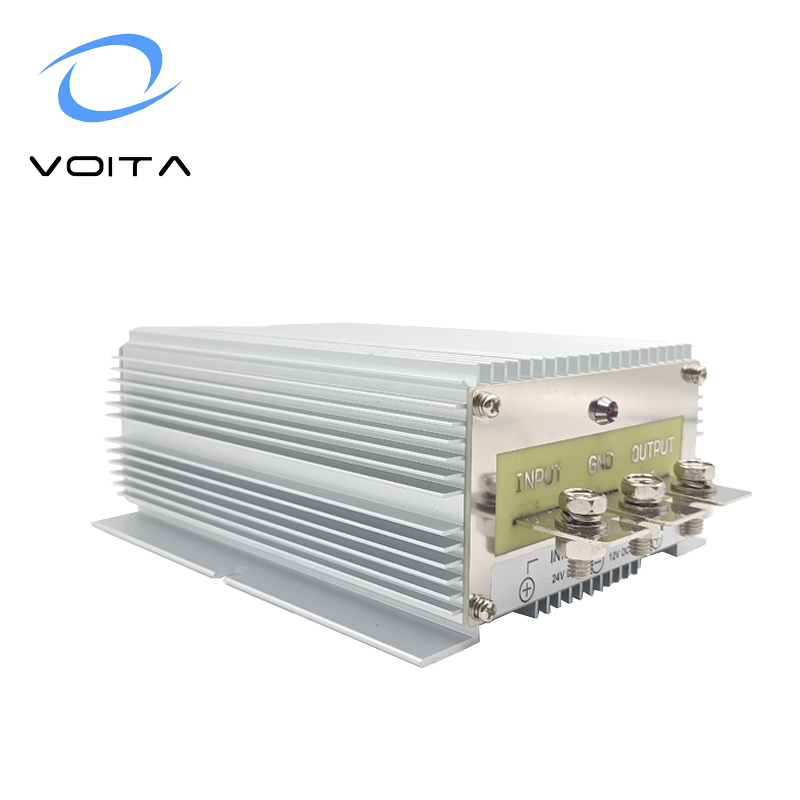

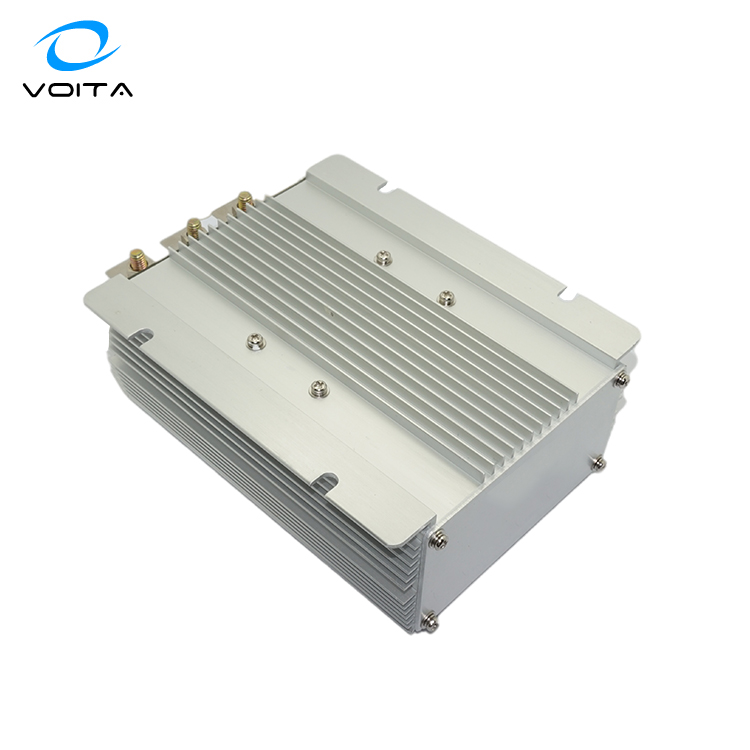

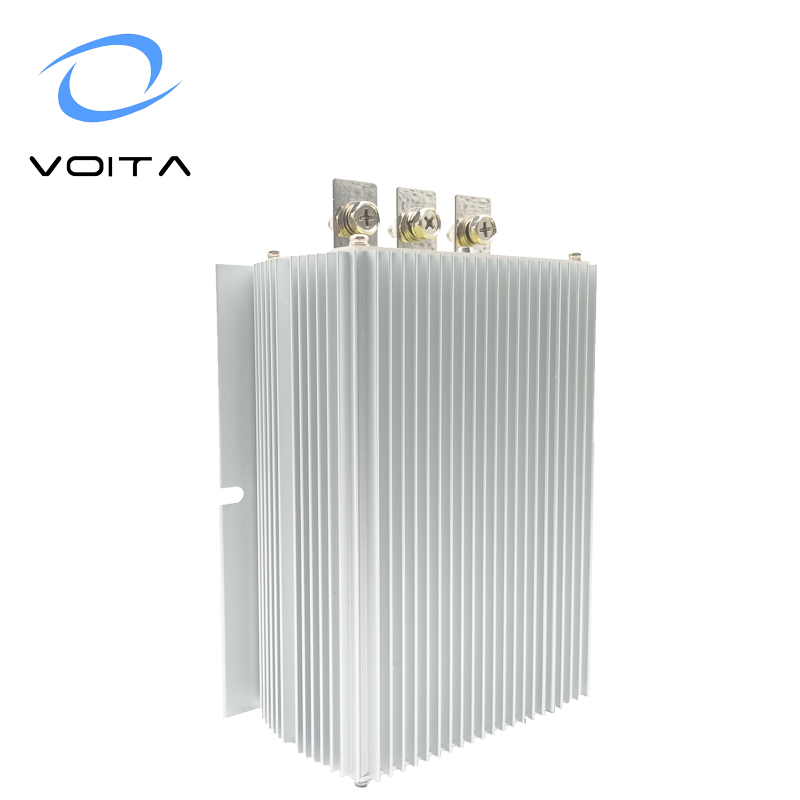

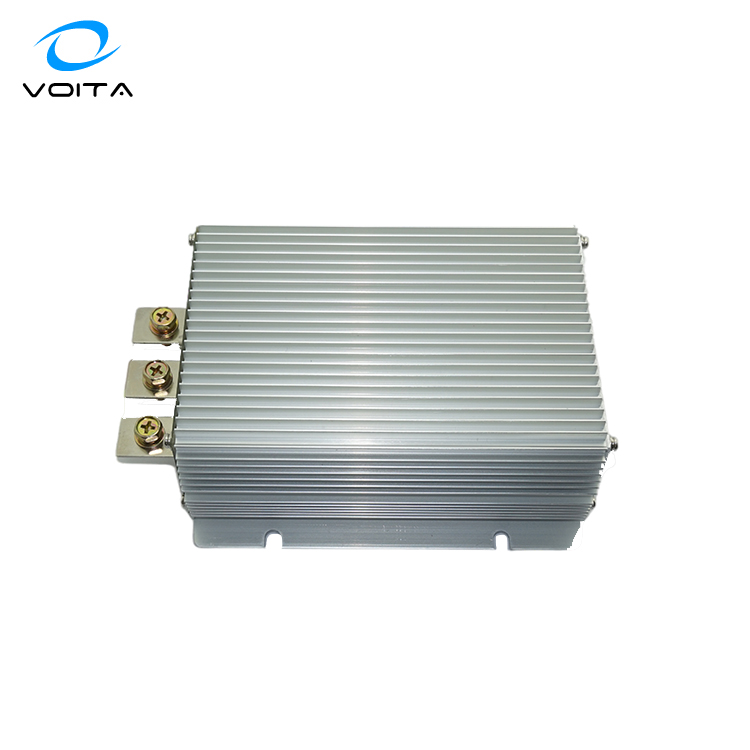

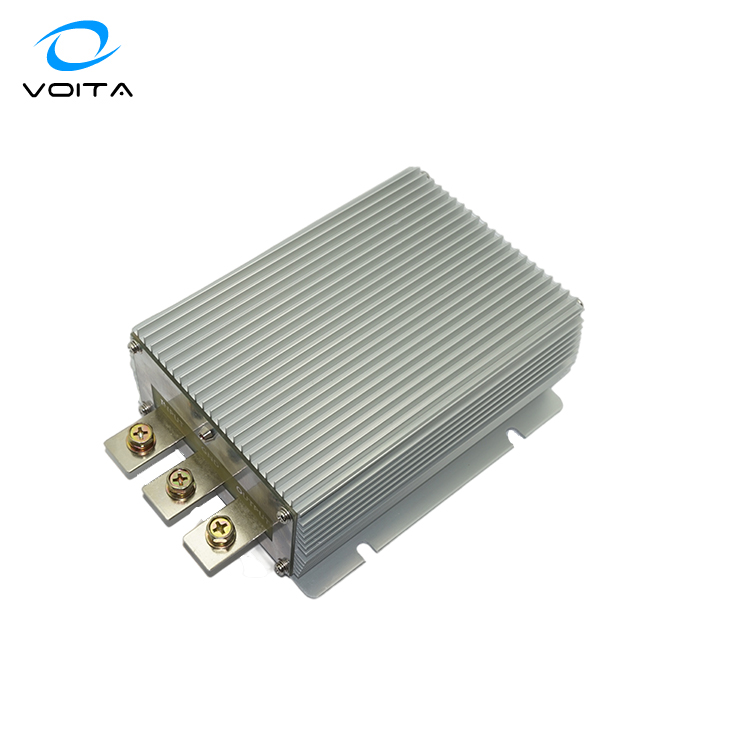

DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
1 / 5
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer
DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer

DC-DC Converter 12V to 24V 30A Non-isolated DC Converter 720W Module Voltage Transformer

Send Inquiry

Product Description

Product Main Image
Product Features
✔ Synchronous rectification technology, imported components, conversion efficiency more than 96%
✔ Imported internal resistance capacitor filter, withstand high temperature.
✔ Flame retardant plastic shell, Almost no heat generated when using
✔ Chip smart protection, anti-overheating, overcurrent protection
Specifications
Product Name12V dc to 24V dc
ModelVT-DD122430
Input VoltageDC9-16V
Output VoltageDC24V±0.25V
Output Current30A
Output Power720W
Transfer Efficiency90%
Working Temperature-20℃-85℃
Overheating Protection150℃
Overcurrent ProtectionYes
Weight1.5kg
Dimensions150*127*63mm
Installation Length15cm
WaterproofIP67
Warranty1 Year

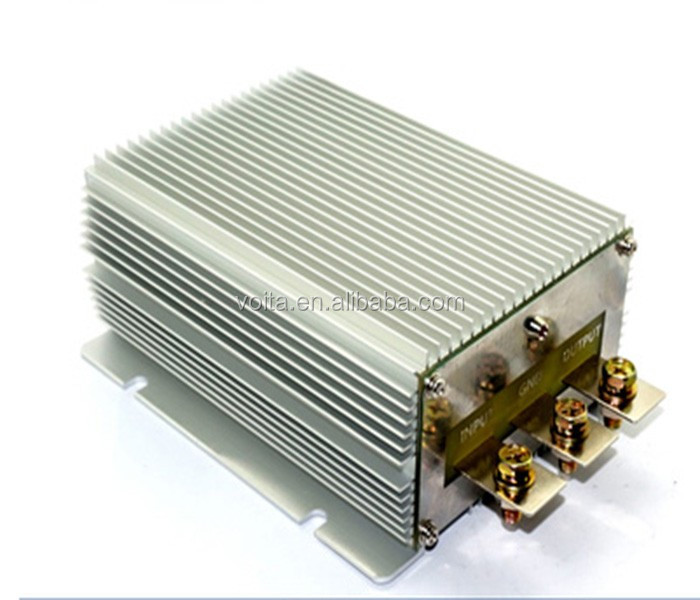

Detailed Images
Our Service
1. Your inquiry will be replied within 24hrs.
2. OEM & ODM are welcome.
3. Distributorship available for unique designs.
4. Protection of your sales area and private information.
5. Free replacement and maintenance in warranty period.
6. Skilled workers and strict quality inspection (QA Report).
7. 100% product quality protection and testing before packing.
Production Facility
Frequently Asked Questions
What is the maximum conversion efficiency of this converter?
This DC-DC converter utilizes synchronous rectification technology, achieving a conversion efficiency of over 96%.
Is the device protected against extreme weather and water?
Yes, the product is rated IP67 waterproof, making it suitable for various harsh environments.
What safety protections are built into the chip?
The smart chip includes integrated anti-overheating (up to 150℃) and overcurrent protection for safe operation.
Does the unit generate a lot of heat during use?
Thanks to the flame-retardant plastic shell and high efficiency, almost no heat is generated during normal operation.
What is the warranty period for this product?
We provide a 1-year warranty, which includes free replacement and maintenance for any quality issues.
Do you support custom manufacturing like OEM or ODM?
Yes, we fully support OEM and ODM services to meet your specific design and branding requirements.
