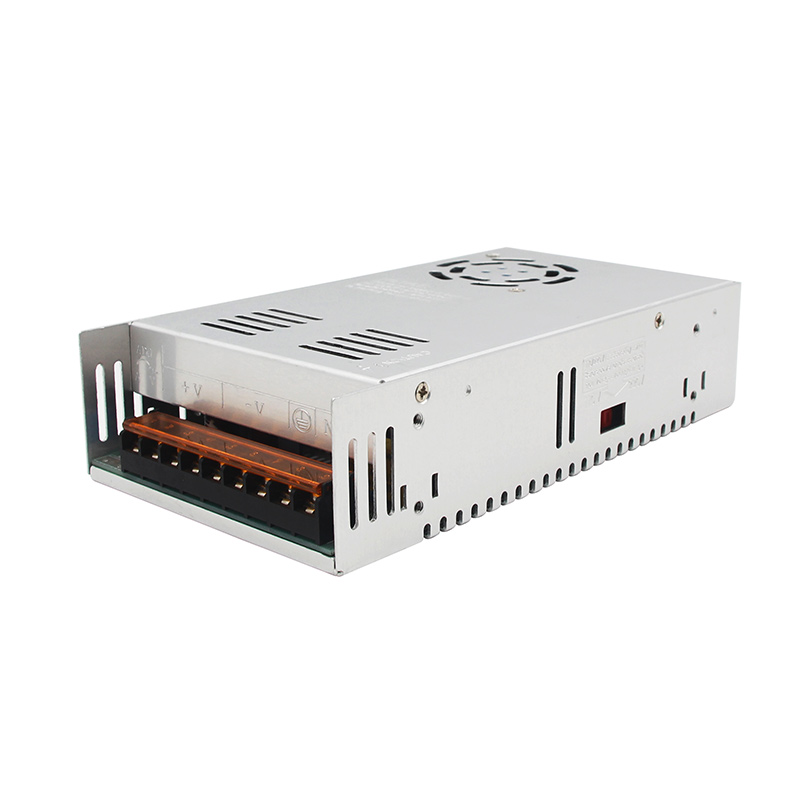

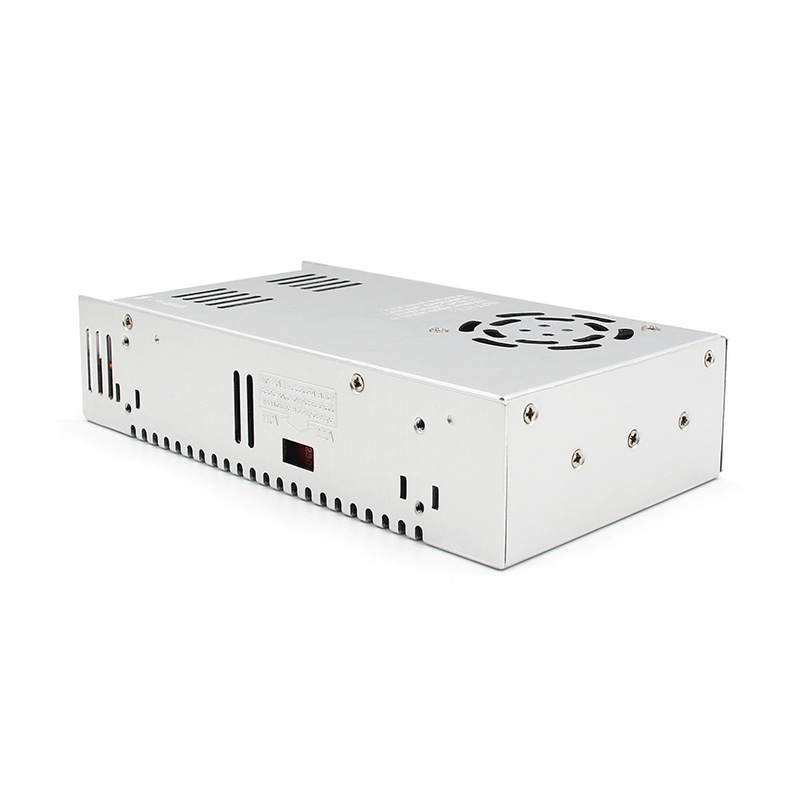

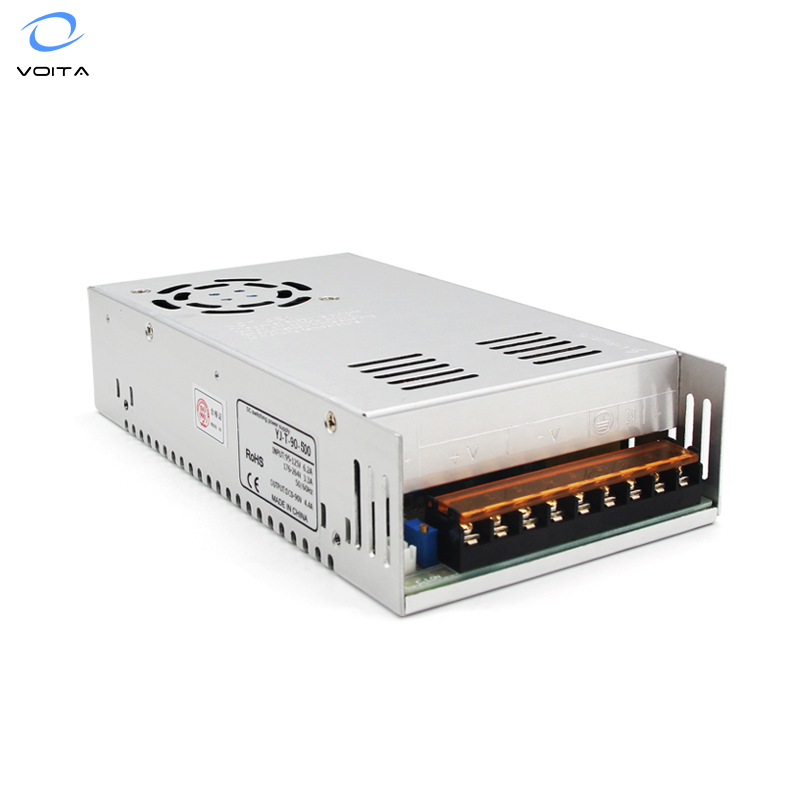

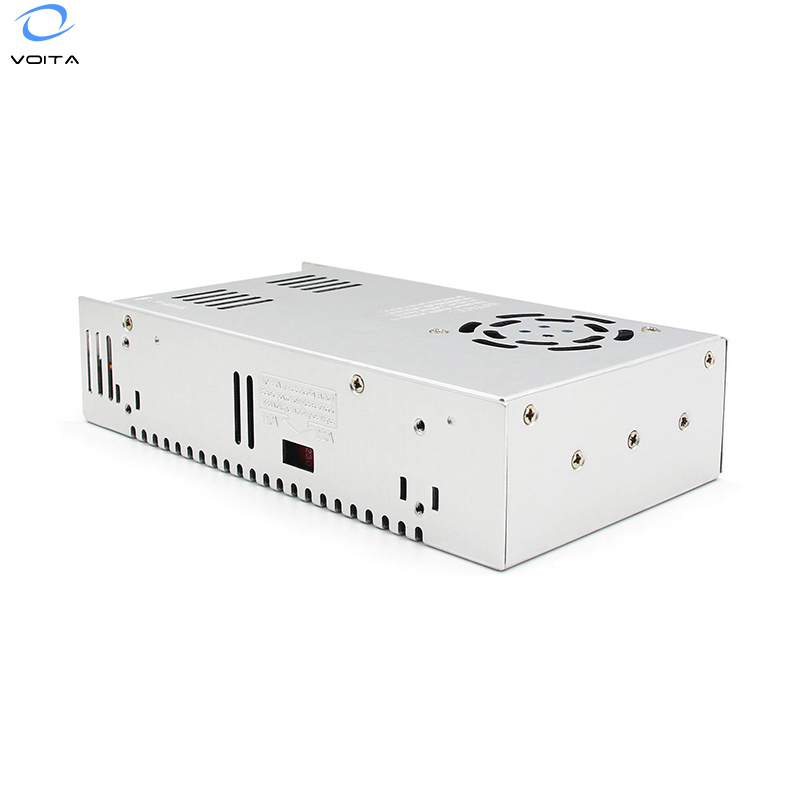

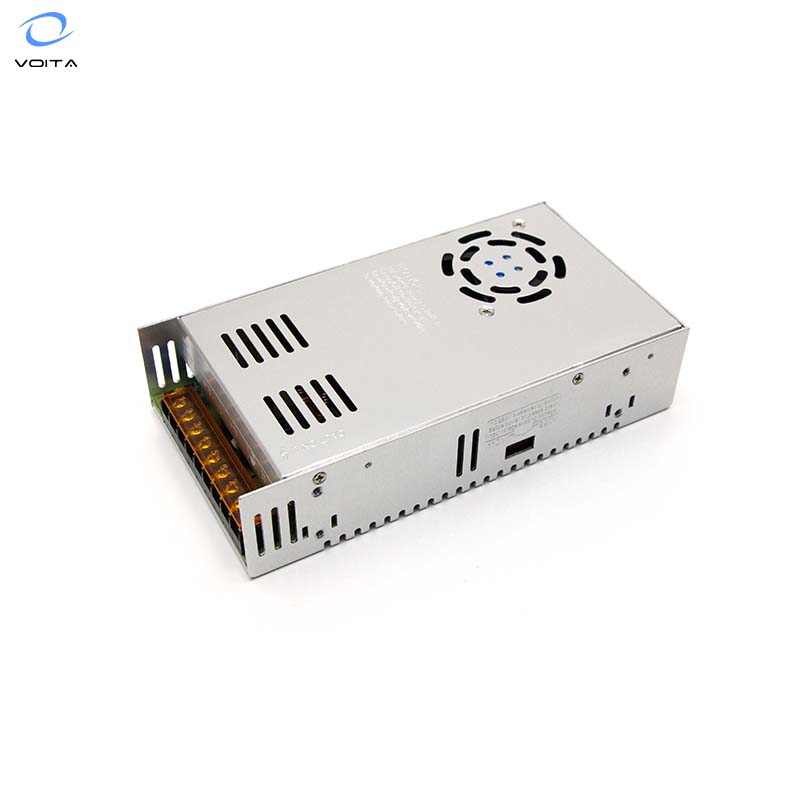

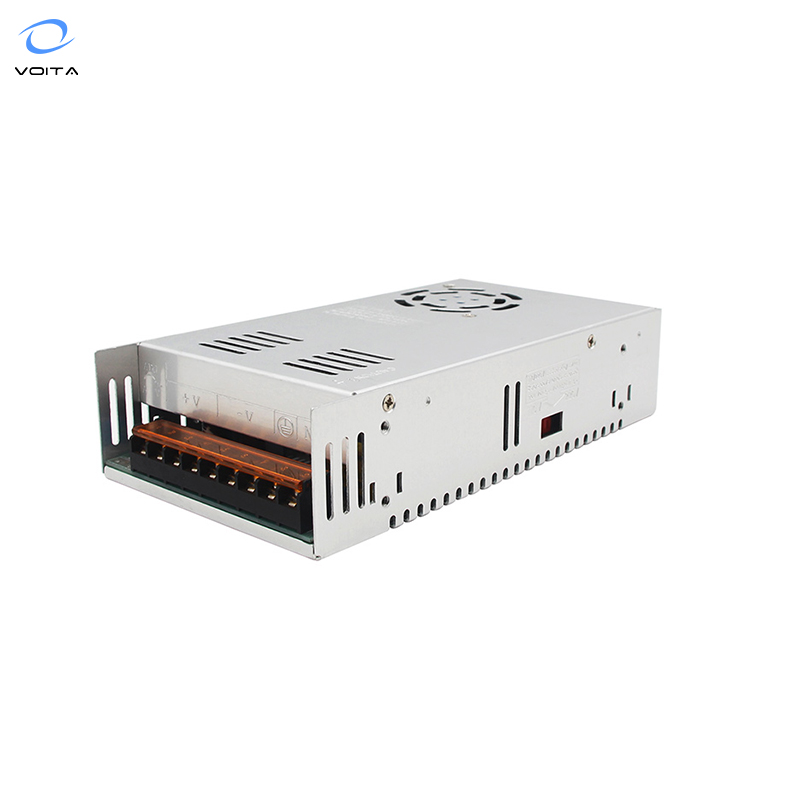

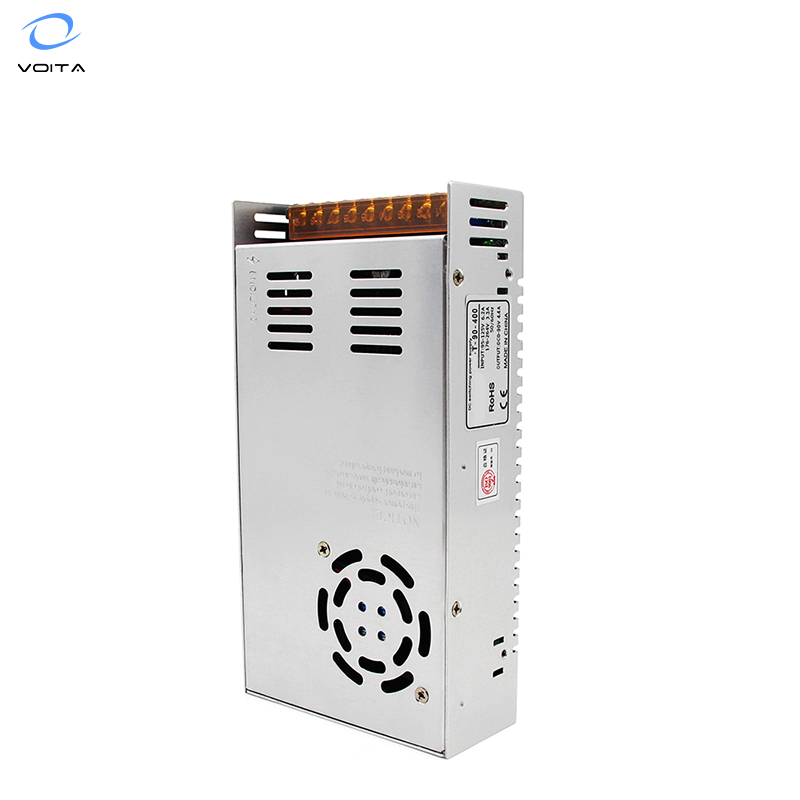

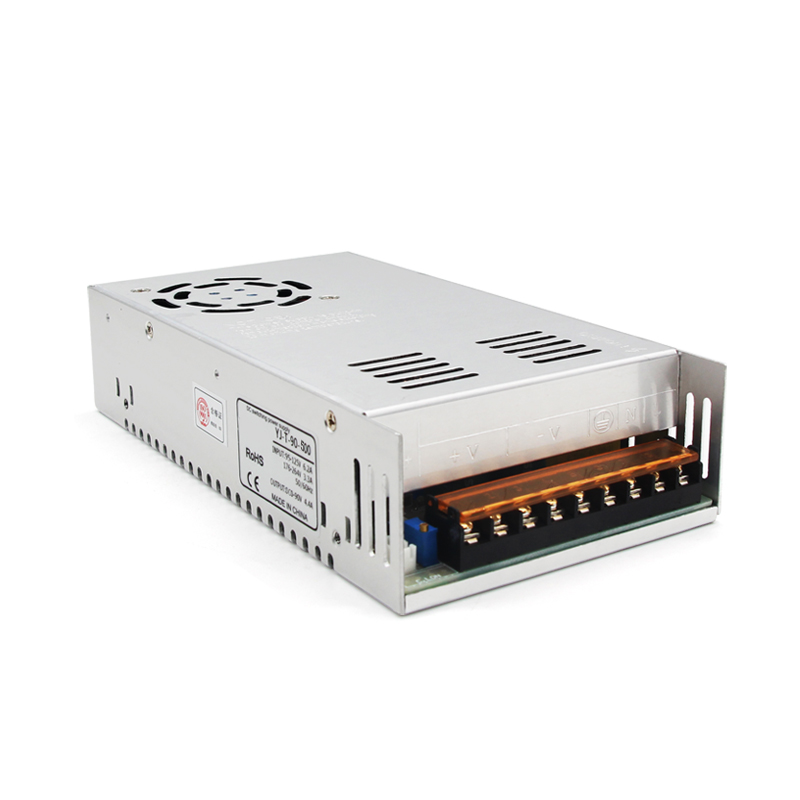

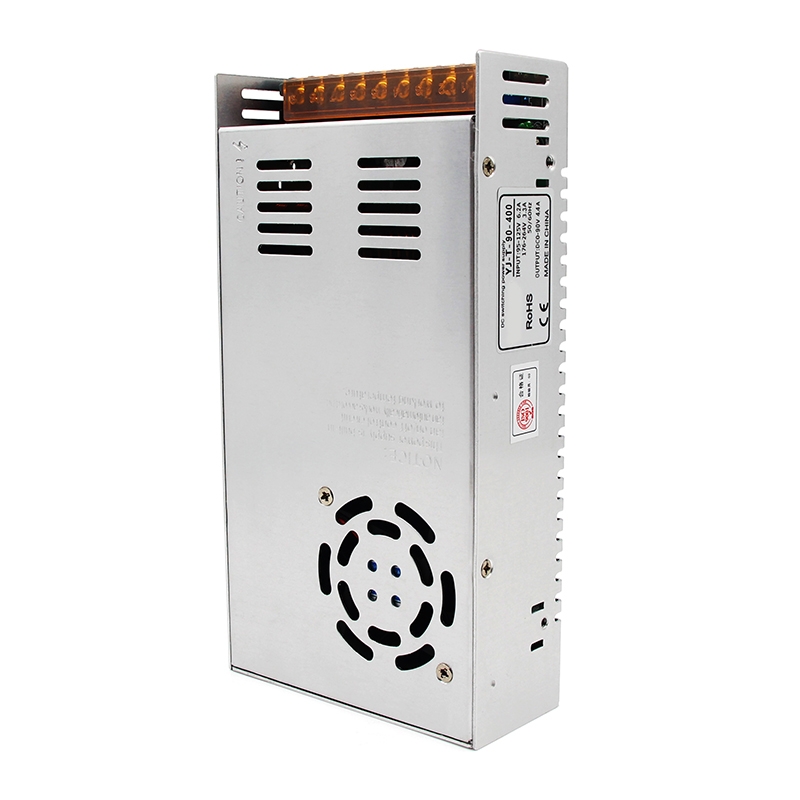

0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
1 / 5
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial
0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial

0-10V Constant Adjustable Dc Power Supply 30v 10a for Industrial

Send Inquiry

Product Description

Industrial Power Supply Overview
Specification
0-5V or 0-10V external control signal
PLC micro controller touch screen control
Support adjustment via Potentiometer
Full Protection: Overload, Short Circuit, Over Current
Anti-interference & small ripple output
Model VT-T12-360 VT-T24-360 VT-T36-360 VT-T48-360 VT-T60-360 VT-T90-360 VT-T110-360
DC Output Voltage 0-12V 0-24V 0-36V 0-48V 0-60V 0-90V 0-110V
Rated Output Current 30A 15A 10A 7.5A 6.0A 4.0A 3.2A
Wave and Noise 90mV p-p 90mV p-p 110mV p-p 110mV p-p 130mV p-p 130mV p-p 150mV p-p
Efficiency 87% 88% 90% 90% 91% 90% 91%
DC Output Power 360W
Adjustable Range Output voltage can be adjusted 100% through a potentiometer
AC Input Voltage AC 95-125V/60Hz or AC 174-264V 50Hz (Manual switching)
Working Temp. -10℃ -- 65℃, 20%--90%RH

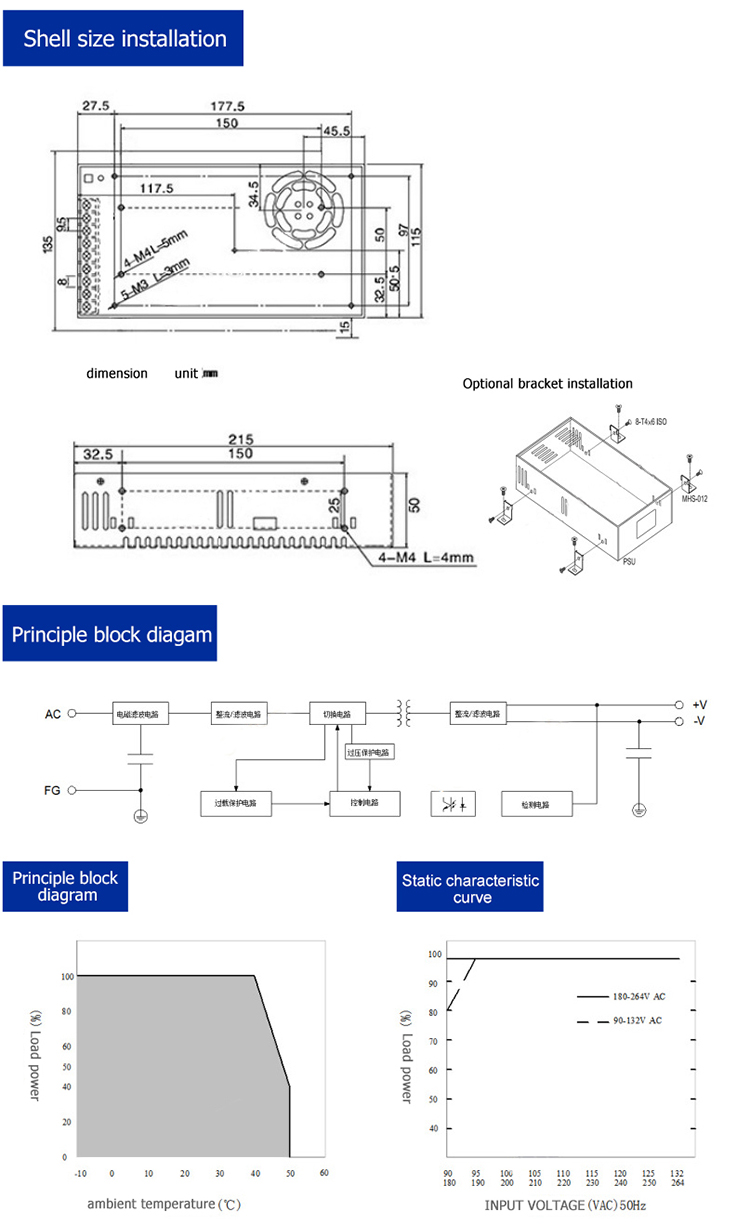

Weight/Size Net weight 1005g, 215*115*50mm

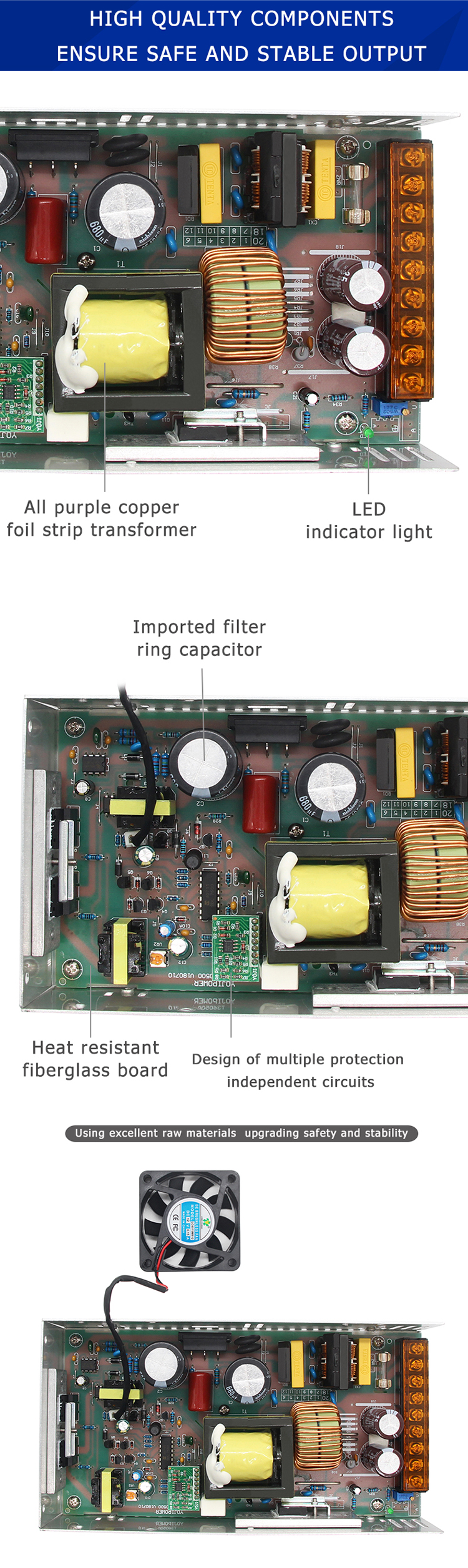

Product Description
Customized Range
Customization range options

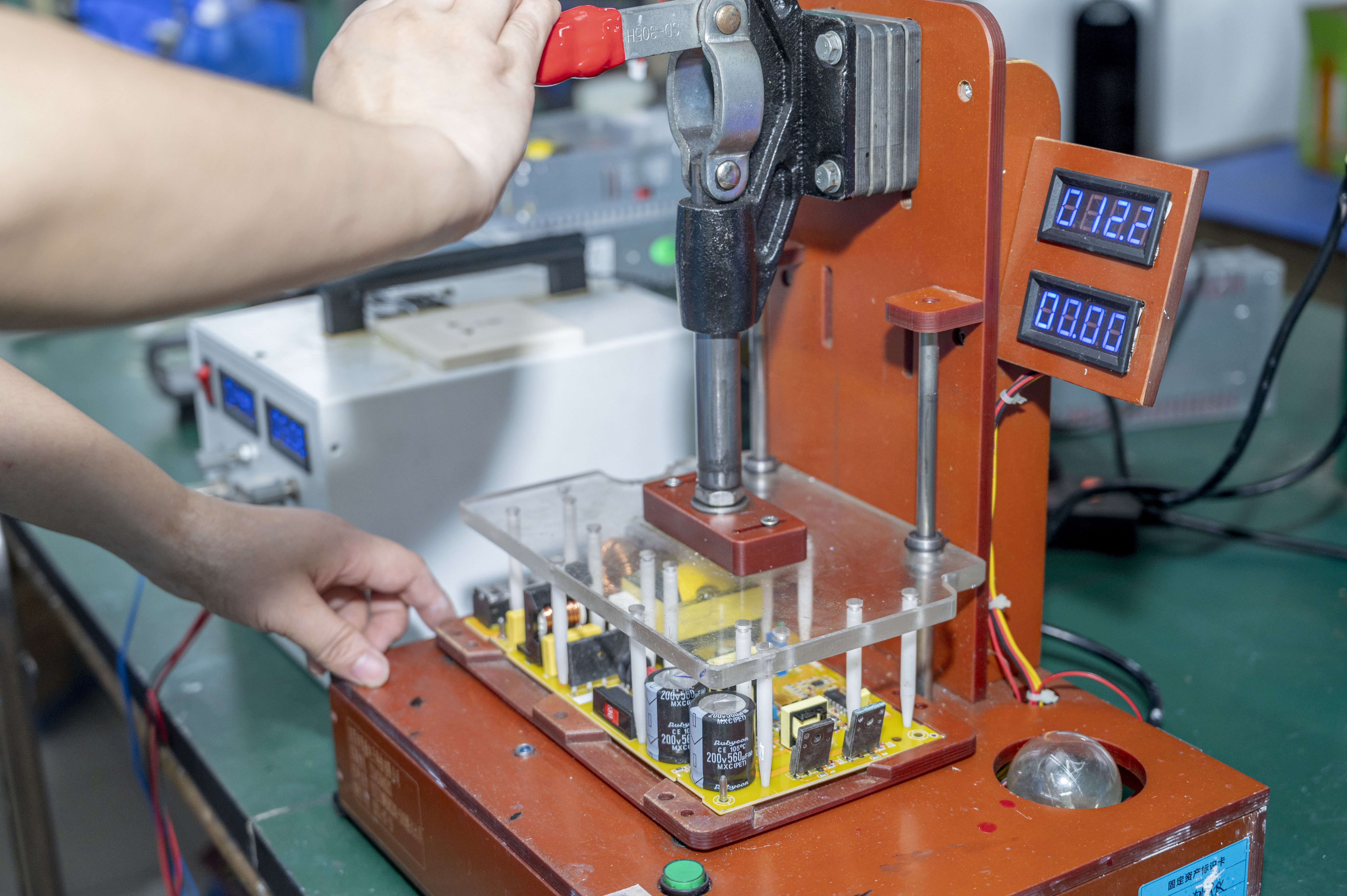

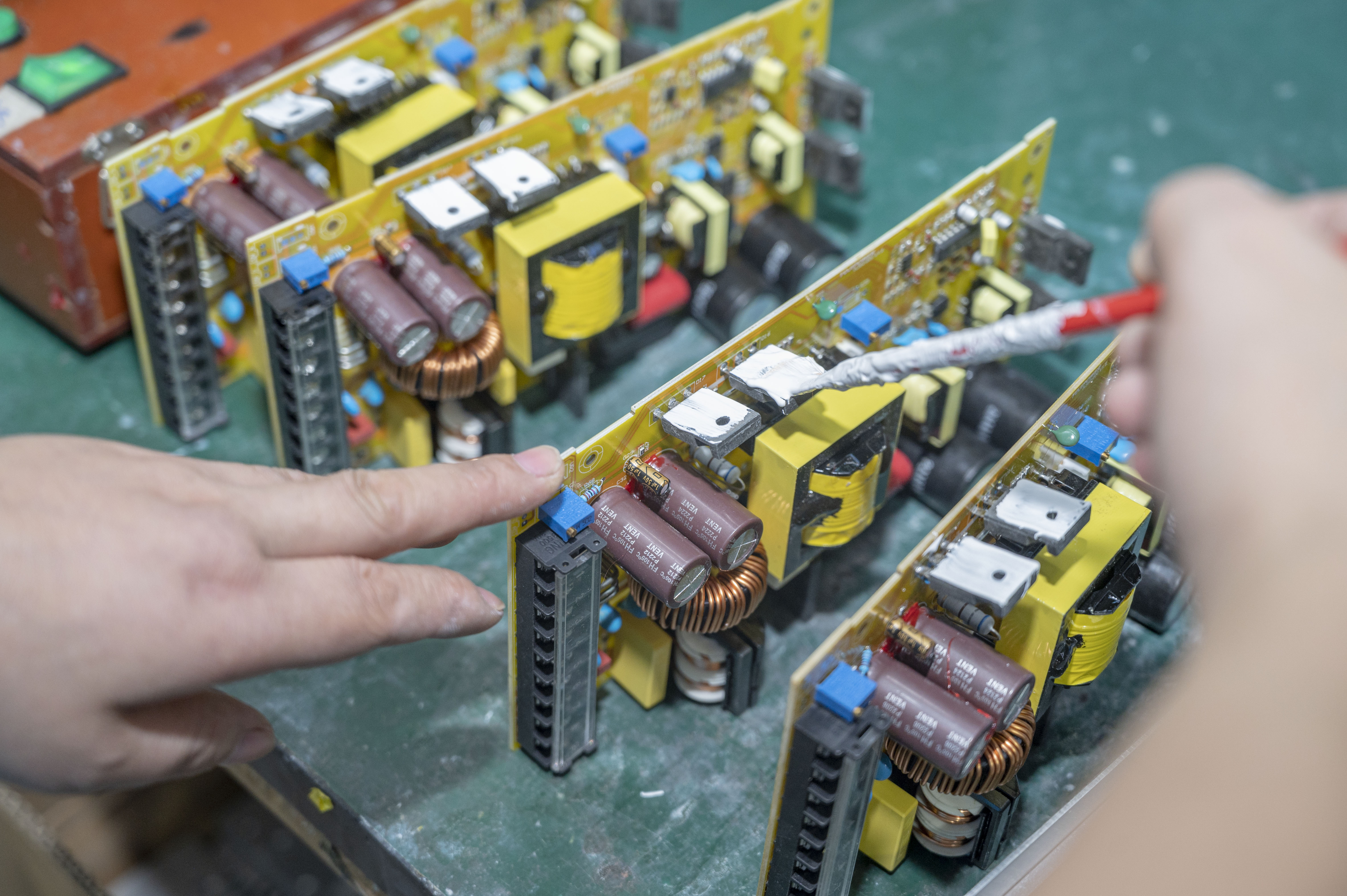

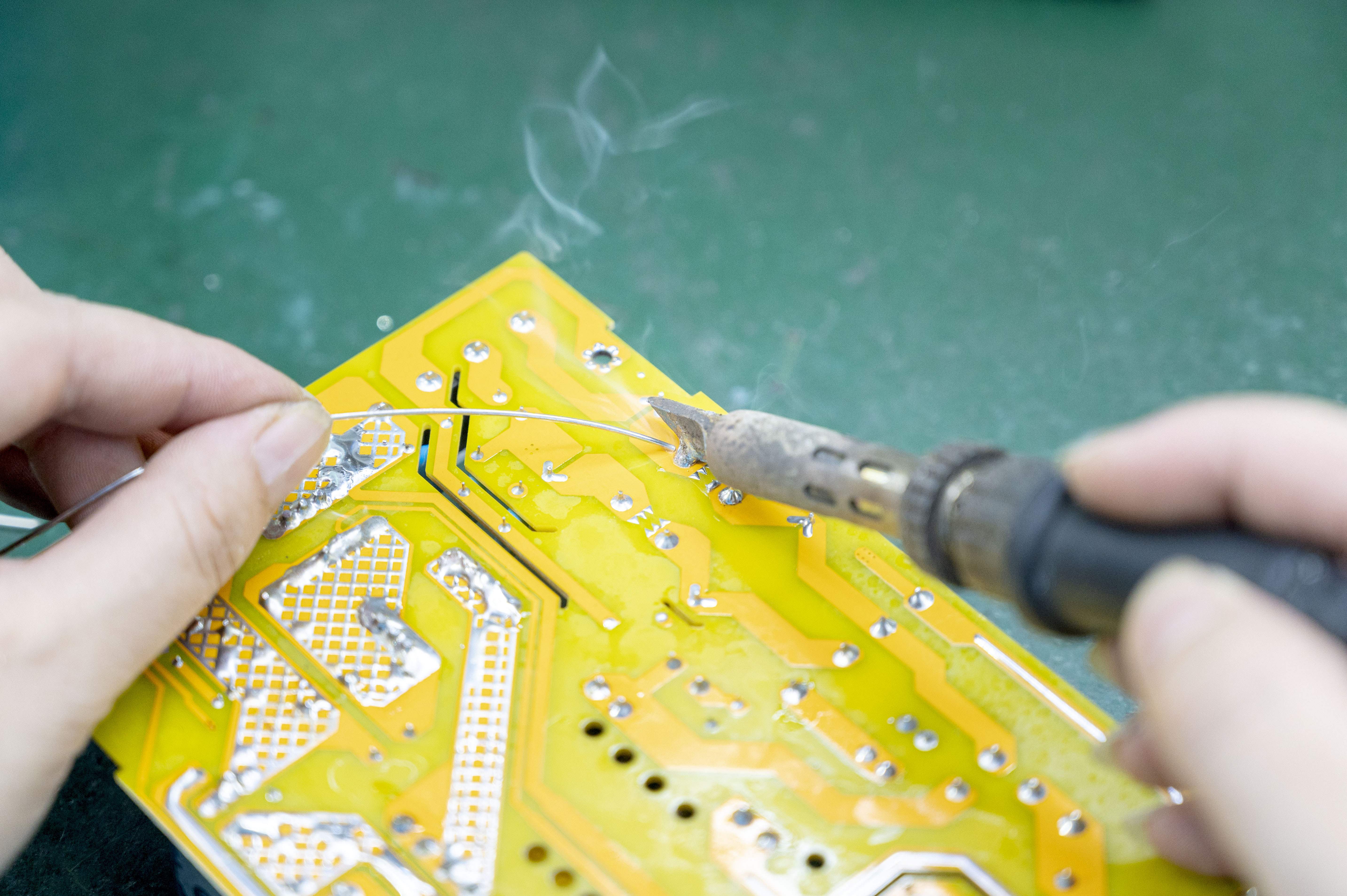

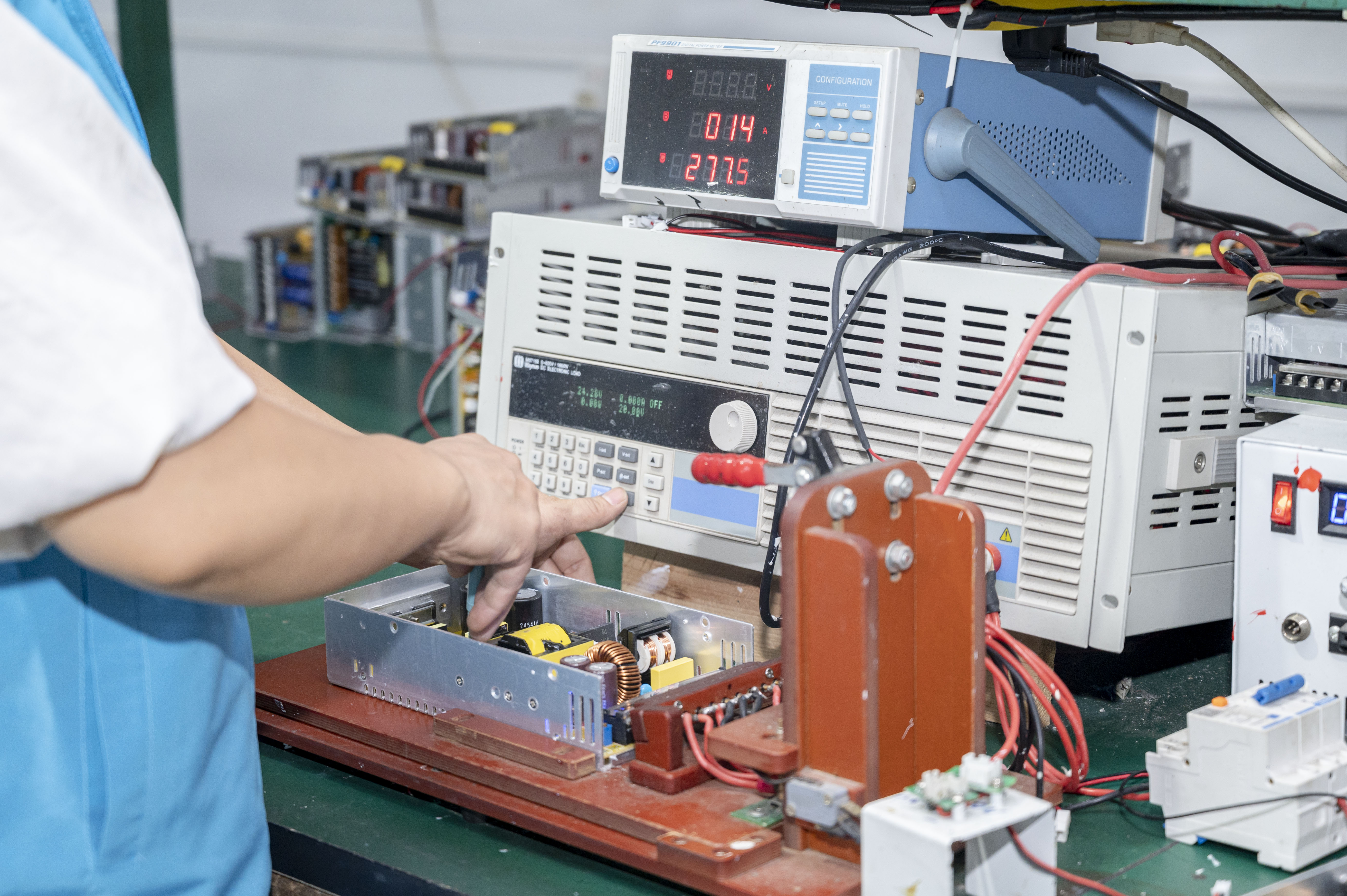

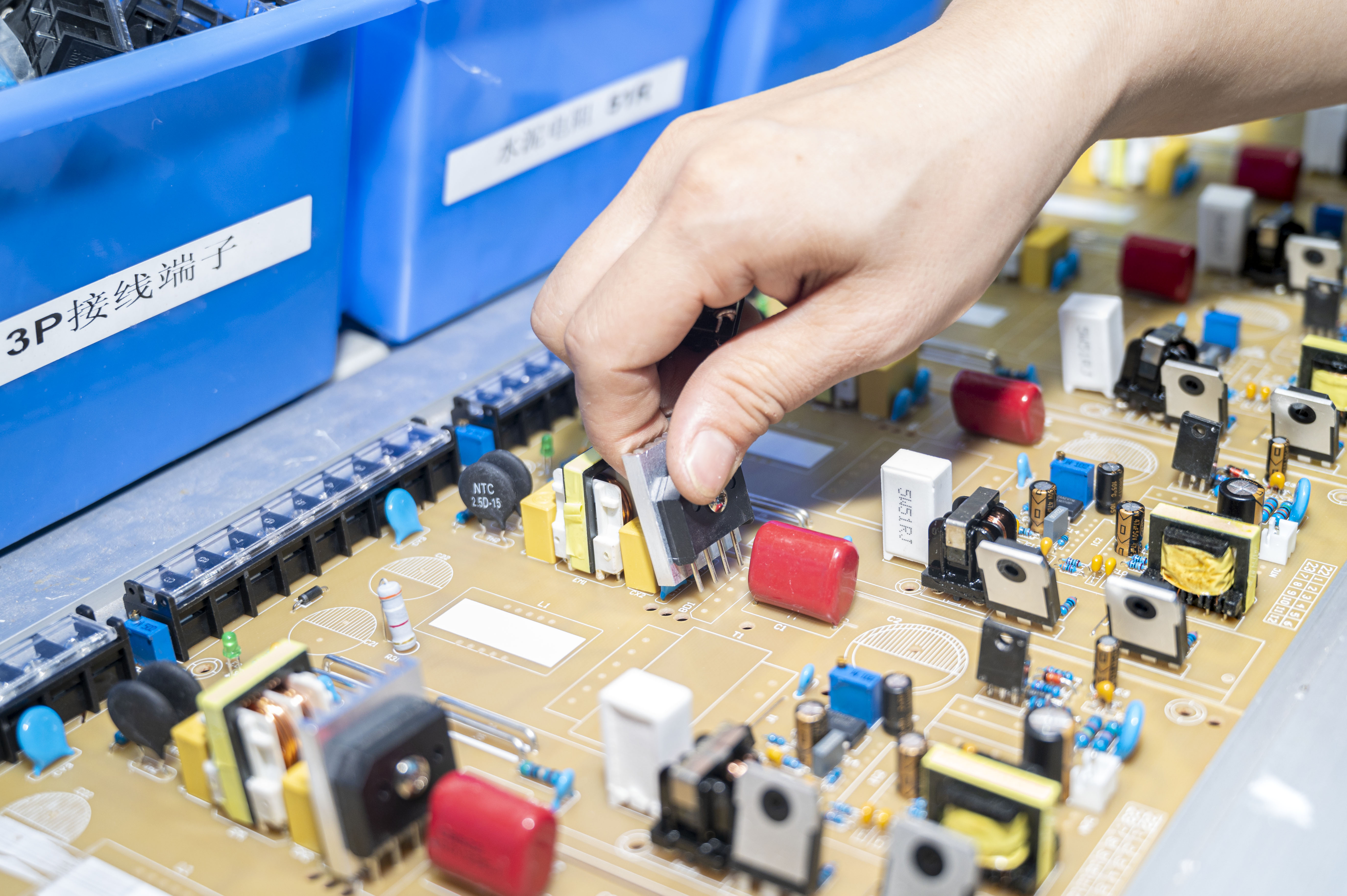

Production Process
Applications
3D Printers & Automation Equipment
Beauty & Medical Instruments
LED Intelligent Dimming Systems
Robotics & Industrial Control
FAQ
Is this power supply constant voltage or constant current?
Both modes are supported. It operates in both constant voltage and constant current modes to suit various industrial requirements.
Can it be used for battery charging?
Yes, it is excellent for battery charging. It provides a regulated output to ensure the battery is charged correctly according to its specific voltage and current requirements.
What safety protections are built-in?
The unit includes protection against short circuits, overvoltage (≥ 15% of output), and overload (110%-120% constant current mode).
Can it work in harsh industrial environments?
Yes, it is designed with a rugged enclosure and protected circuitry to handle dust, moisture, and temperature extremes common in industrial settings.
How do I control the voltage and current?
You can adjust them manually via the built-in potentiometer or externally using a 0-5V/0-10V PLC signal through a touch screen controller.
Is it possible to customize the output range?
Yes, we offer a wide range of customizable output voltages from 0-12V up to 0-110V to meet specific device requirements.
Certificates and Compliance
