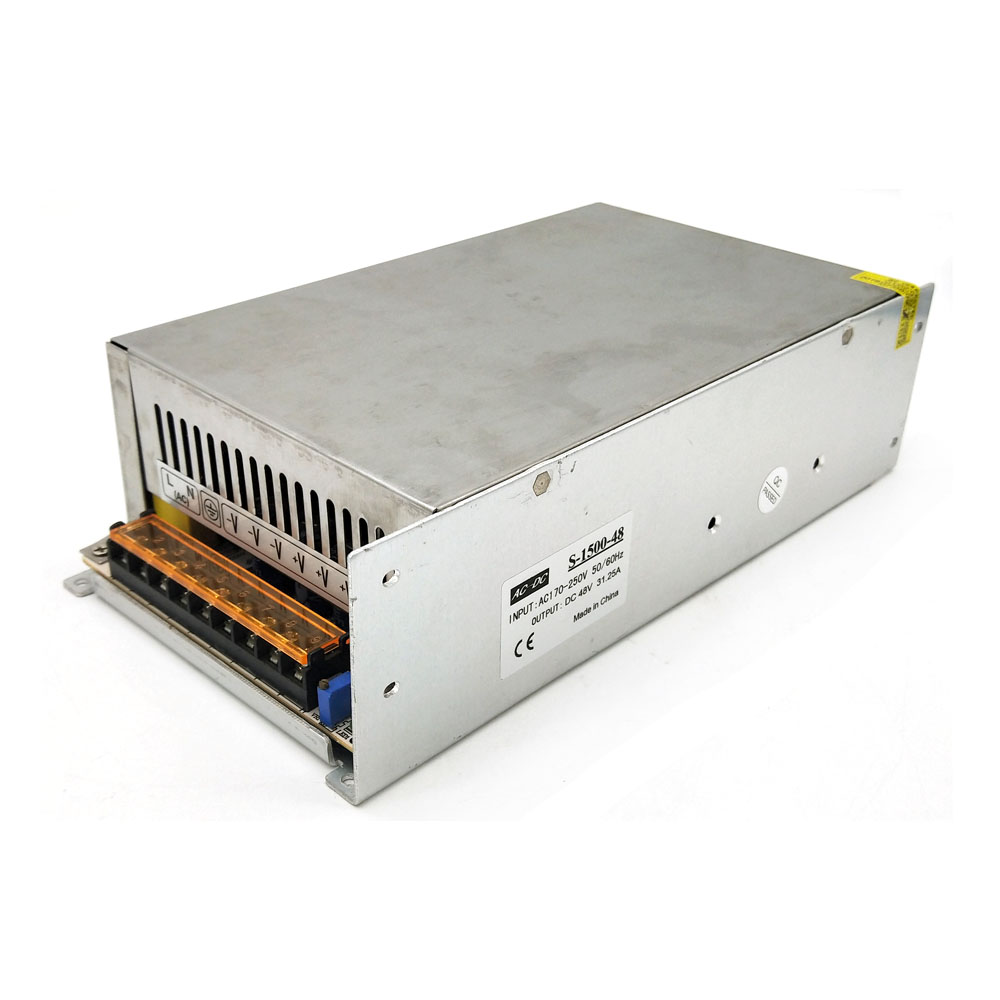

Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
1 / 5
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED
Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED

Ac to Dc Switching Power Supply 48v 1500W 31.3A With CE ROHS for LED

Send Inquiry

Product Description

⚙ Specification
Product NameSwitching power supply
Model NumberS-1500-48
Output Power1500W
Input Voltage170-250Vac
Output Voltage48VDC
Output voltage adjustment range±10%
Output Frequency47~63Hz
Output Current31.3A
Size246*133*70mm
Weight1.6kg
Efficiency87%
Over voltage protectionYes(＞115%-135% of rated output voltage)
Over Load protectionYes(＞105%-150% Self-recovery)
Humidity20%-90%RH
Ripple120mVp-p
Working temperature-40°~ +65°
Short circuit protectionYES
ApplicationLED lighting/Industrial equipment
🖼 Product Display
❓ Frequently Asked Questions
What are the main applications for the S-1500-48 power supply?
It is primarily designed for high-power LED lighting systems and various types of industrial equipment requiring a stable 48V DC power source.
What protection features does this unit include?
The unit is equipped with Over Voltage protection (115%-135%), Over Load protection (105%-150% with self-recovery), and Short Circuit protection for enhanced safety.
Can the output voltage be adjusted?
Yes, the output voltage has an adjustment range of approximately ±10% to fine-tune the power according to your specific requirements.
What is the efficiency rating of this power supply?
This model operates with an efficiency rating of approximately 87%, ensuring minimal energy waste during operation.
Is it suitable for extreme temperature environments?
Yes, the device is designed to work reliably in a wide temperature range from -40°C to +65°C.
What is the physical size and weight of the product?
The dimensions are 246*133*70mm and it weighs approximately 1.6kg, making it a robust yet manageable solution for industrial setups.
