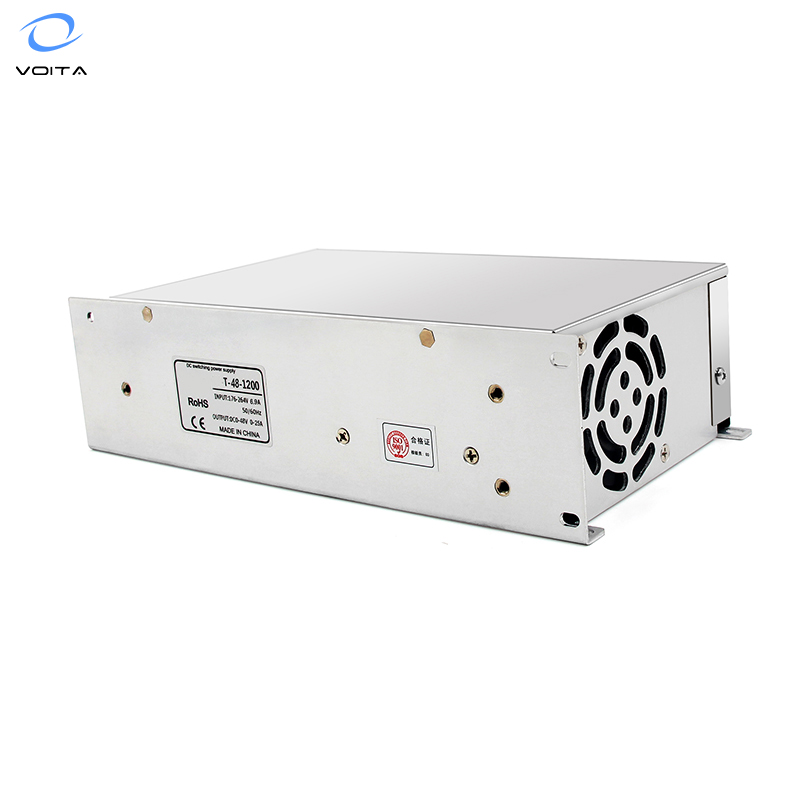

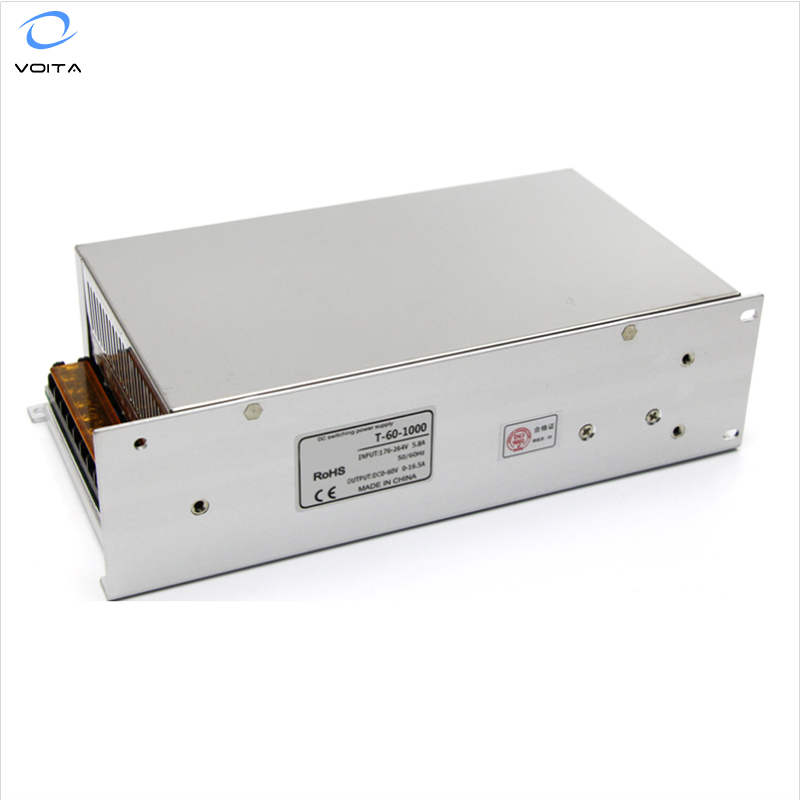

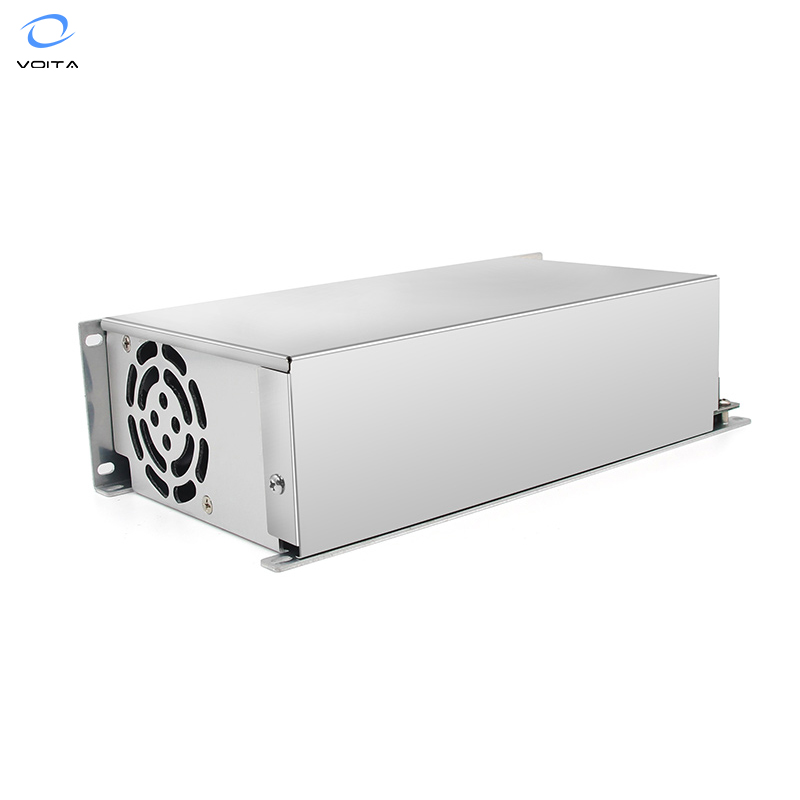

Good Price 0-200v Variable 5amp 1000w Dc Power Supply with Overload protection

1 / 5

Good Price 0-200v Variable 5amp 1000w Dc Power Supply with Overload protection

Send Inquiry

Product Description

Product Specifications

Main Features:

01 0-5V or 0-10V external control signal support.

02 Control voltage and current through PLC micro controller touch screen.

03 Support adjusting voltage and current via Potentiometer.

04 Comprehensive protection: overload, short circuit, and over current protection.

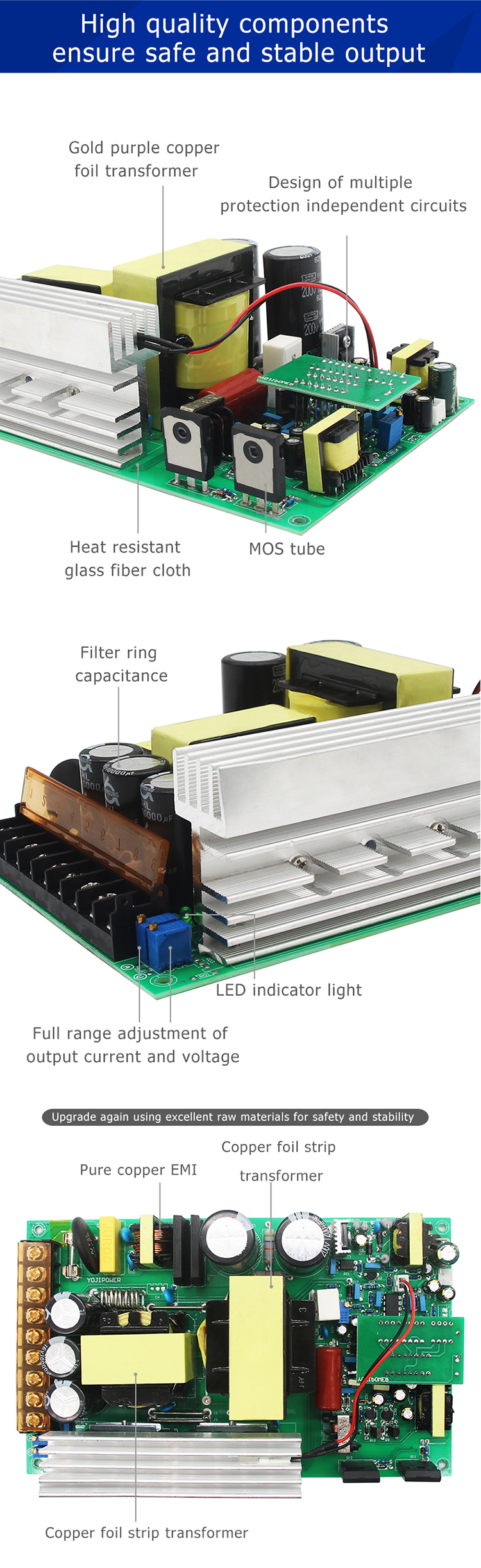

05 High-quality imported filter ring capacitor for stability.

06 Anti-interference design with small ripple output.

Main Applications:

3D Printer

Beauty Equipment

Medical Instruments

Automation

LED Dimming

Robotics

Model	VT-T60-1000	VT-T90-1000	VT-T110-1000	VT-T150-1000	VT-T220-1000
DC Output Voltage	0-60V	0-90V	0-110V	0-150V	0-220V
Rated Current	16.5A	11A	9A	6.5A	4.5A
Wave & Noise	110mV p-p	130mV p-p	130mV p-p	140mV p-p	160mV p-p
Output Power	1000W
Efficiency	87%	89%	91%	91%	92%
Input Voltage	AC 174-264V AC 50Hz (Manual Switching)
Working Temp	-10℃ to +65℃; 20% to 90%RH
Dimensions	240 * 125 * 65mm

Product Description

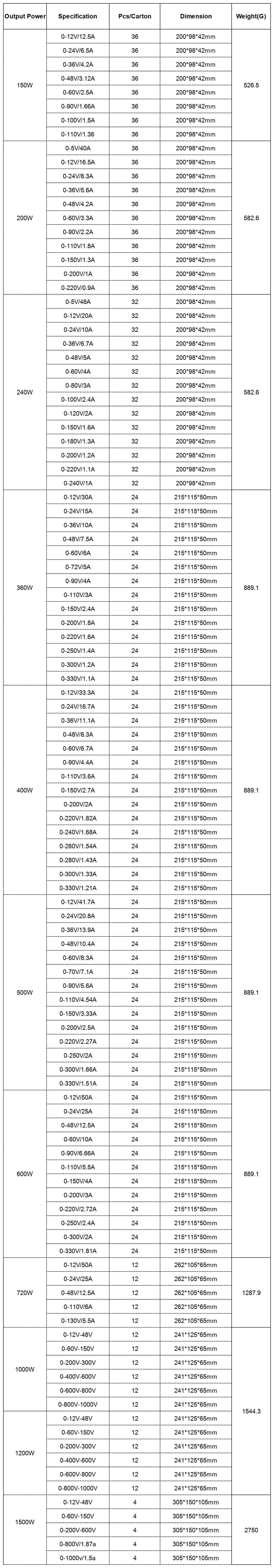

Customized Range

Frequently Asked Questions

Q1: Is your industrial power supply constant voltage or constant current? Both modes are supported. It operates in both constant voltage and constant current modes to meet various industrial needs.

Q2: How does a constant voltage and current power supply maintain stability? It uses advanced control mechanisms such as voltage feedback and current-limiting circuits to continuously monitor and adjust the output, ensuring stability even during load or input fluctuations.

Q3: Can these power supplies be used in harsh industrial environments? Yes, our industrial power supplies are built with rugged enclosures, protected circuitry, and insulation against dust, moisture, and extreme temperatures to ensure operational reliability.

Q4: What protections are built into the power supply? The units include protection against short circuits, overvoltage, overcurrent, and overload. For example, during a short circuit, the supply automatically limits or shuts off output to prevent damage.

Q5: Is it possible to adjust the voltage and current output? Yes, most units offer multiple adjustment options, including manual knobs (potentiometers) or external signals via PLC and microcontrollers for precise control.

Q6: Can this power supply be used for battery charging? Yes, because it supports regulated constant voltage and current, it can provide a controlled output ideal for charging batteries properly without overcharging.
