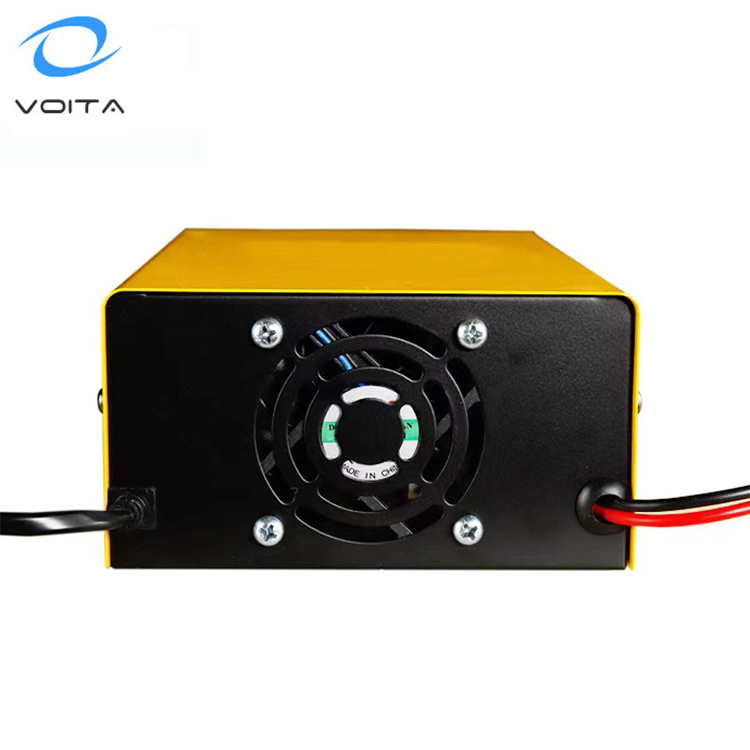

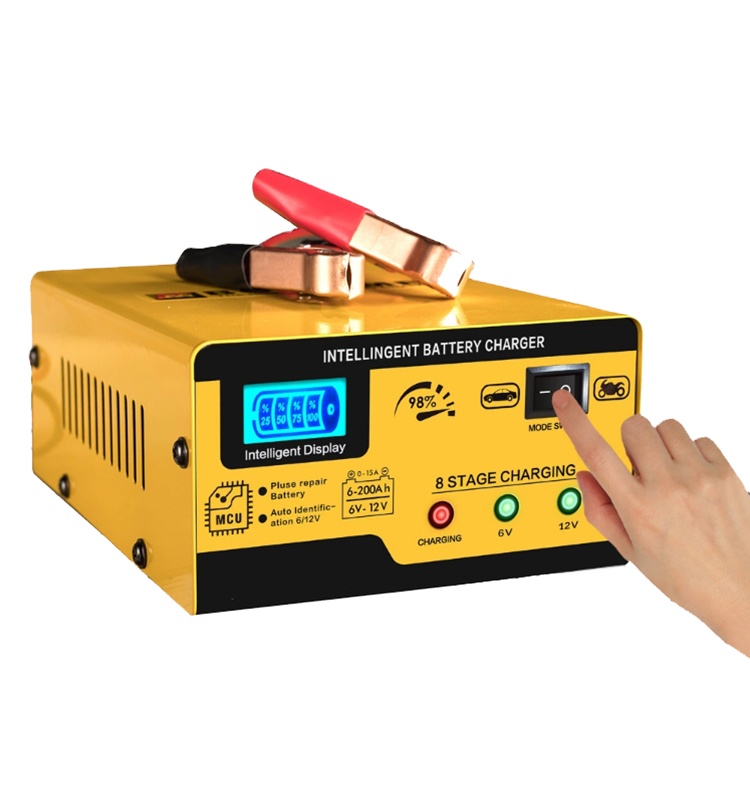

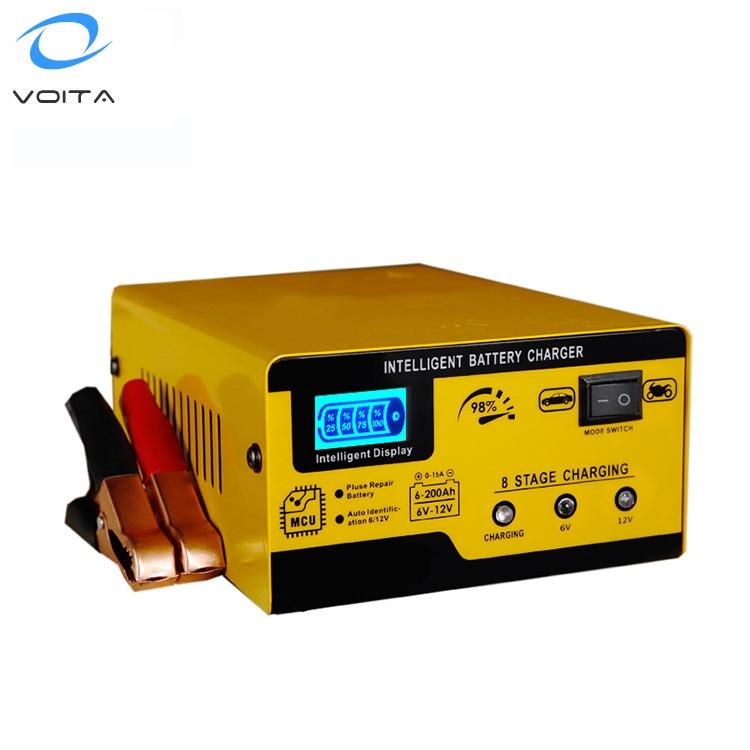

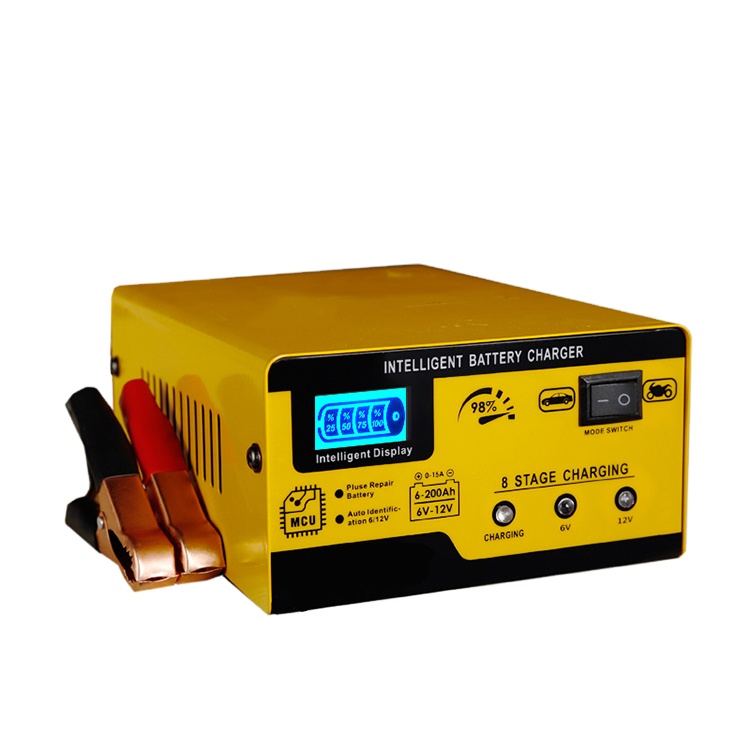

12V Lead Acid Battery Charger for Storage Lead Acid 6V 12 Volt 15Ah Battery Battery Charger

Send Inquiry

Product Description

📝 Description

This series of products are applicable to 6V/12V lead acid battery.
They applied microcomputer control system and the advanced Pulse Repair Charging technology.

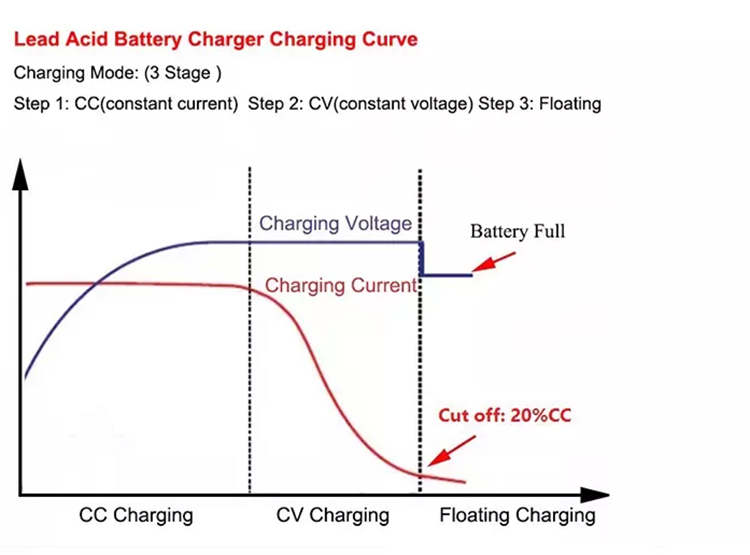

Charging the battery through 8 stage cycle to multi-protect your battery.
Automatically stop working when full charged.

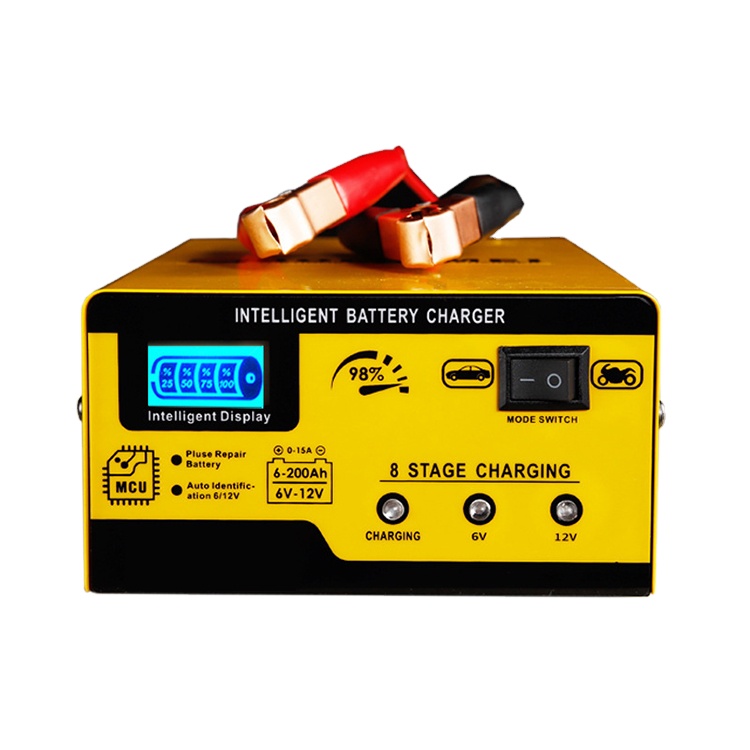

The charging screen display 25%, 50%, 75%, 100% to show charging status clearly.

🚀 Key Features

📊 Technical Parameters

Model Name	VT-BC-168C
AC Input Voltage	110Vac-250Vac
DC Output Voltage	6V/12V
Working Current	0-15A Automatically
Suitable Capacity	3AH-200AH
Suitable Battery Type	Lead Acid, WET, AGM, GEL, VRLA, OPZV Battery
Frequency	50-60Hz
Work Efficiency	98%

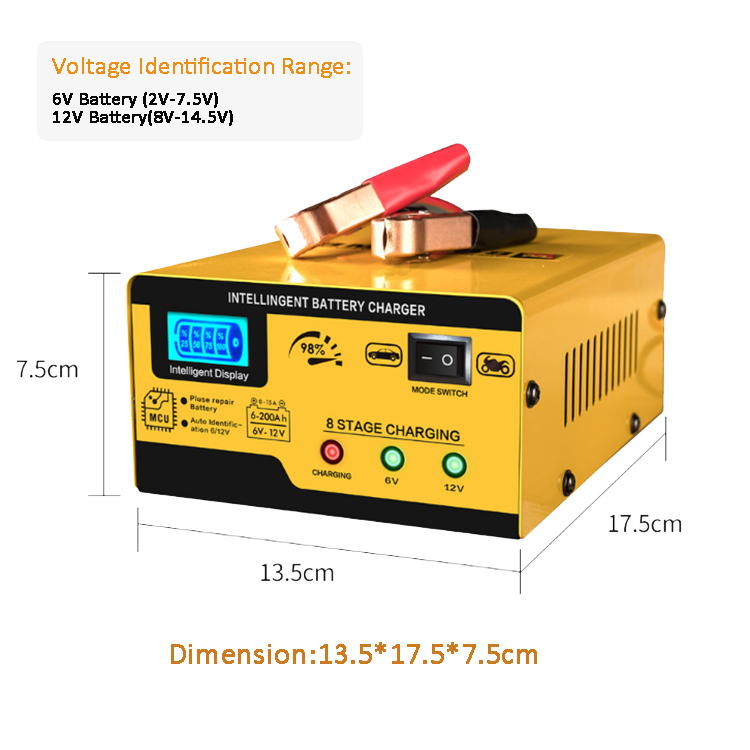

Voltage Identification	6V Peak (2V-7V) / 12V Peak (8V-14.5V)
Work Temperature	-30℃ to +50℃
Dimension	L (17.5cm) * W (13.5cm) * H (7.5cm)
Gross Weight	0.95 kg
Warranty	1 year

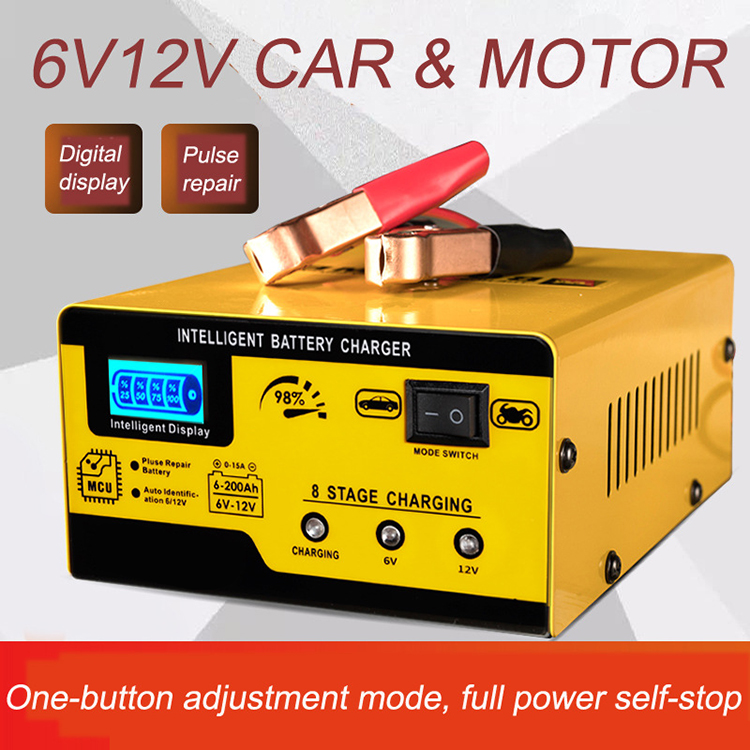

🖼️ Product Gallery

❓ Frequently Asked Questions

What types of batteries can this charger handle?

This charger is compatible with a wide range of 6V and 12V lead-acid batteries, including WET, AGM, GEL, VRLA, and OPZV types.

What is the range of battery capacity supported?

The VT-BC-168C is designed for batteries with capacities ranging from 3AH to 200AH.

Does the charger stop automatically when the battery is full?

Yes, the intelligent microcomputer control system automatically stops charging once the battery reaches a full charge to prevent overcharging.

What is Pulse Repair Charging technology?

It is an advanced technology that uses 8-stage intelligent pulse cycles to help restore battery performance and extend overall battery life.

Can I use this charger in regions with different voltages?

Yes, the device supports a universal wide AC input voltage range from 110Vac to 250Vac, making it suitable for global use.

How do I know the current charging status?

The built-in screen provides a clear status display at levels of 25%, 50%, 75%, and 100% charged.
