Key Features
✔
Universal Input Range: AC110/220V
✔
High efficiency up to 87%
✔
Protections: Over voltage / Overload / Over temperature / Short circuit
✔
Cooling: free air convection
✔
LED indicator for power on
✔
100% full load burn-in test
✔
1 year warranty
Specifications
| Parameter |
Value |
| Product Name |
Switching power supply |
| Model Number |
VT-S-72-24 |
| Output Power |
72W |
| Input Voltage |
AC100-240V |
| Output Voltage |
24VDC |
| Output voltage adjustment range |
±10% |
| Output Frequency |
47~63Hz |
| Output Current |
3A |

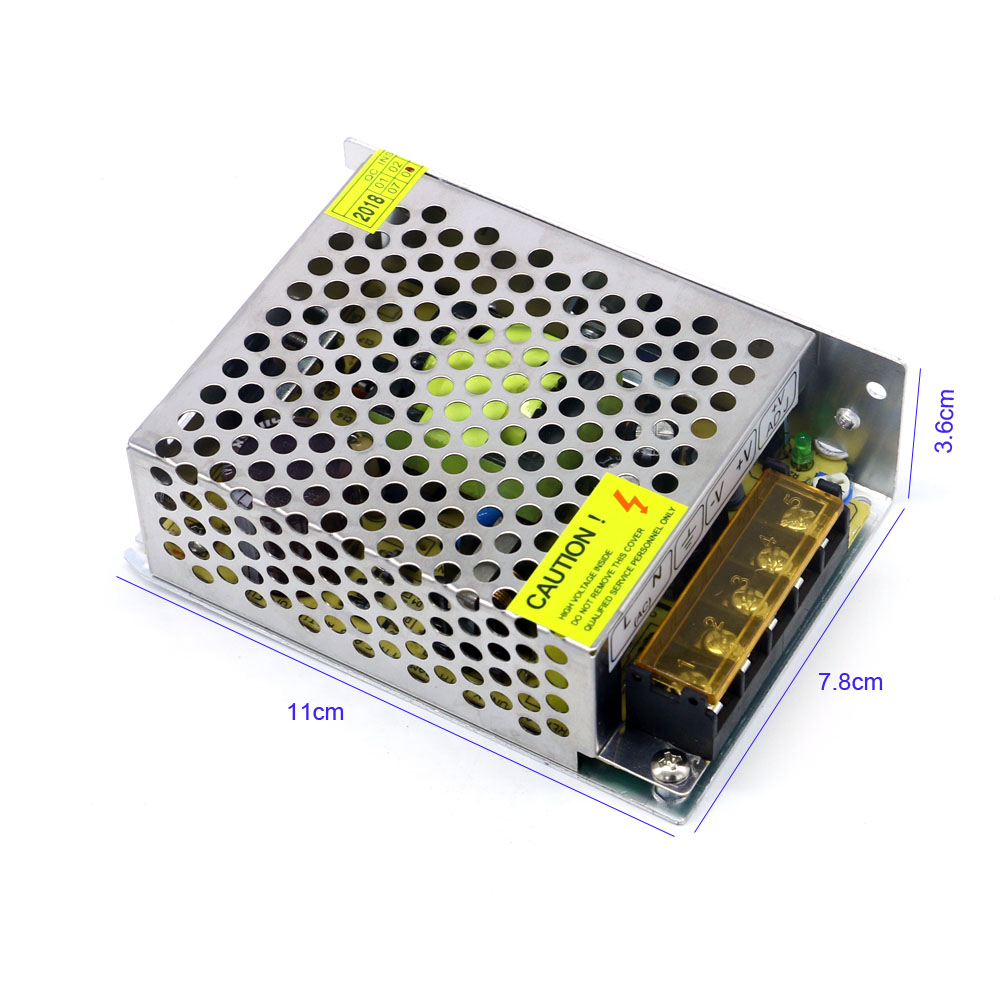

| Size |
110*78*36mm |
| Weight |
0.185kg |
| Efficiency |
87% |
| Over voltage protection |
Yes(＞115%-135% of rated output voltage) |
| Over Load protection |
Yes(＞105%-150% Self-recovery) |
| Humidity |
20%-90%RH |
| Ripple |
120mVp-p |
| Working temperature |
-40°~ +65° |
| Short circuit protection |
YES |
| Application |
LED lighting/Industrial equipment |

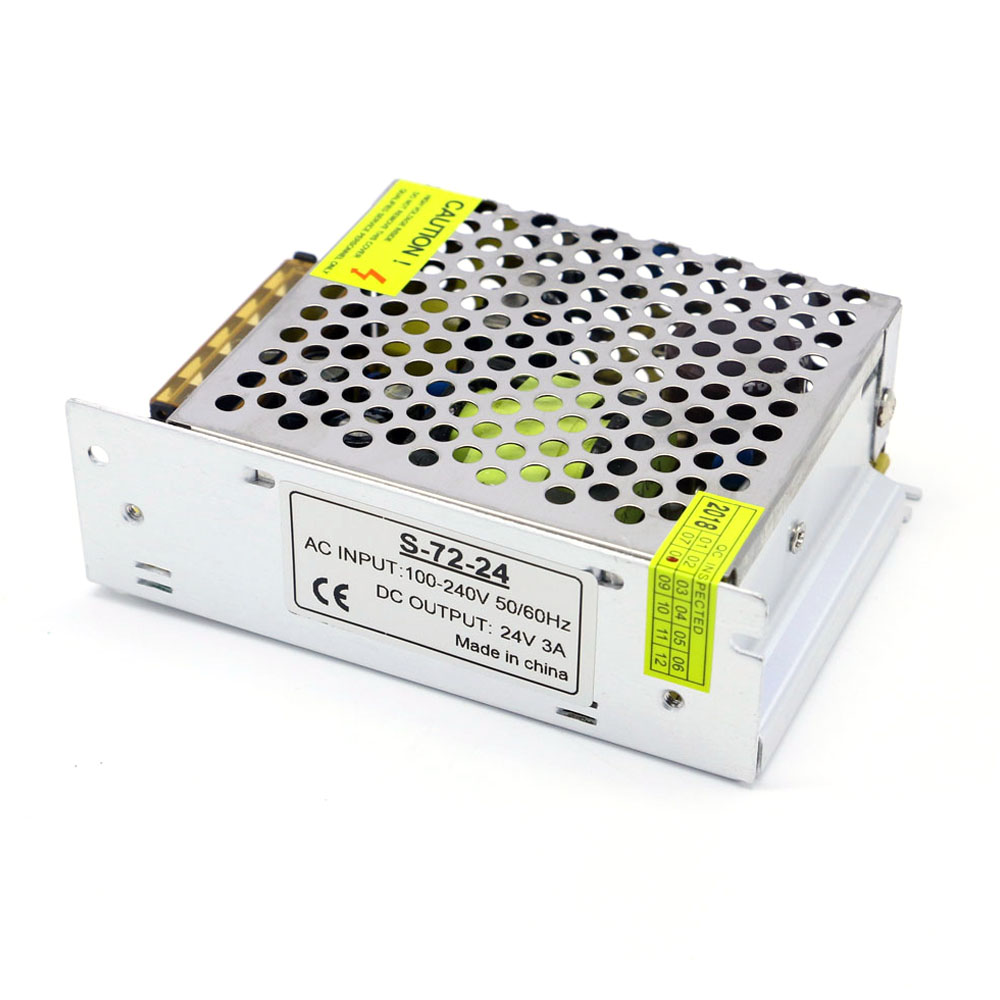

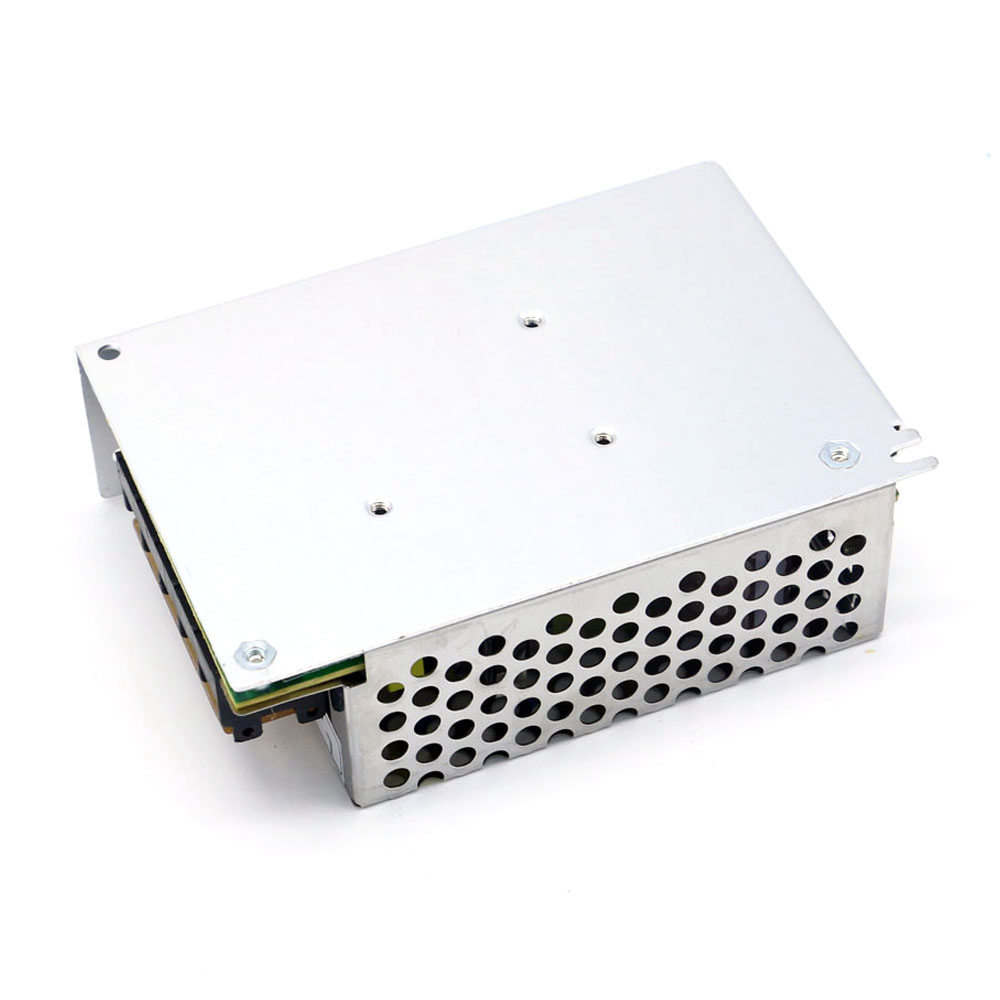

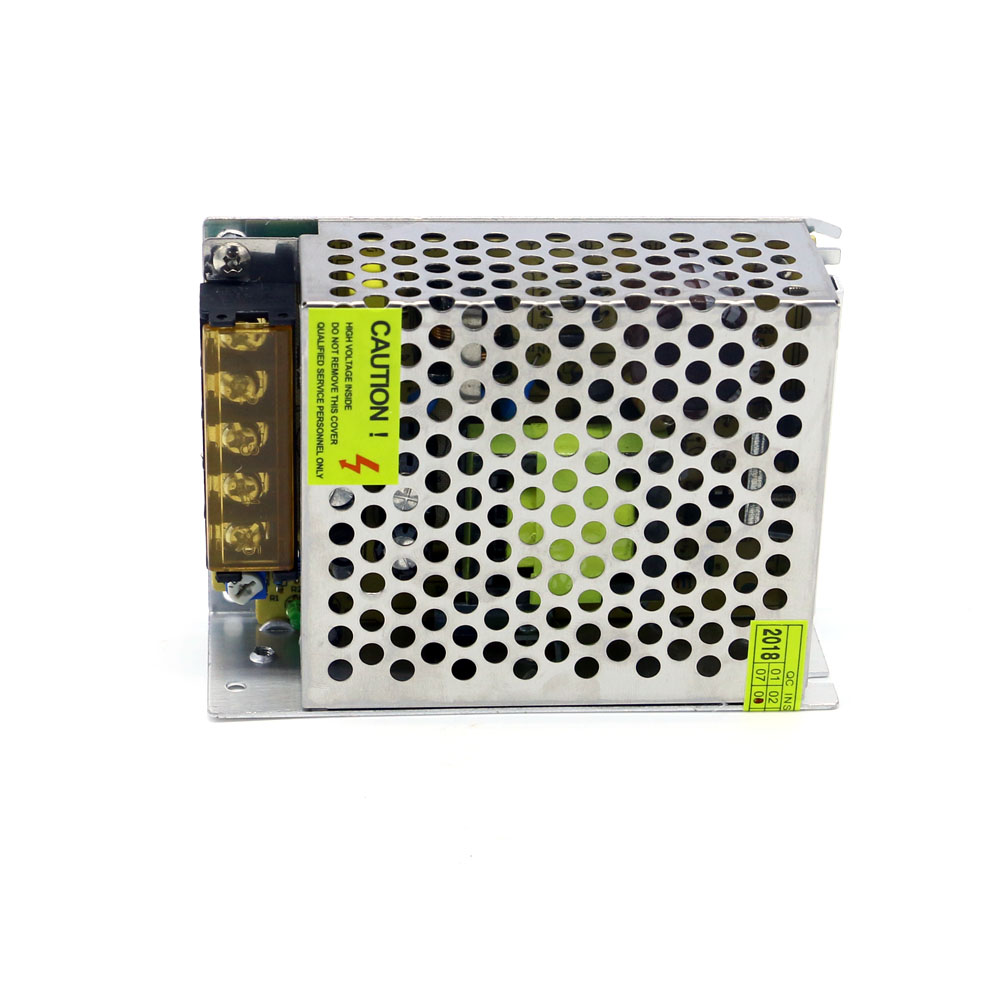

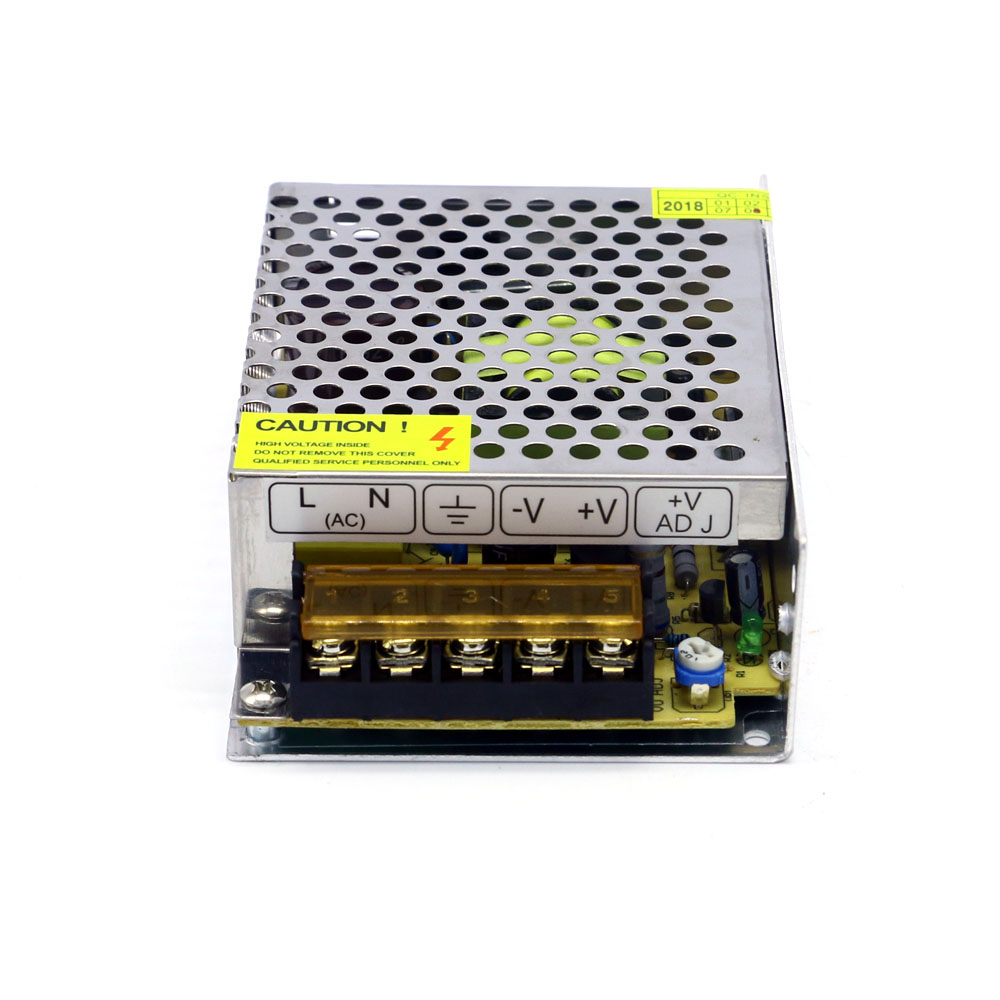

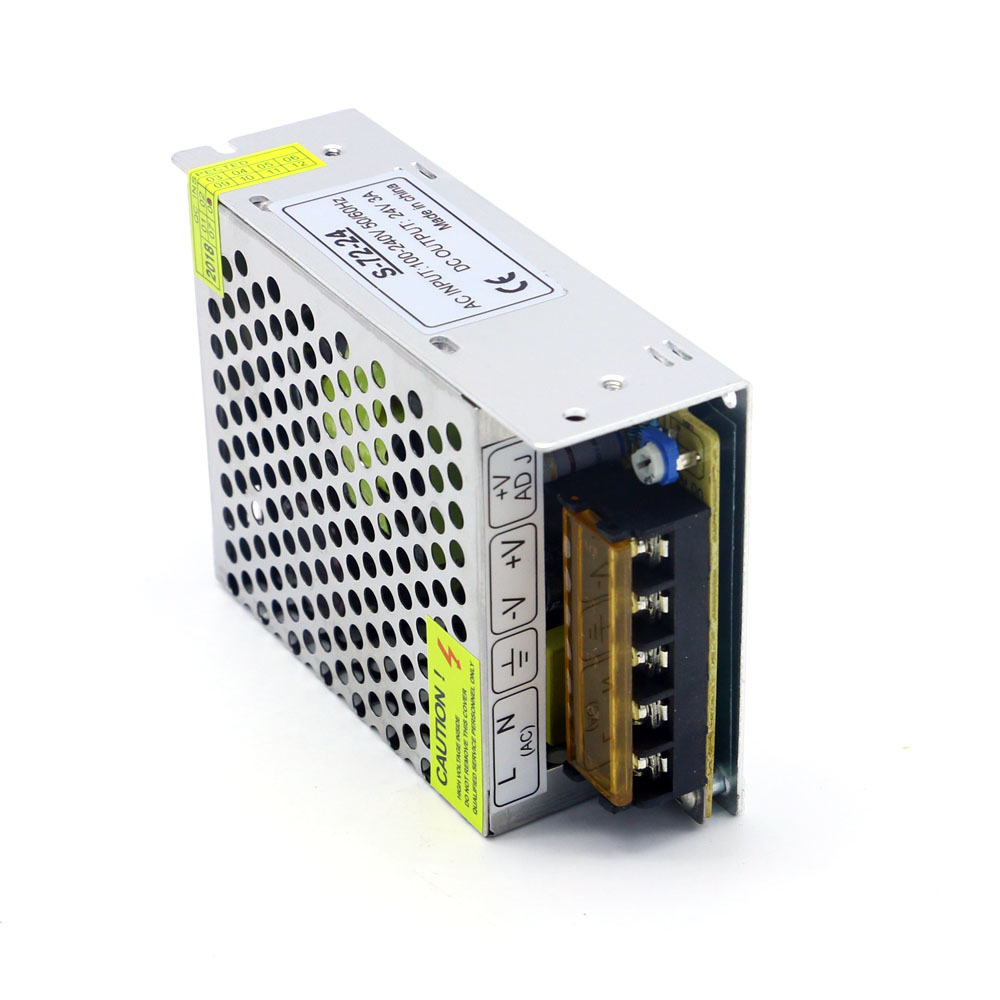

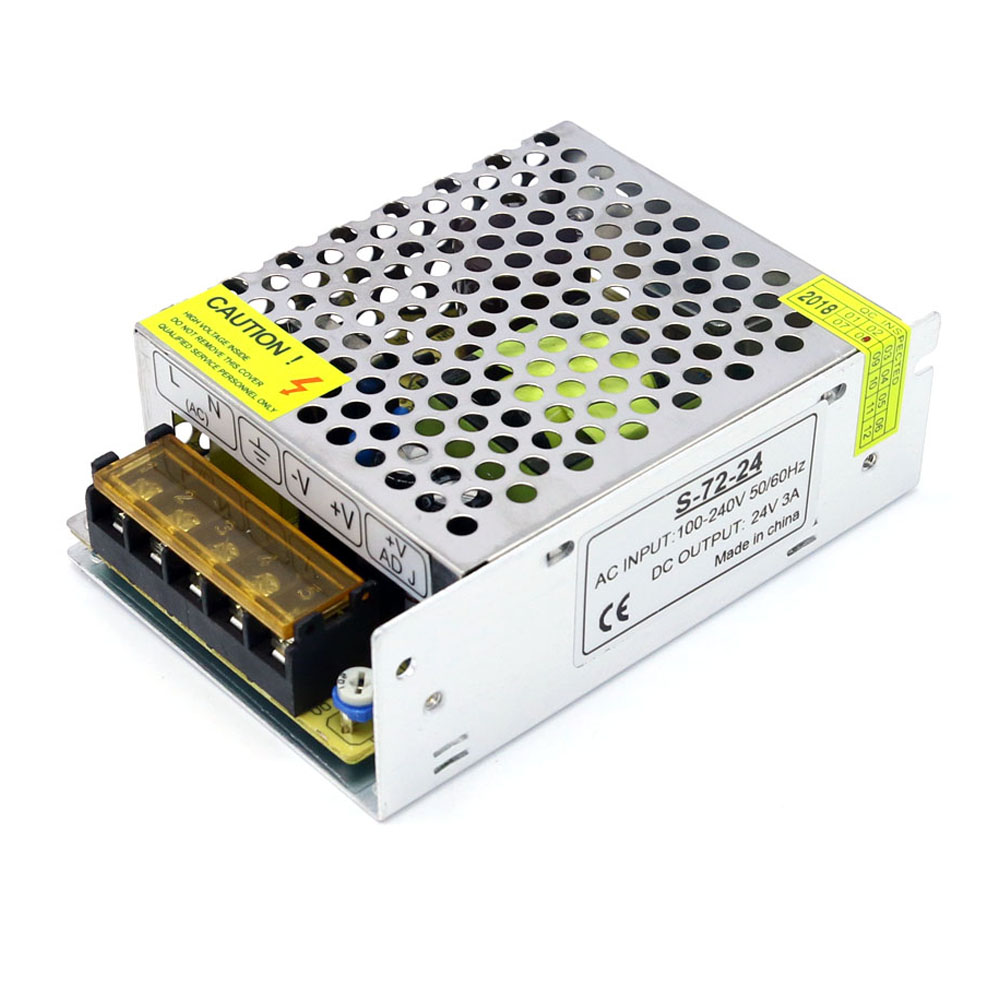

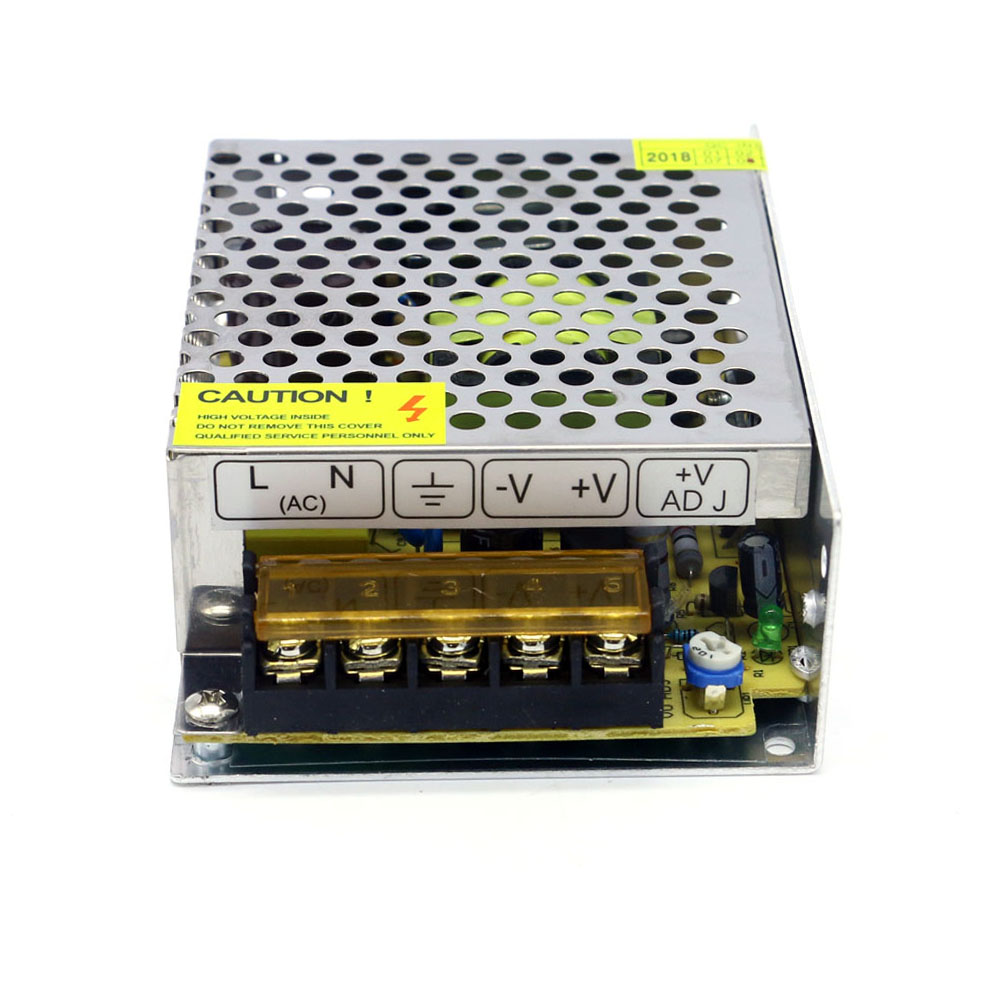

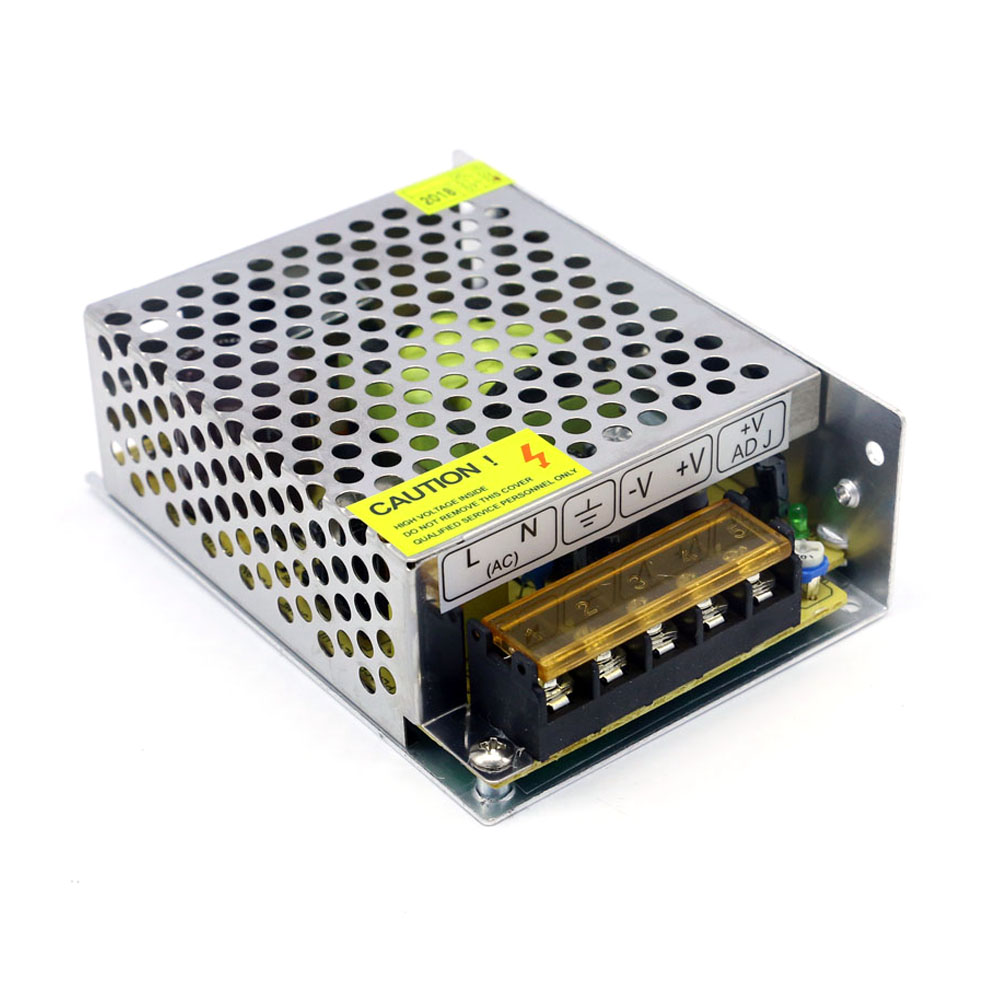

Product Gallery
Frequently Asked Questions
What applications is this 24V switching power supply suitable for?
This switching power supply is highly versatile and primarily designed for powering LED lighting installations and various industrial automation equipment.
What safety protection mechanisms are integrated into this unit?
It features comprehensive protective circuits, including Over Voltage protection (115%-135% of rated output voltage), Over Load protection (105%-150% with self-recovery), Short Circuit protection, and Over Temperature protection.
Does this model support standard global input voltages?
Yes, it features a universal AC input range of 100V to 240V (47~63Hz), making it compatible with various global electrical systems.
How is the heat dissipated in this power supply?
This unit relies on free air convection for cooling. The layout and chassis design allow natural airflow to maintain optimal operating temperatures without needing a fan.
What is the efficiency rating of this VT-S-72-24 switching power supply?
It achieves an efficiency rating of up to 87%, which helps minimize heat dissipation and energy loss during continuous load.
What testing protocols does this product undergo prior to shipping?
Every single unit goes through a 100% full load burn-in test to ensure stability, quality control, and long-term operating reliability.
