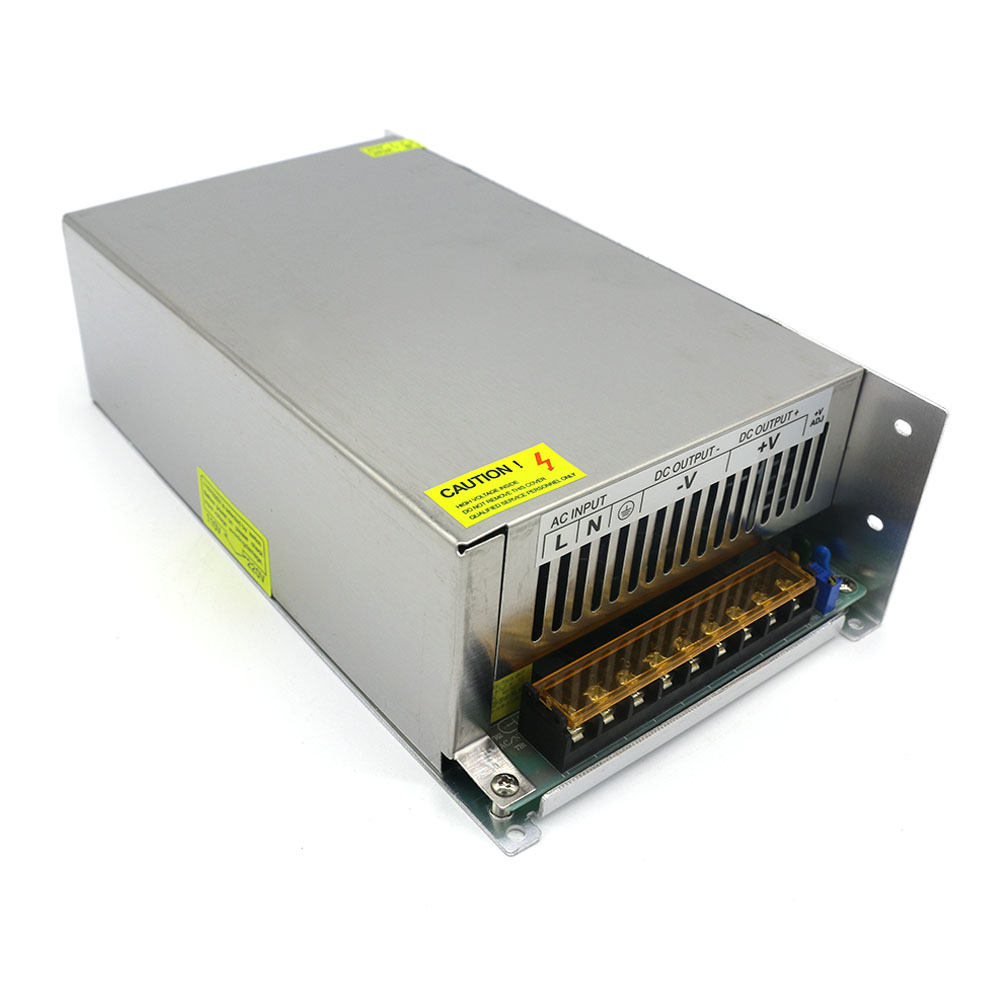

Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
1 / 5
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED
Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED

Switching Power Supply 36v 200w-1500W 41.6A with CE ROHS for LED

Send Inquiry

Product Description

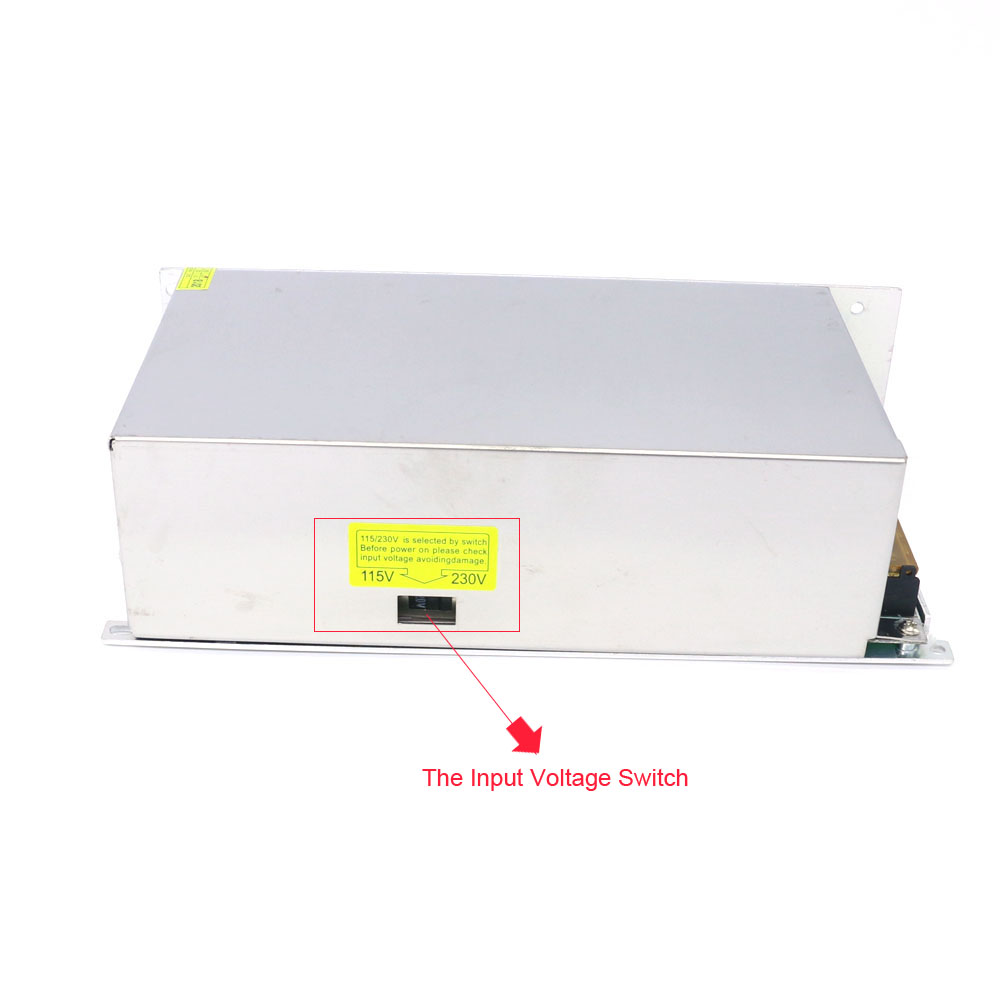

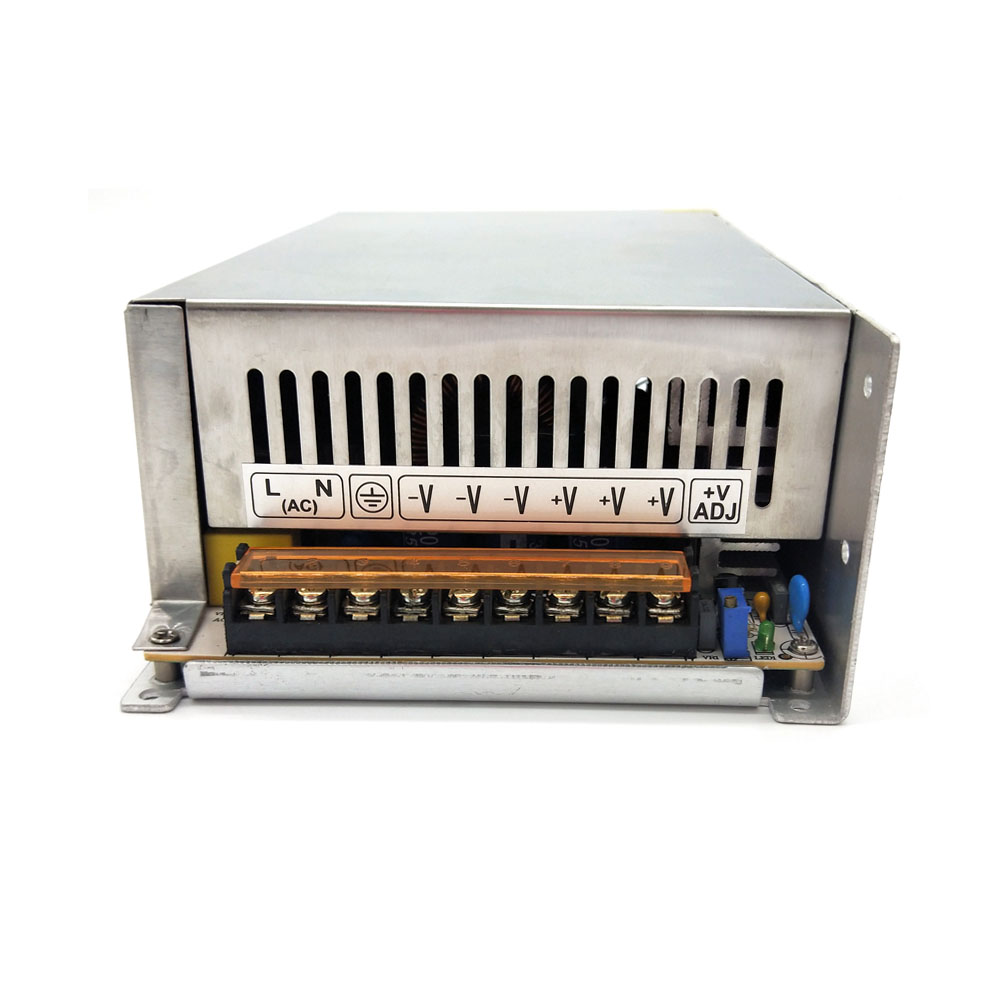

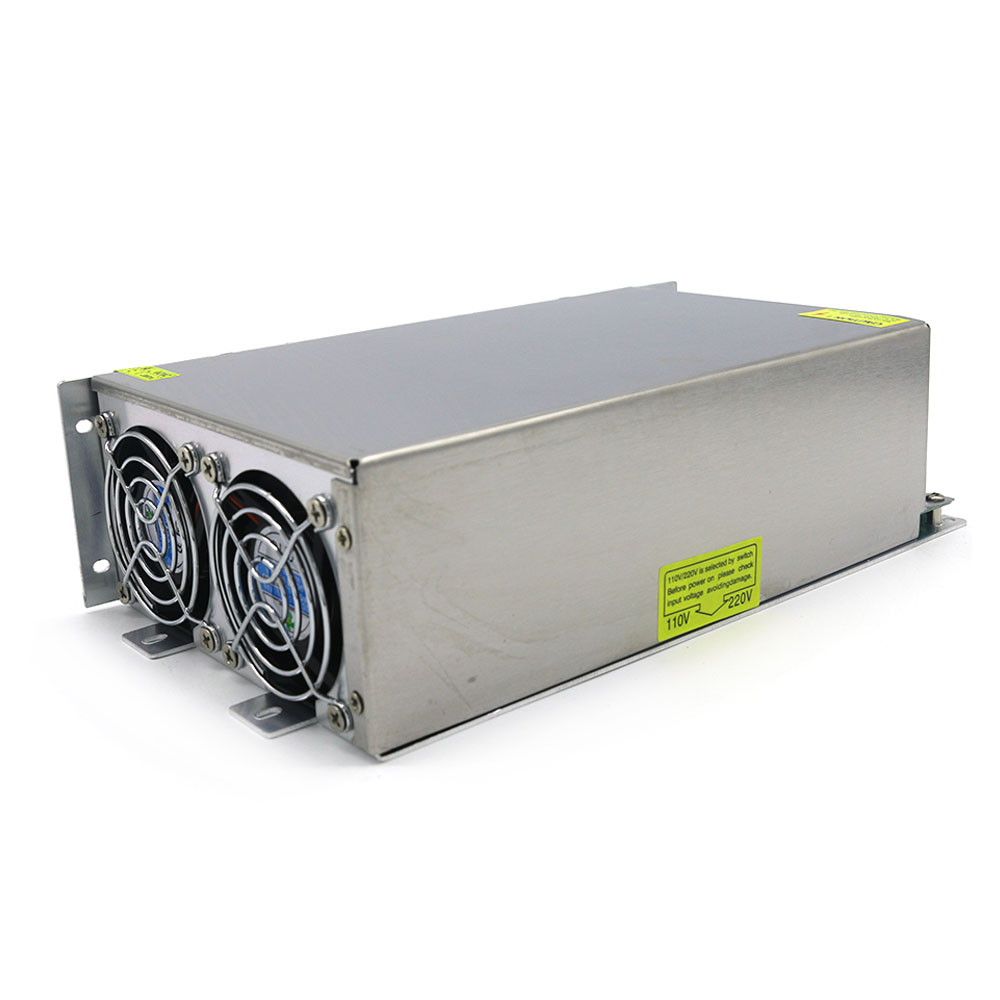

Product Image
⚡ Specification
Product NameSwitching power supply

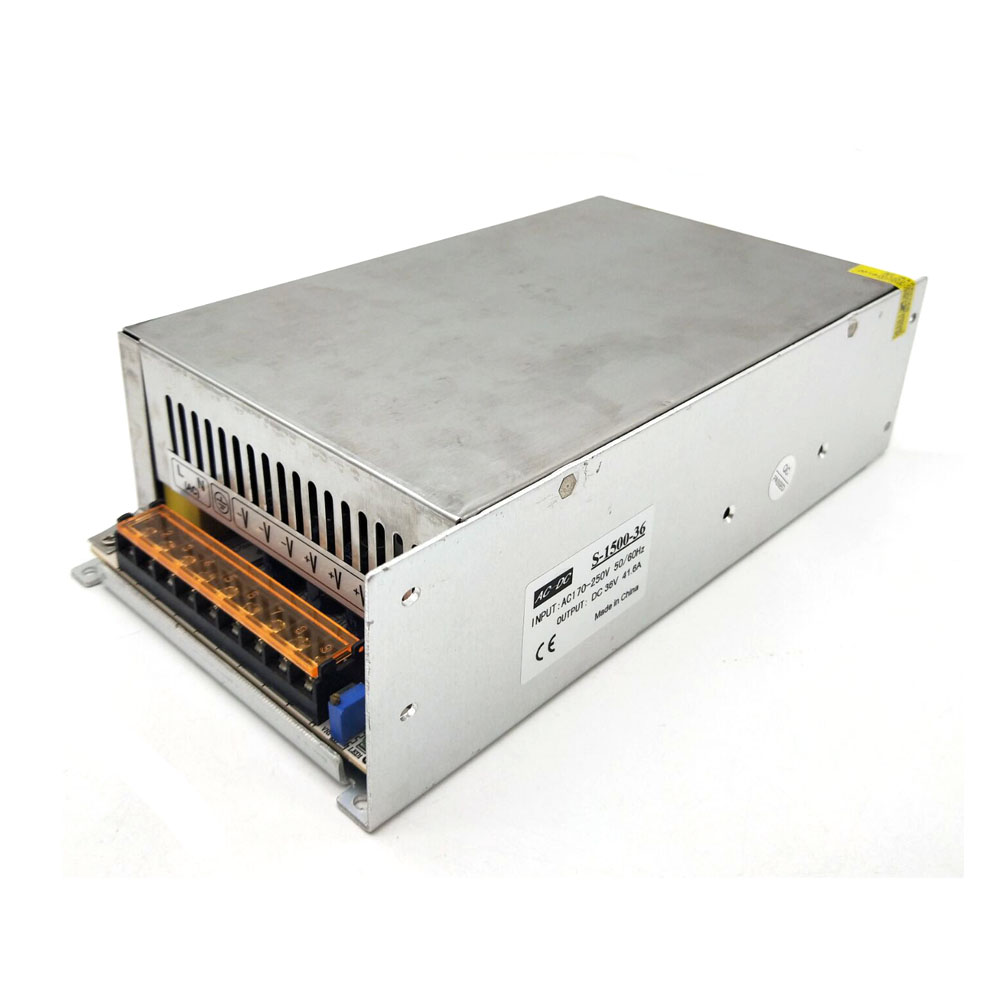

Model NumberS-1500-36
Output Power1500W
Input Voltage170-250Vac
Output Voltage36VDC

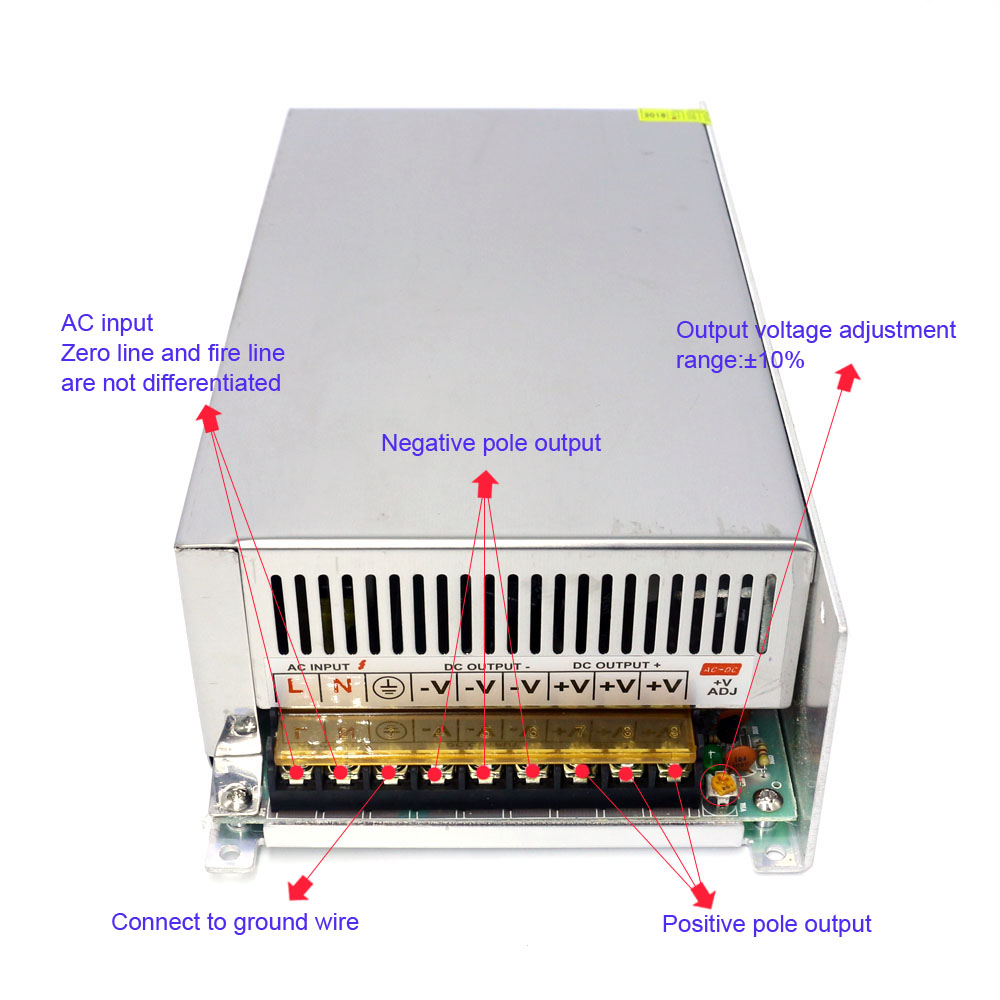

Output voltage adjustment range±10%
Output Frequency47~63Hz
Output Current41.6A
Size246*133*70mm
Weight1.6kg
Efficiency87%
Over voltage protectionYes(＞115%-135% of rated output voltage)
Over Load protectionYes(＞105%-150% Self-recovery)
Humidity20%-90%RH
Ripple120mVp-p
Working temperature-40°~ +65°
Short circuit protectionYES
ApplicationLED lighting/Industrial equipment
📷 Product Gallery
❓ FAQ
What are the primary applications for this 1500W switching power supply?
This power supply is specifically designed for high-power LED lighting systems and various types of industrial equipment requiring a stable 36VDC output.
Does the S-1500-36 model include built-in safety protections?
Yes, it features comprehensive protection mechanisms including over-voltage protection (115%-135%), over-load protection (105%-150% with self-recovery), and short-circuit protection.
What is the input voltage range supported by this device?
The unit supports an AC input voltage range of 170-250Vac, making it suitable for standard industrial power grids.
Can the output voltage be adjusted?
Yes, the 36VDC output voltage has an adjustment range of ±10%, allowing you to fine-tune the voltage to meet your specific requirements.
What are the environmental operating conditions for this power supply?
It can operate in temperatures ranging from -40° to +65° and maintain performance within a humidity range of 20%-90%RH.
What is the energy efficiency rating of this product?
The S-1500-36 switching power supply operates with an efficiency of approximately 87%.
