58V 20A DC Fast Battery Charger for 12V 24V Lithium Lifepo4 and Lead Acid Batteries Single and Dual Output Solutions for EVs

Key Features

Synchronous rectification technology, imported components, conversion efficiency more than 96%.
Imported internal resistance capacitor filter, withstand high temperature.
Organic silicone packaging technology, can work directly soaked in water.
Chip smart protection, anti-overheating, over-current protection.
Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust and so on.

Specifications

Model	VT-DD12245820C
Input	Rated voltage	DC 12V/24V
	Voltage range	DC 9-32V
	Efficiency	96% @ 12V input
Output	Voltage	DC 58V
	Max. rated current	20A
	Max. rated power	1160W
	Voltage regulation	±1%
	Load regulation	2%
Environment	Working temperature	-20℃ ~ 85℃
	Working humidity	10% ~ 90%RH
	Storage temperature	-20℃ ~ 85℃
Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof	IP67
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	2.5kg
Mechanical	Size	22013050MM

Frequently Asked Questions

Q What is the input voltage range of the VT-DD12245820C converter?

The converter supports a wide input voltage range of DC 9V to 32V, making it fully compatible with standard DC 12V and 24V power sources.

Q How high is the conversion efficiency of this step-up module?

Thanks to advanced synchronous rectification technology and high-grade imported components, the converter can achieve a conversion efficiency exceeding 96% at 12V input.

Q Is this DC-DC converter waterproof and suitable for harsh environments?

Yes, it features an IP67 waterproof rating. The organic silicone packaging technology ensures complete protection against water immersion, moisture, dust, and anti-shock capabilities.

Q What safety protection functions are integrated into the device?

The device is equipped with smart protection chips that provide multiple layers of protection, including short-circuit protection, over-current protection, over-temperature protection, and over-voltage protection.

Q What are the physical dimensions and weight of this product?

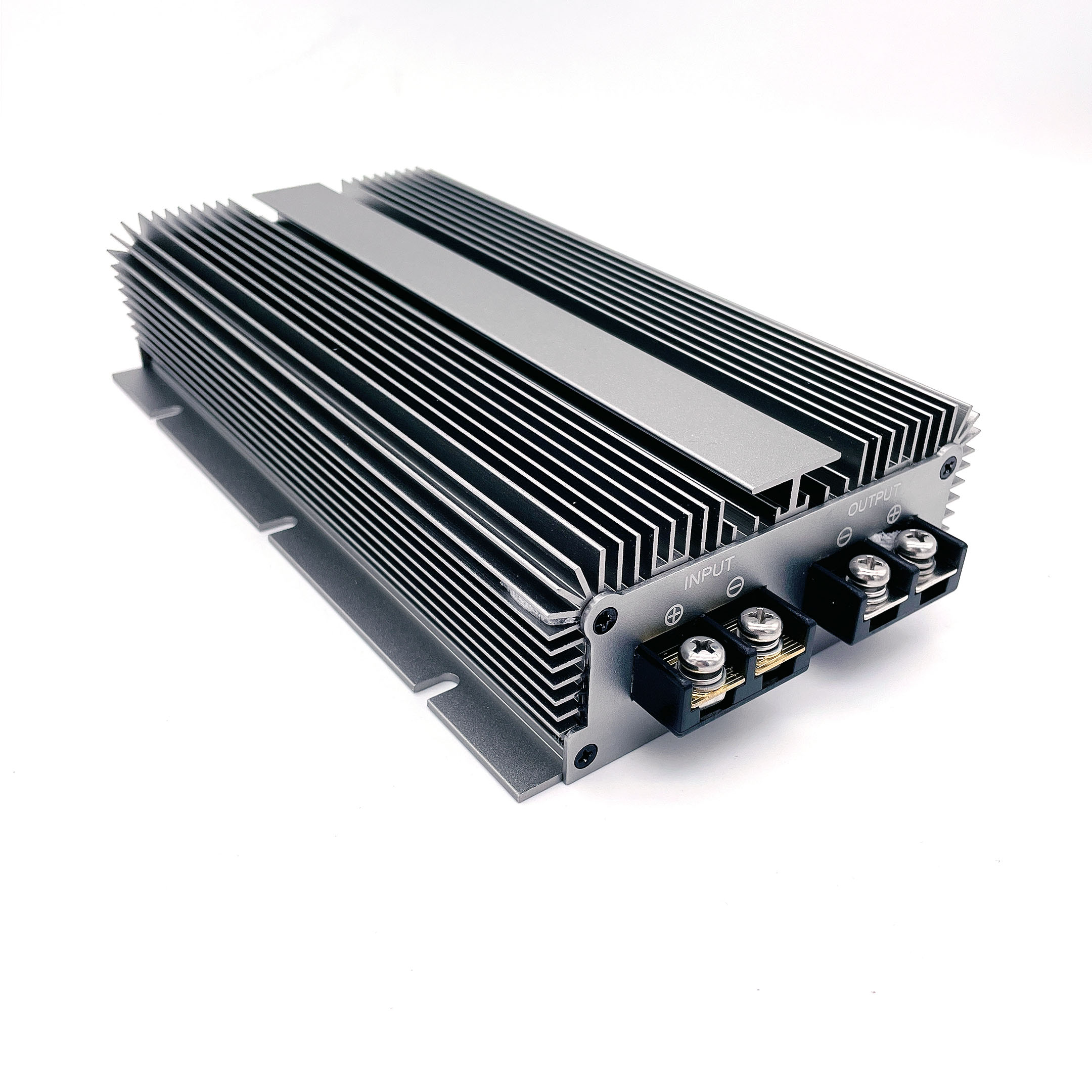

The unit comes in a durable aluminum alloy shell, weighs 2.5kg, and has structural dimensions of 220mm * 130mm * 50mm.

Product Detail

58V 20A DC Battery Charger for EV 12V/24V Lithium Lifepo4 & Lead Acid Batteries DC to DC Single/Dual Chargers

Product Description

Related Products

Product Detail

58V 20A DC Battery Charger for EV 12V/24V Lithium Lifepo4 & Lead Acid Batteries DC to DC Single/Dual Chargers

Product Description
