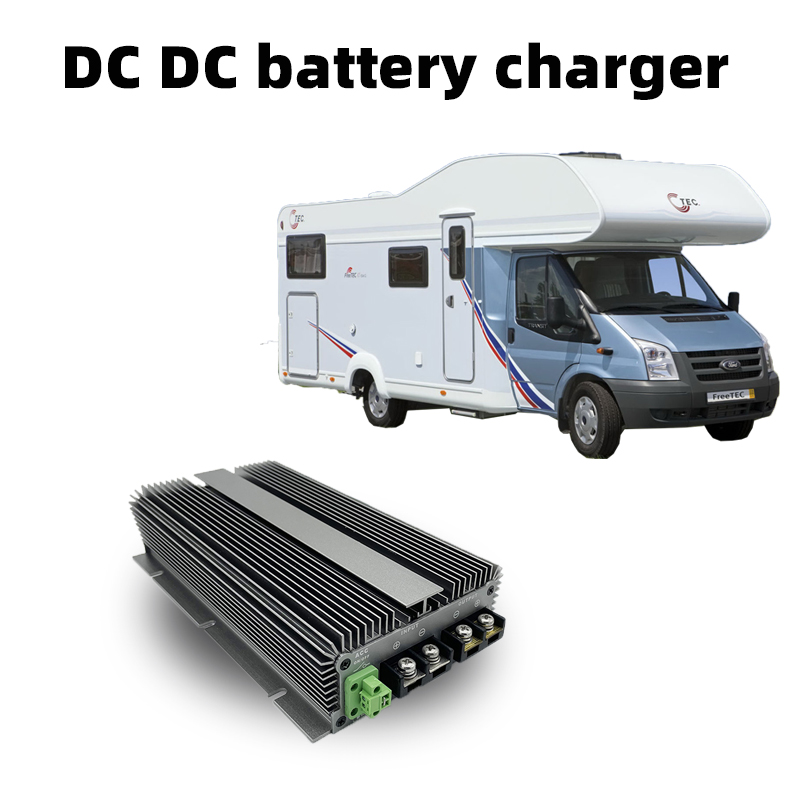

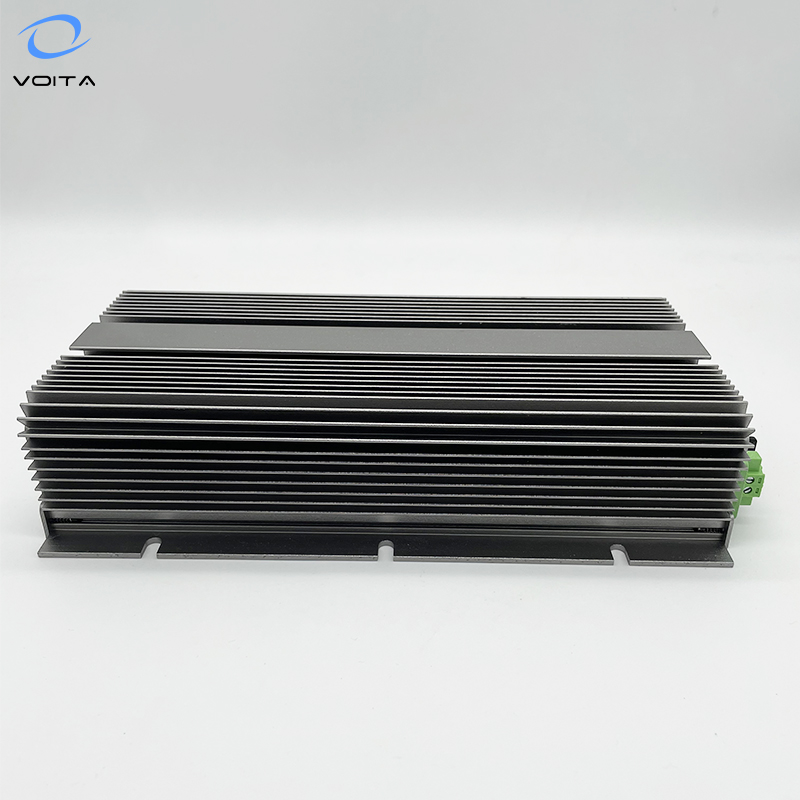

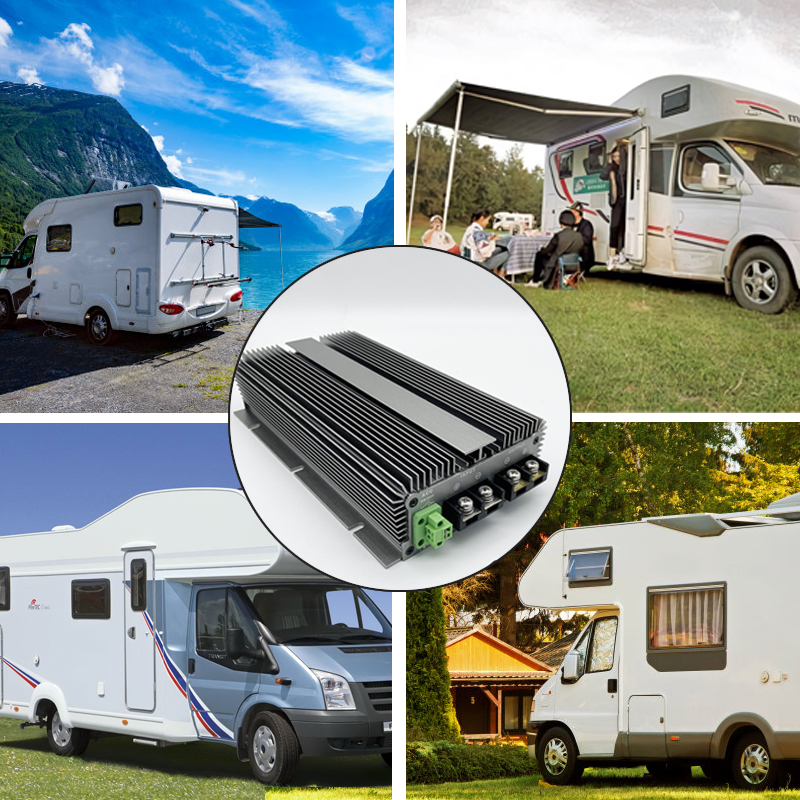

DC Power Supply 12v to 53V 56V 58V Dc Ev Charger for Lifepo4 Battery

1 / 5

DC Power Supply 12v to 53V 56V 58V Dc Ev Charger for Lifepo4 Battery

Send Inquiry

Product Description

🚀 Key Features

Synchronous Rectification Technology: Utilizes imported components for high efficiency (conversion efficiency more than 96%).
High-Temperature Resistance: Built with imported internal resistance capacitor filters to withstand extreme heat.
Superior Waterproofing: Organic silicone packaging technology allows the unit to work directly even when soaked in water.
Smart Protection: Equipped with chip smart protection against overheating and over-current.
Durable Construction: Features an aluminum alloy shell that is anti-shock, anti-drop, anti-moisture, and anti-dust.

📋 Technical Specifications

Model	VT-DD125615C
Input	Rated Voltage	DC 12V
	Voltage Range	9-16V
	Efficiency	96% @ 12V input
Output	Voltage	56V
	Max. Rated Current	15A
	Max. Rated Power	840W
	Voltage Regulation	±1%
	Load Regulation	2%
Environment	Working Temp.	-20℃ ~ 85℃
Environment	Working Humidity	10% ~ 90%RH
Protection	Waterproof Rating	IP67
	Short Circuit/Over Current	YES
	Over Temp/Over Voltage	YES
Mechanical	Weight	3kg
Mechanical	Size	22013050MM

❓ Frequently Asked Questions

Is your DC DC converter isolated or non-isolated?

It is Non-isolated.

What is the waterproof rating and can it work in water?

Yes, it is waterproof with an IP67 rating. Due to organic silicone packaging, it can work directly even if soaked in water.

What protection functions are included?

Our products include short circuit protection, over current protection, and over temperature protection as standard features.

How do I choose the right converter for my needs?

Please provide your battery specifications, the load equipment, and the working current of the load equipment so we can recommend the most suitable model.

What kind of certification do these products have?

We can provide CE certification for this kind of product.

Can I customize the cable length or connectors?

Yes, the normal length is 15cm, but we can customize different cord lengths, specifications, and add different connectors according to your requirements.
