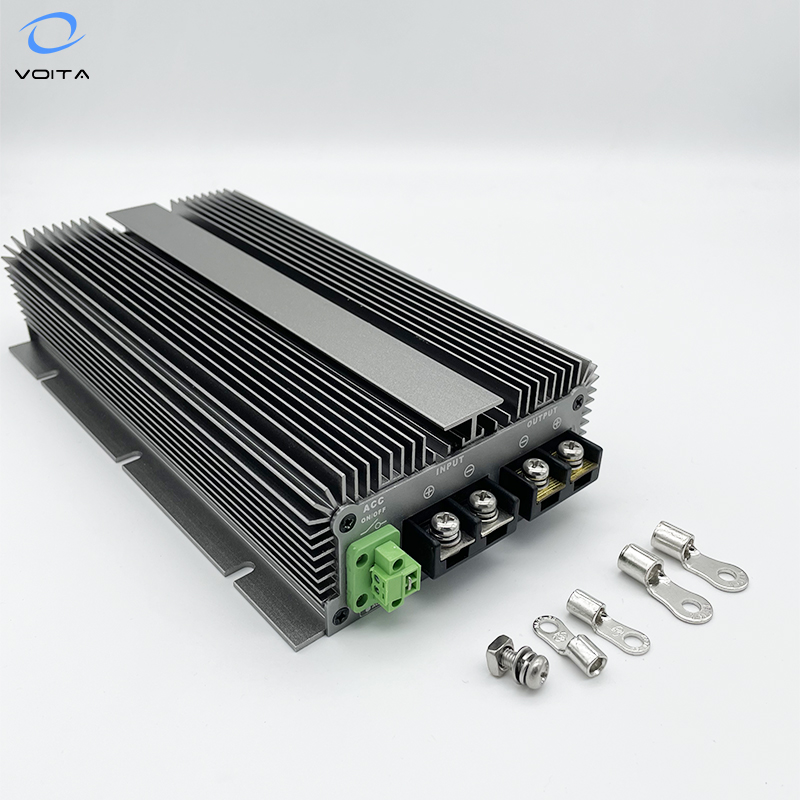

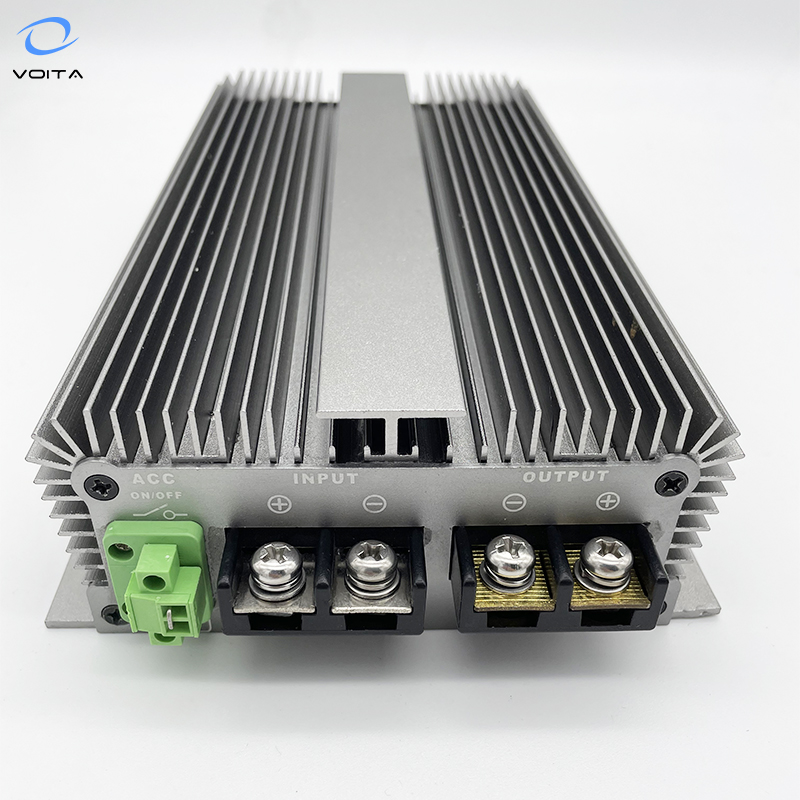

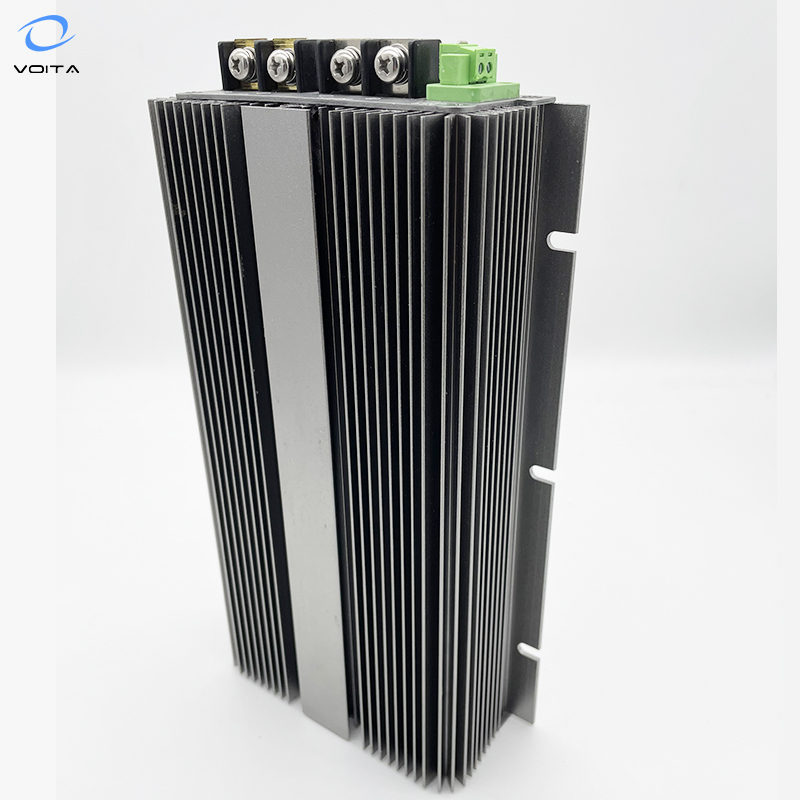

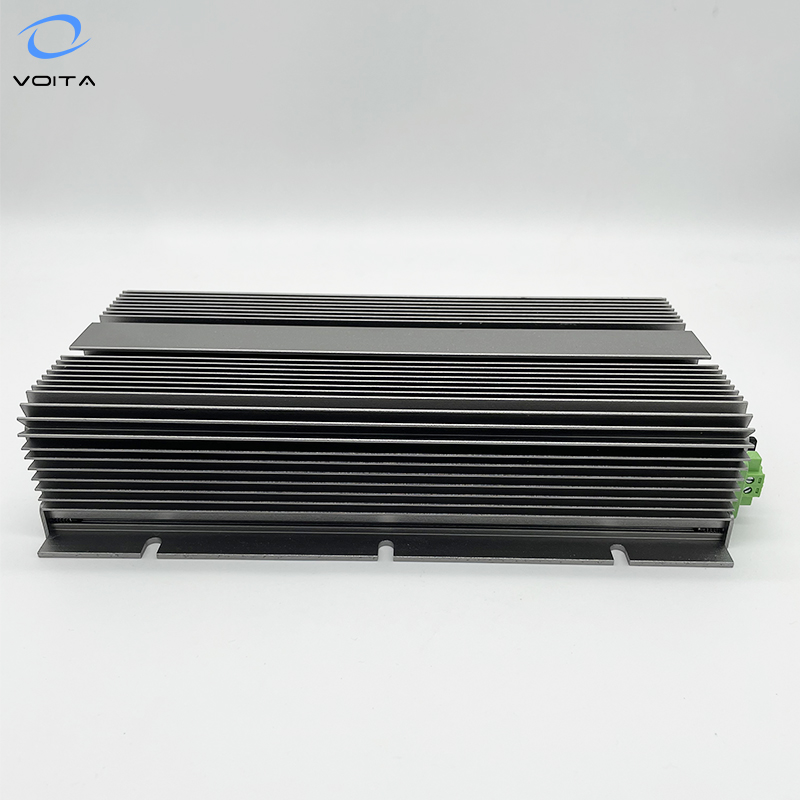

Hot Type DC to DC Charger 12V to 24V for Lithium Battery Step-up Charger

1 / 5

Hot Type DC to DC Charger 12V to 24V for Lithium Battery Step-up Charger

Send Inquiry

Product Description

★ Key Features

High Efficiency Synchronous rectification technology with imported components, ensuring conversion efficiency over 96%.

Durability Imported internal resistance capacitor filter designed to withstand high temperatures.

Waterproof Design Organic silicone packaging technology, allowing the unit to work even when soaked in water.

Smart Protection Equipped with chip smart protection against overheating and over-current.

Rugged Shell Aluminum alloy shell providing anti-shock, anti-drop, anti-moisture, and anti-dust capabilities.

⚙ Technical Specifications

Category	Parameter	Details
Model	VT-DD122420C
Input	Rated voltage	DC 12V
	Voltage range	9-16V
	Efficiency	96% @ 12V input
Output	Voltage	24V
	Max. rated current	20A
	Max. rated power	480W
	Voltage regulation	±1%
	Load regulation	2%
Environment	Working temperature	-20℃ ~ 85℃
	Working humidity	10% ~ 90%RH
	Storage temperature	-20℃ ~ 85℃
Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof Rating	IP67
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	1.6kg
Mechanical	Size	15013050mm

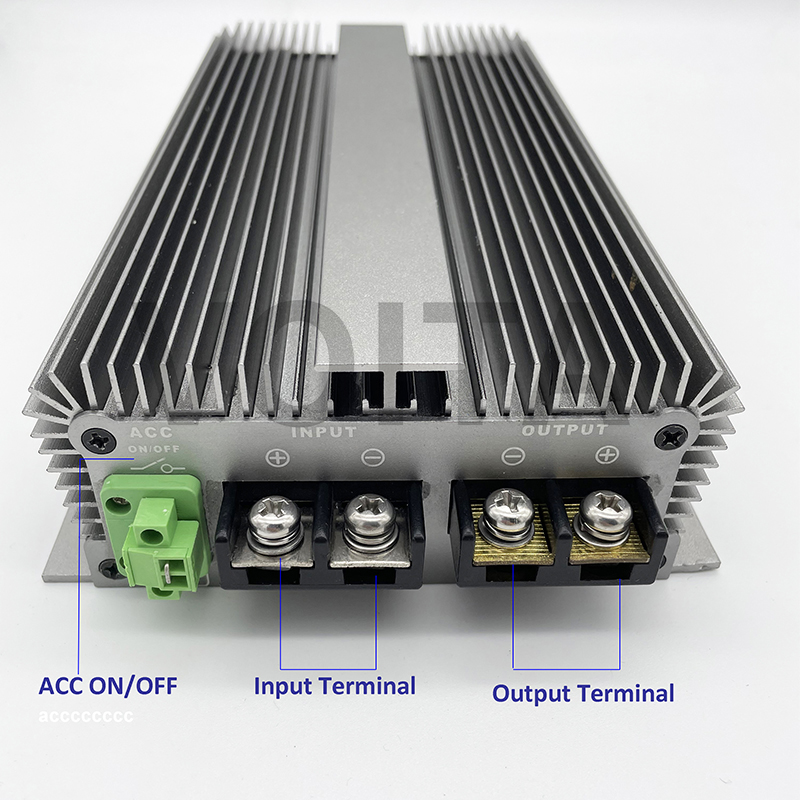

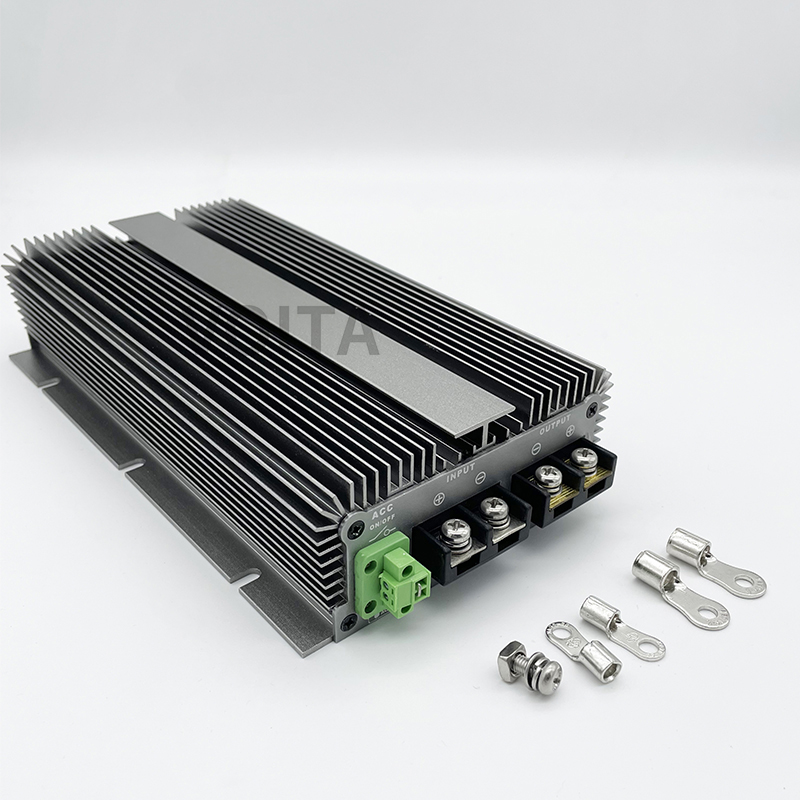

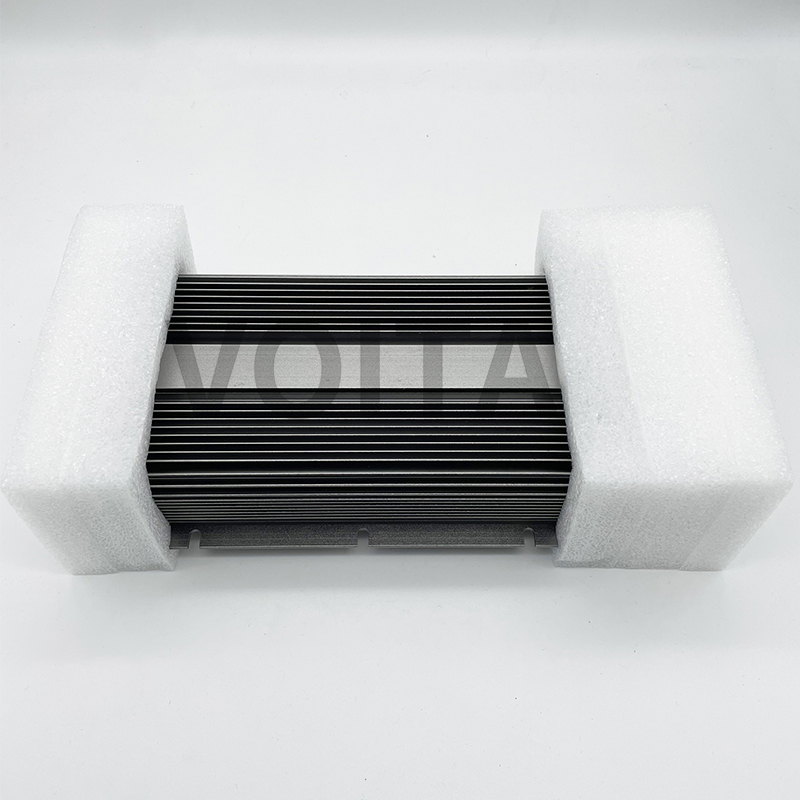

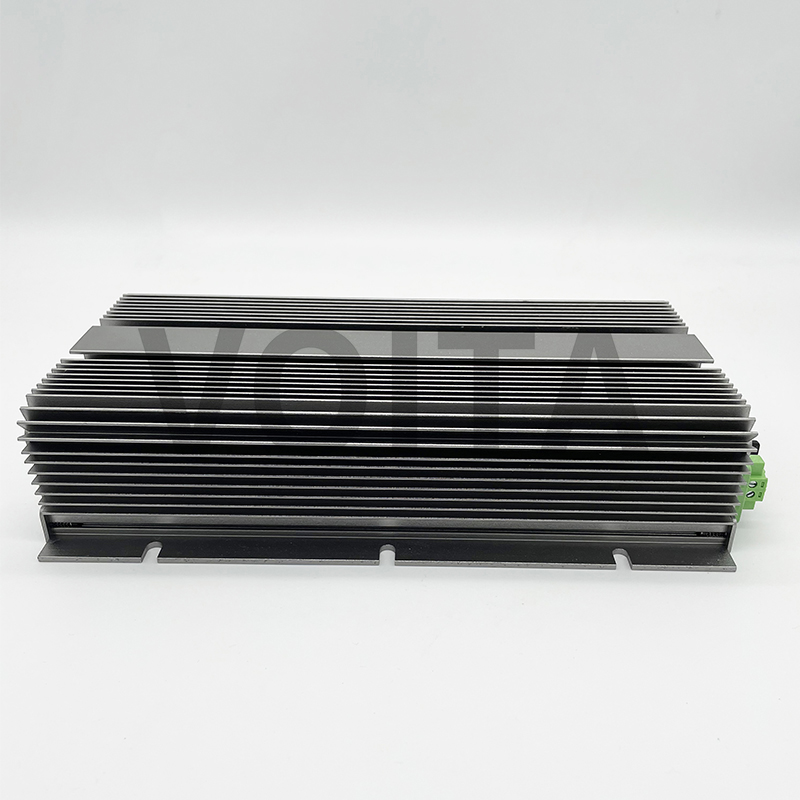

Product Presentation

Frequently Asked Questions

Q1: What is the maximum conversion efficiency of this converter?

The converter utilizes synchronous rectification technology and high-quality imported components to achieve a conversion efficiency of more than 96%.

Q2: Is the device truly waterproof?

Yes, it features an IP67 waterproof rating thanks to its organic silicone packaging technology, which protects it even under temporary submersion in water.

Q3: What safety protections are included?

The unit includes comprehensive smart protection features: anti-overheating, over-current protection, over-voltage protection, and short-circuit protection.

Q4: What is the operating temperature range?

This converter is designed to operate reliably in harsh environments with a working temperature range from -20℃ to +85℃.

Q5: How durable is the outer casing?

The device is housed in a high-grade aluminum alloy shell that provides excellent anti-shock, anti-drop, and dust-proof performance.

Q6: Can this handle 12V to 24V conversion for heavy loads?

Yes, the VT-DD122420C model is rated for a 20A output current and up to 480W of power, making it suitable for various high-power applications.
