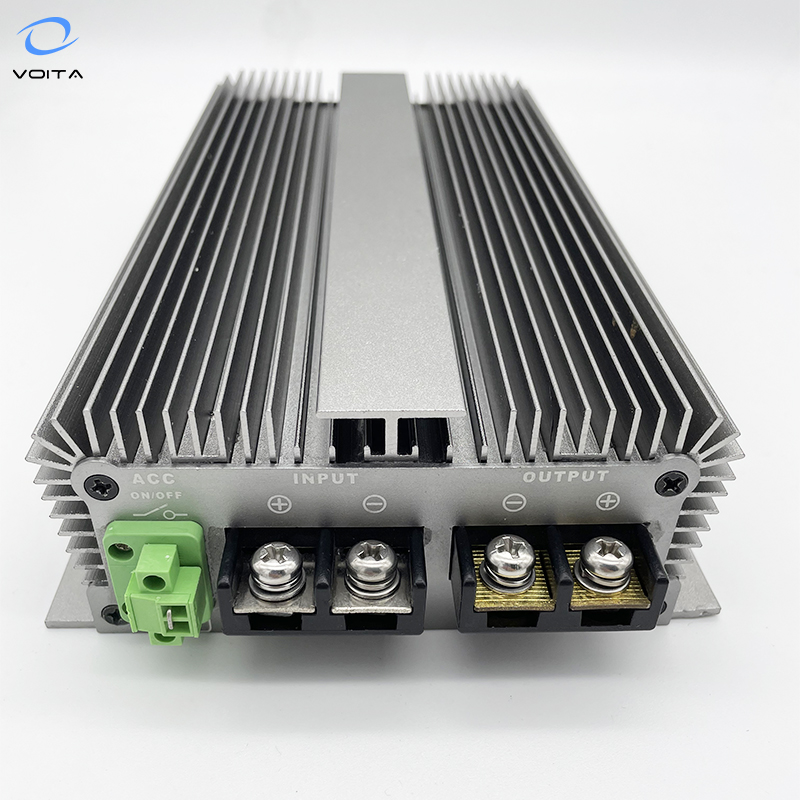

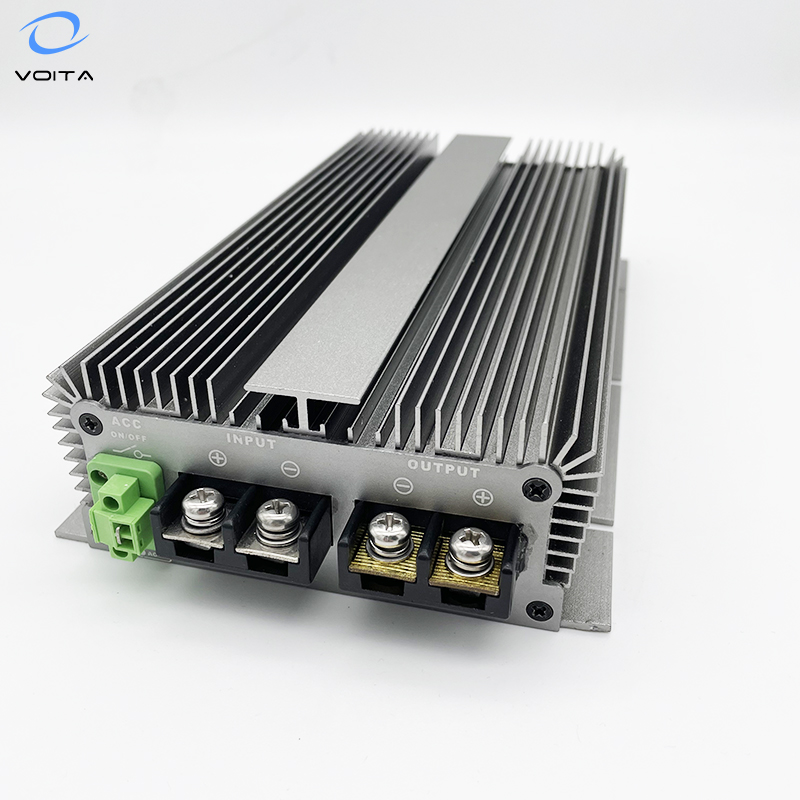

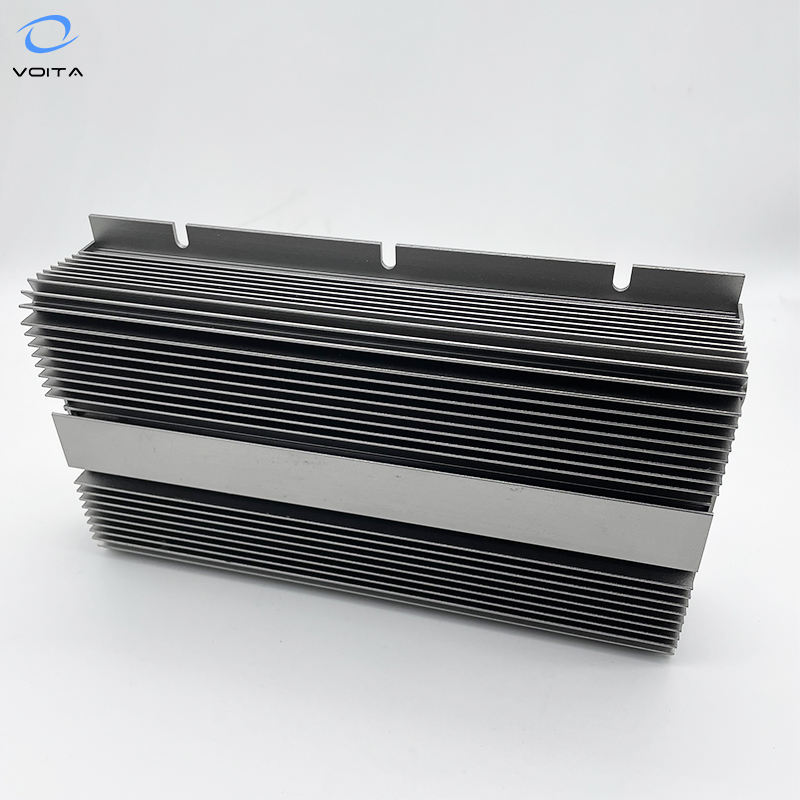

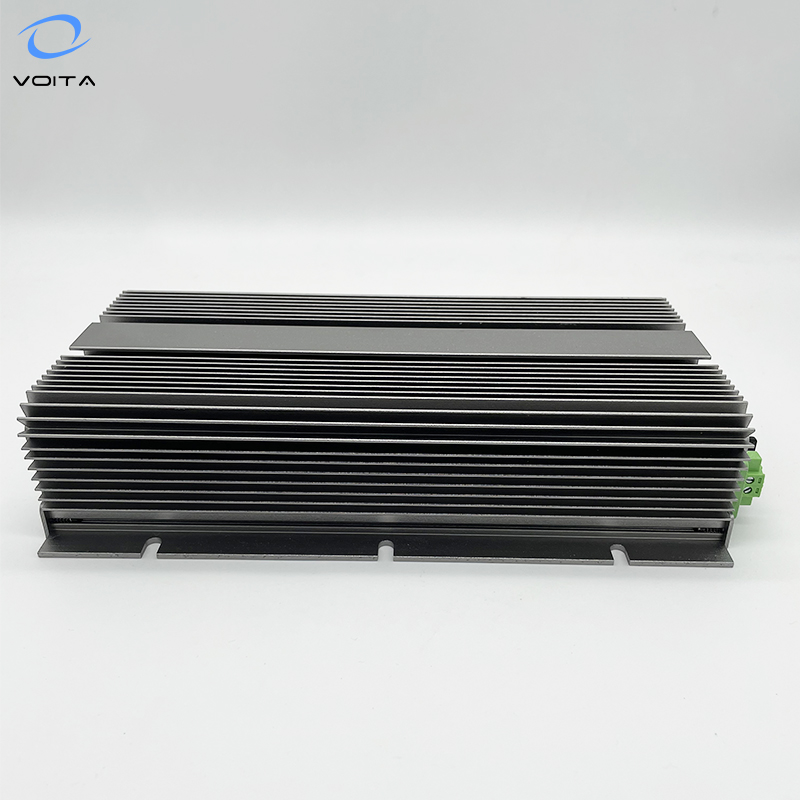

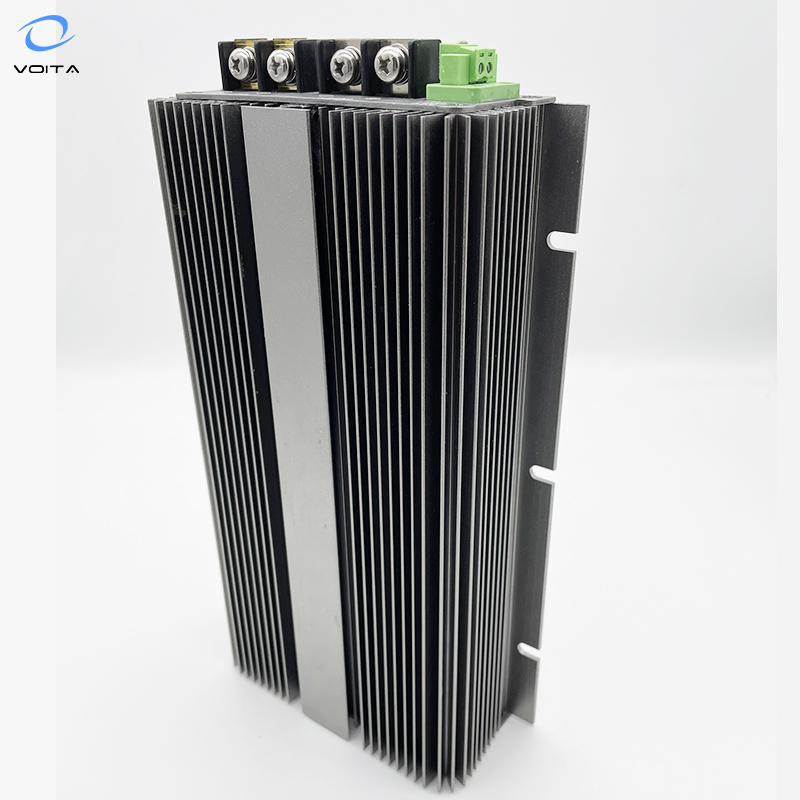

Hot Car Truck RVs EV Boat Dc Dc Chargers Step up Converter 12v to 14.6v 10a 20a 25a 30a Dc Charger

1 / 5

Hot Car Truck RVs EV Boat Dc Dc Chargers Step up Converter 12v to 14.6v 10a 20a 25a 30a Dc Charger

Send Inquiry

Product Description

Product Features

Synchronous Rectification Utilizes advanced synchronous rectification technology and imported components, achieving conversion efficiency over 96%.

High-Grade Components Equipped with imported internal resistance capacitor filters designed to withstand high temperatures.

Organic Silicone Packaging Adopts organic silicone packaging technology, allowing the device to work even when soaked in water.

Smart Protection Chip Integrated chip provides intelligent anti-overheating, over-current, and short-circuit protection.

Durable Housing Aluminum alloy shell offers superior anti-shock, anti-drop, anti-moisture, and anti-dust performance.

Technical Specifications

Model	VT-DD125830C
Input	Rated Voltage	DC 12V
	Voltage Range	9-16V
	Efficiency	96% @ 12V input
Output	Voltage	58V
	Max. Rated Current	30A
	Max. Rated Power	1740W
	Voltage Regulation	±1%
	Load Regulation	2%
Environment	Working Temp.	-20℃ ~ 85℃
Environment	Working Humidity	10% ~ 90%RH
Protection	Waterproof Rating	IP67
	Over Current	YES
	Short Circuit	YES
	Over Temperature	YES
Mechanical	Weight	2.3kg
Mechanical	Size	22015665mm

Product Gallery

Frequently Asked Questions

1. Is your DC DC converter isolated or non-isolated? It is a Non-isolated converter.

2. Is it waterproof? What is the waterproof rating? Yes, our converters are waterproof with a rating of IP67.

3. What protection functions does your product have? The product features short circuit protection, over-current protection, over-temperature protection, and over-voltage protection.

4. What is the material of the potting glue and the shell? We use epoxy resin for potting. The shells are available in both plastic and aluminum alloy options.

5. How do I choose the right converter? Please provide your battery specifications, the equipment to be powered, and its required working current. We will recommend the most suitable model.

6. Can I customize the cable length and connectors? The standard length is 15cm, but we can customize different cord lengths, specifications, and connectors as per your requirements.
