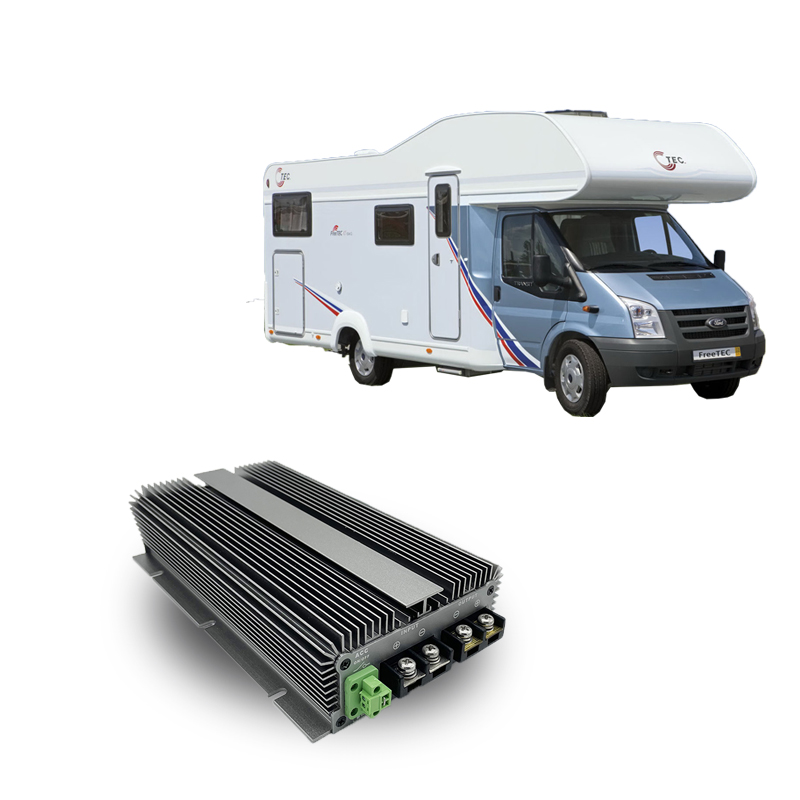

Fast Charging Dc Dc Ev Charger 12v to 28v 29v boost Converter for Lithium Lifepo4 AGM

1 / 5

Fast Charging Dc Dc Ev Charger 12v to 28v 29v boost Converter for Lithium Lifepo4 AGM

Send Inquiry

Product Description

Key Features

●

Synchronous rectification technology, imported components, conversion efficiency more than 96%.

●

Imported internal resistance capacitor filter, withstand high temperature.

●

Organic silicone packaging technology, can work directly soaked in water.

●

Chip smart protection, anti-overheating, over-current protection.

●

Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust.

Technical Specifications

Model		VT-DD122840C
Input	Rated voltage	DC 12V
	Voltage range	9-16V
	Efficiency	96% @ 12V input
Output	Voltage	28V
	Max. rated current	40A
	Max. rated power	1120W
	Voltage regulation	±1%
	Load regulation	2%

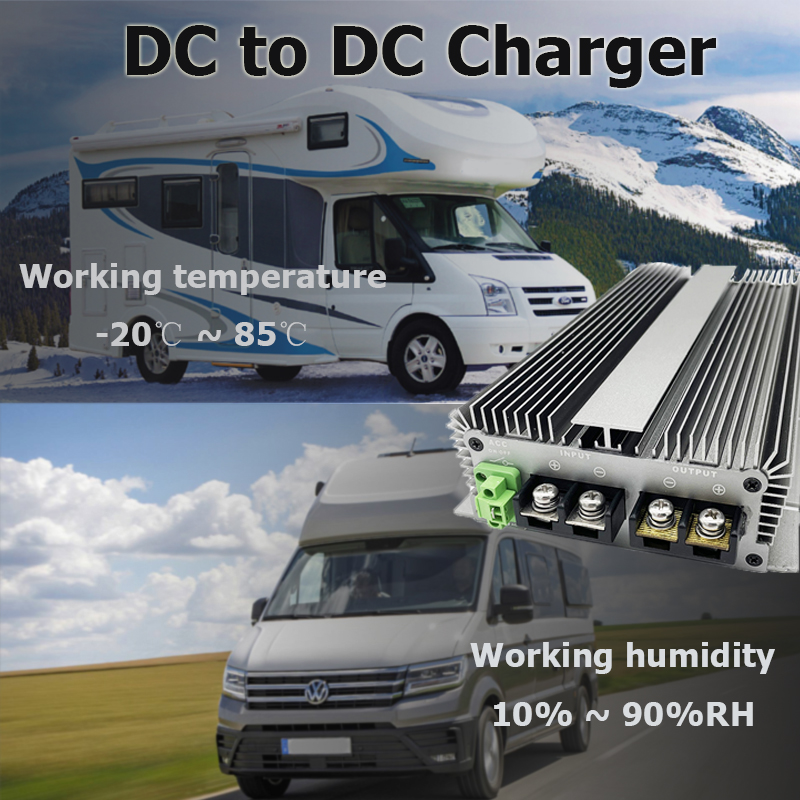

Environment	Working temperature	-20℃ ~ 85℃
	Working humidity	10% ~ 90%RH
	Storage temperature	-20℃ ~ 85℃
Function	Short circuit protection	YES
	Over current protection	YES
	Waterproof Rating	IP67
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	2.3kg
Mechanical	Size	22013050mm

Product Display

Frequently Asked Questions

1. Is your DC DC converter isolated or non-isolated? It is Non-isolated.

2. Is it waterproof? What is the waterproof rating? Yes, it is rated IP67, which means it is fully protected from dust and can be submerged in water.

3. What kind of protection functions does the product have? It includes short circuit protection, over current protection, over temperature protection, and over voltage protection.

4. What is the material of the shell and potting? The shell is made of aluminum alloy for anti-shock and anti-drop durability, and the potting glue is epoxy resin/organic silicone.

5. How do I choose the right converter for my equipment? Please provide your battery specifications, load equipment details, and the working current of the load. We can help recommend the most suitable model.

6. Does the product have certification? Yes, we can provide CE certification for this type of product.
