B2B1230 Lithium Battery to Battery Charger 12 Volts 30 Amp Lifepo4 Lead Acid Batteries Chargers for RV Car

1 / 5

B2B1230 Lithium Battery to Battery Charger 12 Volts 30 Amp Lifepo4 Lead Acid Batteries Chargers for RV Car

Send Inquiry

Product Description

Product Overview & Features

Professional DC-DC charger designed to charge the main battery through the alternator and starter battery, or utilize Solar panels (on specific models). This charger is specifically engineered for motorhomes, campers, ships, and marine applications.

B2B Charge (Battery to Battery)

Ensures efficient charging of the main battery using the vehicle's alternator and starter battery system.

High-power charging: While the vehicle is running, the alternator quickly charges the main battery at full capacity.
Voltage Regulation: Automatically adjusts voltage (boosting or stepping down) to follow standard charging curves.
Dual Battery Support: Can be used to charge one battery from another in non-vehicle setups.

MPPT Solar Charge

Advanced MPP Technology: Increases solar panel charging efficiency by 10-30% by tracking the maximum power point.
Precision Charging: Manages current flow through boosting or stepping down to maintain the standard charge curve.
Starter Battery Maintenance: Provides a small trickle charge to the starter battery during long periods of inactivity, ensuring the vehicle is always ready to start.

Technical Specifications

Parameter	Details
Model	B2B1230
Main Battery Voltage	12V DC
Main Battery Type	GEL, Sealed, Flooded, LiFePO4, Lithium-ion
Vehicle Starter Battery	12V DC
Starter Battery Type	Lead acid
DC-DC Max Charging Current	30A
Self-consumption Current	24mA
Dimension	19019470mm
Net Weight	1.54KG

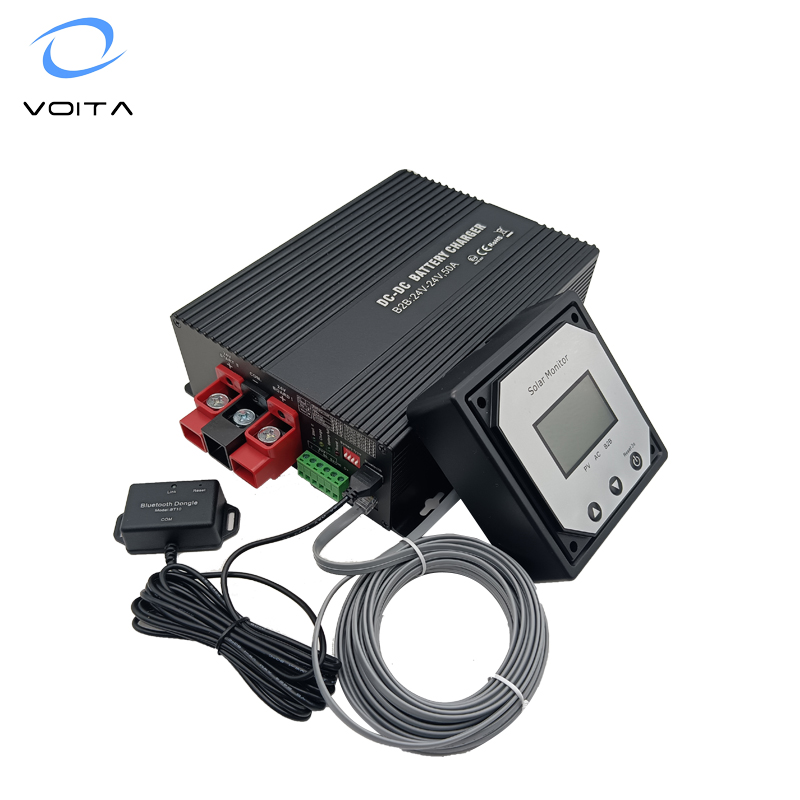

Optional Accessories	Monitor (MT-2), Bluetooth-Dongle (BT10), Temperature Sensor (TRS)

Product Gallery

Our Services

Inquiries replied within 24 hours.
OEM & ODM customization services.
Distributorship availability for unique designs and current models.
Full protection of sales areas, design ideas, and private information.
Guaranteed free replacement and maintenance within the warranty period.
Rigorous quality inspection with QA reporting.
100% product quality testing before packaging.

Production & Facilities

Frequently Asked Questions

1. Which battery types is this DC-DC charger compatible with?

The charger supports a wide range of batteries including GEL, Sealed, Flooded, LiFePO4, and Lithium-ion batteries.

2. How does the B2B (Battery to Battery) charging system work?

B2B charging allows the vehicle's alternator to charge your auxiliary (main) battery while you are driving. It manages the voltage to ensure a safe and efficient charge curve.

3. Does this charger support solar panels?

Yes, specific models include MPPT technology which increases solar charging efficiency by 10-30%, allowing the main battery to be charged via solar power.

4. Can I use this charger for marine or RV applications?

Absolutely. This DC-DC charger is specifically designed for use in motorhomes, campervans, and ships.

5. What is the benefit of the built-in trickle charge for the starter battery?

When the vehicle is stationary for long periods, the charger provides a small maintenance flow to the starter battery to ensure it always has enough power to start the engine.

6. What is the maximum charging current for the B2B1230 model?

The maximum DC-DC charging current for the B2B1230 model is 30A.
