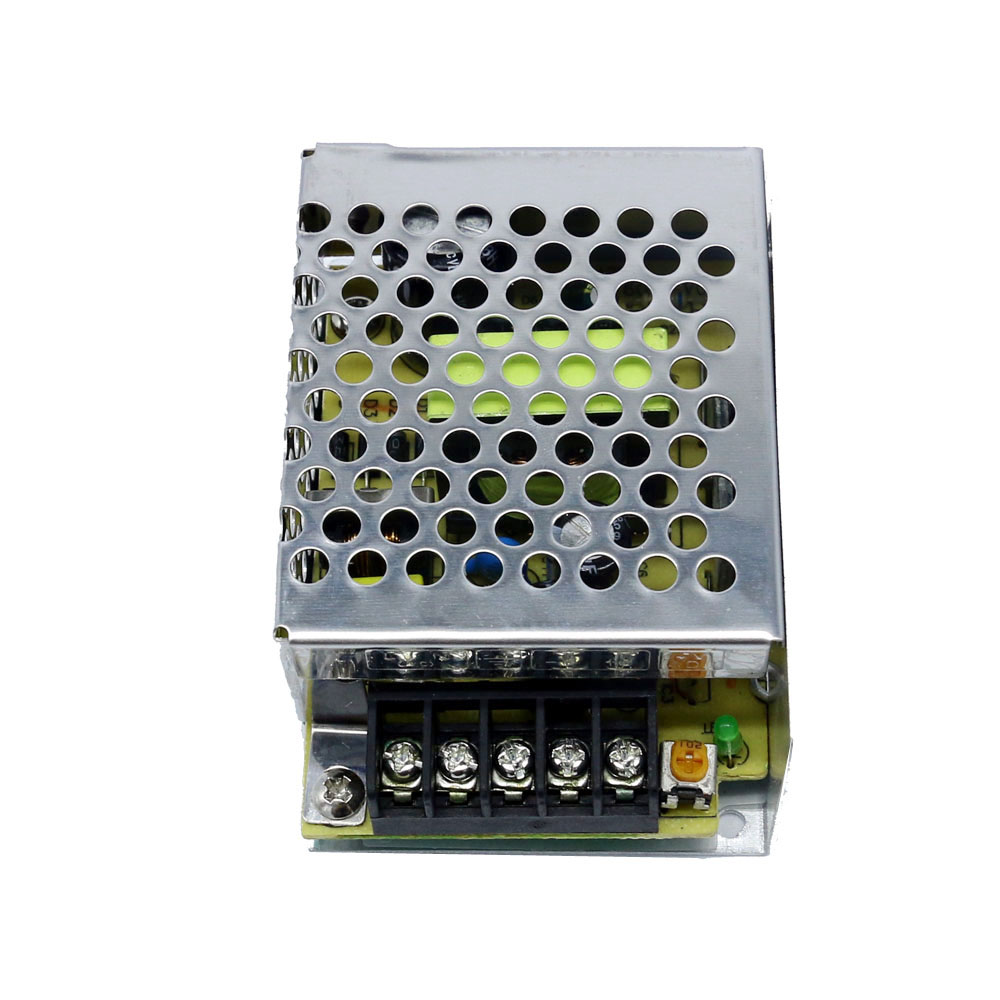

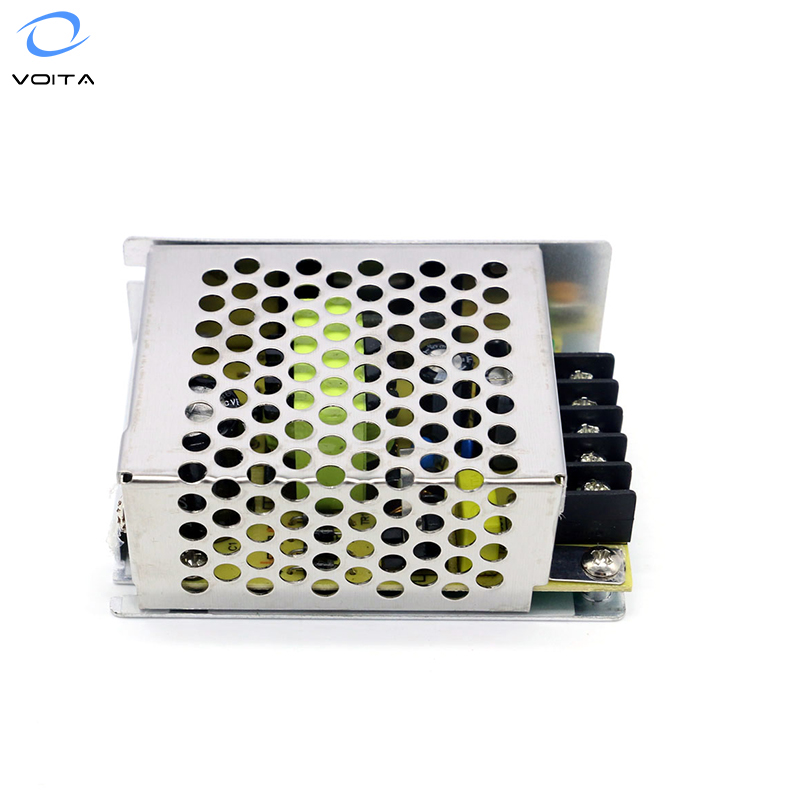

Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
1 / 5
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer
Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer

Switching Power Supply S-24-12 AC to DC 12V Metal Shield 2A/24W LED Security Monitoring Voltage Regulator Stabilizer

Send Inquiry

Product Description

Switching power supply product view Switching power supply detail
⚙️ Technical Specifications Overview
Product NameSwitching power supply
Model NumberS-24-12
Output Power24W
Input VoltageAC110/220V±15% by switch
Output Voltage12VDC

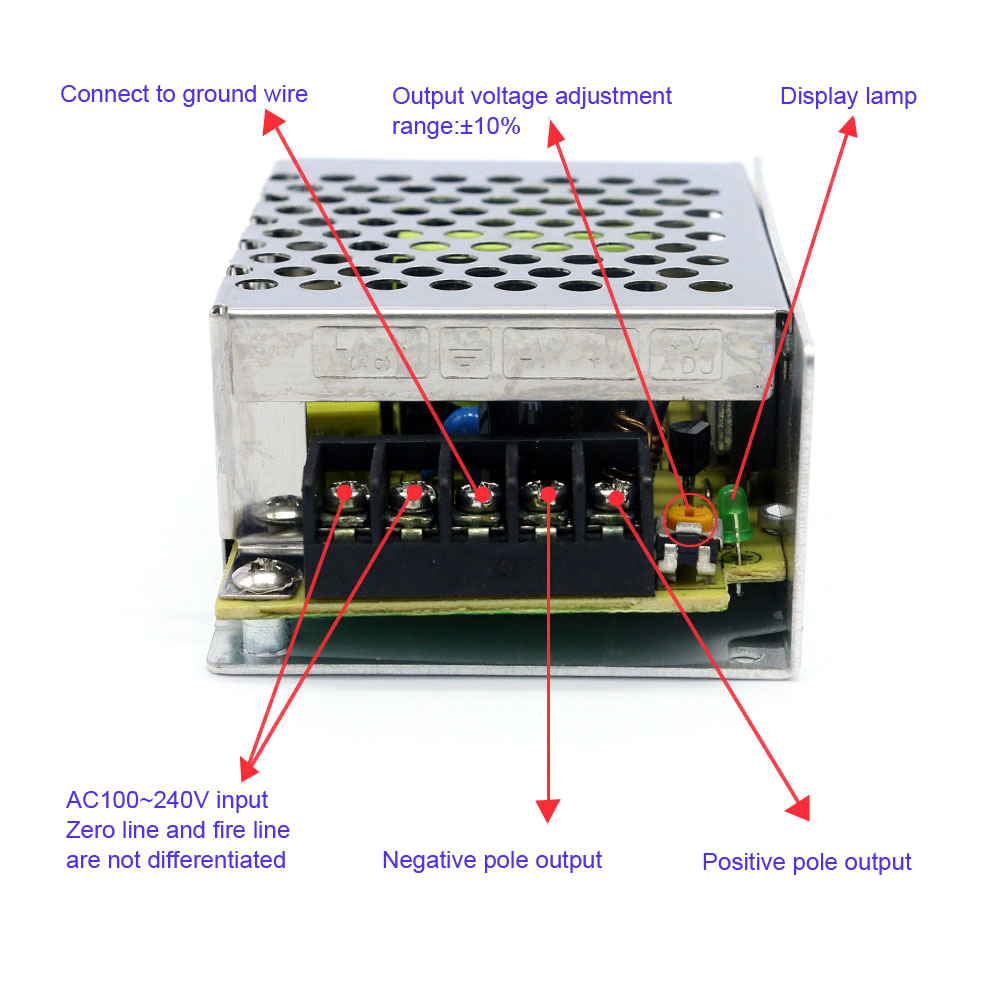

Output Voltage Adjustment Range±10%
Output Frequency47~63Hz
Output Current2A
Size85*58*33mm
Weight0.135kg
Efficiency87%
Over Voltage ProtectionYes(＞115%-135% of rated output voltage)
Over Load ProtectionYes(＞105%-150% Self-recovery)
Short Circuit ProtectionYES
Humidity20%-90%RH
Ripple120mVp-p
Working Temperature-40°~ +65°
ApplicationLED lighting/Industrial equipment
Internal components PCB board layout
📸 Product Details Gallery

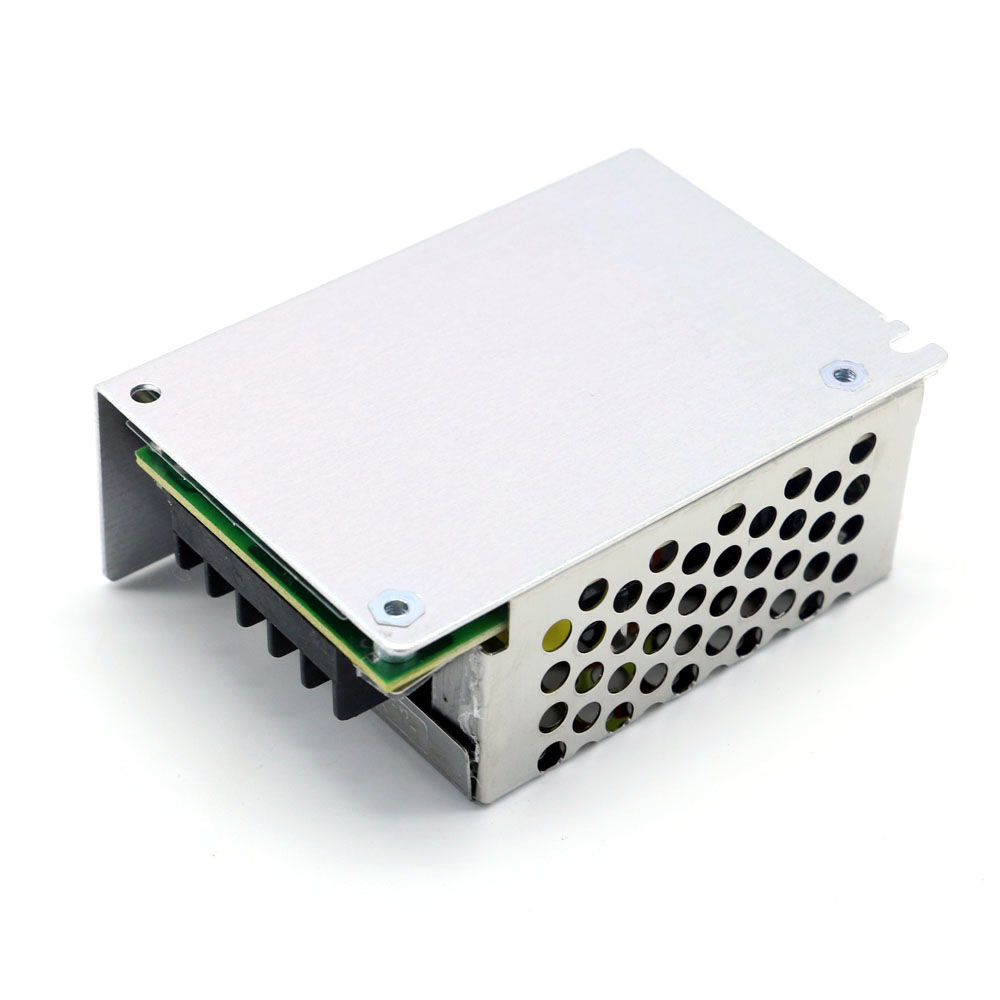

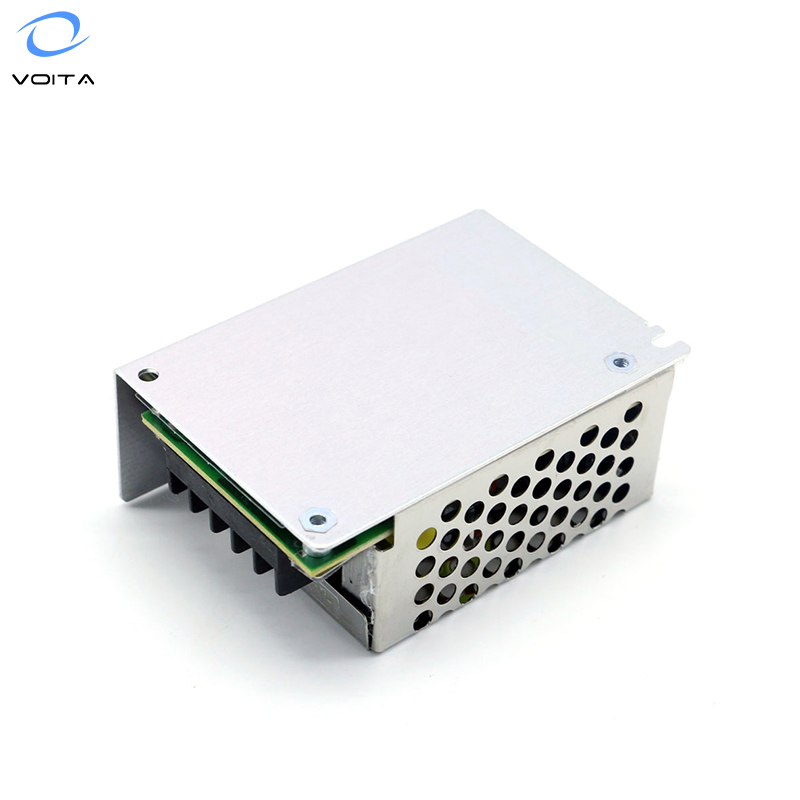

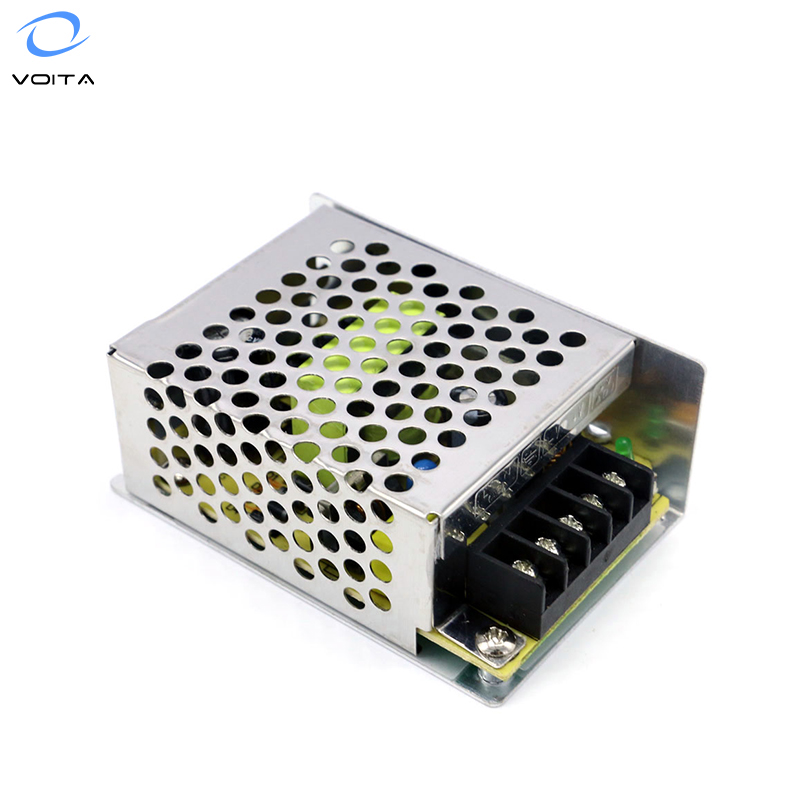

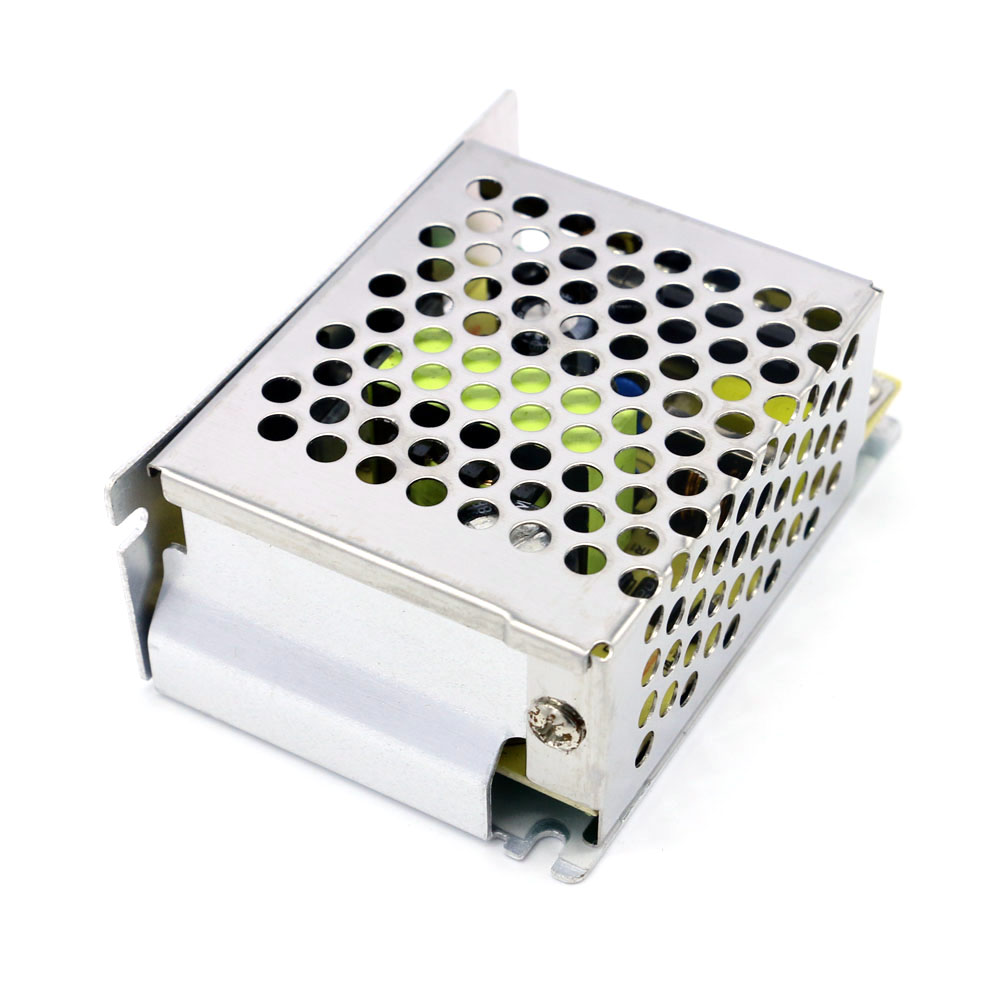

Gallery 1 Gallery 2 Gallery 3 Gallery 4 Gallery 5 Gallery 6 Gallery 7
Feature highlight Feature highlight Feature highlight Feature highlight Production line Quality control Testing equipment Packaging Certification logo Standard compliance
❓ Frequently Asked Questions
What is the primary use for the S-24-12 switching power supply?
This power supply is highly versatile and is specifically designed for LED lighting systems and various industrial equipment requiring a stable 12V DC output.
Is the input voltage compatible with international standards?
Yes, the unit features a switchable input for AC 110V and 220V (±15%), making it suitable for use in different regions worldwide.
What safety protections does this model include?
The S-24-12 includes comprehensive safety features such as Over-Voltage Protection (115%-135%), Over-Load Protection (105%-150% with self-recovery), and Short Circuit Protection.
Can the output voltage be fine-tuned?
Yes, the output voltage has an adjustment range of ±10%, allowing you to calibrate the voltage precisely for your equipment's needs.
What are the environmental operating limits?
It is designed to operate in temperatures ranging from -40° to +65° and humidity levels between 20% and 90% RH, ensuring reliability in various working conditions.
How efficient is this power supply?
The model boasts an 87% efficiency rating, which helps reduce energy consumption and minimizes heat generation during operation.
