Product Description

Switching Power Supply Overview
Product Specifications
Product NameSwitching power supply
Model NumberVT-S-200-12
Output Power200W
Input VoltageAC110/220V±15% by switch
Output Voltage12VDC
Adjustment Range±10%
Output Frequency47~63Hz
Output Current16.7A

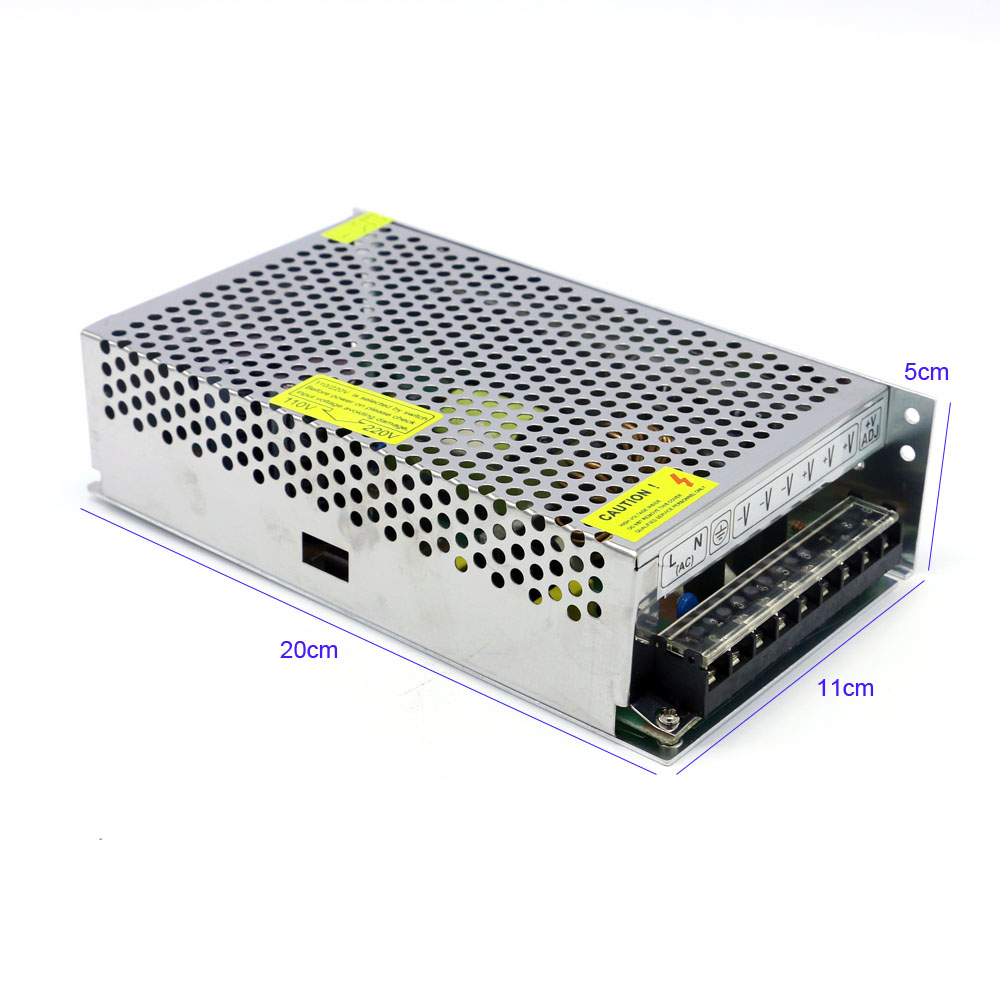

Size199*98*42mm
Weight0.5kg
Efficiency87%
Over Voltage ProtectionYes (>115%-135% of rated output voltage)
Over Load ProtectionYes (>105%-150% Self-recovery)
Working Humidity20%-90%RH
Ripple120mVp-p
Working Temperature-40°~ +65°
Short Circuit ProtectionYES
ApplicationLED lighting/Industrial equipment
Key Features
0-5V or 0-10V external control signal support.
Control voltage and current through PLC micro controller touch screen.
Support adjust the voltage and current via Potentiometer.
Comprehensive protection: overload, short circuit, and over current.
Imported filter ring capacitor for stable performance.
High anti-interference capability with small output ripple.
Product Gallery
Frequently Asked Questions
How can I adjust the output voltage?
The output voltage can be adjusted manually via the built-in potentiometer (±10% range) or through an external 0-5V/0-10V control signal.
Does this power supply support both 110V and 220V input?
Yes, it features a dual-input voltage selector switch. Please ensure the switch is set to your local voltage (110V or 220V) before powering on.
Is it compatible with PLC systems?
Absolutely. This model is designed to support PLC micro-controllers and touch screens for remote voltage and current management.
What safety protections are included?
It includes comprehensive safety features: short circuit protection, over-load protection (105%-150% with self-recovery), and over-voltage protection (115%-135%).
What is the ripple level of this power supply?
The ripple is maintained at a low level of 120mVp-p, ensuring stable power delivery for sensitive industrial and LED equipment.
Can it operate in extreme temperatures?
Yes, it is designed for a wide working temperature range from -40°C to +65°C, making it suitable for harsh environments.
