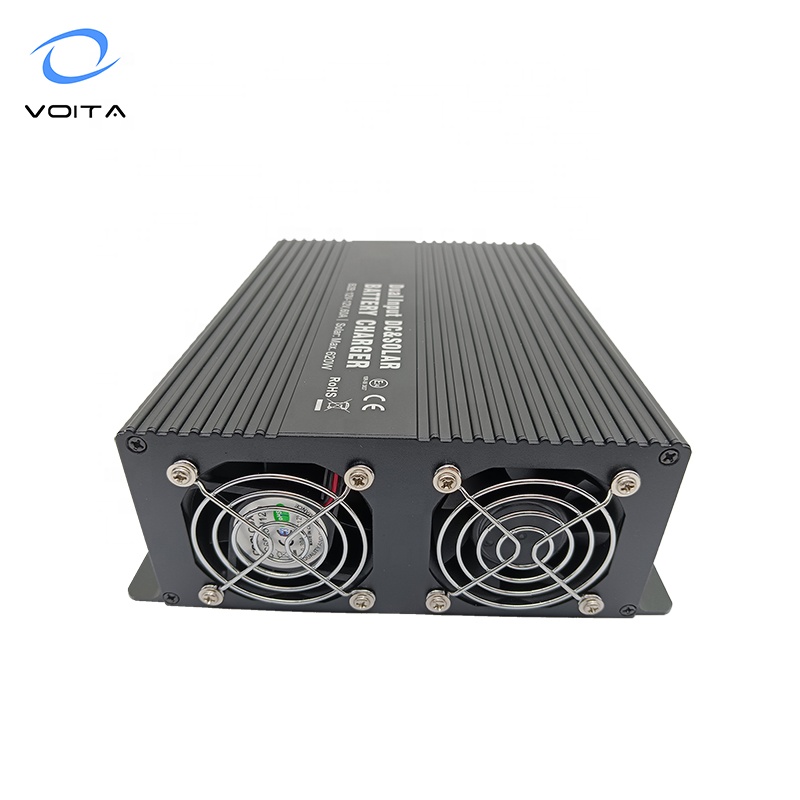

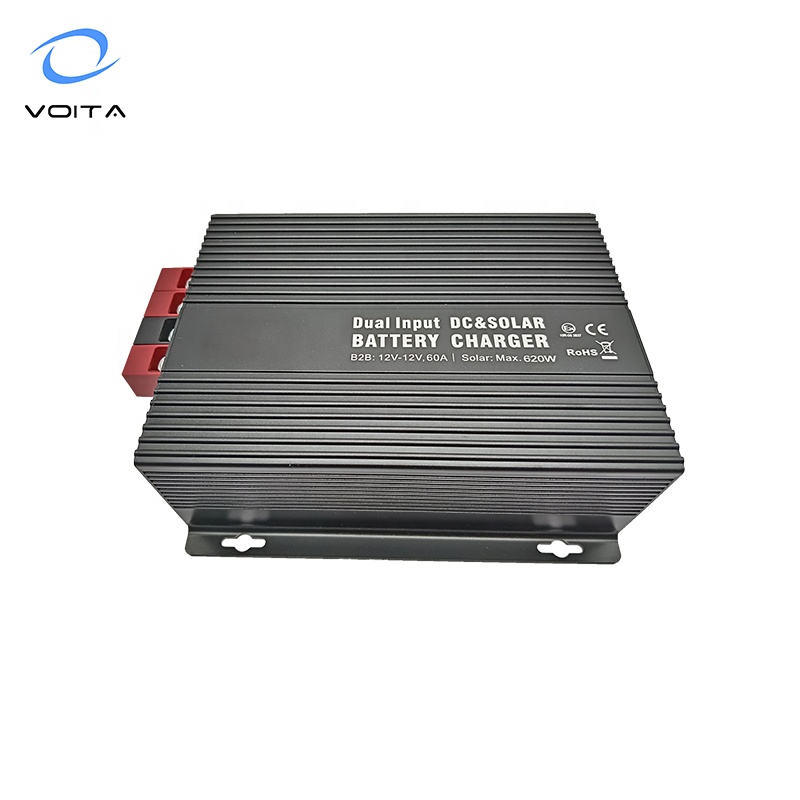

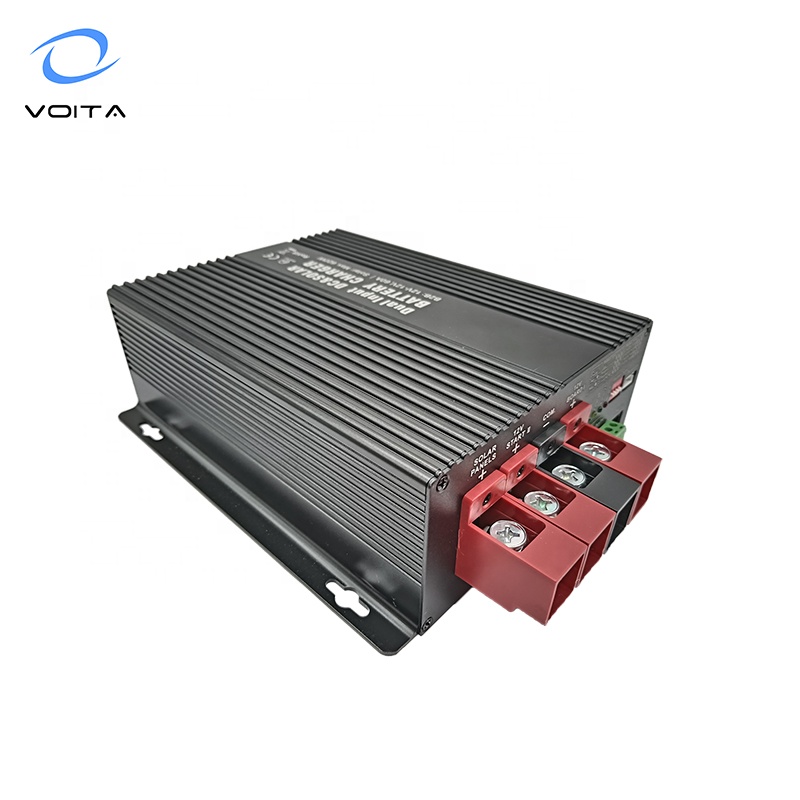

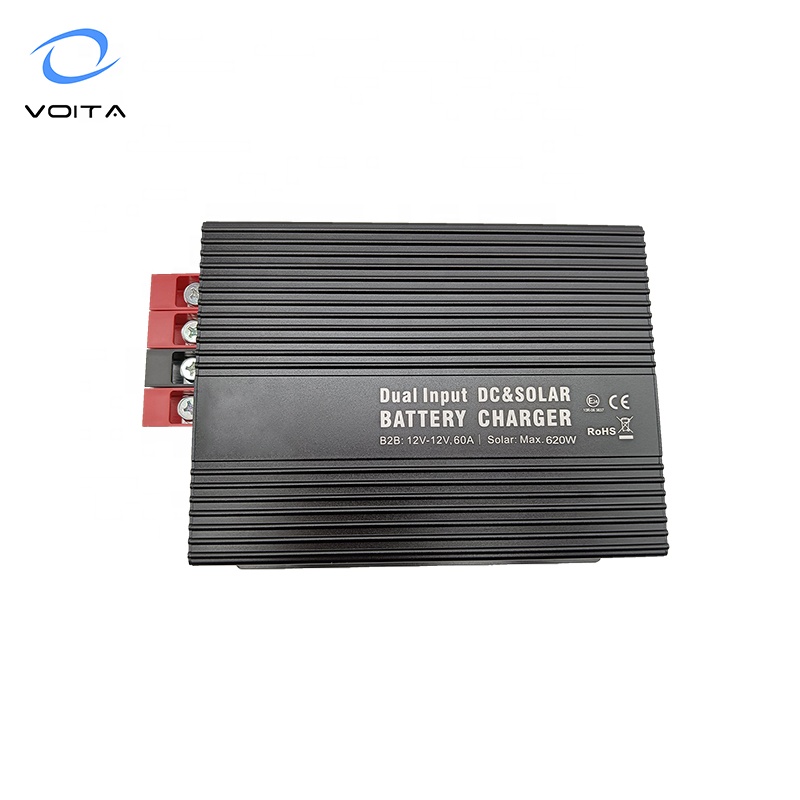

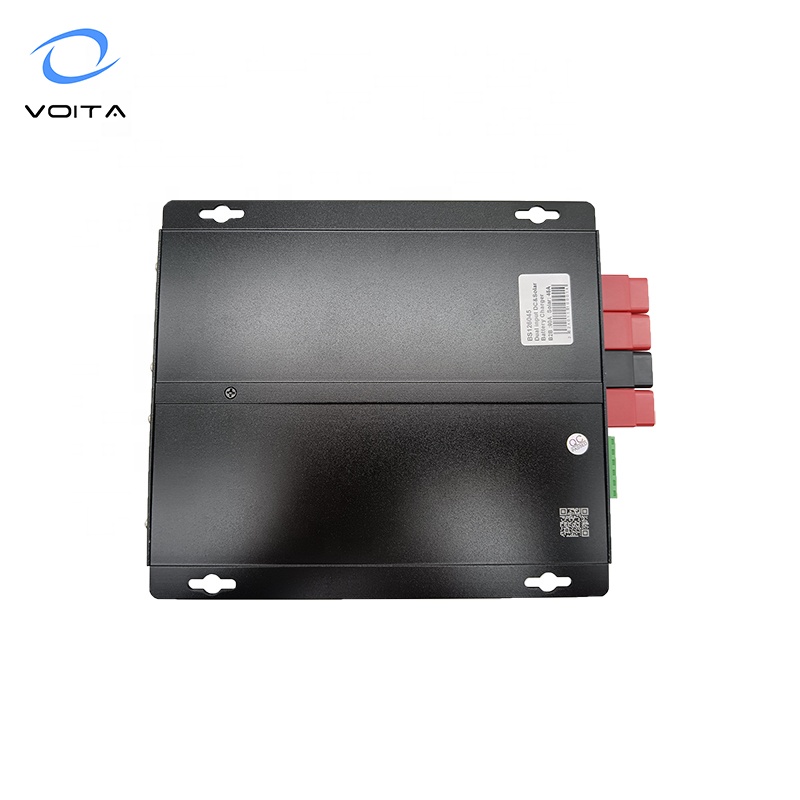

VOITA BS126045 Portable Solar & Battery to Battery Charger 12V 60A DC 45A MPPT 2700W Output Lead Acid LiFePO4 Batteries

1 / 5

VOITA BS126045 Portable Solar & Battery to Battery Charger 12V 60A DC 45A MPPT 2700W Output Lead Acid LiFePO4 Batteries

Send Inquiry

Product Description

⚡

DC-DC charger that can charge the main battery through the alternator, and starter battery, or Solar panels charge the main battery (some models). Designed specifically for motorhomes, campers, ships, etc.

B2B Charge Technology

🚗

It means to charge the main battery through alternator and starter battery. If it is not used in the vehicle, you can also use one battery to charge another battery.

When the vehicle is running, the vehicle alternator can quickly charge the main battery through charger at full power.
The charger can charge the main battery according to the specified voltage and current by boosting or stepping down to ensure that the main battery is in accordance with the standard charging curve.

MPPT Solar Charge

☀️

The charger can increase the charging efficiency of the solar panel by 10-30% through MPP technology (Maximum Power Point Tracking).
Ensures the main battery is charged according to the standard charge curve by boosting or stepping down voltage as required.
Maintains a small trickle charge flow for the starter battery when the vehicle is idle for long periods, ensuring sufficient power to start.

Technical Specifications

Model	VT-BS126045
Main battery	12Vdc
Main battery type	GEL, Sealed, Flooded, LifePO4, Lithium-ion
Vehicle starter battery	12V
Starter battery type	Lead acid
DC-DC Max charging current	60A
Solar Max charging current	45A
Solar max voltage	50V
Self-consumption current	24Ma
Dimension	19019470mm
Net Weight	1.54KG
Accessory (Optional)	Monitor (MT-2), Bluetooth-Dongle (BT10), Temperature Sensor (TRS)

Product Details

Application and Features

1. What battery types can this DC-DC charger support? The charger is compatible with various battery types including GEL, Sealed, Flooded, LiFePO4, and Lithium-ion batteries.

2. How does the B2B charging function work? The B2B (Battery-to-Battery) function allows you to charge your service/main battery using the vehicle's alternator while driving, ensuring optimal charging via specialized voltage curves.

3. Can I connect solar panels directly to this charger? Yes, this model includes a built-in MPPT solar controller that handles solar panel input (up to 50V) to charge your main battery efficiently.

4. What is the benefit of MPPT technology in this device? MPPT (Maximum Power Point Tracking) technology increases charging efficiency from solar panels by 10% to 30% compared to standard controllers.

5. Is there a protection for the starter battery? Yes, the charger can provide a trickle charge to the starter battery when the vehicle is stationary, ensuring it always has enough power to start the engine.

6. Can I monitor the charging status remotely? The system supports optional accessories like a dedicated monitor (MT-2) or a Bluetooth dongle (BT10) for real-time tracking of battery performance.
