VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
1 / 5
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip
VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip

VOITA Switching Power Supply Light Transformer Ac 110v 220v to Dc 5v 12v 24v 48v 120W Power Supply Source Adapter for Led Strip

Send Inquiry

Product Description

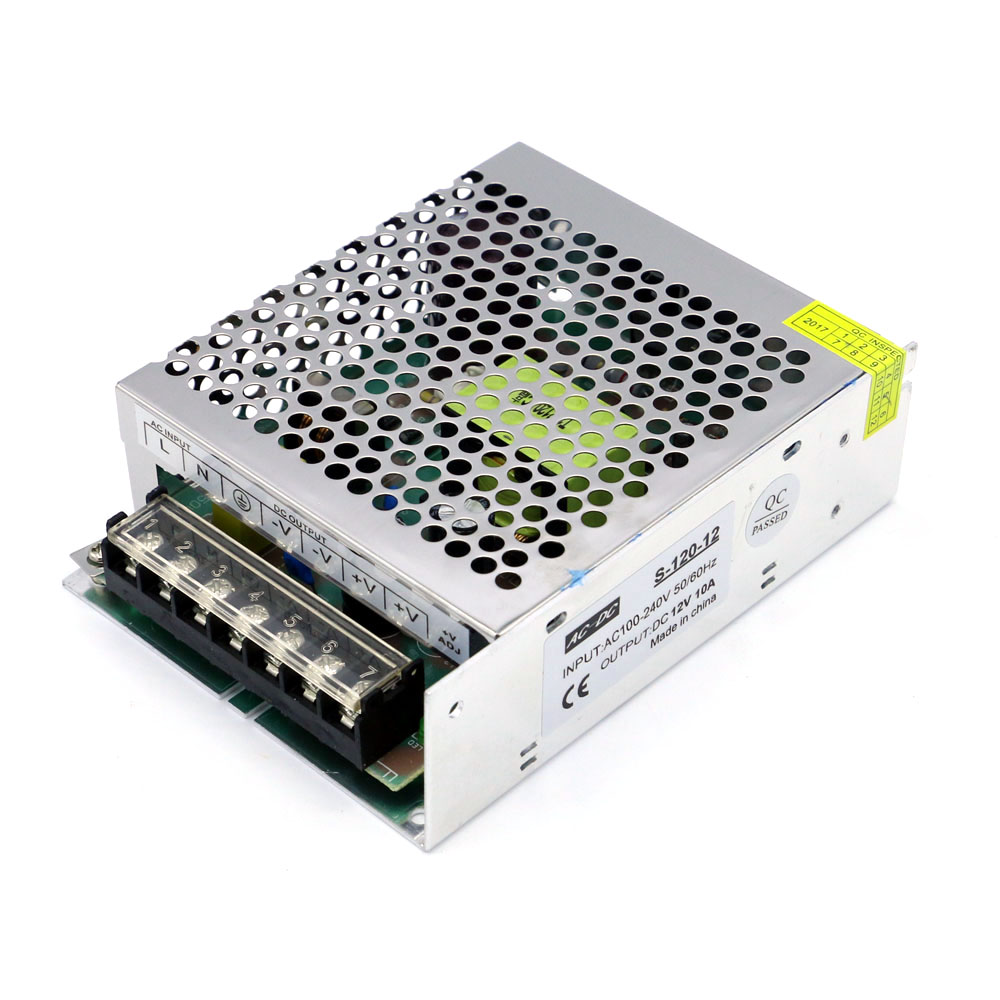

Power Supply Main View

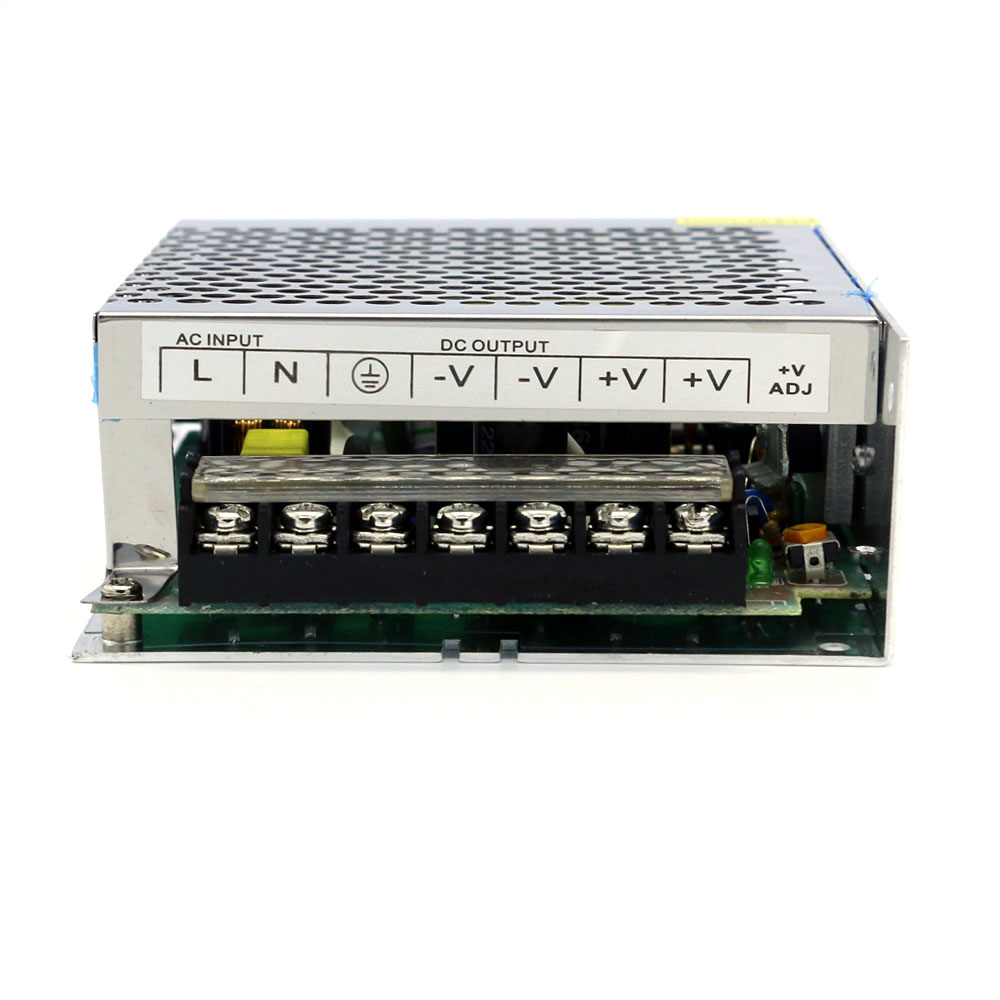

Power Supply Details
Technical Specifications
Product NameSwitching power supply
Model NumberS-120-12
Output Power120W
Input VoltageAC110/220V±15% by switch
Output Voltage12VDC
Output voltage adjustment range±10%
Output Frequency47~63Hz
Output Current10A
Size129*99*40mm
Weight0.31kg
Efficiency87%
Over voltage protectionYes(＞115%-135% of rated output voltage)
Over Load protectionYes(＞105%-150% Self-recovery)
Humidity20%-90%RH
Ripple120mVp-p
Working temperature-40°~ +65°
Short circuit protectionYES
ApplicationLED lighting/Industrial equipment

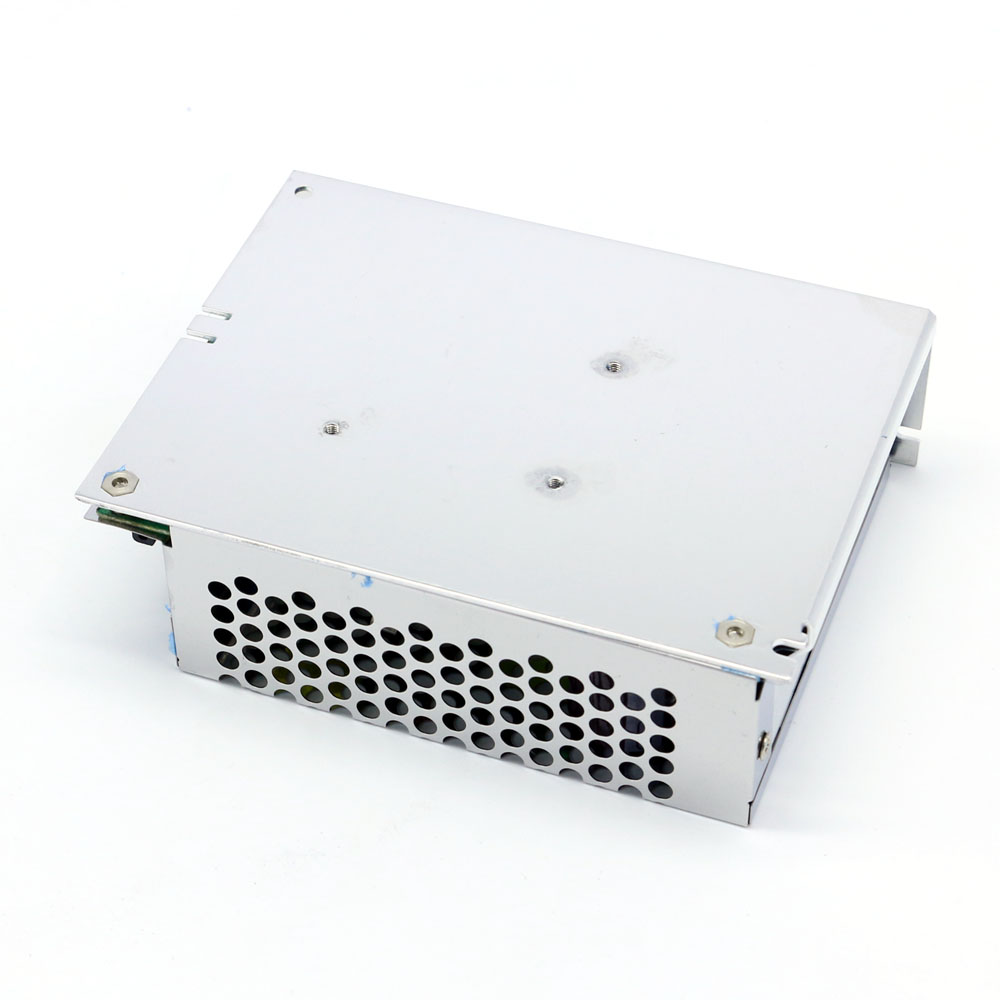

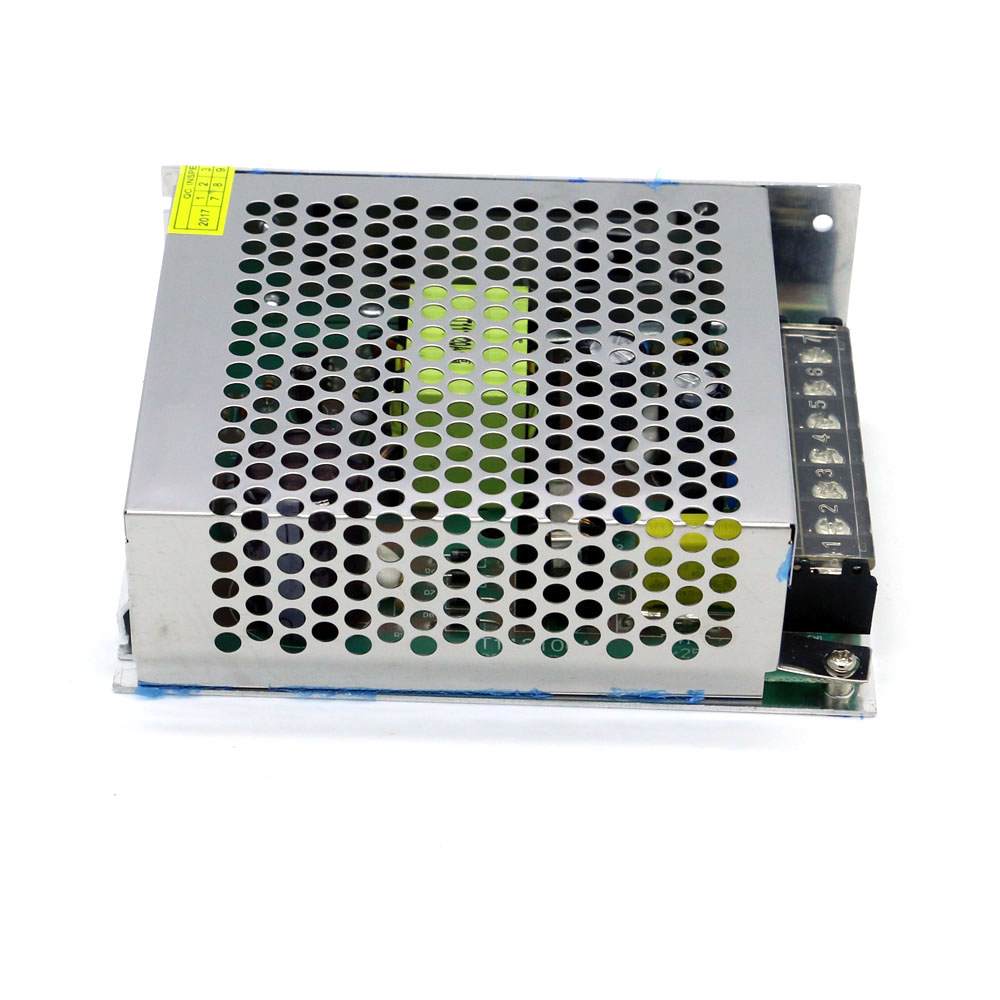

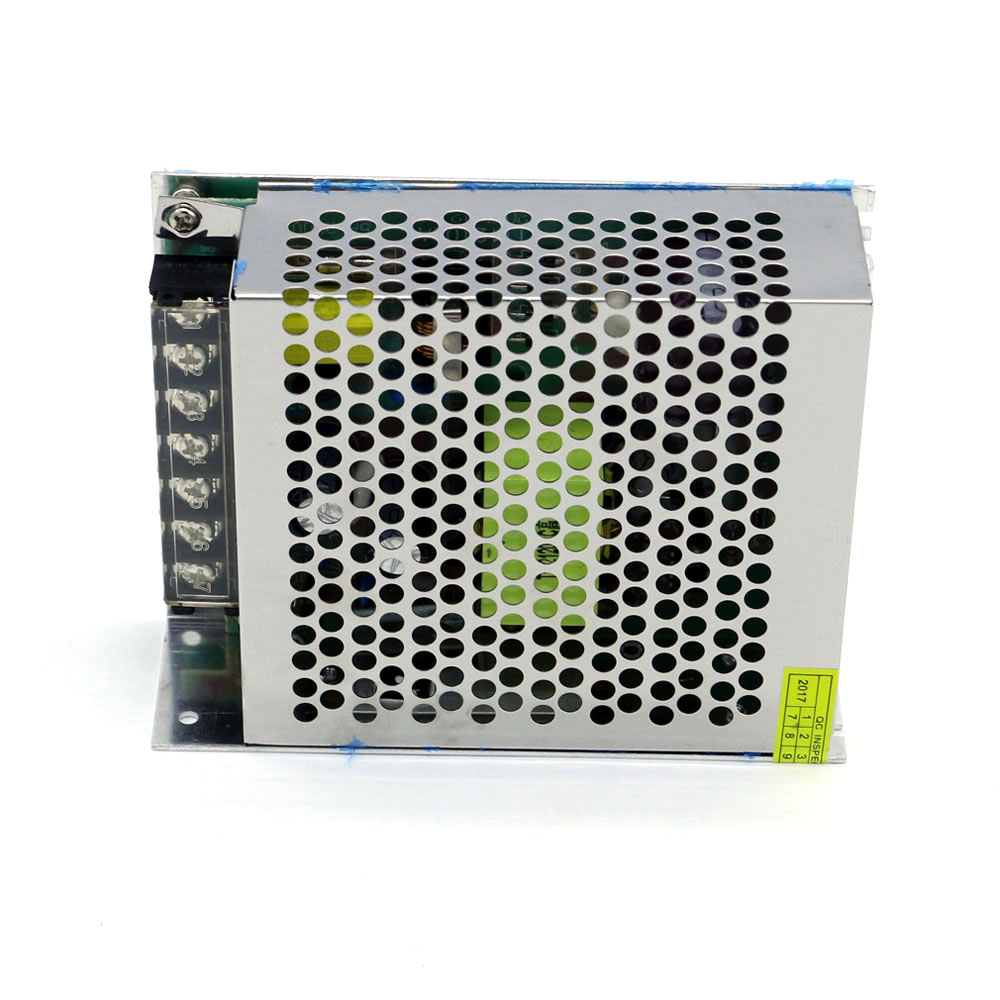

Product View 1

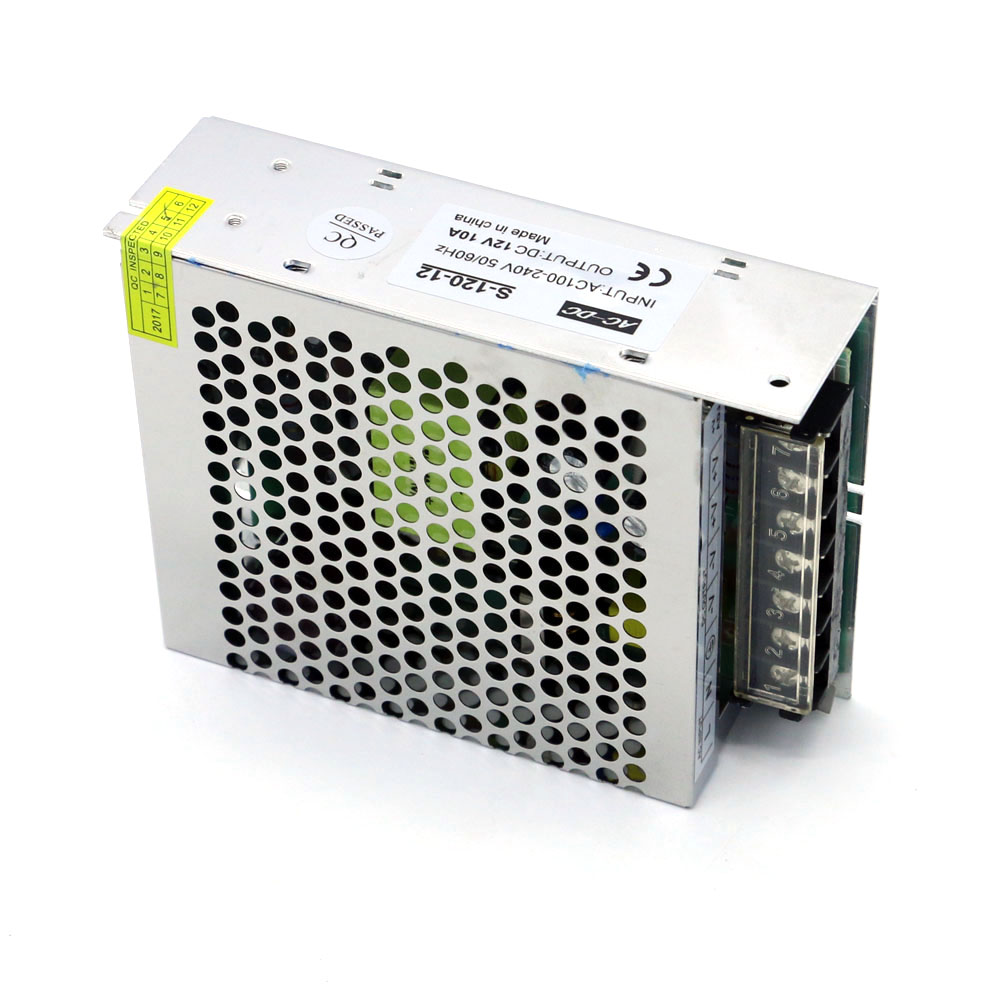

Product View 2

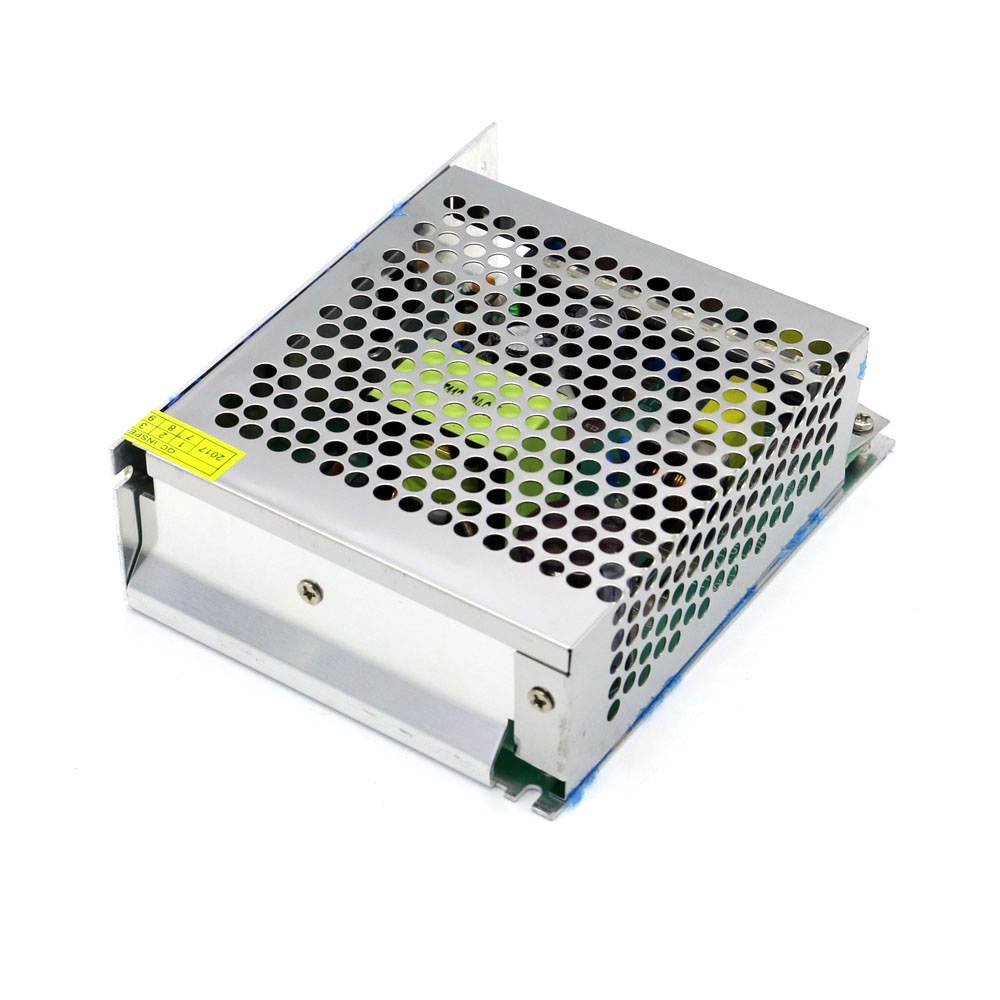

Product Gallery
Production & Overview
Frequently Asked Questions
Q1: Can this switching power supply handle both 110V and 220V inputs? A1: Yes, the input voltage can be switched between AC110V and AC220V (±15%) using the built-in manual switch.
Q2: What kind of protection features are included? A2: It includes over-voltage protection (115%-135%), over-load protection (105%-150% with self-recovery), and short circuit protection.
Q3: Is the output voltage adjustable? A3: Yes, the 12VDC output voltage has an adjustment range of approximately ±10% for fine-tuning your requirements.
Q4: What are the primary applications for the S-120-12 model? A4: This power supply is ideal for LED lighting systems and various types of industrial equipment requiring a stable 12V 10A power source.
Q5: What is the operating temperature range for this unit? A5: The device is designed to work reliably in environments ranging from -40°C to +65°C.
Q6: What is the efficiency rating of this power supply? A6: The unit operates with an efficiency of approximately 87%, ensuring minimal energy waste.
