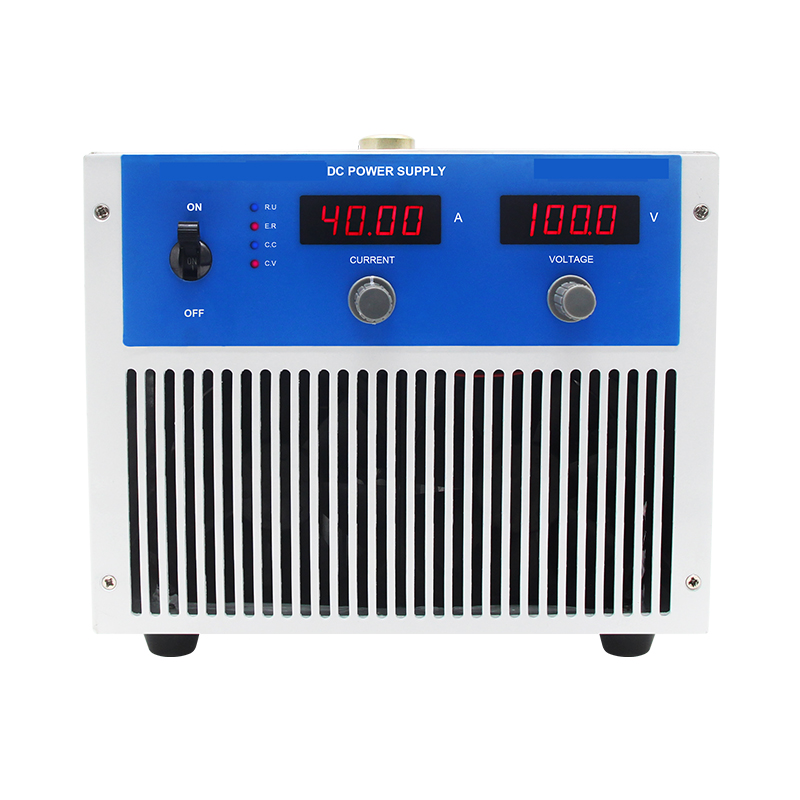

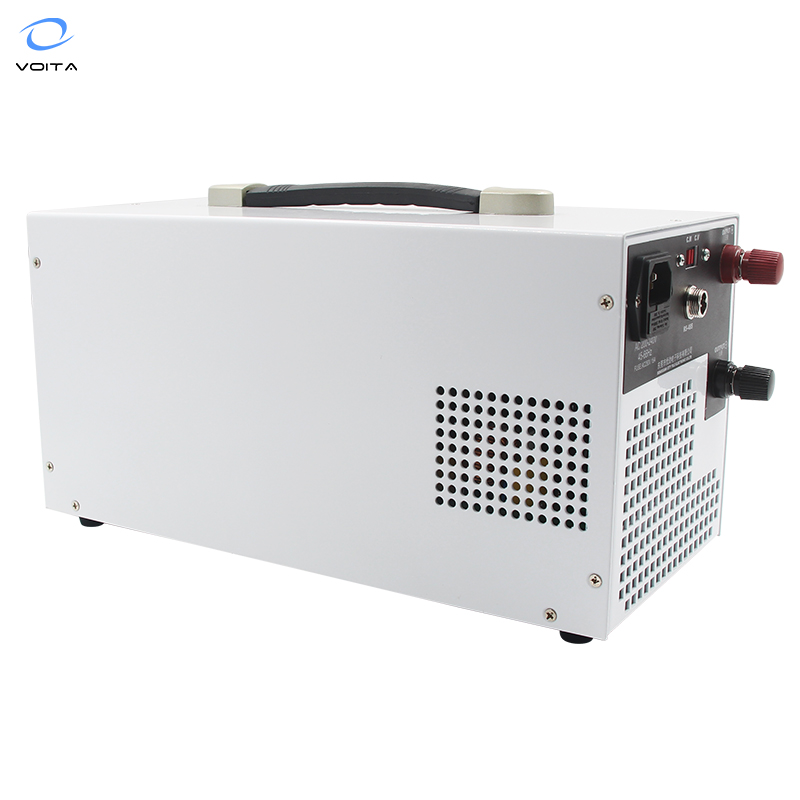

1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1 / 5
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply
1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply

1000v Ultra-large Voltage Dc Variable 1000V 1A Adjustable Dc Power Supply

Send Inquiry

Product Description

Product Features
◈ Small size and light weight, suitable for working table and rack installation.
◈ Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
◈ Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
◈ Low noise and low ripple.
◈ High gain amplifier circuit design, with good rapid response characteristics.
◈ Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
◈ Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
◈ Designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
Technical Specification
ModelVT-ADP10001
Input Voltage Range1 Phase: AC110V±10% / AC220V±10%; 3 Phase: AC380V±10%, 50Hz/60Hz
Output voltage0-1000VDC
Output current0-1A
Power1000W
Voltage Stabilization≤0.3%+10mV
Load Stabilization≤0.5%+30mV
Ripples and Noises≤0.5%+10mVrms
Display Accuracy4-digit Accuracy: ±1%+1 word (10%-100% rating)
Resolution0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V
Insulation ResistanceInput-output: ≥ 20m Ω; Input-shell: ≥ 20m Ω; Output-shell: ≥ 80m Ω
Insulation StrengthInput-Output/Input-Shell/Output-Shell: AC1500V, 10mA, 1minute
ProtectionBuilt-in O.V.P (rated +5%), Overload, current limit, O.T.P (85℃±5%)
Setting Method10-turn precision potentiometer for Voltage & Current
Heat DissipationForced fan cooling
Work ConditionsIndoor; Temp: 0℃~40℃; Humidity: 10%~85%RH
Dimensions160mm*350mm*160mm
Analog Remote Control (Optional)
✔0-5V /0-10Vdc analog signal control output voltage/current
✔0-5V /0-10Vdc analog signal to read-back output voltage current
✔0-5V /0-10Vdc analog Switch signal to control output
✔4-20mA analog signal control output voltage & current
✔RS232/RS485 Communication port control by computer
Our Facility & Production
Frequently Asked Questions
Q1: Can this power supply be integrated into an automated testing system?
A1: Yes, the VT-ADP10001 supports optional RS232/RS485 communication ports and analog signal controls (0-5V/0-10V), making it ideal for computer-controlled environments and system integration.
Q2: What safety protections are built into this unit?
A2: The device includes built-in Over Voltage Protection (O.V.P), Over Temperature Protection (O.T.P), and Overload/Constant Current output protection to ensure reliable operation.
Q3: Is the output voltage and current adjustable?
A3: Yes, both voltage and current can be precisely adjusted using 10-turn precision potentiometers, allowing for fine-tuning from zero to the maximum rated value.
Q4: How does the cooling system work?
A4: The power supply uses a forced air cooling system with internal fans and a heat sink temperature monitoring system that triggers protection at 85℃±5%.
Q5: Can it handle different input voltages?
A5: This model supports multiple input configurations including 1 Phase 110V/220V and 3 Phase 380V AC (±10%), depending on your specific regional requirements.
Q6: What is the benefit of the 4-digit digital display?
A6: The 4-digit high sampling rate meter provides high-resolution feedback, allowing you to monitor voltage and current with ±1% accuracy and clear resolution down to 0.001 units in specific ranges.
