| Model | VT-ADP100010 |
| Input Voltage Range |
1 Phase: AC110V±10%, 50Hz/60Hz; 1 Phase: AC220V±10%, 50Hz/60Hz; 3 Phase: AC380V±10%, 50Hz/60Hz; |
| Output Voltage | 0-1000VDC |
| Output Current | 0-10A |
| Power | 10000W |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| 0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V | |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| 0.000A-9.999A, 0.00A-99.99A, 0-0A-999.9A | |
| Insulation Resistance |
Input-output: ≥ 20m Ω Input-shell: ≥ 20m Ω Output-shell: ≥ 80m Ω |
| Insulation Strength |
Input-output: AC1500V, 10mA, 1min Input-shell: AC1500V, 10mA, 1min Output-shell: AC1500V, 10mA, 1min |
| Over Voltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
| Over Load Protection | Overload, current limit, constant current output |
| Over Temperature Protection | Built-in O.T.P. protection, protection value: 85℃±5% heat sink temperature |
| Voltage Setting | 10-turn precision potentiometer |
| Current Setting | 10-turn precision potentiometer |
| Output Polarity | Output Positive(+) negative(-) Can be grounded at will |
| Heat Dissipation Way | Forced fan cooling |
| Work Conditions | Indoor use design, Temperature: 0℃~40℃; Humidity: 10%~85%RH |
| Storage Conditions | Temperature: -20℃~70℃; Humidity: 10%~90%RH |

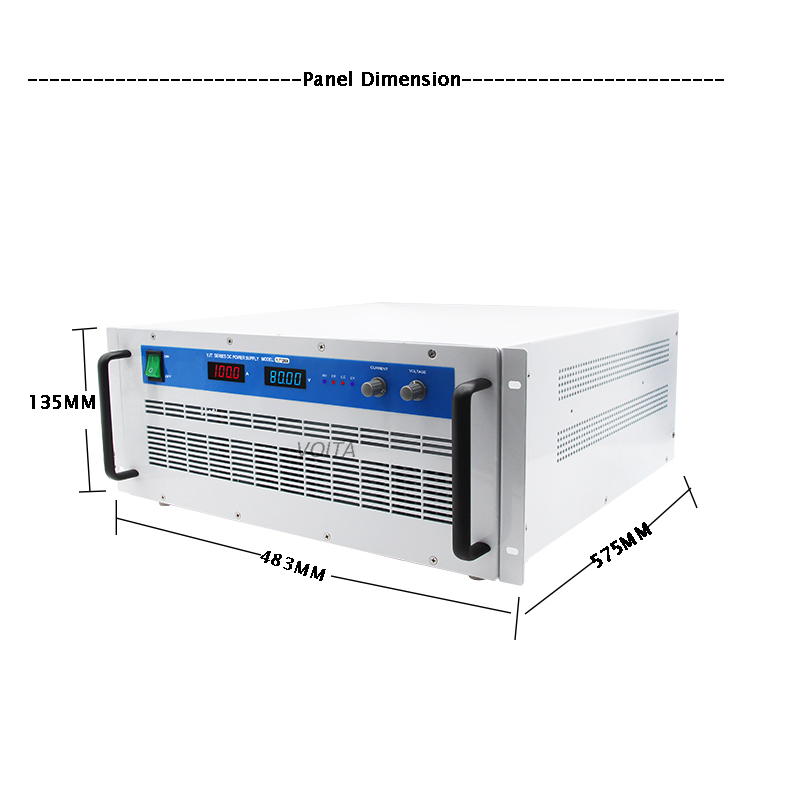

| Product Dimension | 483*575*135mm |
| Analog Remote Control Function (Optional) | |
| Remote Control Function |
- 0-5V / 0-10Vdc analog signal control output voltage/current - 0-5V / 0-10Vdc analog signal to read-back output voltage current - 0-5V / 0-10Vdc analog Switch signal to control output - 4-20mA analog signal control output voltage & current - RS232/RS485 Communication port control by computer |
