Temperature Control Fan, Over-Temp, Over-Voltage, Over-Current, Short-Circuit, Soft Starting

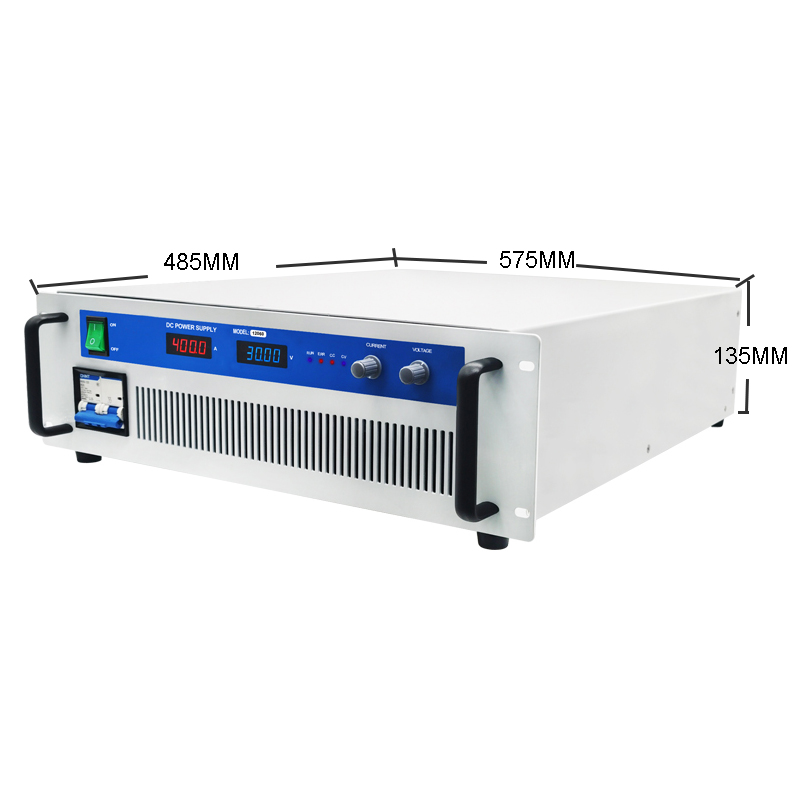

Dimensions & Weight
483*575*135mm | NW: 21.5KG
* Note: The default input is AC220V. Please consult for other input requirements.
Optional Parameters & Customization
Parameter
Detail Specification Options
Input Range
AC110V, AC220V, or AC380V (±10%, 50/60Hz)
Output Voltage
1~3000V Adjustable (0% to 100%)
Output Current
1~2000A Adjustable (0% to 100%)
Output Power
150W ~ 100KW
Additional Functions
Analog Control
0-5Vdc / 0-10Vdc for Voltage & Current control/read-back
Switch Signal
0-5Vdc / 0-10Vdc for ON/OFF control
Current Loop
4-20mA analog signal control
Digital Port
RS232/RS485 Communication for computer control
Factory accepts OEM / ODM Customized services for all customers
FAQ
Is the output voltage and current of the VT-ADP50010 adjustable?
Yes, the output voltage is adjustable from 0-500V and the output current is adjustable from 0-10A (0% to 100% full range).
What safety protections are built into this power supply?
The unit includes O.V.P (Over Voltage Protection), O.T.P (Over Temperature Protection), Over-Current Protection, and Short-Circuit Protection. It also features a switch-on delay soft starting system.
Can I control the unit using a computer or analog signals?
Yes, we offer optional RS232/RS485 communication ports for computer control, as well as 0-5V/0-10V or 4-20mA analog signal control for voltage and current.
What is the standard input voltage?
The default input is AC220V. However, we also support AC110V and 3-Phase AC380V inputs as customized options.
Is this model suitable for industrial rack installation?
Absolutely. The product is designed with a standard width of 483mm, making it ideal for both laboratory worktables and industrial rack mounting.
Does the factory provide OEM or ODM services?
Yes, we provide full OEM and ODM customization services to meet specific power, voltage, and current requirements for various industrial applications.
