Best Price 500V 5A Constant Dc Adjustable Bench Power Supply for Medical Equipment

Send Inquiry

Product Description

Character

✓Small size and light weight, suitable for working table and rack installation.
✓Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
✓Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
✓Low noise and low ripple.
✓High gain amplifier circuit design, with good rapid response characteristics.
✓Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
✓Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
✓It is designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.

Feature

●Input voltage: Single-phase AC220V/AC110V ± 15% or Three-phase AC380V/AC220V ± 15%; 50Hz/60Hz.
●Output voltage range: Adjustable 0 ~ 2000V.
●Output constant current range: Adjustable 0 ~ 2000A.
●Adjustment rate: Source voltage < 0.5%; Load adjustment < 1%; Constant flow < 2%.
●Ripple voltage: Total ripple voltage Vpp < 2%; Machine efficiency: > 86%.

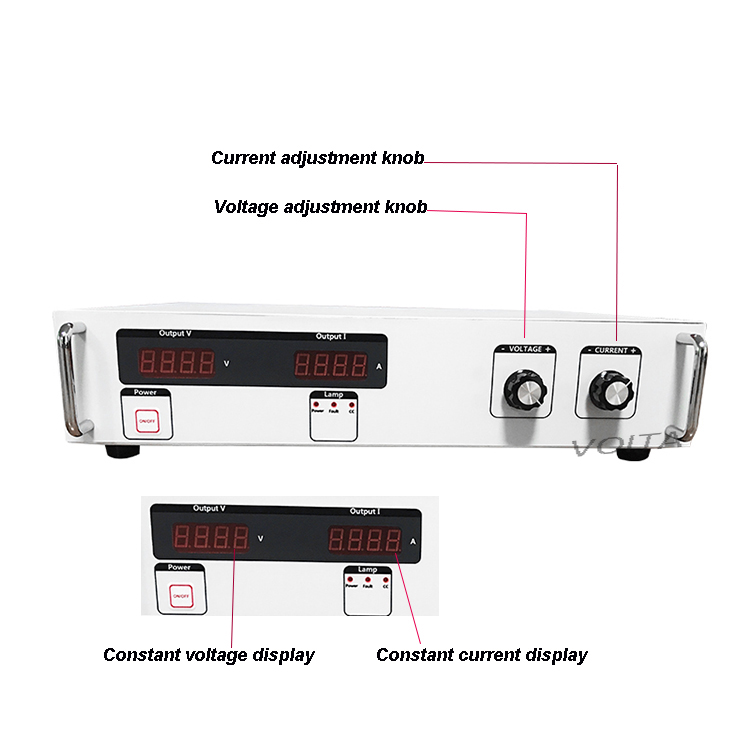

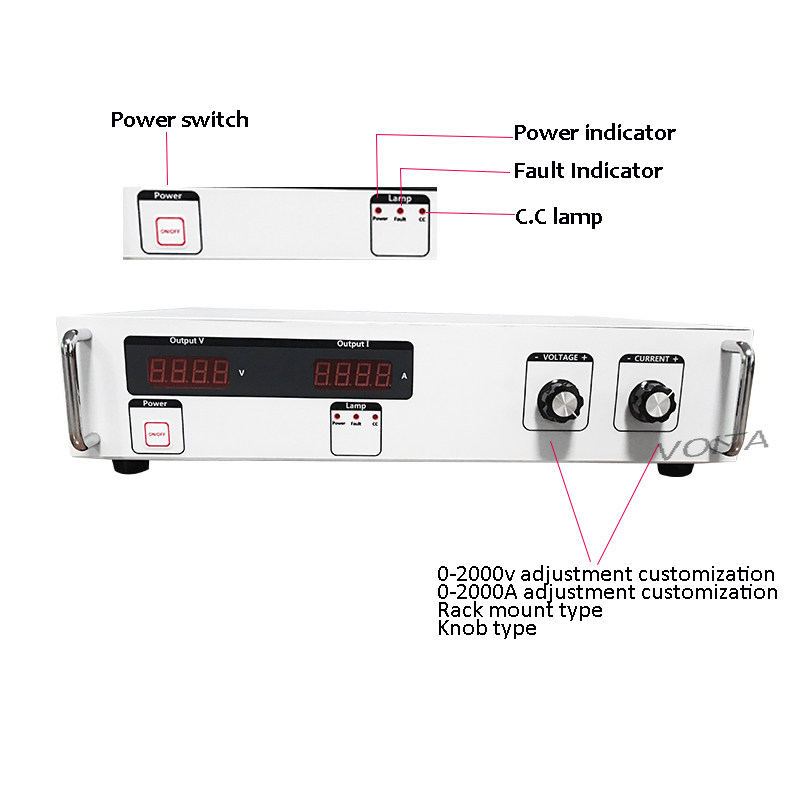

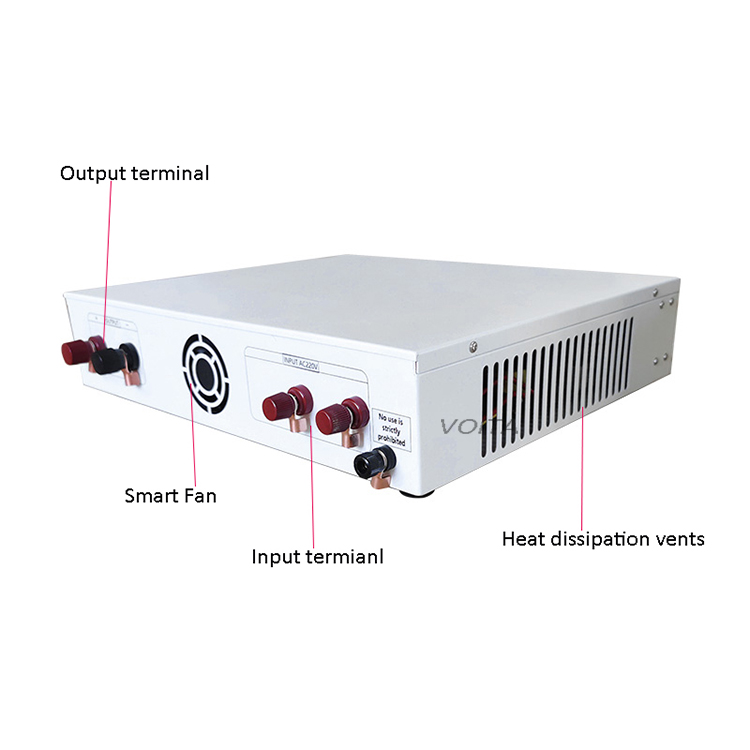

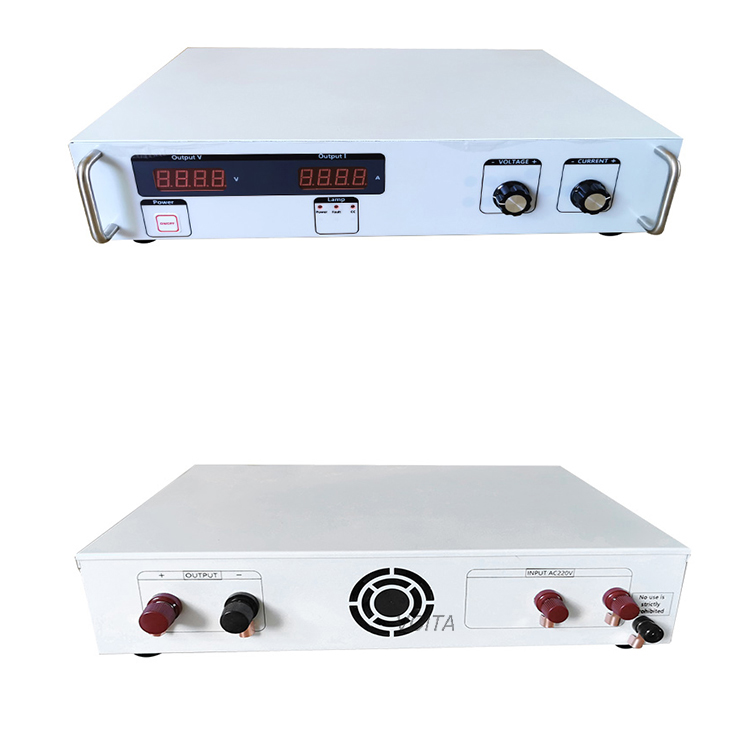

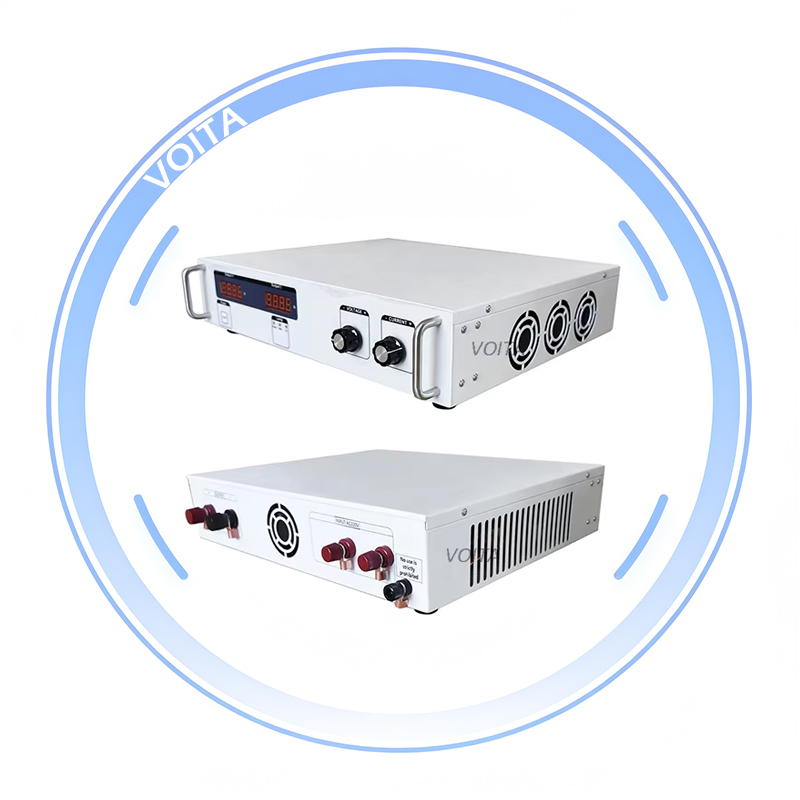

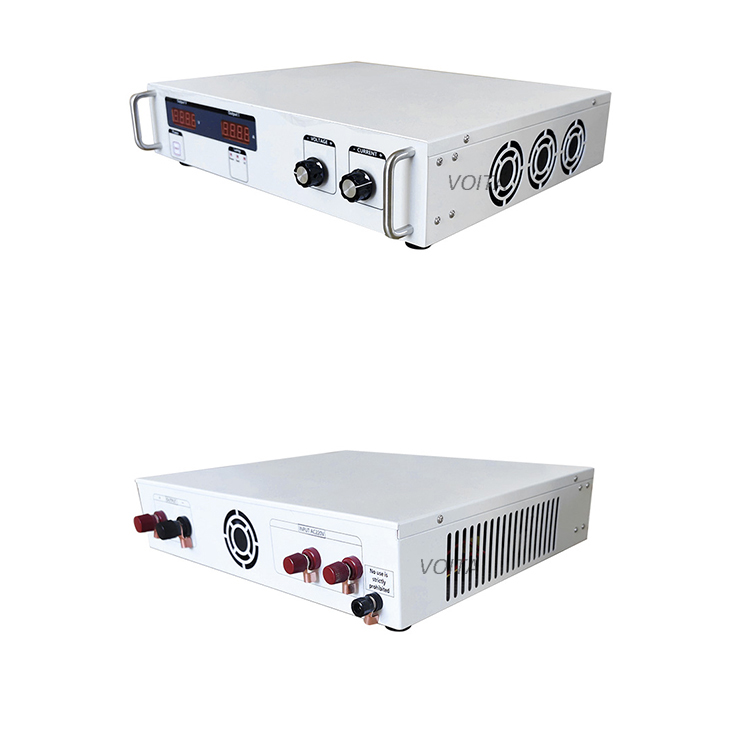

Product Images

Specifications

Model	VT-ADP5005
AC Input	1 Phase AC220V±15%, 50/60Hz
Output Range	Constant Voltage 0~500V / Constant Current 0~5A
Power	Max 2500W
Regulation	Source Voltage ≤0.2%; Load Regulation: CV ≤1%, CC ≤2%
Ripple Voltage	Total Ripple Vpp≤2%; 100Hz Ripple Vpp≤0.5%
Efficiency	≥89%
Display	4-bit Digital Voltage and Current Meters
Insulating Strength	Input-Output: AC1500V, 10mA, 1 minute
Protection	Temperature Control Fan, OTP, Output OVP, OCP, Short-circuit protection
Dimensions	430(W)×350(D)×88(H)mm
Weight	NW: 9kg

Application

Production & Packaging

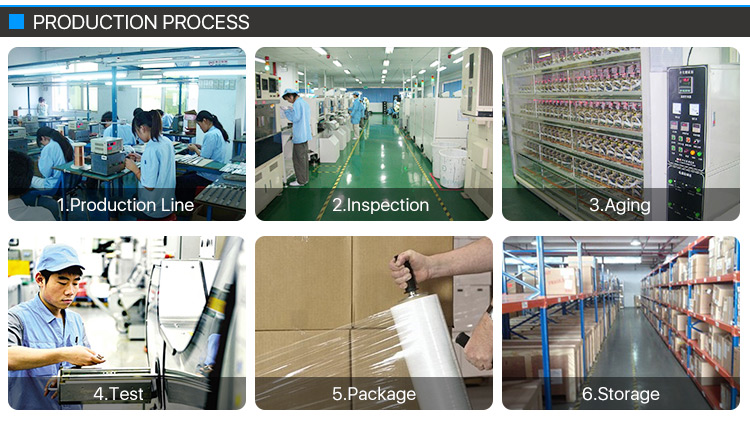

Production Process

Packaging & Shipping

Customize Range

Parameter	Detail Specification Options
Input	1 Phase 110V/220V; 3 Phase 380V (50Hz/60Hz)
Output Voltage	1~2000V, 0% to 100% adjustable
Output Current	1~2000A, 0% to 100% adjustable
Output Power	150W ~ 100KW
Additional Functions	Analog signal control (0-5V/0-10V/4-20mA), RS232/RS485 Communication

Frequently Asked Questions

Q: What is the maximum output voltage and current for this series?

A: This bench power supply series can be customized to provide an output voltage up to 2000V and an output current up to 2000A.

Q: Does the power supply have built-in protection features?

A: Yes, it includes comprehensive protection such as Over-Voltage Protection (OVP), Over-Temperature Protection (OTP), Over-Current Protection (OCP), and Short-Circuit Protection.

Q: Can I control the power supply via a computer?

A: Yes, we offer optional RS232 and RS485 communication ports for remote control and monitoring via computer.

Q: How efficient is the power supply?

A: The unit is highly efficient, utilizing PWM modulation with a machine efficiency rating of over 86% (up to 89% depending on the model).

Q: Is the cooling system loud?

A: The device uses a temperature-controlled forced air cooling system, which manages heat efficiently while maintaining low noise levels during operation.

Q: Can I request custom input voltage requirements?

A: Absolutely. We accept OEM and ODM customization for input voltages including single-phase 110V/220V or three-phase 380V AC.
