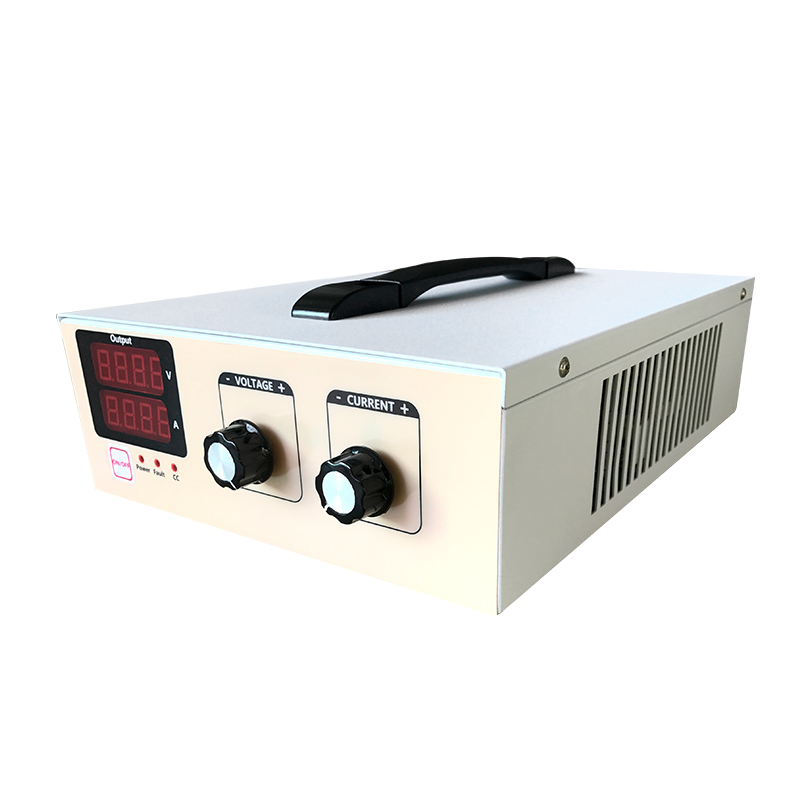

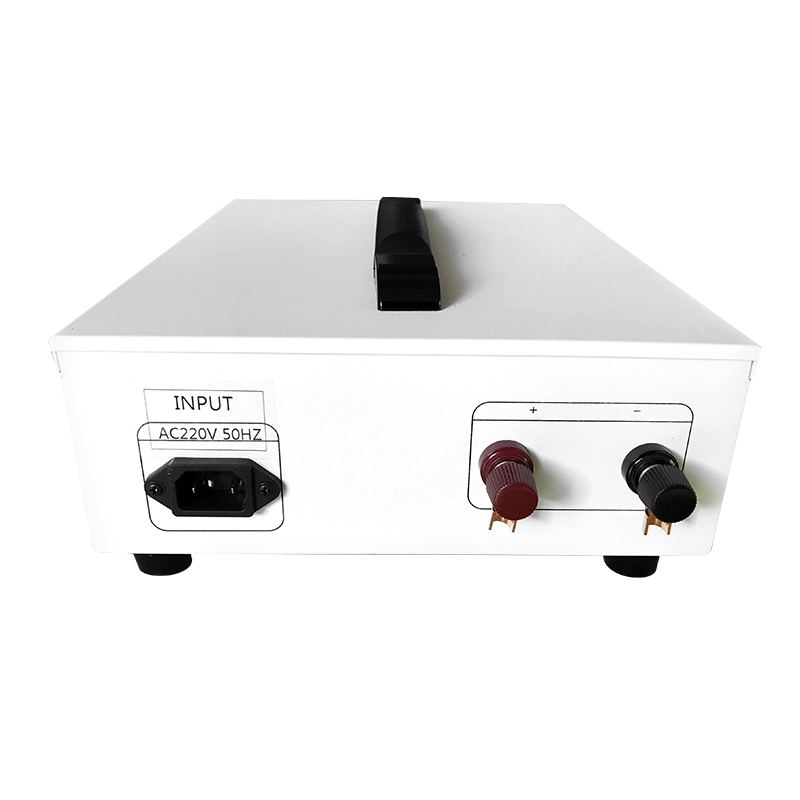

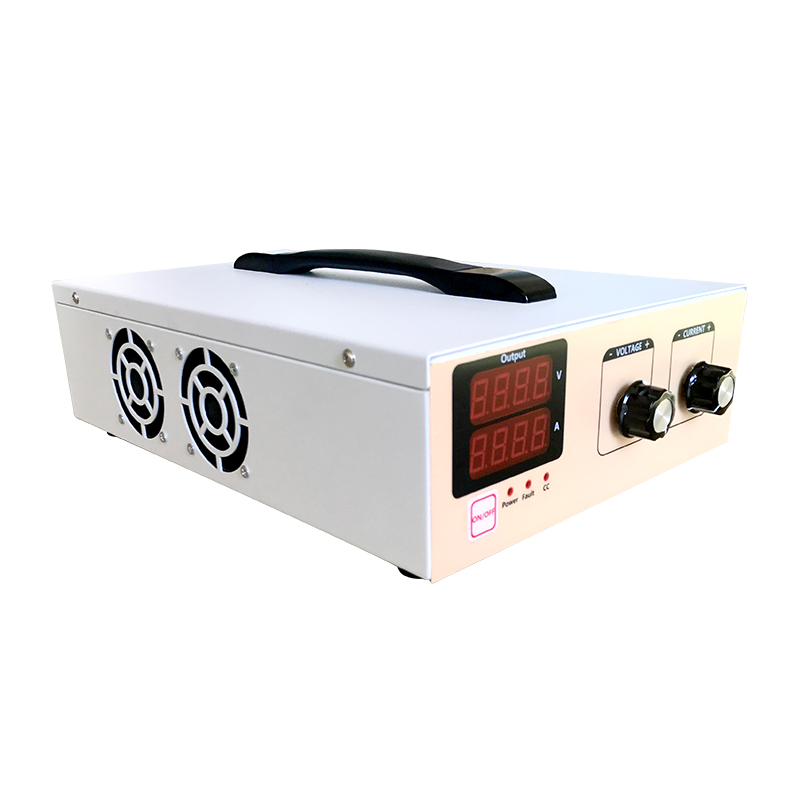

50v 40A Voltage/current Adjustable Bench Dc Power Supply 2000w for Motor

1 / 5

50v 40A Voltage/current Adjustable Bench Dc Power Supply 2000w for Motor

Send Inquiry

Product Description

0-30v 0-50A adjustable dc laboratory power supply for test
You can get 5% off from this inquiry

📦 Product Description

⭐ Features

Small size and light weight, suitable for working table and rack installation.
Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
Carefully designed electronic technology circuit, forced air cooling heal treatment, with a very low temperature coefficient.
Low noise and low ripple.
High gain amplifier circuit design, with good rapid response characteristics.
Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
Designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.

📋 Datasheet

Model	VT-ADP4050
Input Voltage Range	1 Phase AC 220VAC±10%, 50/60HZ
Output voltage	0-40VDC
Output current	0-50A
Power	2000W
Voltage Stabilization	≤0.3%+10mV
Load Stabilization	≤0.5%+30mV
Ripples and Noises	≤0.5%+10mVrms
Voltage Accuracy	±1%+1 word (10%-100% rating); 0.000V-9.999V, 0.00V-99.99V
Current Accuracy	±1%+1 word (10%-100% rating); 0.000A-9.999A, 0.00A-99.99A
Insulation Resistance	Input-output: ≥ 20m Ω; Input-shell: ≥ 20m Ω; Output-shell: ≥ 80m Ω
Insulation Strength	AC1500V, 10mA, 1 minute
Remote Adjustment	Analog control: Voltage/Current 0-5VDC (Optional)
Protections	O.V.P (Rated +5%), Overload limit, O.T.P (85℃±5%)
Settings	10-turn precision potentiometer
Work Conditions	Indoor, 0℃~40℃; Humidity: 10%~85%RH
Product Dimension	16533088mm

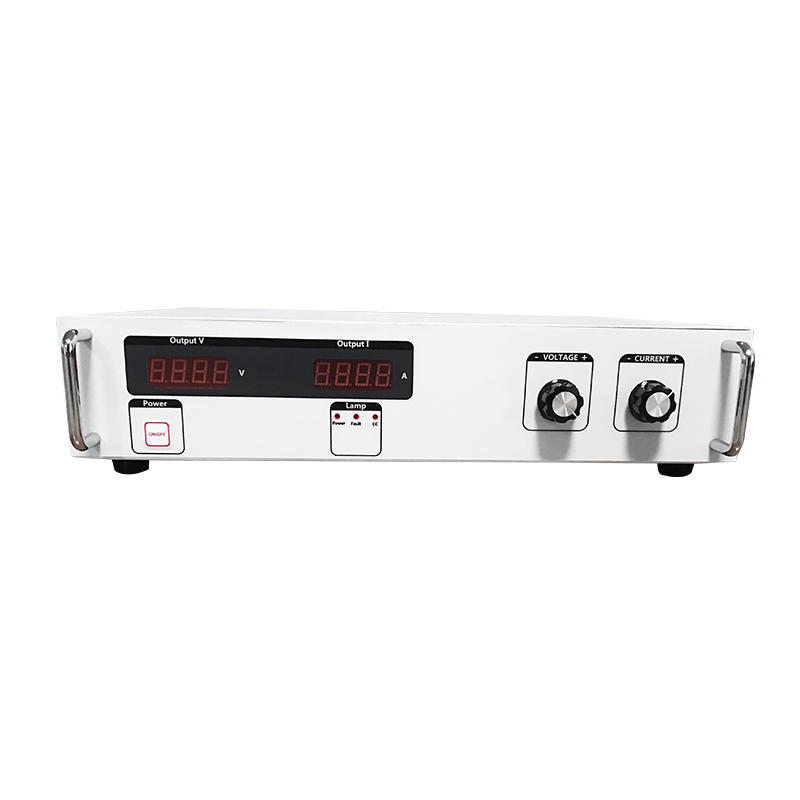

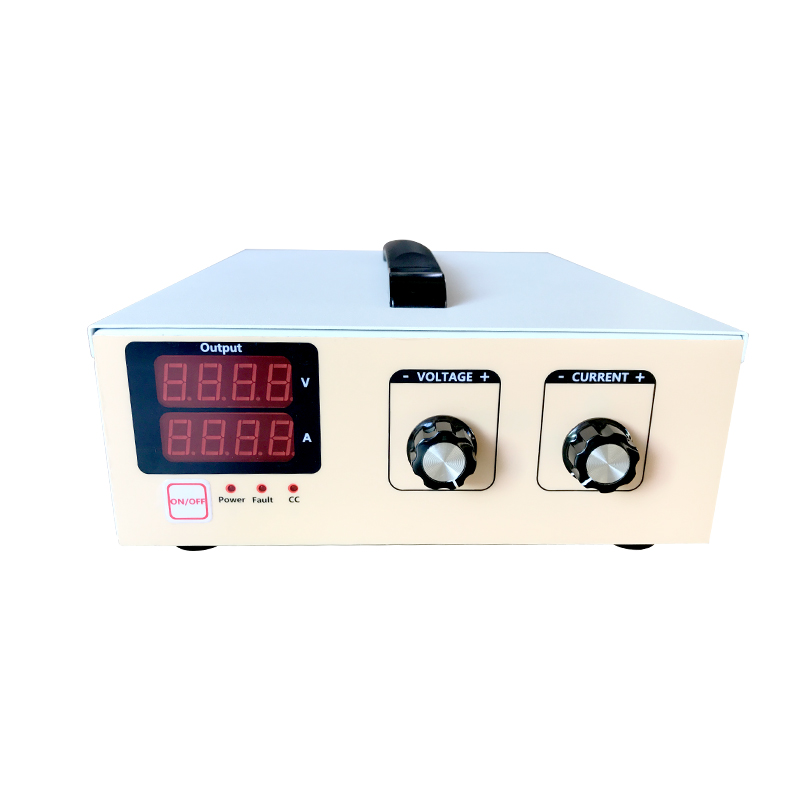

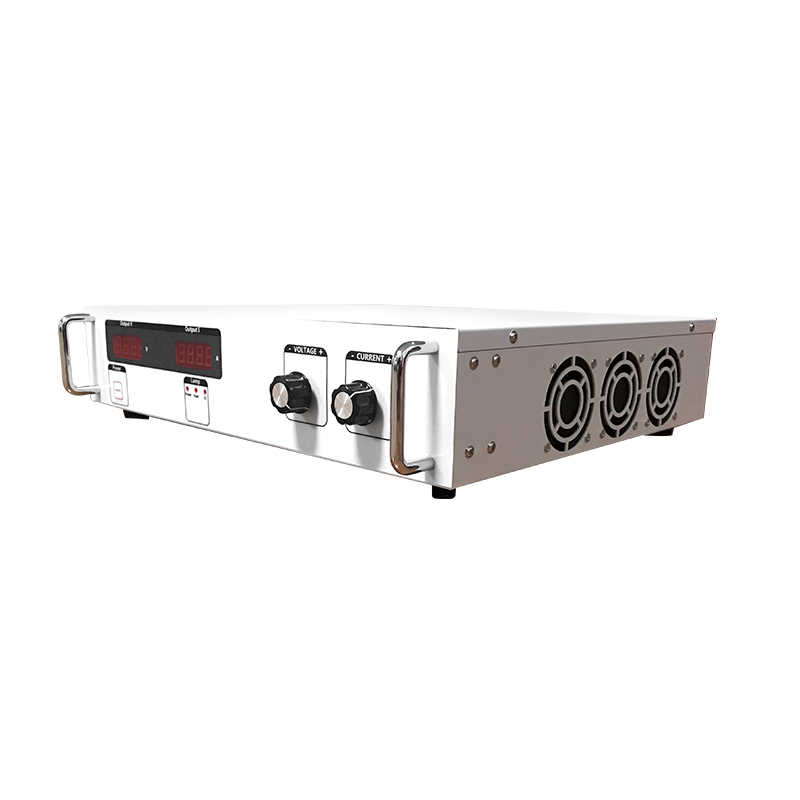

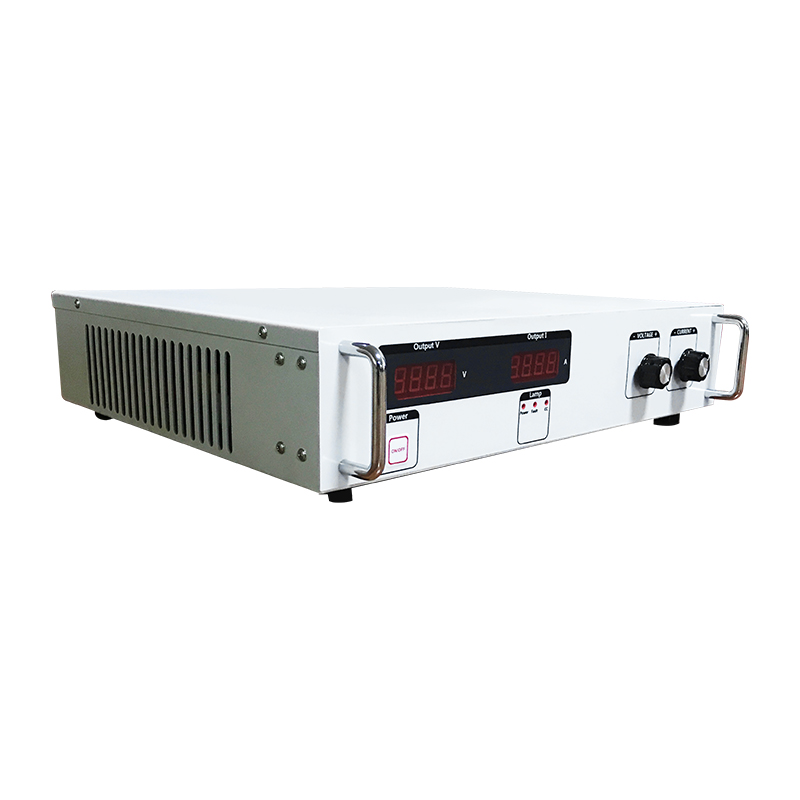

🖼️ Product Display

🚀 Applications

Widely used in industrial control, electronic power, electroplating, communication, scientific research, and more.

1. Motor: Electric motor, electric vehicle controller, DC motor test, etc.

2. Electric tools: LED test, energy-saving bulb testing, lamp testing.

3. Automobile: Automobile electronics, high power DC motor, car lighting, audio.

4. Electronic devices: Capacitors, resistors, relays, transistors, sensors.

5. Display: Display screen, liquid screen, touch screen, mobile phone display.

6. Electrochemical: Electrolysis, electroplating, anodic oxidation.

⚙️ Production Process

🛠️ Customize Range

We can customize different kinds of specifications according to your request:

Input voltage: 1 phase 110VAC/220Vac or 3 phases 380Vac.
Output voltage: 0-3000V variable or appointed.
Output current: 0-2000A variable or appointed.
Serial port: RS232, RS485, timing switch.

❓ Quality & Support

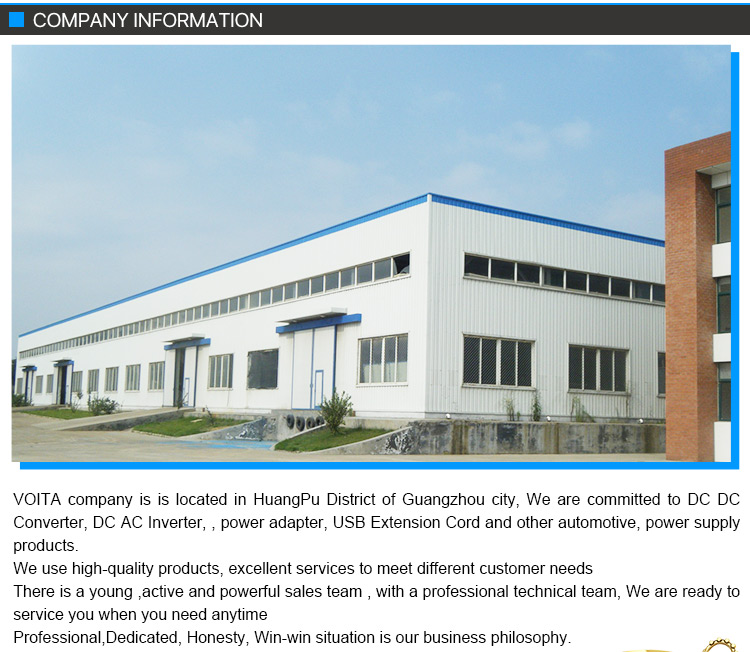

🏗️ Facility Overview

💡 Frequently Asked Questions

Q1: Can both voltage and current be adjusted independently? A: Yes, this laboratory power supply features dual 10-turn precision potentiometers for fine-tuning both voltage and current from zero to the rated value.

Q2: What safety protections are built into this DC power supply? A: It includes built-in O.V.P (Over Voltage Protection), O.T.P (Over Temperature Protection), and current-limiting protection to ensure safe operation.

Q3: Is this unit suitable for continuous aging tests? A: Absolutely. With PWM modulation and forced air cooling, it is designed for high efficiency and stable output during long-term aging tests for LEDs, motors, and capacitors.

Q4: Can I use this power supply for electrochemical applications like electroplating? A: Yes, it is widely used in electrolysis, electroplating, and anodic oxidation due to its stable DC output and high current capability.

Q5: Does the display provide high accuracy for sensitive laboratory testing? A: Yes, it features a 4-digit LED digital display with a high sampling rate, providing resolution down to 1mV or 1mA depending on the range.

Q6: Is it possible to control the power supply remotely via a PLC? A: Yes, we offer optional analog control (0-5VDC) and digital communication ports (RS232/RS485) for remote system integration.
