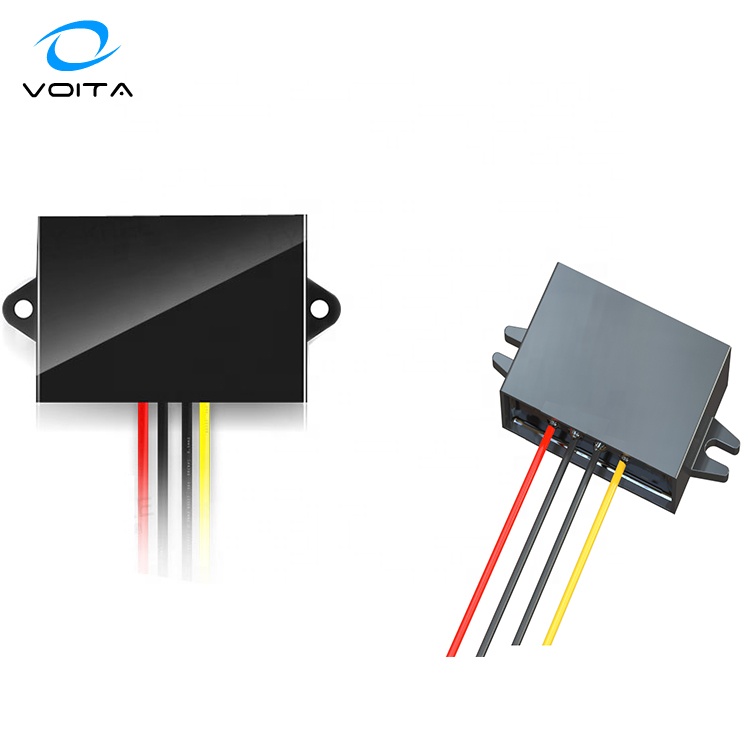

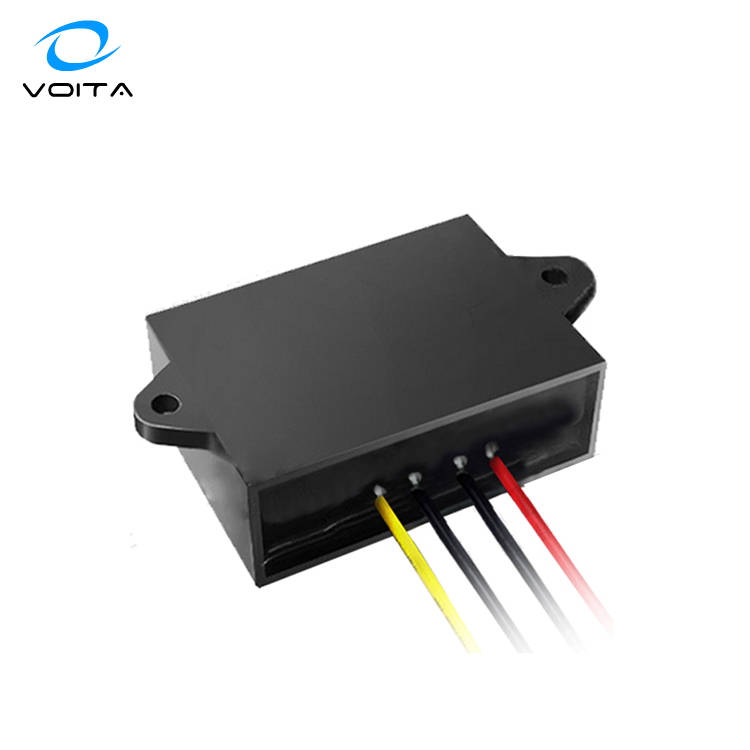

Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
1 / 5
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters
Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters

Hot Selling 12V 5A 25W AC to DC Converter Wholesale with Over Current Protection Inverters & Converters

Send Inquiry

Product Description

Product Banner
Product Features
  • Synchronous rectification technology, imported components, conversion efficiency more than 96%
  • Imported internal resistance capacitor filter, withstand high temperature.

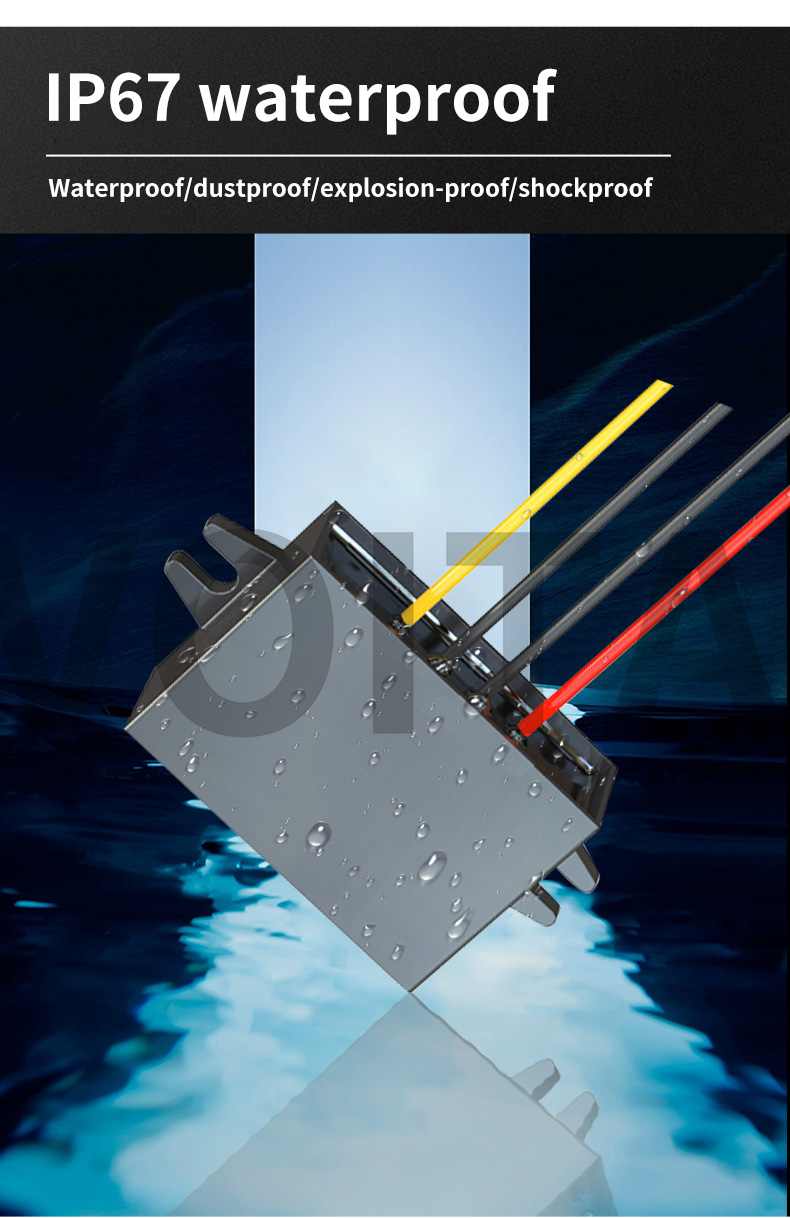

  • Organic silicone packaging technology, can work directly soaked in water
  • Chip smart protection, anti-overheating, overcurrent protection
  • Aluminum alloy shell, anti-shock, anti-drop, anti-moisture, anti-dust and so on
Technical Specifications
Model NumberVT-AD1255
Input Rated voltageAC 12/24V
Input Voltage rangeAC 10-26V
Output VoltageDC 5V
Output Max rated current5A
Output TypeSingle
Output Max rated power25W
Voltage regulation±1%
Load regulation2%
No load loss8mA
Ripple & noise300 mV (full load)
Working temperature—40°C~80°C
Working humidity10% ~ 90%
Storage temperature-40 ~ +100°C

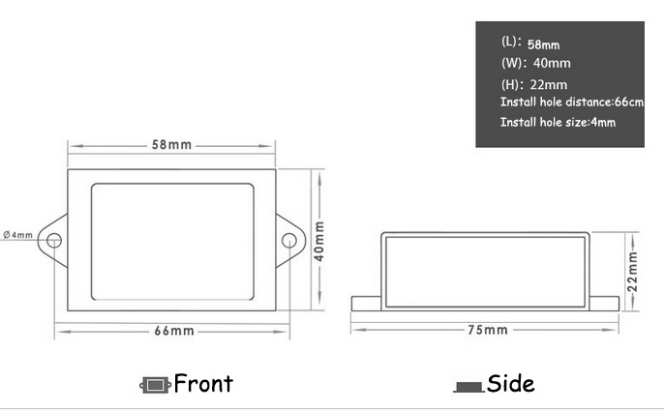

Size58*40*22mm
Net Weight100g

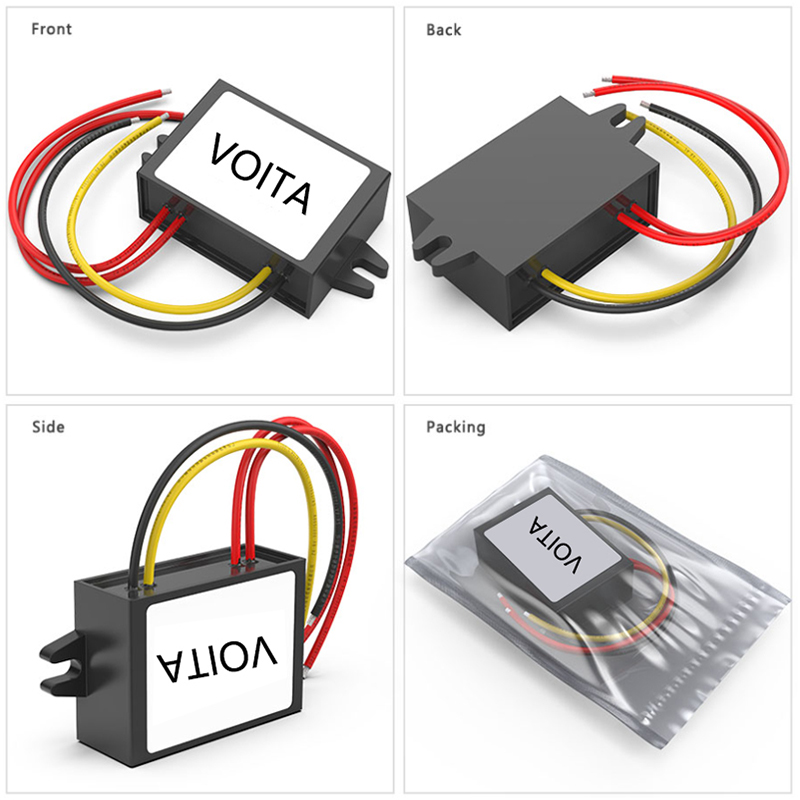

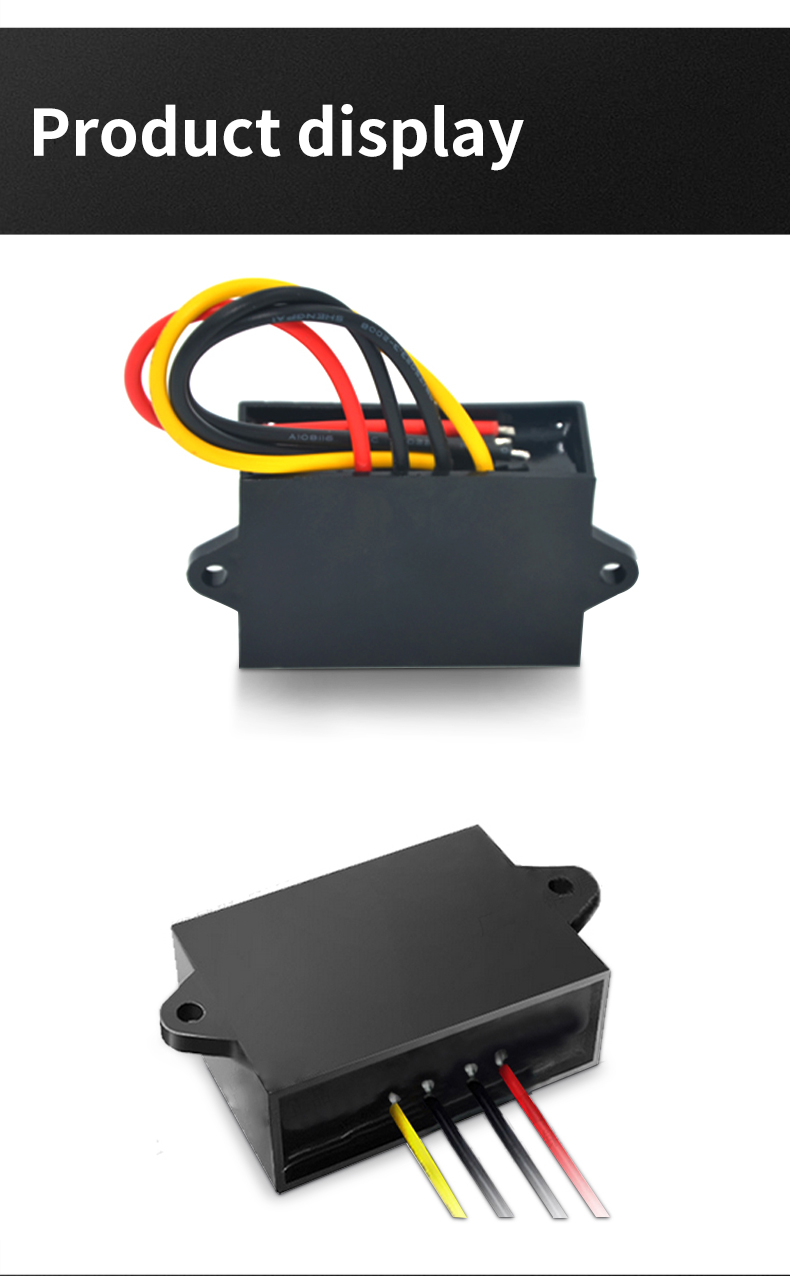

Product Gallery
Production Environment
Frequently Asked Questions
What is the energy conversion efficiency of this converter?
The converter utilizes synchronous rectification technology and imported components, achieving a conversion efficiency of more than 96%.
Is the unit waterproof and suitable for harsh environments?
Yes, it features organic silicone packaging technology, making it waterproof (can work directly soaked in water), anti-shock, anti-drop, and dust-proof.
What kind of built-in protections does the device have?
The device is equipped with chip smart protection, which includes anti-overheating and overcurrent protection to ensure safe operation.

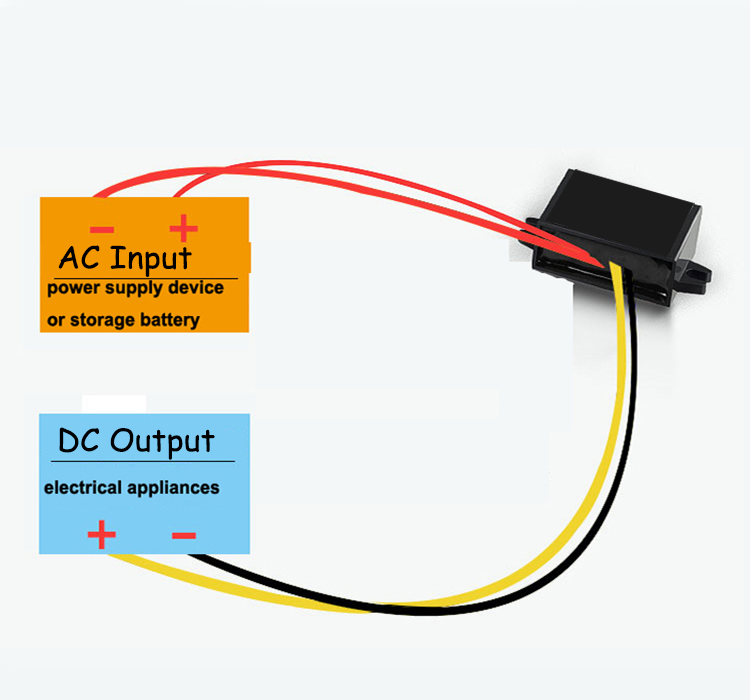

What are the input and output specifications?
The rated input is AC 12/24V (range 10-26V), and the output is a stable DC 5V with a maximum rated current of 5A (25W).
What is the operating temperature range?
The converter is designed to work in extreme conditions, with a working temperature range of —40°C to 80°C.
What is the ripple and noise level at full load?
The ripple and noise level is maintained at 300 mV under full load conditions, ensuring stable power delivery.
