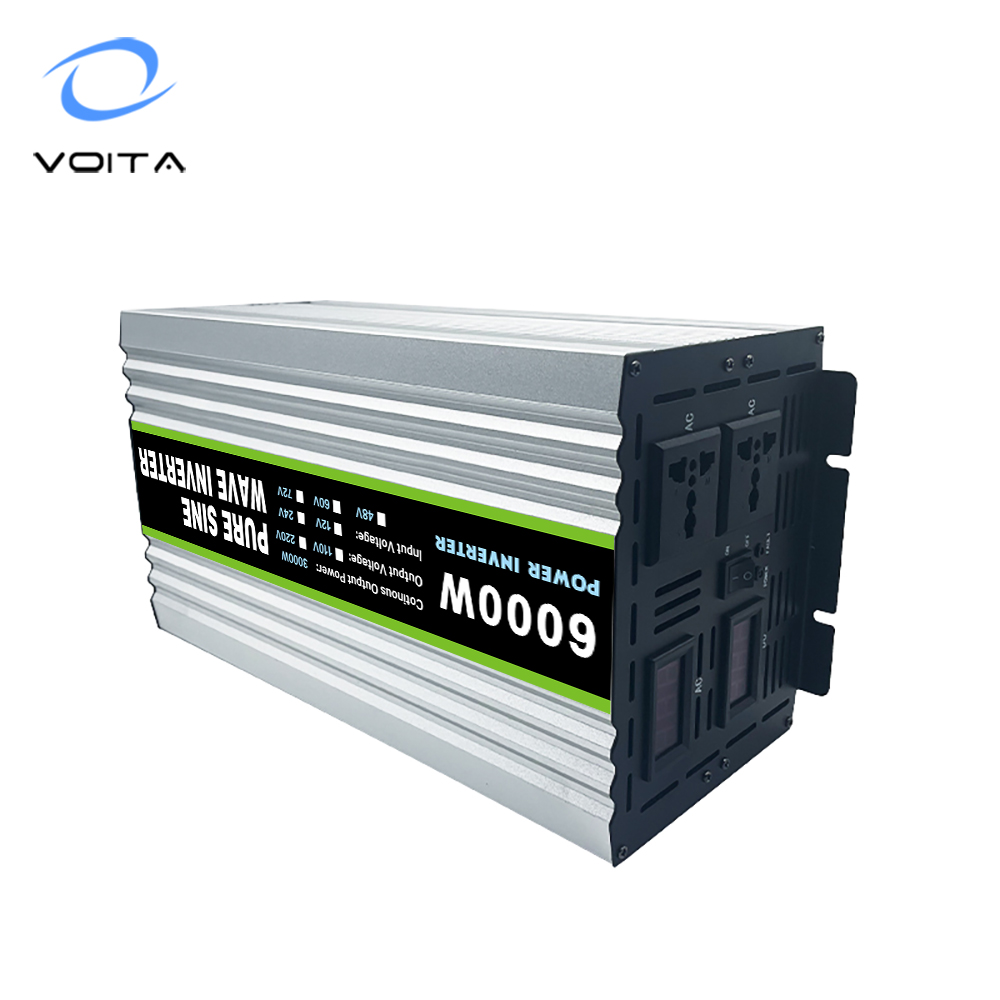

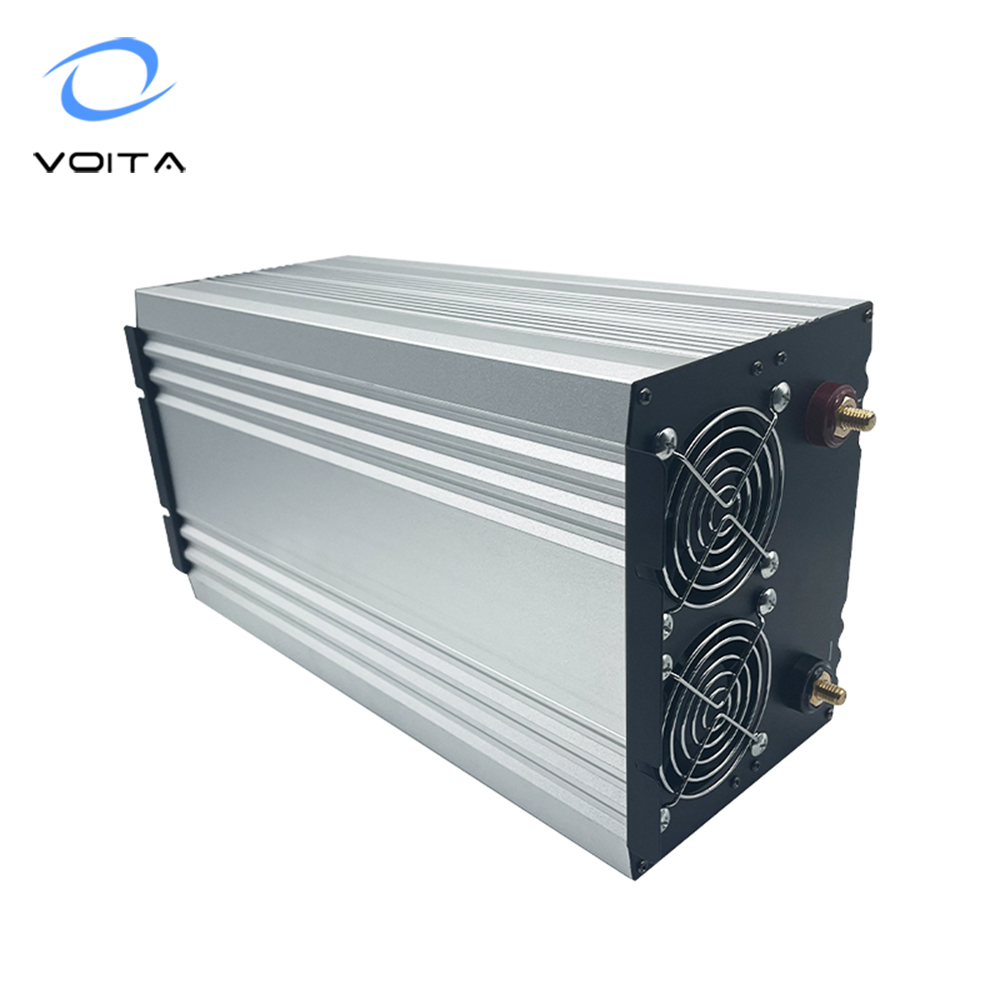

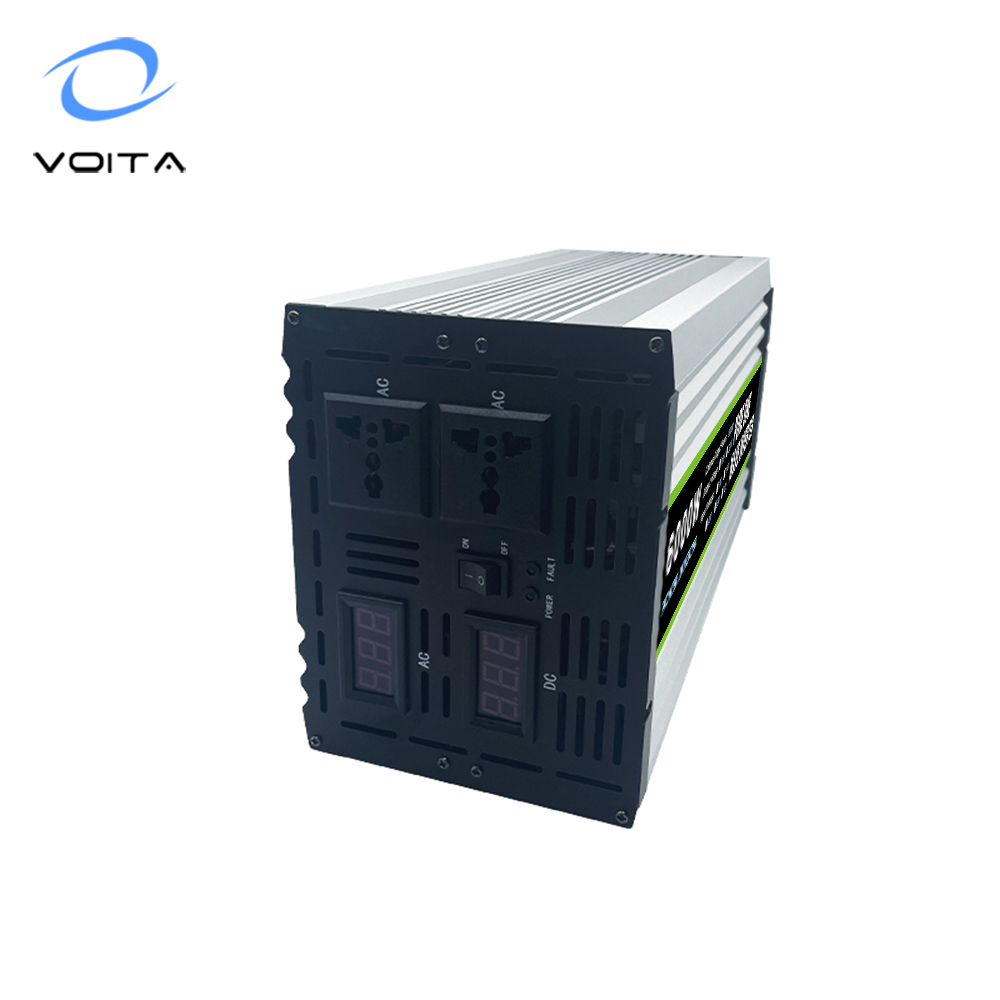

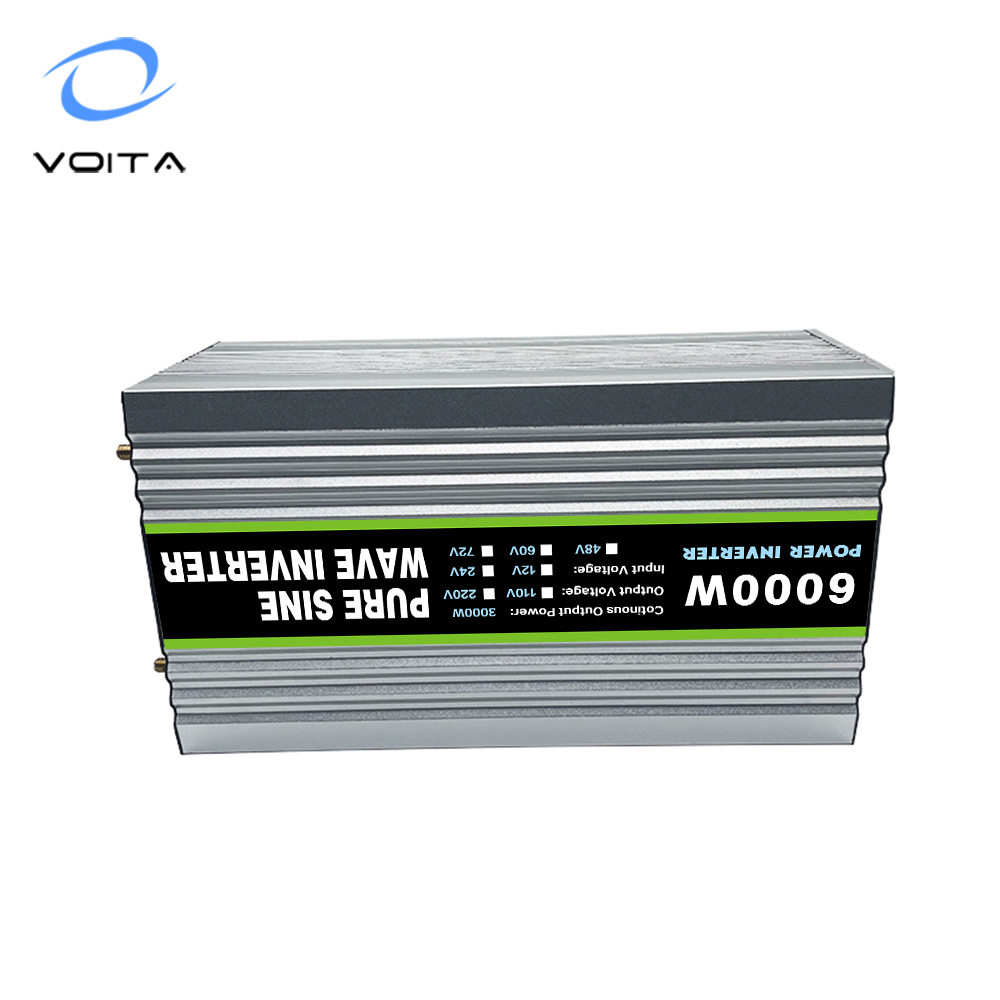

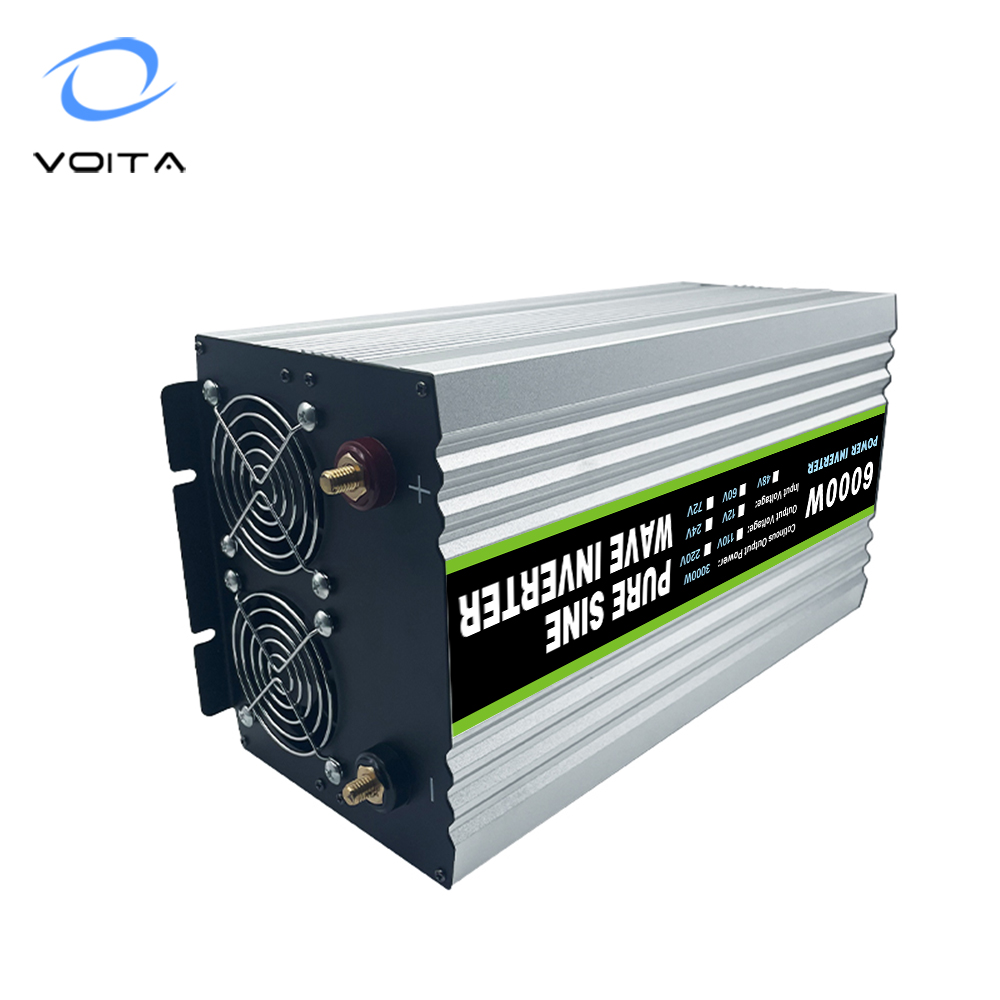

VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
1 / 5
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection
VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection

VOITA High Frequency Invertor 12v 24v to 220v Pure Sine Wave Inverter 6000w with Electronic protection

Send Inquiry

Product Description

Feature
★ The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.
★ The unique dynamic current loop control technology ensures reliable operation of the inverter.
★ The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
★ Heavy load capacity and impact resistance.
★ It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.
★ Load adaptability, including inductive load, capacitive load, resistive load, mixed load.
★ Stable performance, safe and reliable, long service life.
Specification
ModelVT-6000W
Output Power6000W
Peak Power6000W
Display methodLCD
Continuous power3000W
Input voltage12V/24V/48V/60VDC
Low voltage protection12V (≤9.5V), 24V (≤19.5V), 48V (≤39V), 60V (≤53V)
Over voltage protection12V (≥15.8V), 24V (≥30V), 48V (≥60V), 60V (≥72.5V)
Low pressure alarm12V (10.2±0.5V), 24V (21±0.5V), 48V (43.2±0.5V), 60V (54±0.5V)
Overload protection>60%
Output voltage220V±6V
Output frequency50Hz±1Hz
Output waveformPure sine wave
Conversion efficiency90%
Cooling methodFan cooling
Dimensions35.5*18*14cm
Product weight4.7kg
Warranty24 Months
Protection functionShort circuit, Reverse connection, Battery low voltage, Battery high voltage, Overload, Over temperature protection
Description
Industrial Display
Frequently Asked Questions
What is the advantage of a pure sine wave inverter?
The pure sine wave output provides high-quality power identical to the grid, ensuring compatibility with all types of loads, including sensitive electronic devices and inductive loads, without causing interference or damage.
What input voltages are supported for the VT-6000W model?
This model supports multiple DC input options, including 12V, 24V, 48V, and 60VDC, making it versatile for different battery system configurations.
What kind of protection features are built into the device?
It includes a comprehensive range of protections: short circuit, reverse connection, low voltage, high voltage, overload, and over-temperature protection to ensure long-term safety and reliability.
How can I monitor the status of the inverter during operation?
The inverter is equipped with an LCD liquid crystal display, which provides real-time information on the system's status at a glance.
What is the conversion efficiency of this inverter?
The inverter operates with a high conversion efficiency of 90%, minimizing energy loss during the power conversion process.
What is the difference between peak power and continuous power?
Continuous power (3000W) is the power the inverter can supply steadily for long periods, while peak power (6000W) allows it to handle short-term startup surges from motorized or heavy appliances.
