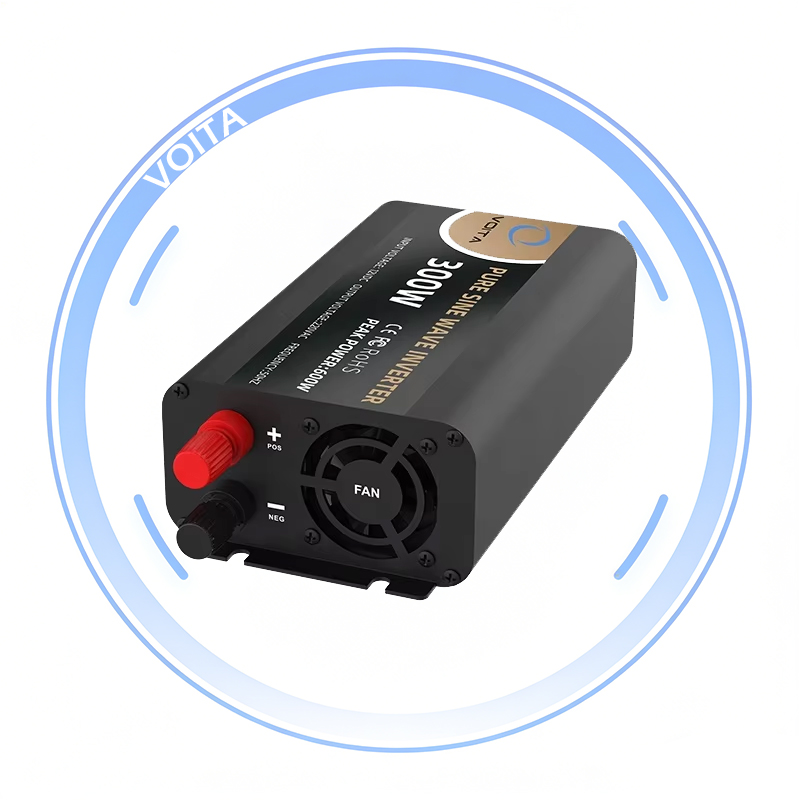

300w Pure Sine Wave Inverter Inverter 24v 48V DC to 110/220V Ac Converter 50/60Hz Solar Inverter

1 / 5

300w Pure Sine Wave Inverter Inverter 24v 48V DC to 110/220V Ac Converter 50/60Hz Solar Inverter

Send Inquiry

Product Description

Key Features

✓ The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.

✓ The unique dynamic current loop control technology ensures reliable operation of the inverter.

✓ Load adaptability, including inductive load, capacitive load, resistive load, mixed load.

✓ Heavy load capacity and impact resistance.

✓ It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.

✓ The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

✓ Stable performance, safe and reliable, long service life.

Technical Specifications

Model	VT-300Z	VT-600Z	VT-1000W	VT-1500W
Output power	300W	600W	1000W	1500W
Display method	LED Display	LCD Display	LCD Display	LCD Display
Input voltage	12V/24V/48V/60V/72Vdc
Input range	12Vdc(10-15), 24Vdc(20-30), 48Vdc(40-60), 60Vdc(50-75), 72Vdc(60-90)
Low voltage protection	12V(10.0V±0.3), 24V(20.0V±0.3), 48V(40.0V±0.3), 60V(50.0V±0.3), 72V(60.0V±0.3)
Overvoltage protection	12V(15.0V±0.3), 24V(30.0V±0.3), 48V(60.0V±0.3), 60V(75.0V±0.3), 72V(90.0V±0.3)
No-load current	0.35A	0.4A	0.6A	0.7A
Overload protection	300W > 110%	600W > 110%	1000W > 110%	1500W > 110%
Output voltage	110V/220Vac
Output frequency	50Hz/60Hz
Output waveform	Pure sine wave
Waveform THD	≤3%
Conversion efficiency	90%
Dimensions	18311060mm	22817376mm	31017376mm	36017376mm
Product weight	1kg	2kg	3kg	3.6kg

Product Details

Frequently Asked Questions

What are the advantages of a Pure Sine Wave inverter?

Pure sine wave inverters provide high-quality electricity, identical to grid power. This ensures SPWM waveform purity, making it safe for sensitive electronics and highly adaptable to inductive, capacitive, and resistive loads.

What protection features are built into these inverters?

These units include comprehensive protection for input overvoltage, undervoltage, overload, overheating, and output short circuits to ensure a long and safe service life.

Can I monitor the inverter's status in real-time?

Yes, the VT series (600W and above) features an LCD display that provides a clear overview of the operating state. The 300W model comes with an LED display.

What is the conversion efficiency of this device?

The inverter power supply is highly efficient, boasting a conversion efficiency of approximately 90% with a Waveform THD of ≤3%.

How does the cooling system work?

The system utilizes intelligent fan cooling to maintain optimal operating temperatures, coupled with an automatic overheat protection that triggers at 80°±5°.

What input voltages are supported?

The range is versatile, supporting 12V, 24V, 48V, 60V, and 72V DC inputs, depending on the specific model requirements.
