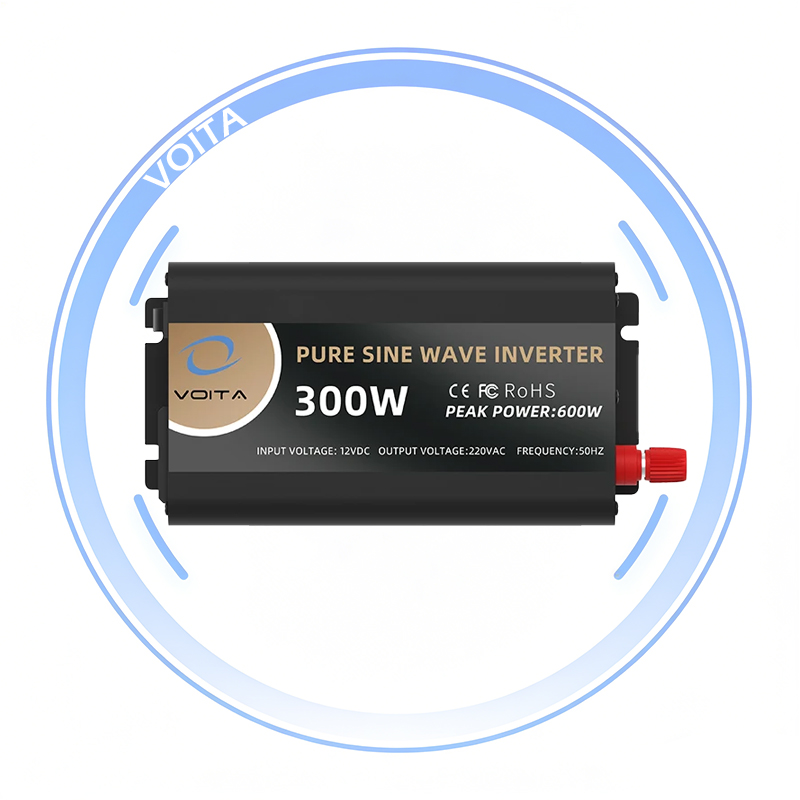

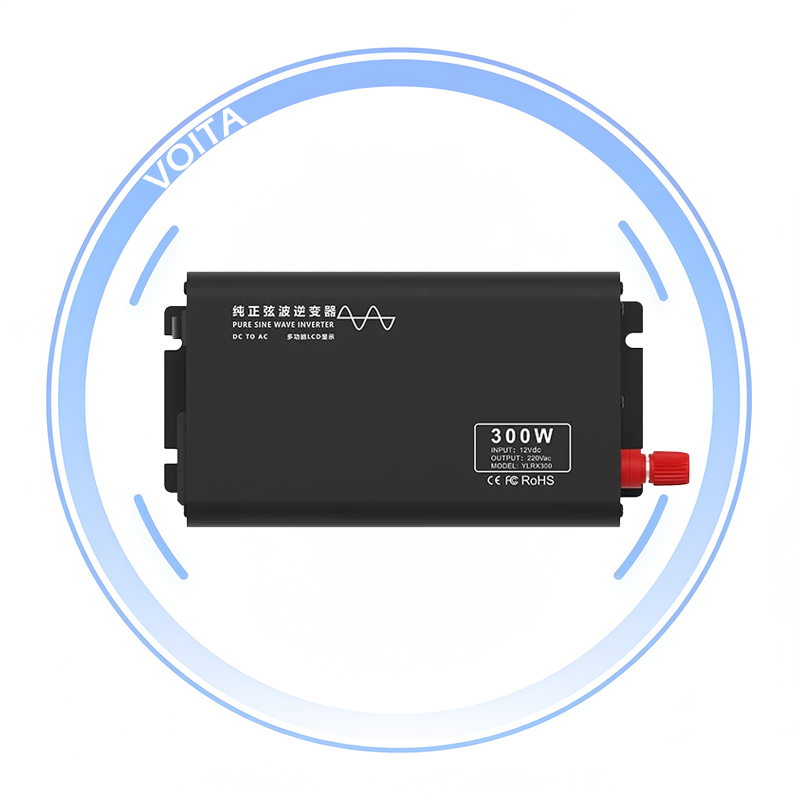

VOITA 24v 220v 300W 600W Peak Single Phase Pure Sine Wave Solar Inverter with LED Display

1 / 5

VOITA 24v 220v 300W 600W Peak Single Phase Pure Sine Wave Solar Inverter with LED Display

Send Inquiry

Product Description

⚡ Key Features

✓The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.

✓The unique dynamic current loop control technology ensures reliable operation of the inverter.

✓Load adaptability, including inductive load, capacitive load, resistive load, and mixed load.

✓Heavy load capacity and impact resistance.

✓It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.

✓The sine wave inverter adopts LCD liquid crystal display mode, providing clear state monitoring at a glance.

✓Stable performance, safe and reliable, long service life.

🛡 Protective Functions

●Low-voltage alarm: The buzzer sounds 2 audible alarms with 1 Hz gap.

●Low voltage protection: The buzzer continuously sounds 3 time alarm with 1Hz gaps.

●Low-voltage recovery: Automatically restores output as voltage rises; alarm is cancelled.

●Overvoltage protection: The buzzer sounds 4 times with 1 Hz gap.

●Overvoltage recovery: Voltage reduces automatically to restore output; alarm is cancelled.

●Thermal protection: Activates at 80° ± 5°; buzzer sounds 5 times.

●Overload protection: 10S automatic shutdown, 5S automatic recovery (locks after three consecutive times).

●Short circuit protection: Output short circuit protection with 1S shutdown lock.

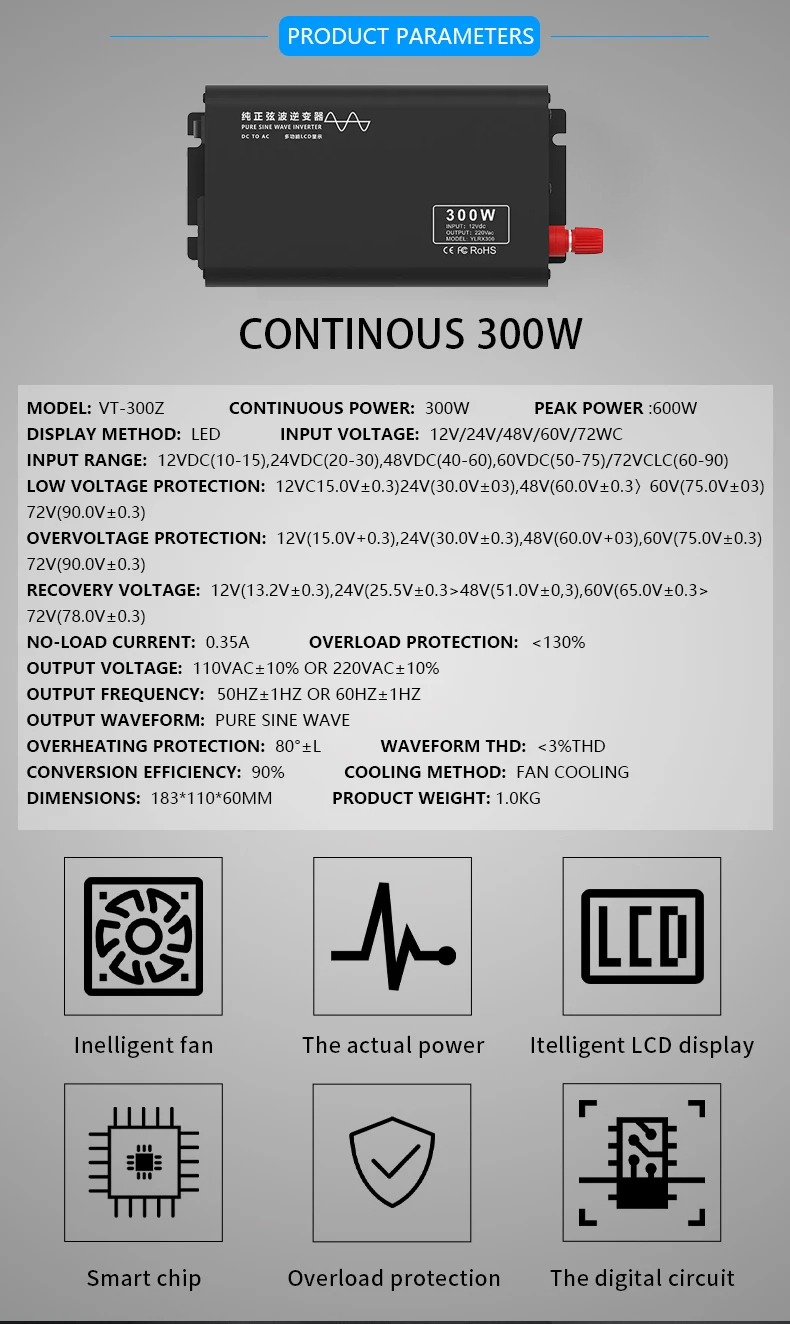

📊 Technical Specifications

Model	VT-300Z
Output Power	300W
Display method	LED Display
Input voltage	12V/24V/48V/60V/72Vdc
Input range	12Vdc(10-15), 24Vdc(20-30), 48Vdc(40-60), 60Vdc(50-75), 72Vdc(60-90)
Low voltage protection	12V(10.0V±0.3) to 72V(60.0V±0.3)
Overvoltage protection	12V(15.0V±0.3) to 72V(90.0V±0.3)
No-load current	0.35A
Output voltage	110Vac±10% or 220Vac±10%
Output frequency	50Hz±1Hz or 60Hz±1Hz
Output waveform	Pure sine wave
Conversion efficiency	90%
Dimensions	18211056mm
Product weight	1.0KG

📸 Product Gallery

Frequently Asked Questions

Q1: What is the benefit of a Pure Sine Wave output? A: Pure sine wave output provides high-quality electricity similar to the grid, ensuring compatibility with sensitive electronics, inductive loads, and reducing noise in appliances.

Q2: How does the overload protection mechanism work? A: When an overload is detected, the system will automatically shut down for 10 seconds and attempt recovery after 5 seconds. If this occurs three consecutive times, the system will lock for safety.

Q3: Does this inverter support different input voltages? A: Yes, it supports multiple DC input options including 12V, 24V, 48V, 60V, and 72V, depending on the specific configuration chosen.

Q4: What happens if the device overheats? A: The inverter features thermal protection that triggers at 80° ± 5°. The buzzer will sound 5 times to alert the user and protect the internal components.

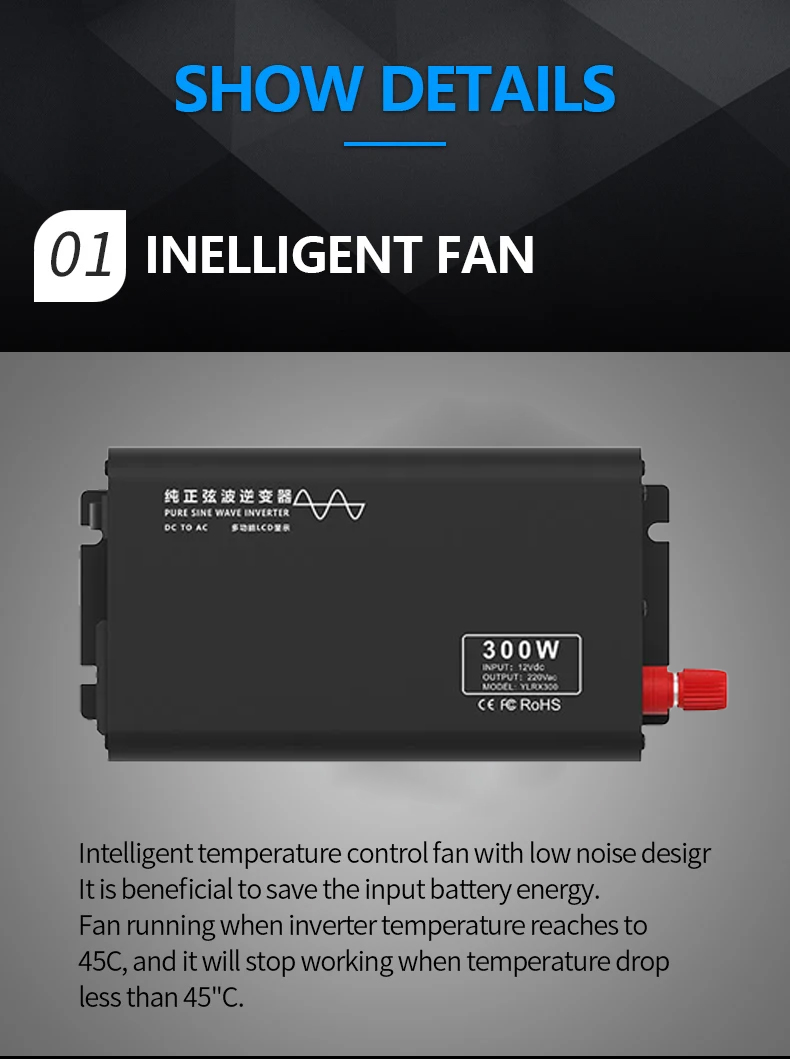

Q5: Is the cooling system automatic? A: Yes, the inverter utilizes a fan cooling system to maintain optimal operating temperatures during heavy use.

Q6: What type of loads can this inverter handle? A: It features excellent load adaptability, including inductive, capacitive, resistive, and mixed loads, making it highly versatile for various applications.
