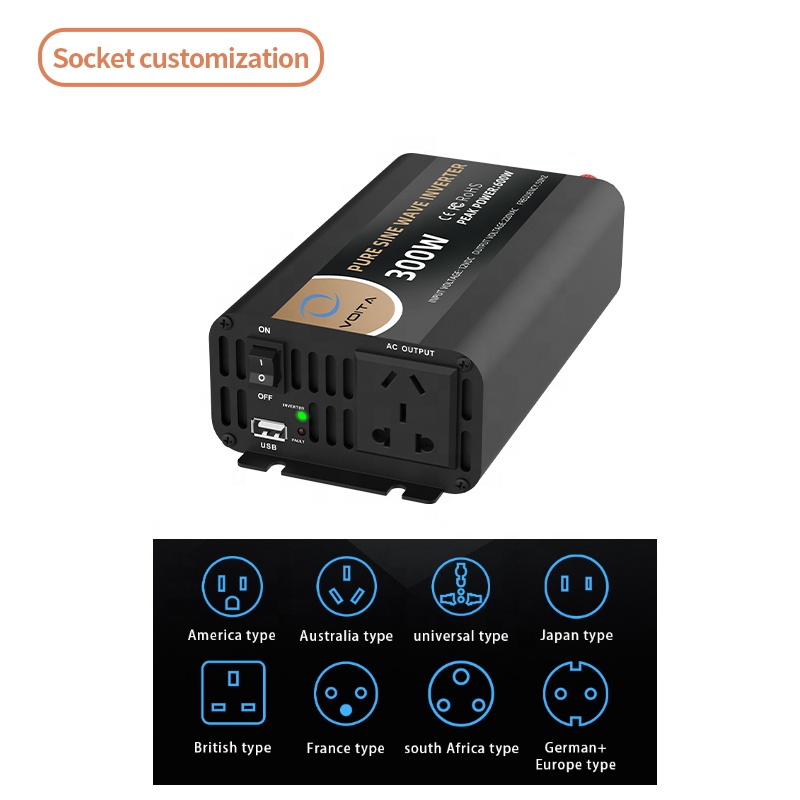

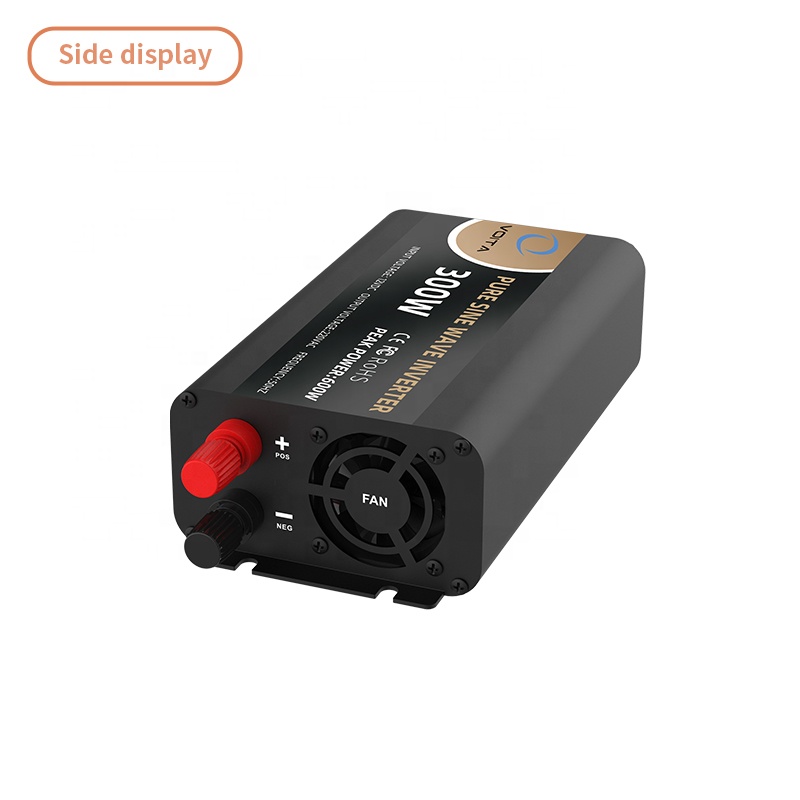

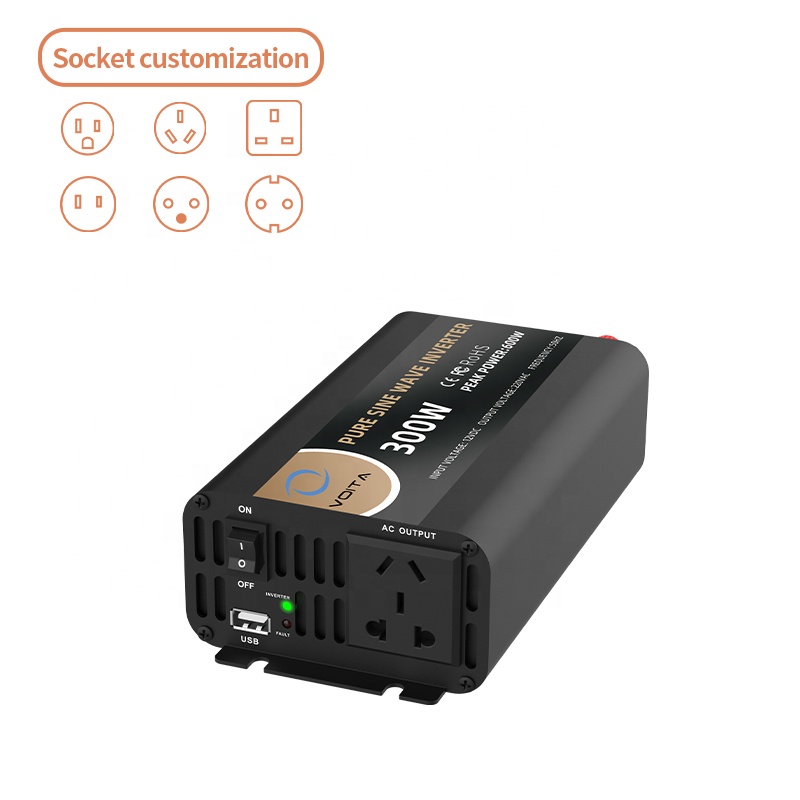

DC 12V 24V 48V 60V to AC 110V 120V 220V 230V 240V Converter Pure Sine Wave Power Inverter for Car

Product Description

Feature
  • The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.
  • The unique dynamic current loop control technology ensures reliable operation of the inverter.
  • Load adaptability, including inductive load, capacitive load, resistive load, mixed load.
  • Heavy load capacity and impact resistance.
  • It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit, and the state is clear at a glance.
  • Stable performance, safe and reliable, long service life.
Technical characteristics

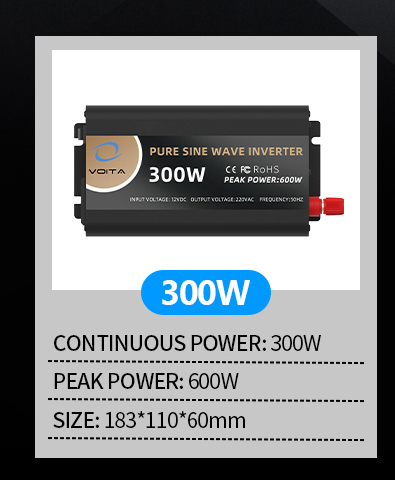

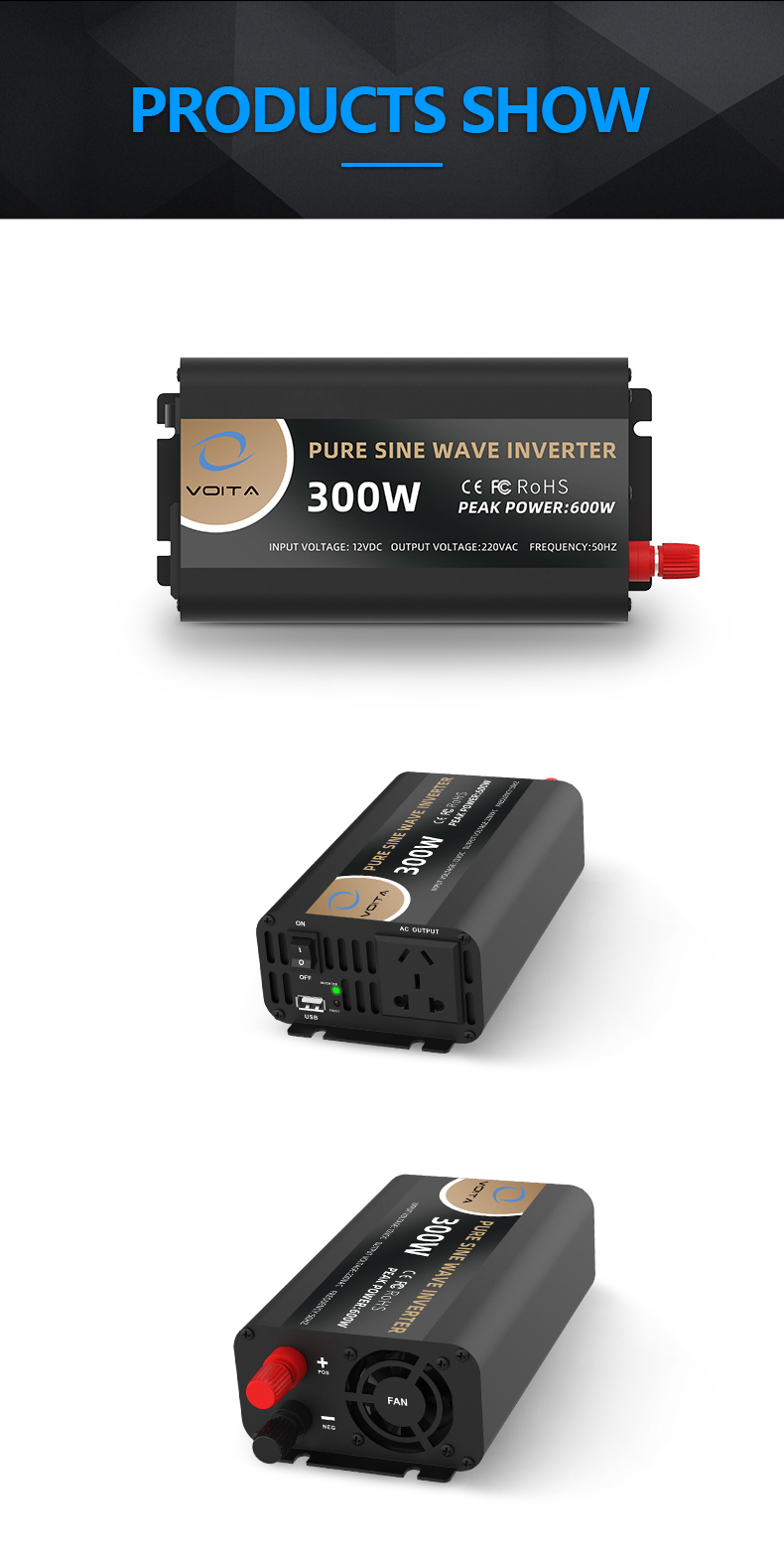

Model VT-300Z
Output Power 300W
Peak Power 600W
Display method NO
Input voltage 12V/24V/48V/60V/72VDC
Input range 12Vdc(10-15),24Vdc(20-30),48Vdc(40-60),60Vdc(50-75)/72Vclc(60-90)
Low voltage protection 12VC15.0V±0.3)24V(30.0V±03),48V(60.0V±0.360V(75.0V±03),72V(90.0V±0.3)
Overvoltage protection 12V(15.0V+0.3),24V(30.0V±0.3),48V(60.0V+03),60V(75.0V±0.3),72V(90.0V±0.3)
Recovery voltage 12V(13.2V±0.3),24V(25.5V±0.3>48V(51.0V±0,3),60V(65.0V±0.3>72V(78.0V±0.3)
No-load current 0.35A
Overload protection <130%
output voltage 110Vac±10% or 220Vac±10%
Output frequency 50Hz±1Hz or 60Hz±1Hz

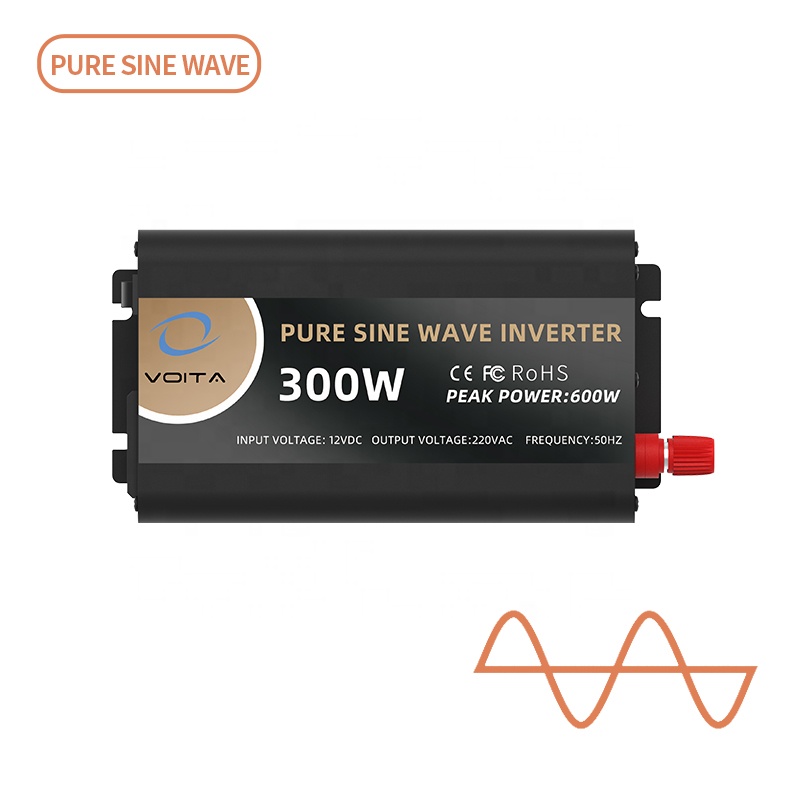

Output waveform Pure sine wave
Overheating protection 80°±l
Waveform THD <3%THD
Conversion efficiency 90%

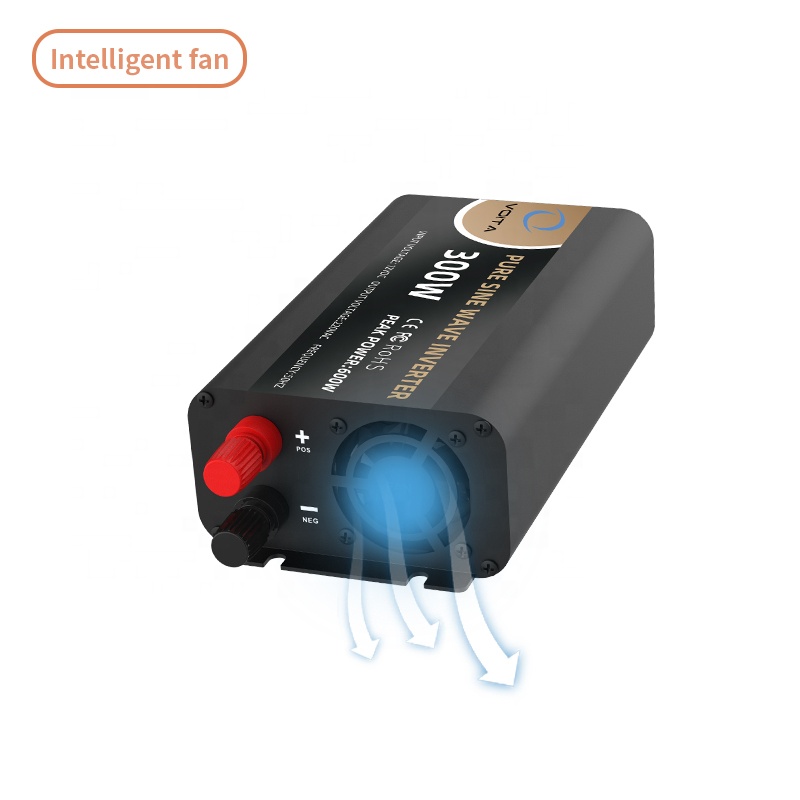

cooling method Fan cooling
Dimensions 183*110*60mm
product weight 1.00kg
Frequently Asked Questions
QHow does a power inverter work?

A power inverter converts DC power into conventional AC power, when an AC outlet is not available. Simply connect an inverter to a battery source, plug your appliance into the inverter.

QIs the output voltage of our inverter stable?

Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.

QWhat is a resistive load appliances?

Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.

QWhat is the inductive load appliances?

It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’ power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.

QWhat should be noticed when installing inverter?

Put the product in a place where is well ventilate, cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.

QHow do I know which inverter to buy?

Different devices require specific wattages to run. Please check the following formula to determine the correct watt model: AMPS x 120 = Watts. For Example: 20 Amp Freezer Unit * 120 = 2400 Watts.

QDo you accept OEM and ODM service?

Yes, we accept OEM and ODM service.
