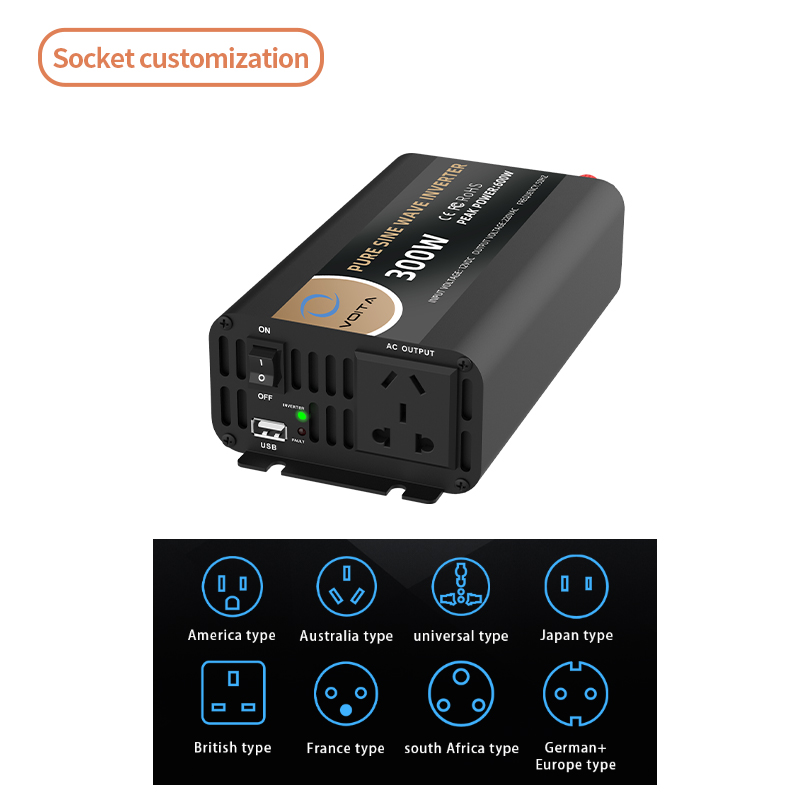

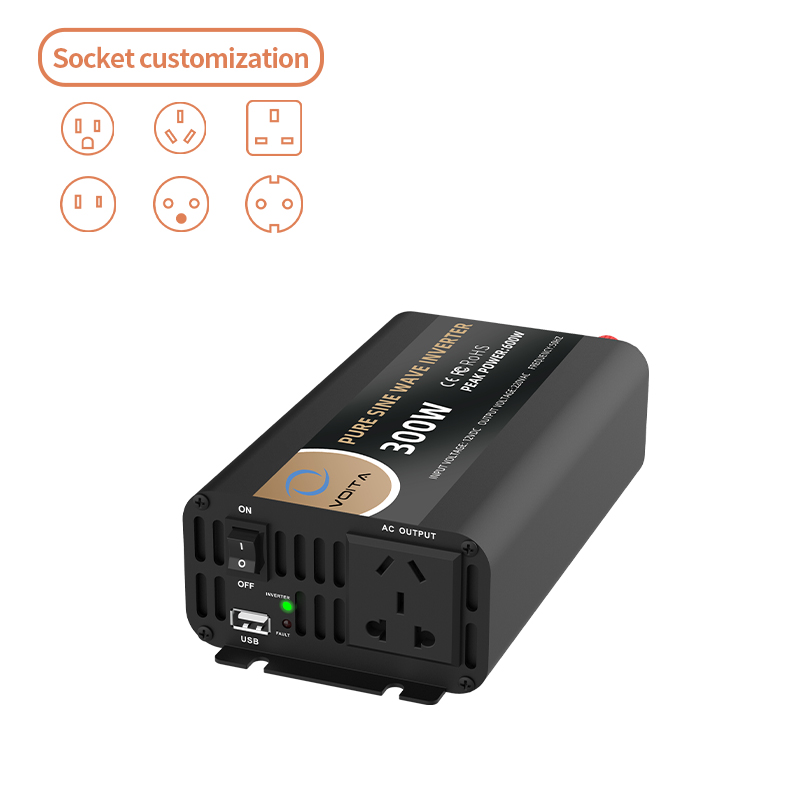

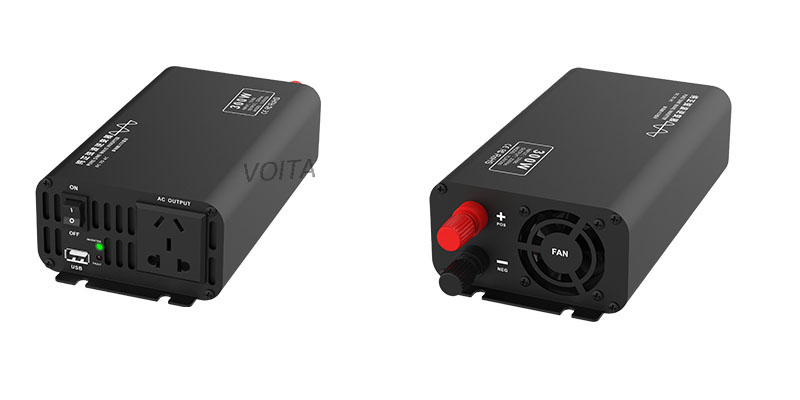

New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
1 / 5
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply
New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply

New Original Dc to Ac High Frequency Inverter 72V to 220V Power Supply

Send Inquiry

Product Description

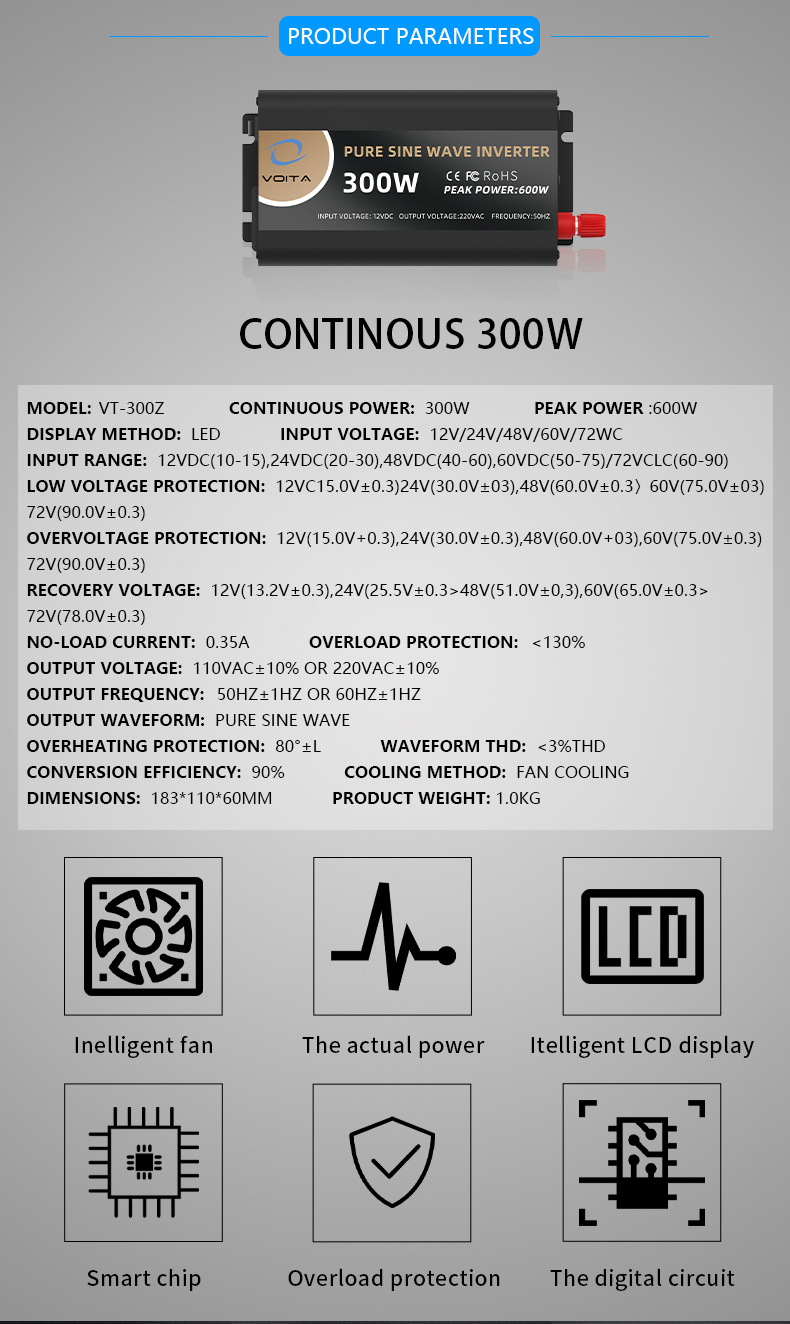

Specification
Model 300W 500W 1000W 1500W
Output Power 300W 500W 1000W 1500W
Display method LED Display LCD Display LCD Display LCD Display
Input voltage 12V/24V/48V/60V/72Vdc
Input range 12Vdc(10-15), 24Vdc(20-30), 48Vdc(40-60), 60Vdc(50-75), 72Vdc(60-90)
Low voltage protection 12V(10.0V±0.3), 24V(20.0V±0.3), 48V(40.0V±0.3), 60V(50.0V±0.3), 72V(60.0V±0.3)
Overvoltage protection 12V(15.0V±0.3), 24V(30.0V±0.3), 48V(60.0V±0.3), 60V(75.0V±0.3), 72V(90.0V±0.3)
Recovery voltage 12V(13.2V±0.3), 24V(25.5V±0.3), 48V(51.0V±0.3), 60V(65.0V±0.3), 72V(78.0V±0.3)
No-load current 0.35A 0.40A 0.60A 0.70A
Overload protection 300W > 110% 500W > 110% 1000W > 110% 1500W > 110%
Output voltage 110V/220Vac 110V/220Vac 110V/220Vac 110V/220Vac
Output frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Output waveform Pure sine wave
Overheating protection 80°±5°
Waveform THD ≤3%
Conversion efficiency 90%
Cooling method Fan cooling
Dimensions 183*110*60mm 228*173*76mm 310*173*76mm 360*173*76mm
Product weight 1.0kg 2.0kg 3.0kg 3.6kg
Product Description
Frequently Asked Questions
Q: What is a Pure Sine Wave Inverter?
A: A pure sine wave inverter produces electricity that is the same as, or even better than, the power supplied by the utility grid. It is ideal for running sensitive electronics, appliances with motors, and medical equipment smoothly without interference.
Q: How do I choose the right power model (300W to 1500W)?
A: You should calculate the total wattage of the devices you plan to run simultaneously. It is recommended to choose an inverter with a continuous output power that is 20-30% higher than your total load to ensure safety and longevity.
Q: What safety protections are built into these inverters?
A: Our inverters include comprehensive protection features: Low voltage protection, Overvoltage protection, Overload protection, Overheating protection (80°±5°), and Short circuit protection.
Q: Can I use this inverter for 24V or 48V battery systems?
A: Yes, we offer different input voltage versions including 12V, 24V, 48V, 60V, and 72Vdc. Please ensure you select the model that matches your battery bank voltage.
Q: What is the conversion efficiency of the unit?
A: The inverter operates with a high conversion efficiency of up to 90%, which helps in minimizing energy loss during the DC to AC conversion process.
Q: Is the cooling fan always running?
A: The unit features an intelligent fan cooling system designed to manage heat efficiently. The fan operation helps maintain the optimal internal temperature during high-load usage.
