| Model | VT-ADP30050 |
| Input Voltage Range | 1 Phase: AC110V±10%, 50Hz/60Hz; 1 Phase: AC220V±10%, 50Hz/60Hz; 3 Phase: AC380V±10%, 50Hz/60Hz; |
| Output voltage | 0-300VDC |
| Output current | 0-50A |
| Power | 15000W |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Voltage Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating); Range: 0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V |
| Current Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating); Range: 0.000V-9.999V, 0.00V-99.99V, 0-0V-999.9V |
| Insulation resistance | Input-output: ≥ 20m Ω; Input-shell: ≥ 20m Ω; Output-shell: ≥ 80m Ω |
| Insulation strength | Input-output: AC1500V, 10mA, 1min; Input-shell: AC1500V, 10mA, 1min; Output-shell: AC1500V, 10mA, 1min |
| Output OverVoltage Protection | Built-in O.V.P. protection, protection limited value is rated +5% |
| Output Over Load Protection | Overload, current limit, constant current output |
| OverTemperature Protection | Built-in O.T.P. protection, protection value: 85℃±5% heat sink temperature |
| Heat Dissipation Way | Forced fan cooling |
| Work Conditions | Indoor use design, Temperature: 0℃~40℃; Humidity: 10%~85%RH |

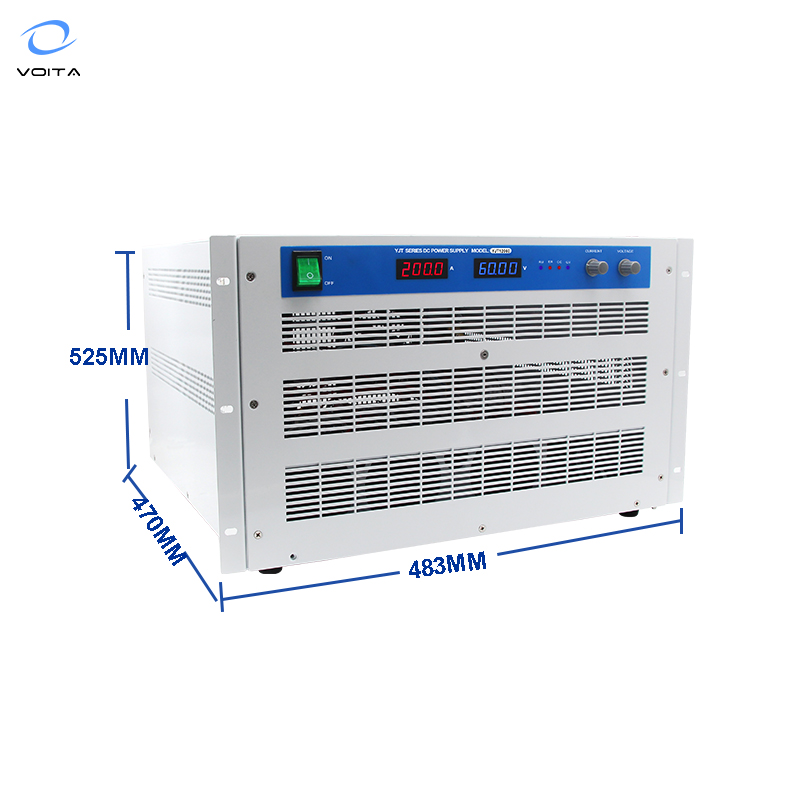

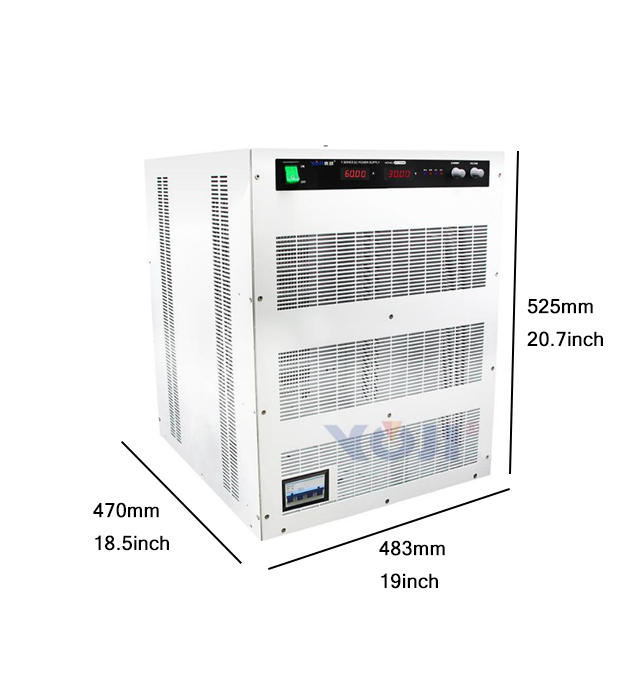

| Product Dimension | 483*470*525mm/19*18.5*20.7inch |
| Weight | 78kg |
About the adjustable dc regulated power supply, we can customize different kinds of specifications according to your request, such as:
