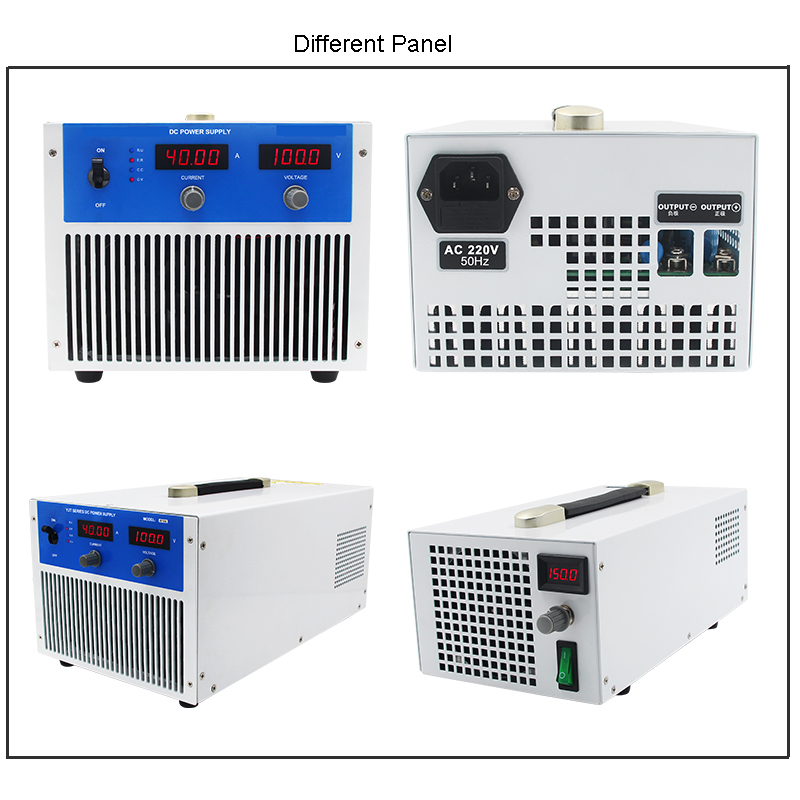

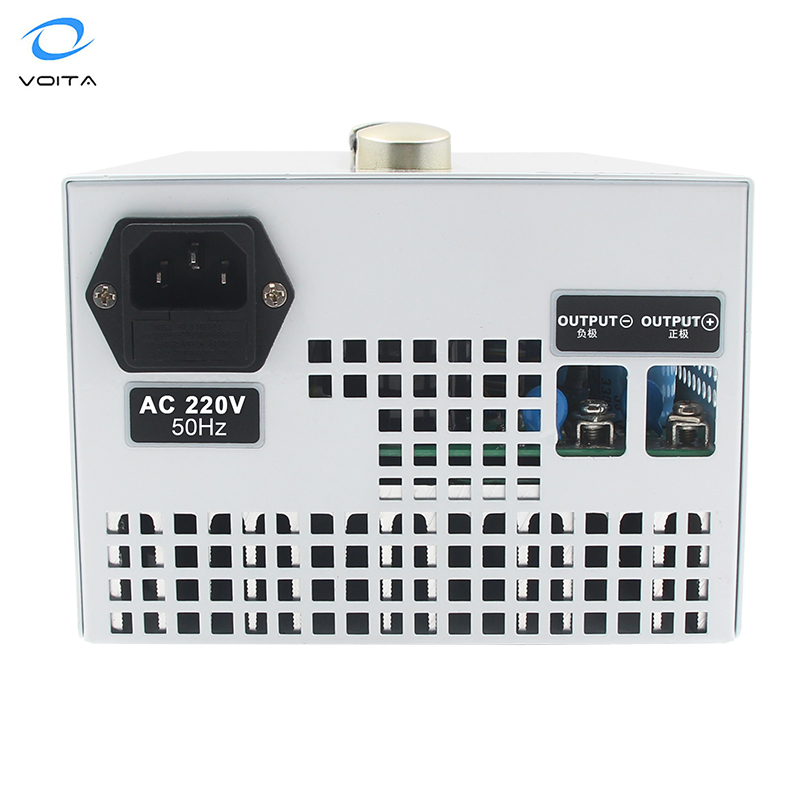

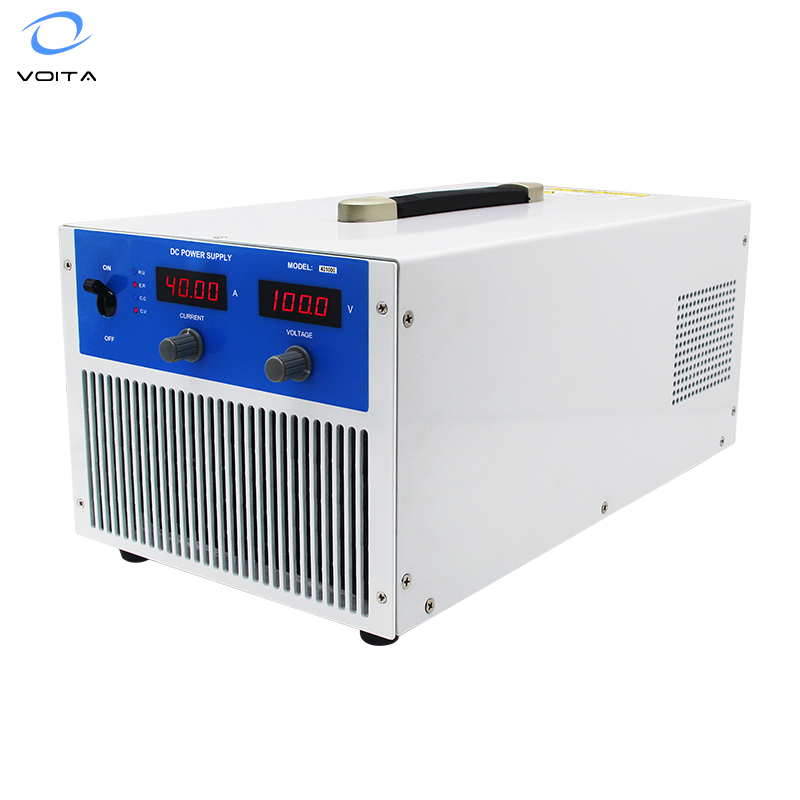

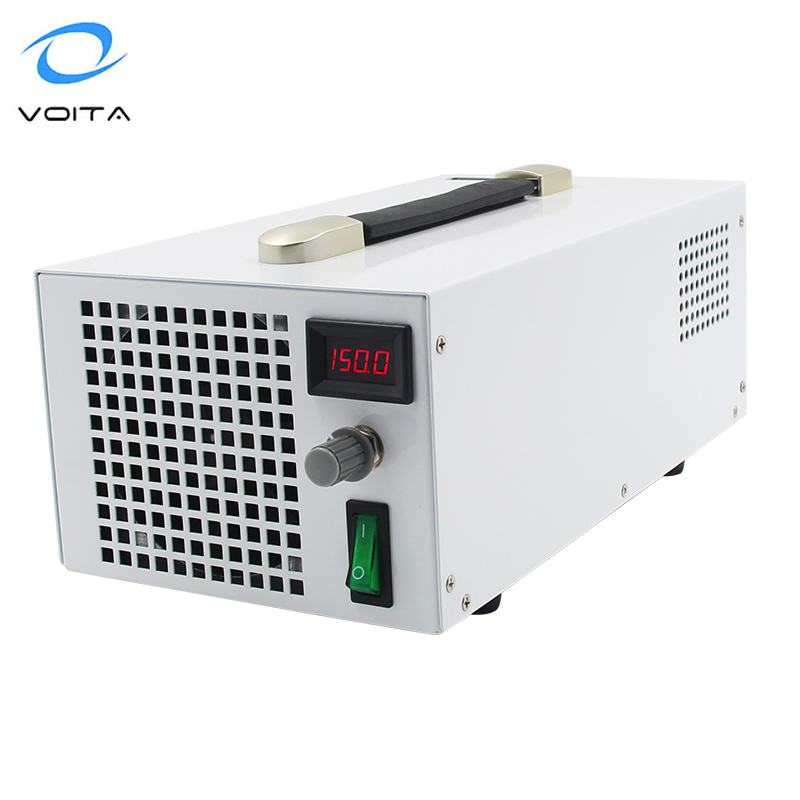

Single Output 100% Adjustable 12v 200 Amp Dc Power Supply with Overcurrent protection

Send Inquiry

Product Description

Main Features

✓Small size and light weight, suitable for working table and rack installation.
✓Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
✓Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
✓Low noise and low ripple.
✓High gain amplifier circuit design, with good rapid response characteristics.
✓Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
✓Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
✓Designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.

Datasheet Specifications

Parameter	Specification Details
Model	VT-ADP12200
Input Voltage Range	1 Phase: AC110V/AC220V±10%; 3 Phase: AC380V±10% (50Hz/60Hz)
Output Voltage	0-12VDC adjustable or fixed
Output Current	0-200A adjustable or fixed
Power	2400W
Voltage Stabilization	≤0.3%+10mV
Load Stabilization	≤0.5%+30mV
Ripples and Noises	≤0.5%+10mVrms
Voltage Display Accuracy	4-digit: ±1%+1 word (10%-100% rating)
Current Display Accuracy	4-digit: ±1%+1 word (10%-100% rating)
Insulation Resistance	In-Out/In-Shell: ≥20mΩ; Out-Shell: ≥80mΩ
Insulation Strength	AC1500V, 10mA, 1 minute
Output Protections	OverVoltage (O.V.P), OverLoad (Current Limit), OverTemperature (O.T.P 85℃)
Heat Dissipation	Forced fan cooling
Work/Storage Conditions	Temp: 0~40℃ / -20~70℃; Humidity: 10%~90%RH
Product Dimension	220460170mm
Analog Remote Control Function (Optional)
Signal Control	0-5V / 0-10Vdc / 4-20mA analog signal control & read-back

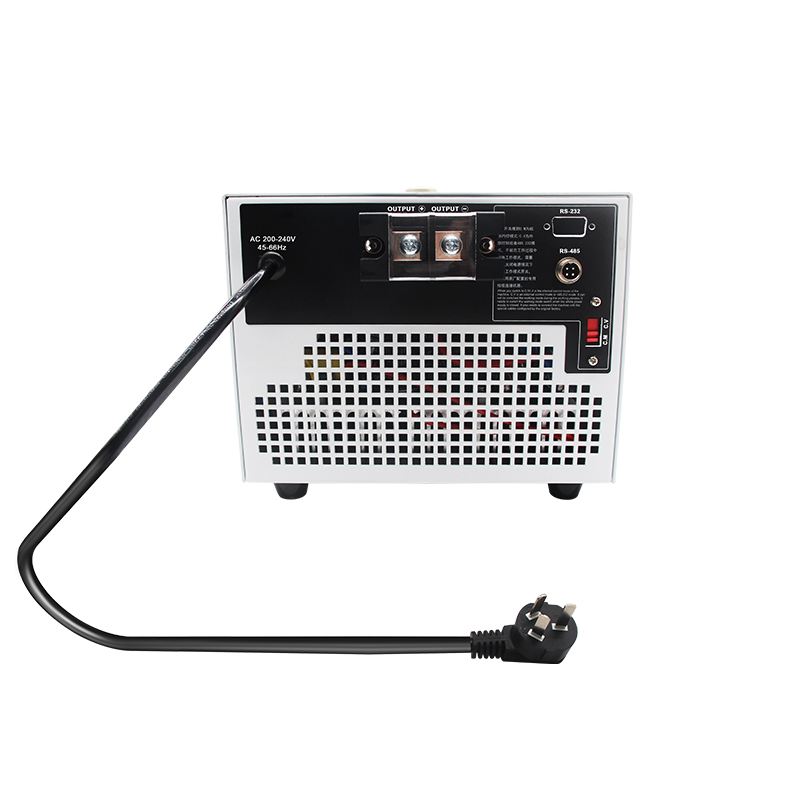

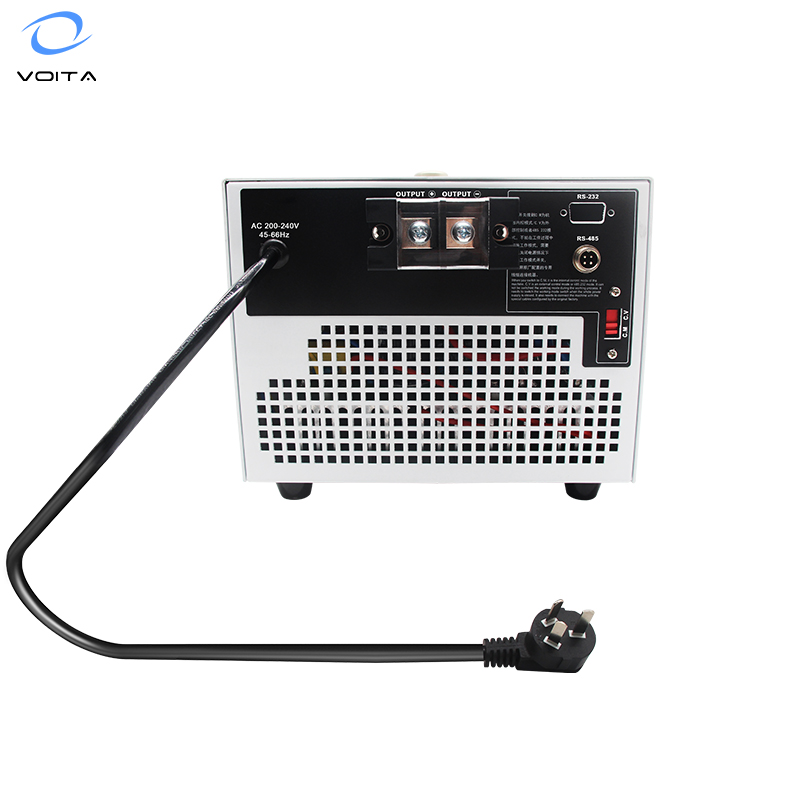

Communication Port	RS232 / RS485 control by computer

Customization Options

Regarding the adjustable DC regulated power supply, we provide customization for various specifications:

Frequently Asked Questions

1. How long is the delivery time?

Regular order delivery time is 3-7 days after the payment (PI) is confirmed.

2. What are your accepted payment terms?

We support payments via TT, PAYPAL, and Western Union.

3. Can I order a sample before placing a bulk order?

Yes, sample orders are fully supported to ensure the product meets your requirements.

4. Which delivery methods are available?

We provide shipping via major carriers including DHL, FEDEX, UPS, TNT, and China Post.

5. What is the warranty period for your products?

All products come with a 1-2 year warranty for your peace of mind.

6. What types of power products do you manufacture?

We specialize in Power Adapters, DC-DC Converters, DC-AC Inverters, DC Power Supplies, Battery Chargers, and Telecom Rectifiers.
