| Model | VT-ADP40010 |
| Input Voltage Range | 1 Phase: AC110V±10%; 1 Phase: AC220V±10%; 3 Phase: AC380V±10% (50Hz/60Hz) |
| Output voltage | 0-400VDC |
| Output current | 0-10A |
| Power | 4000W |
| Voltage Stabilization | ≤0.3%+10mV |
| Load Stabilization | ≤0.5%+30mV |
| Ripples and Noises | ≤0.5%+10mVrms |
| Display Accuracy | 4-digit Accuracy: ±1%+1 word (10%-100% rating) |
| Insulation Resistance | Input-Output ≥20MΩ; Input-Shell ≥20MΩ; Output-Shell ≥80MΩ |
| Insulation Strength | AC1500V, 10ma, 1 minute |
| Protection | O.V.P. (Rated +5%), Overload, Current limit, O.T.P. (85℃±5%) |
| Control Setting | 10-turn precision potentiometer |
| Heat Dissipation | Forced fan cooling |

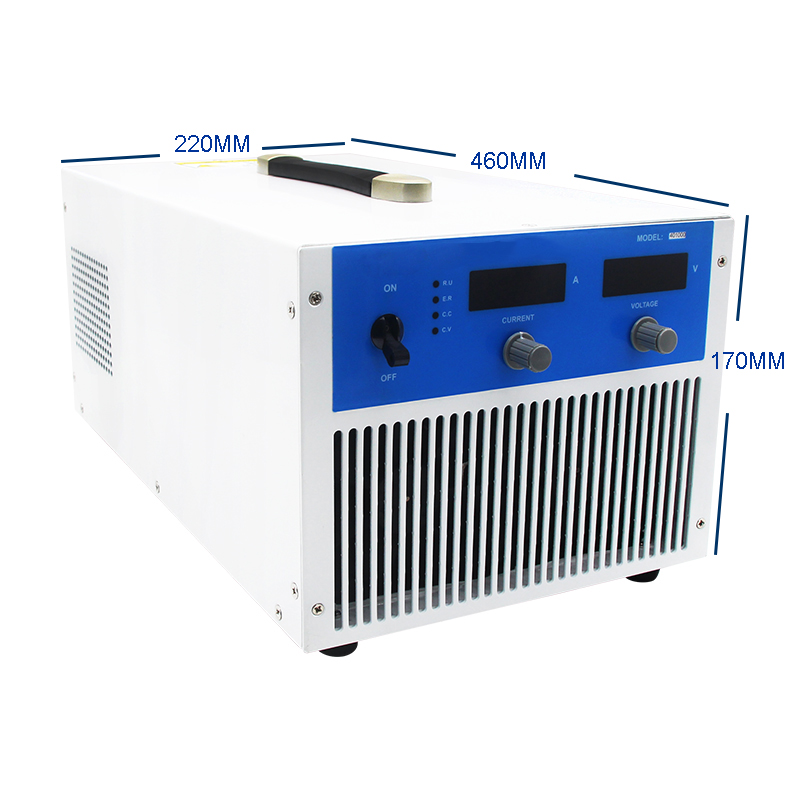

| Dimensions | 220*460*170mm |
| Weight | 13.8KG |
| Voltage/Current Control | 0-5V / 0-10Vdc analog signal control |
| Read-back Signal | 0-5V / 0-10Vdc analog signal read-back |
| Switch Control | 0-5V / 0-10Vdc analog Switch signal |
| Current Loop | 4-20mA analog signal control | RS232/RS485 port control by computer |
About the adjustable dc regulated power supply, different kind of specifications can be customized:
Yes, the DC power supply features dual 10-turn precision potentiometers, allowing for fine-tuned and independent adjustment of both voltage and current levels.
The unit includes comprehensive protection systems: Over Voltage Protection (O.V.P), Over Temperature Protection (O.T.P), and Overload/Constant Current limiting to ensure equipment safety.

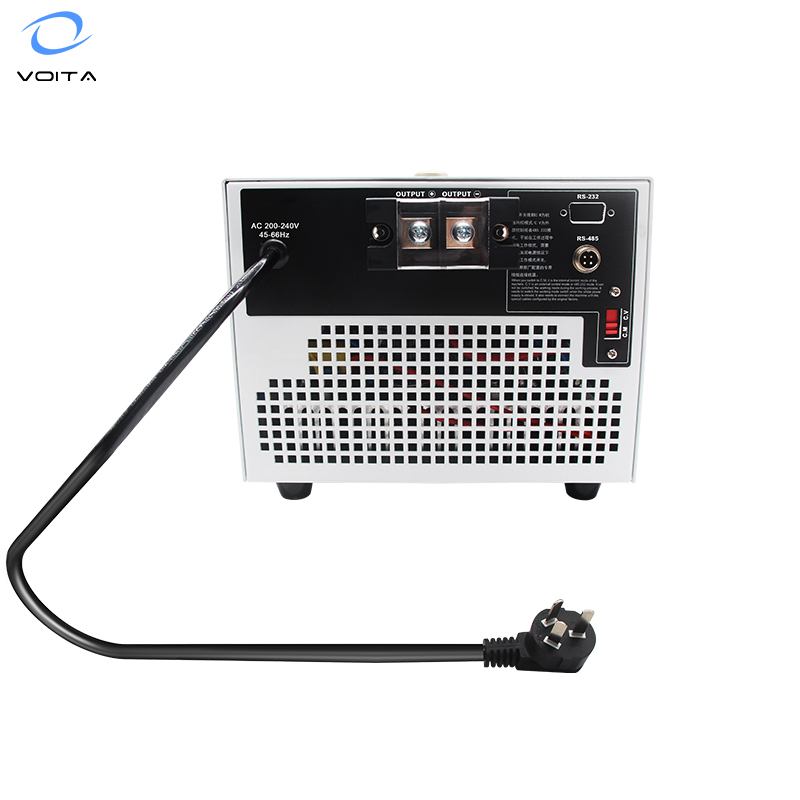

Yes, we offer optional analog remote control functions and digital communication ports such as RS232 and RS485 for computer-based integration.

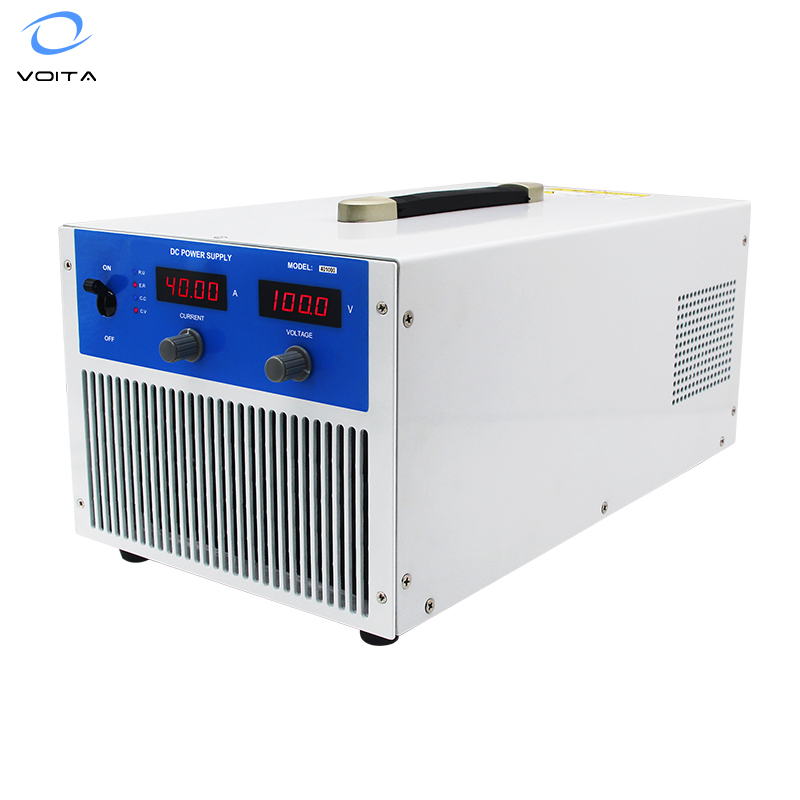

The unit is equipped with a 4-digit digital display meter that provides high sampling rates and high resolution for both voltage and current monitoring.
It utilizes a forced air cooling system with an internal fan and a carefully designed heat treatment circuit to maintain a very low temperature coefficient during operation.
Absolutely. We provide customization for various input voltages (110V/220V/380V) and output ranges up to 3000V or 2000A based on specific requirements.
