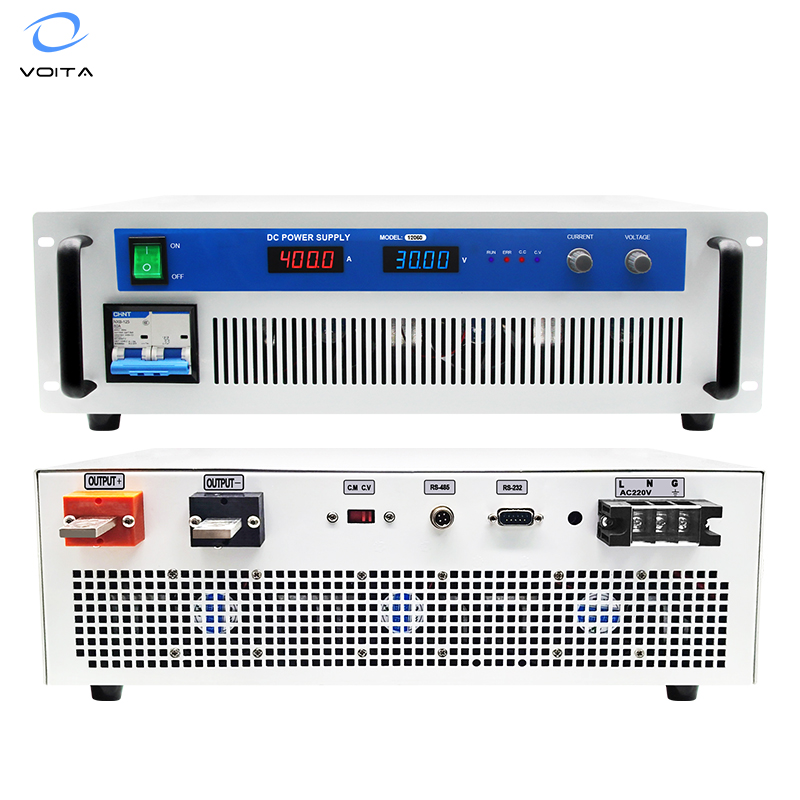

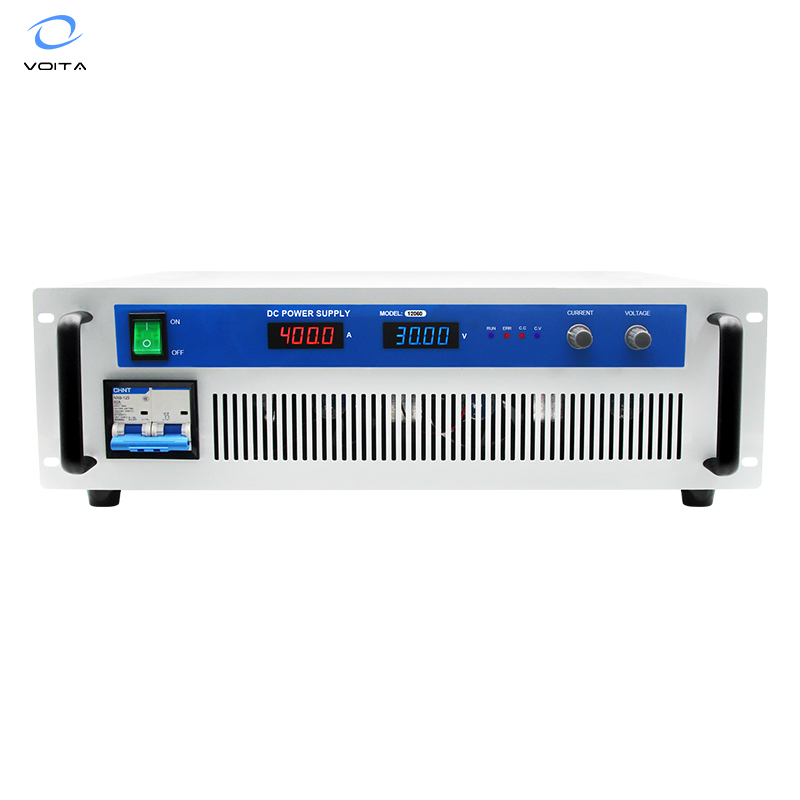

160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
1 / 5
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply
160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply

160V 200V 25A & 250V 20A & 320V 400V 12.5A & 500V 10A 5000W Constant Voltage Constant Current Variable AC DC Power Supply

Send Inquiry

Product Description

DC Power Supply Unit
Power Supply Detail
Key Characters & Features
1. Small size and light weight, suitable for working table and rack installation.
2. Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
3. Carefully designed electronic technology circuit, forced air cooling treatment, with a very low temperature coefficient.
4. Low noise and low ripple for stable performance.
5. High gain amplifier circuit design with rapid response characteristics.

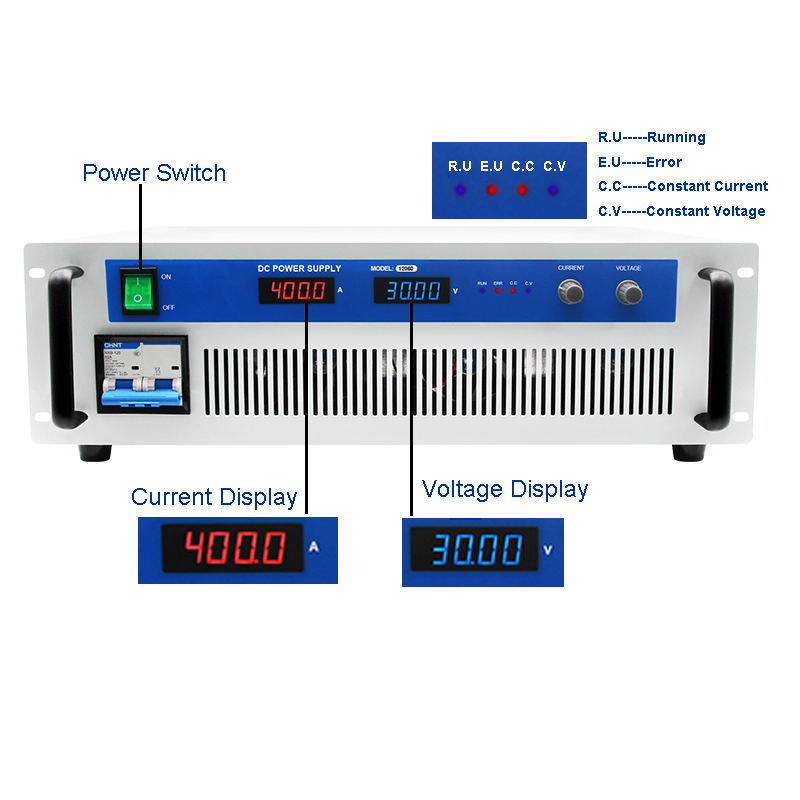

6. Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
7. Built-in O.V.P (Over Voltage Protection) and O.T.P (Over Temperature Protection) for reliable protection.
8. Load terminal voltage detection terminal for accurate reading and control.
Technical Specifications
ModelVT-ADP50010
AC Wide Input1 Phase: AC110V/220V±10%; 3 Phase: AC380V±10%, 50Hz/60Hz
Output Voltage0-500V
Output Current0-10A
Power5000W
Source Voltage RegulationConstant Voltage ≤0.2%
Load RegulationConstant Voltage ≤1%; Constant Current ≤2%
Line RegulationConstant Voltage ≤0.3%
Ripple VoltageTotal Ripple Vpp≤2%; 100Hz Ripple: Vpp≤0.5%
Work ConditionsIndoor use, Temp: 0℃~40℃; Humidity: 10%~85%RH
Efficiency≥86%
Digital MeterVoltage Meter And Current Meter
Insulating ResistanceInput-Output/Shell: ≥20MΩ; Output-Shell: ≥80MΩ
ProtectionTemperature Control Fan, Over-Temperature, Overvoltage, Over-Current, Short-Circuit, Soft Starting
MTTF≥50000h

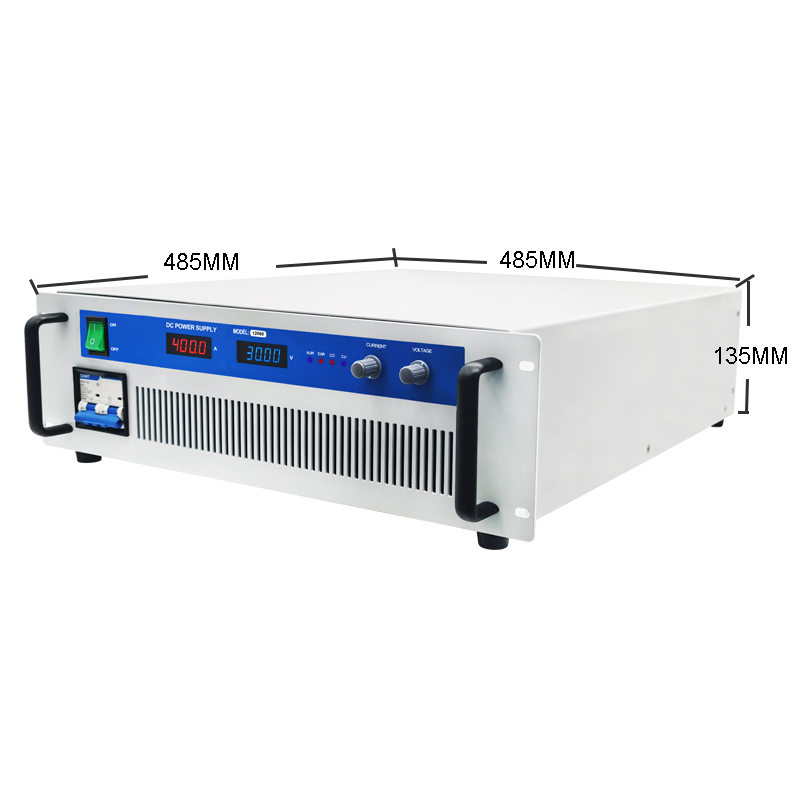

External Dimension483*485*135mm
WeightNW: 21.5(KG)
The default input is AC220V. (Please specify for other input requirements)
Optional Functions & Customization
Output Ranges1~3000V, 1~2000A, Power up to 100KW
Analog Control0-5Vdc / 0-10Vdc signal for voltage & current control
Analog Read-back0-5Vdc / 0-10Vdc signal to monitor output
Remote ON/OFFAnalog Switch signal control

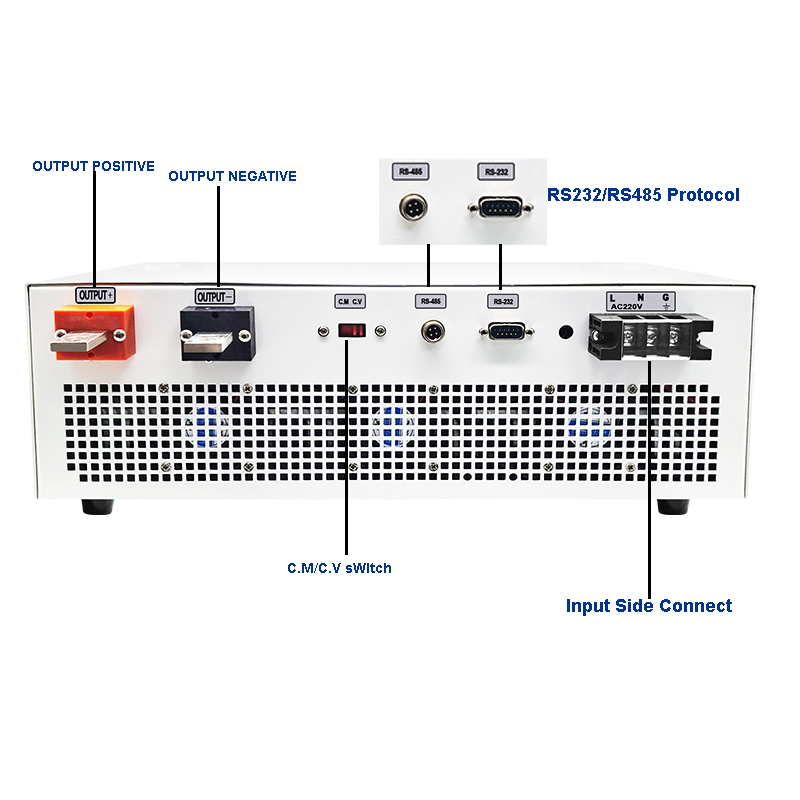

CommunicationRS232/RS485 Communication port control
Custom ServiceAccept OEM / ODM Customized service
Frequently Asked Questions
What are the main protection features of this power supply?
The unit includes built-in O.V.P (Over Voltage Protection), O.T.P (Over Temperature Protection), over-current protection, and short-circuit protection to ensure safe and reliable operation.
Can I customize the input voltage for my region?
Yes, while the default is AC220V, we offer options for 1 Phase AC110V and 3 Phase AC380V to meet different international standards.
Is the output voltage and current adjustable?
Absolutely. Both output voltage and current are 0% to 100% adjustable, allowing for high precision control for various applications.
Does this power supply support remote monitoring?
Yes, we provide optional RS232/RS485 communication ports and analog signal controls (0-5V/0-10V) for computer-based monitoring and integration.
What cooling method does the device use?
It utilizes a forced air cooling system with a temperature-controlled fan that adjusts based on the heat treatment requirements.
Do you offer OEM or ODM services?
Yes, the factory accepts OEM and ODM customized services to meet specific technical requirements for all customers.
