10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
1 / 5
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply
10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply

10000W 10kw 12.5V 800A/20V 500A/25V 400A/50V 200A/100V 100A/200V 50A High Power Dc Power Supply

Send Inquiry

Product Description

Power Supply Overview
Product Detail
Product Character & Features
◈
Small size and light weight, suitable for working table and rack installation.
◈
Use PWM modulation, crystal module consumption of low power, high efficiency, more power saving.
◈
Carefully designed electronic technology circuit, forced air cooling heat treatment, with a very low temperature coefficient.
◈
Low noise and low ripple for stable performance.
◈
High gain amplifier circuit design, with good rapid response characteristics.
◈
Voltage and current digital display meter with 4-bit high sampling rate and high resolution.
◈
Built-in O.V.P over voltage protection line and O.T.P over temperature protection line, protection function is perfect and reliable.
◈
Designed with load terminal voltage detection terminal, which can accurately read and control the load terminal voltage.
⚠ The default input is AC220V.

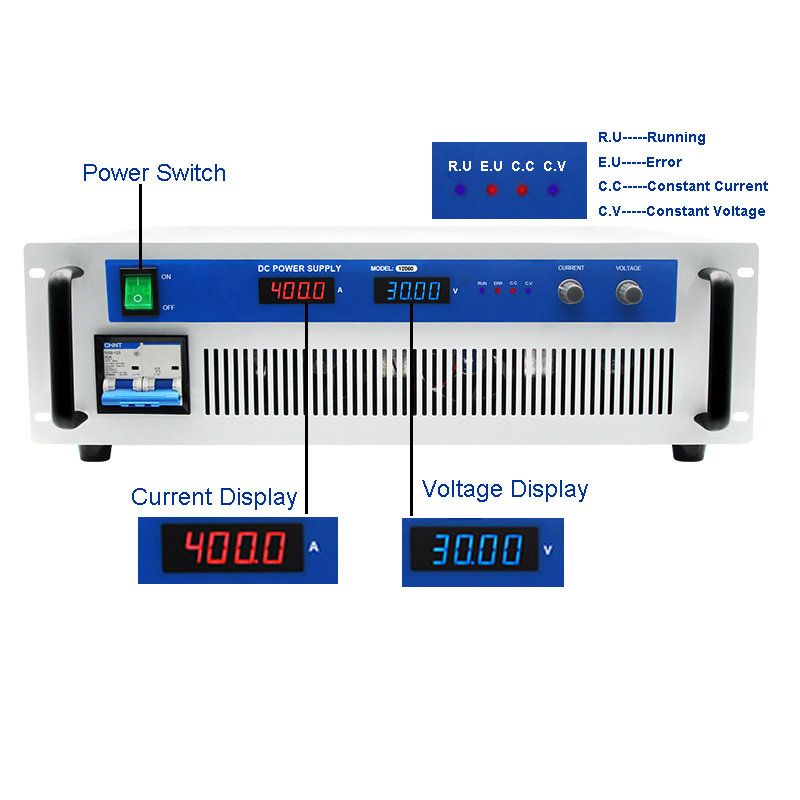

Power Supply Front
Power Supply Side
Power Supply Internal
Display Screen

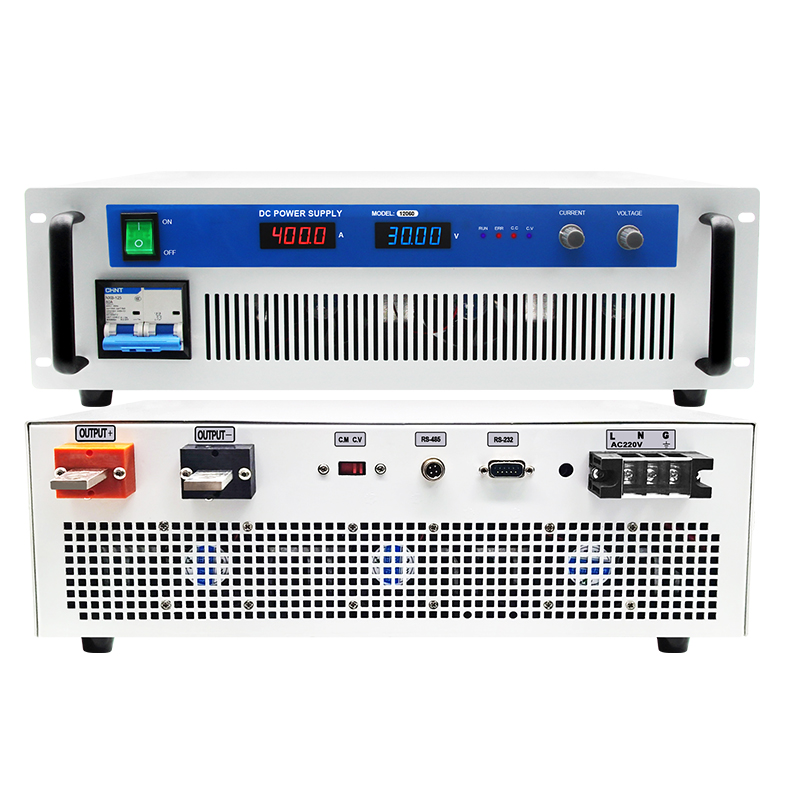

Rear Terminals
Cooling Fan
Application 1
Application 2
Technical Specifications
Parameter Specification Details
ModelVT-ADP50020
Input Voltage Range1 Phase: AC110V/220V±10% | 3 Phase: AC380V±10%, 50Hz/60Hz
Output Voltage0-500VDC Adjustable
Output Current0-20A Adjustable
Power10000W
Voltage Stabilization≤0.3%+10mV
Load Stabilization≤0.5%+30mV
Ripples and Noises≤0.5%+10mVrms
Display Accuracy4-digit Accuracy: ±1%+1 word
Insulation StrengthInput-Output: AC1500V, 10mA, 1minute
ProtectionO.V.P. (Rated +5%), O.T.P. (85℃±5%), Overload Limit
Cooling WayForced fan cooling
Working Conditions0℃~40℃; Humidity: 10%~85%RH
Dimension1680*490*135mm
Analog Control (Optional)0-5V / 0-10Vdc / 4-20mA / RS232 / RS485

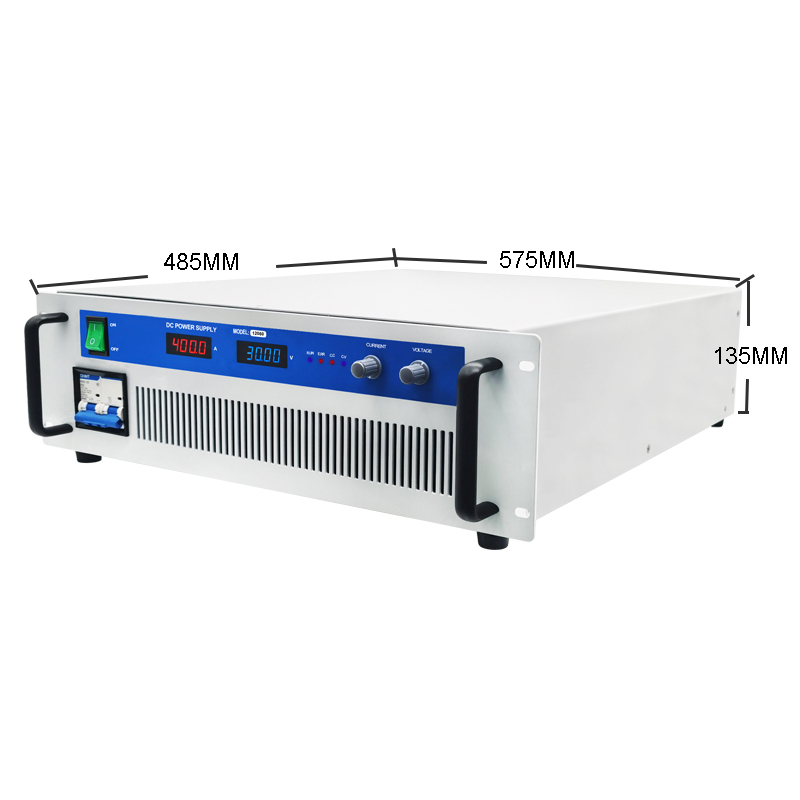

Size Diagram
Icon 1
Icon 2
Icon 3
Icon 4
Icon 5
Icon 6
Certification 1
Certification 2
Certification 3
Certification 4
Certification 5
Certification 6
Quality Control
Frequently Asked Questions
Q: What is the input voltage for this power supply? A: The default input is AC 220V. However, it can be configured for AC 110V or 3-phase AC 380V depending on your requirements.
Q: Can both voltage and current be adjusted? A: Yes, both the output voltage (0-500VDC) and current (0-20A) are fully adjustable using 10-turn precision potentiometers.
Q: What safety protections are built into the device? A: It includes Over Voltage Protection (O.V.P), Over Temperature Protection (O.T.P), and Overload current limiting protection to ensure reliable operation.
Q: Does the display show high-resolution data? A: Yes, it features a 4-digit digital display meter with a high sampling rate, providing accurate readings for both voltage and current.
Q: Is it possible to control the power supply remotely? A: Yes, analog remote control functions (0-5V/0-10V or 4-20mA) and communication ports (RS232/RS485) are available as optional features.
Q: How is the heat dissipated during operation? A: The unit uses a forced air cooling system with internal fans and a carefully designed heat treatment circuit to maintain low temperatures.
