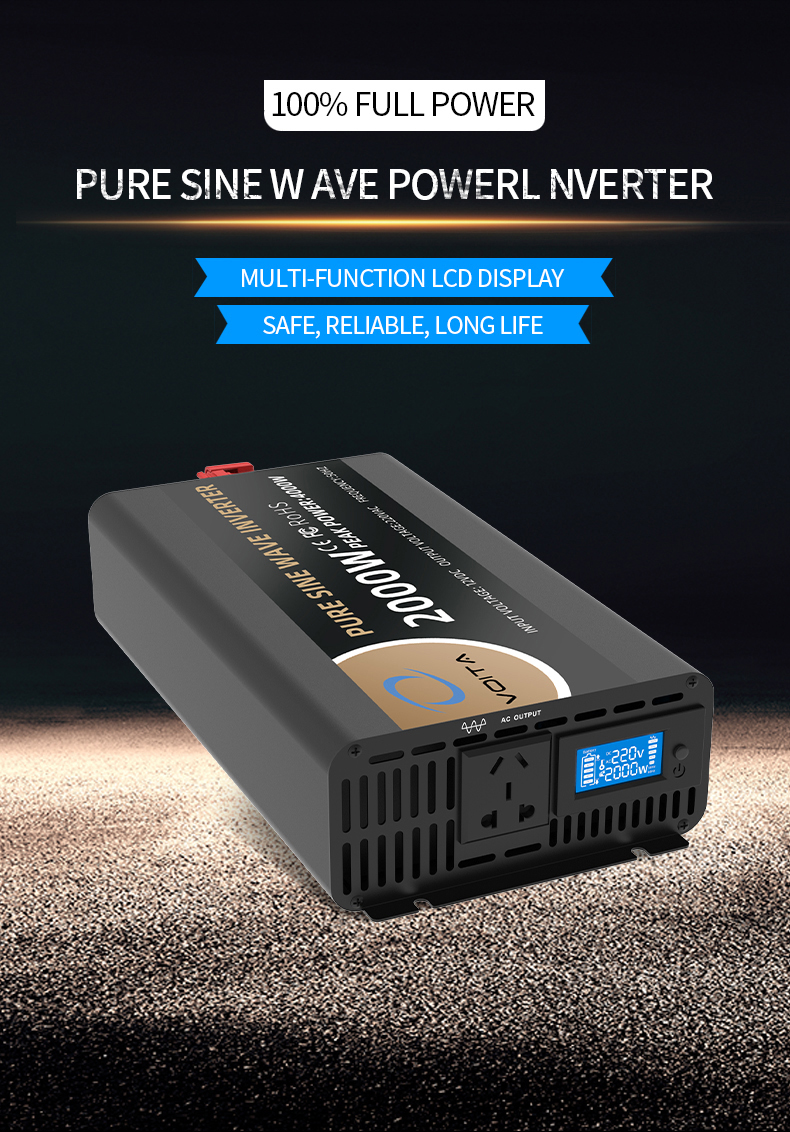

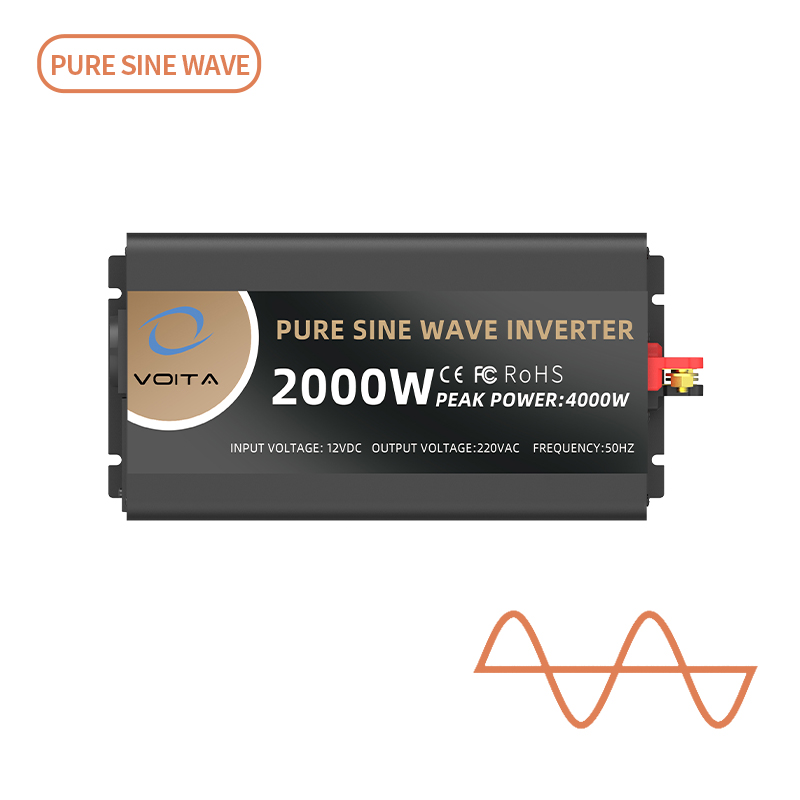

12v Pure Sine Wave Power Inverter 2000w 110/220Vac Dc to Ac Converter Solar Inverter

1 / 5

12v Pure Sine Wave Power Inverter 2000w 110/220Vac Dc to Ac Converter Solar Inverter

Send Inquiry

Product Description

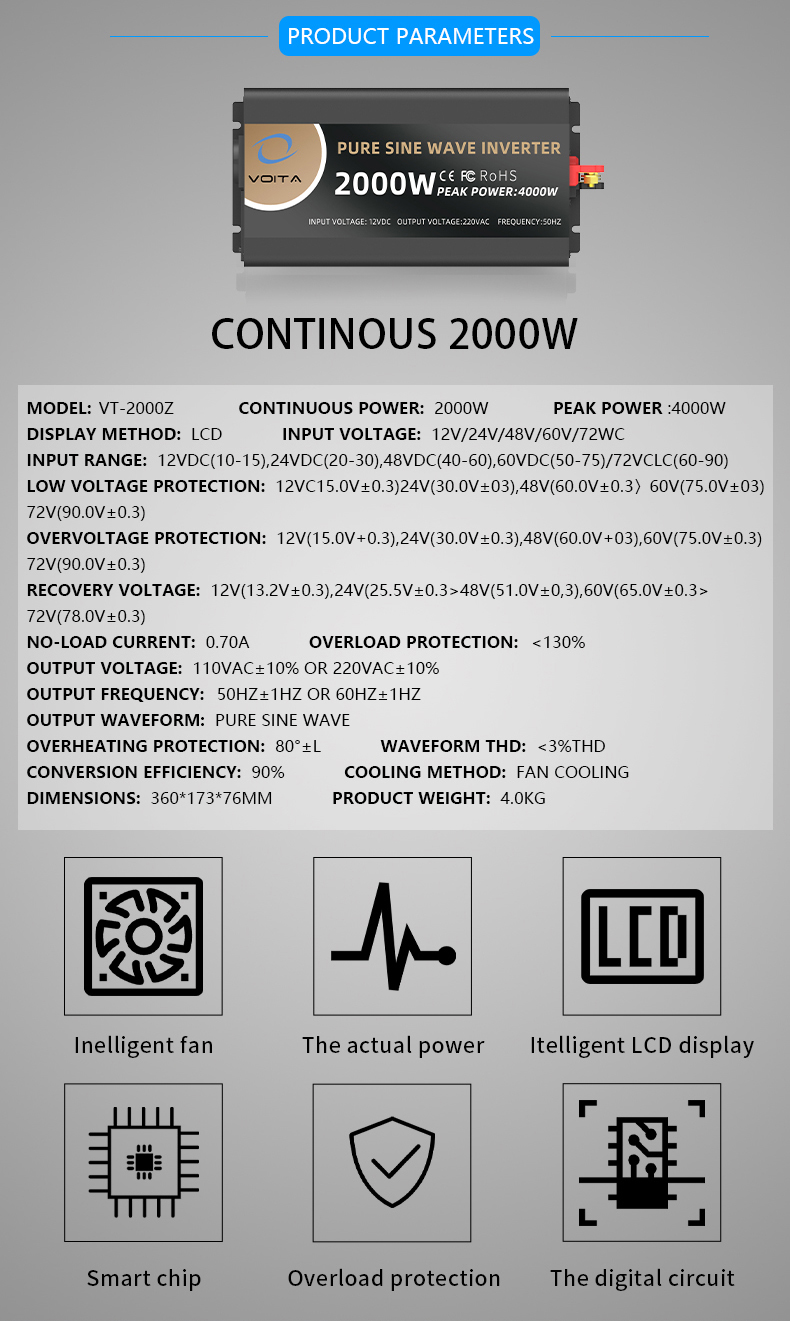

📊 Specification

Model	VT-2000Z	VT-3000Z	VT-4000W	VT-5000W
Output power	2000W	3000W	4000W	5000W
Display method	LCD Display	LCD Display	LCD Display	LCD Display
Input voltage	12V/24V/48V/60V/72Vdc
Input range	12Vdc(10-15), 24Vdc(20-30), 48Vdc(40-60), 60Vdc(50-75), 72Vdc(60-90)
Low voltage protection	12V(10.0V±0.3), 24V(20.0V±0.3), 48V(40.0V±0.3), 60V(50.0V±0.3), 72V(60.0V±0.3)
Overvoltage protection	12V(15.0V±0.3), 24V(30.0V±0.3), 48V(60.0V±0.3), 60V(75.0V±0.3), 72V(90.0V±0.3)
Recovery voltage	12V(13.2V±0.3), 24V(25.5V±0.3), 48V(51.0V±0.3), 60V(65.0V±0.3), 72V(78.0V±0.3)
No-load current	0.8A	1A	1A	1A
Overload protection	2000W > 110%	3000W > 110%	4000W > 110%	5000W > 110%
Output voltage	110V/220Vac
Output frequency	50Hz/60Hz
Output waveform	Pure sine wave
Overheating protection	80°±5°
Waveform THD	≤3%
Conversion efficiency	90%

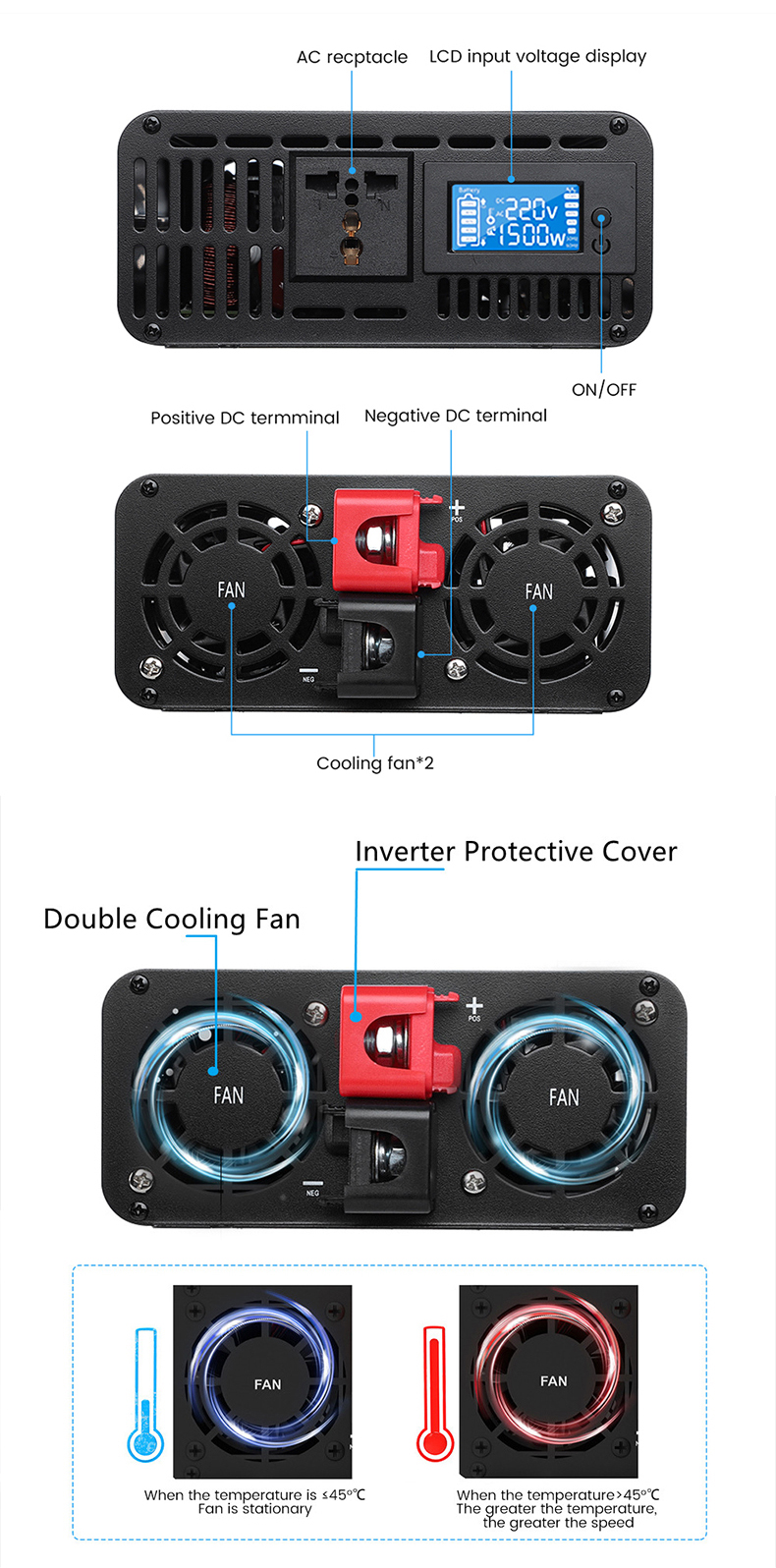

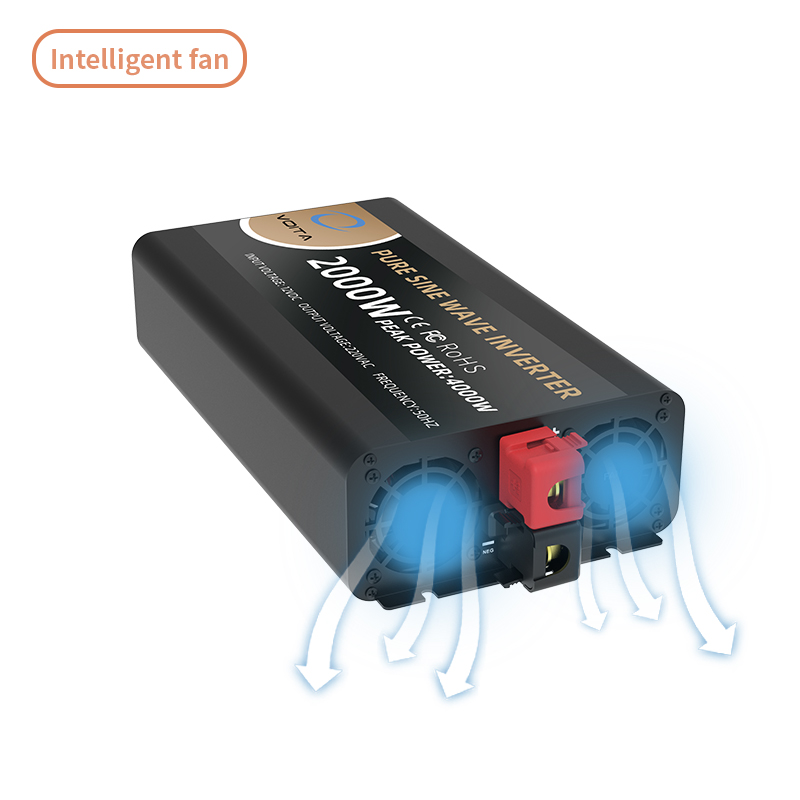

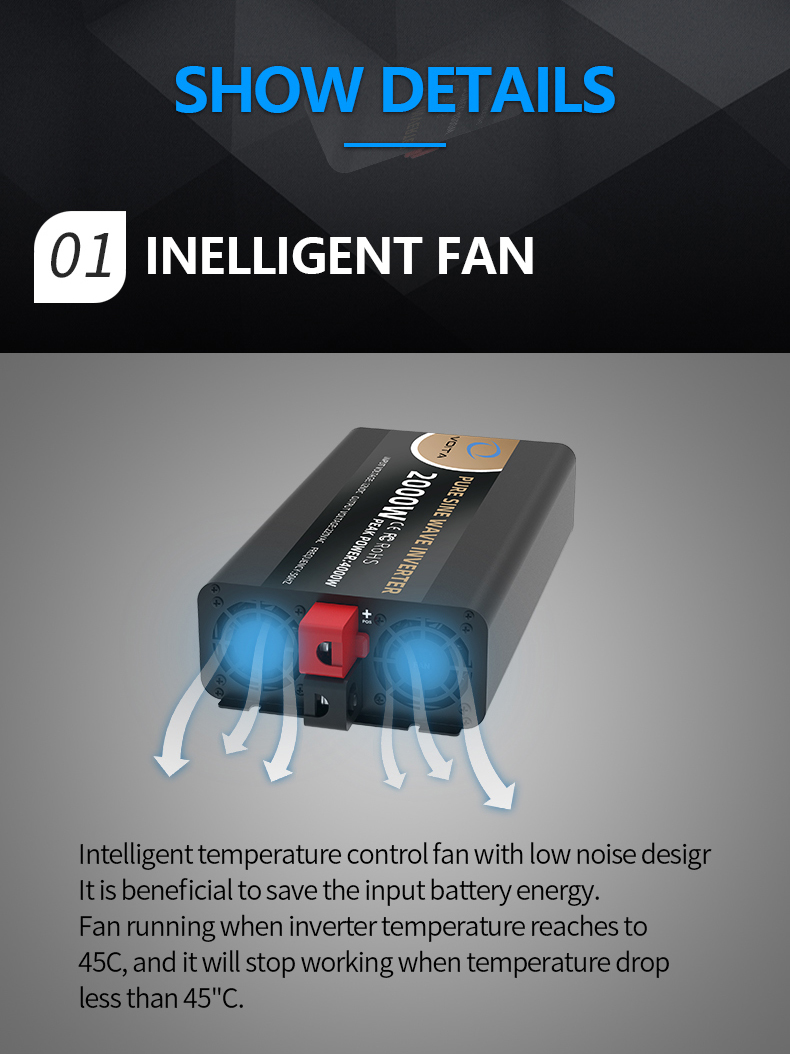

Cooling method	Fan cooling
Dimensions	36017376mm	40024288mm	40024288mm	40024288mm
Product weight	4kg	8kg	8.5kg	9kg

✅ Key Features

◈

The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.

◈

The unique dynamic current loop control technology ensures reliable operation of the inverter.

◈

Load adaptability, including inductive load, capacitive load, resistive load, mixed load.

◈

Heavy load capacity and impact resistance.

◈

It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.

◈

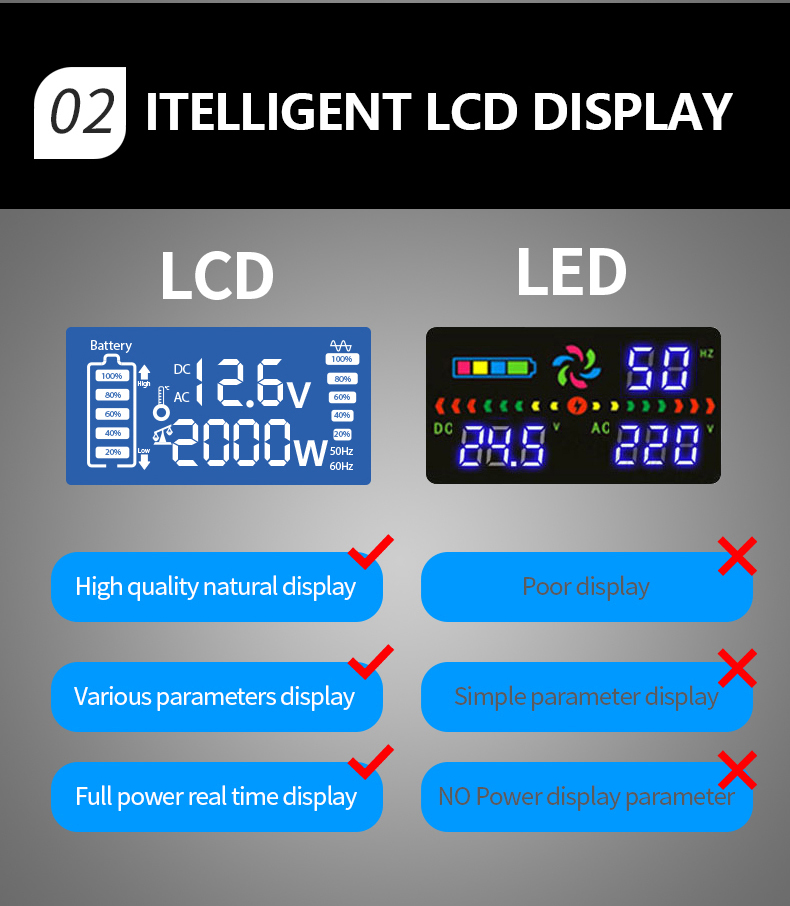

The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

◈

Stable performance, safe and reliable, long service life.

🖼️ Product Details

📦 Applications & Components

Frequently Asked Questions

What is the advantage of a pure sine wave inverter?

A pure sine wave inverter provides high-quality electricity, similar to the grid. It ensures that sensitive electronics run smoothly, reduces noise in motors and fans, and prevents crashes in computers and medical equipment.

How do I choose the right wattage for my needs?

You should calculate the total wattage of all devices you plan to run simultaneously. It is recommended to choose an inverter with a continuous output power at least 20% higher than your total load to handle surge peaks.

Does the inverter come with built-in protection?

Yes, our inverters feature comprehensive protection including input overvoltage, undervoltage, overload, overheating, and output short circuit protection to ensure safety for both the inverter and your appliances.

Can this inverter handle inductive loads?

Absolutely. Thanks to the SPWM technology and pure sine wave output, these inverters are highly adaptable and can handle inductive loads like refrigerators, air conditioners, and power tools effectively.

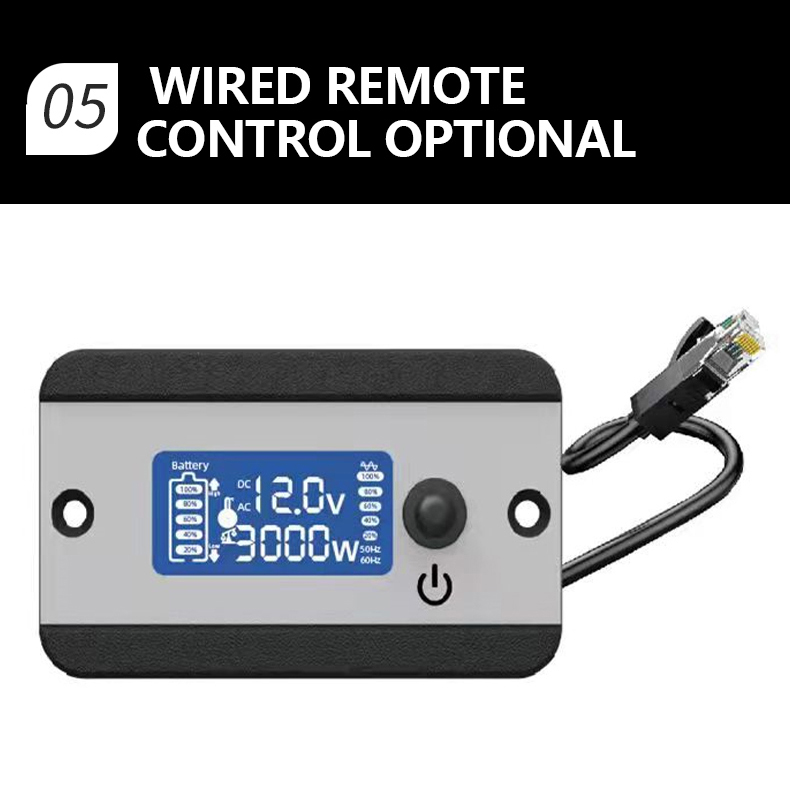

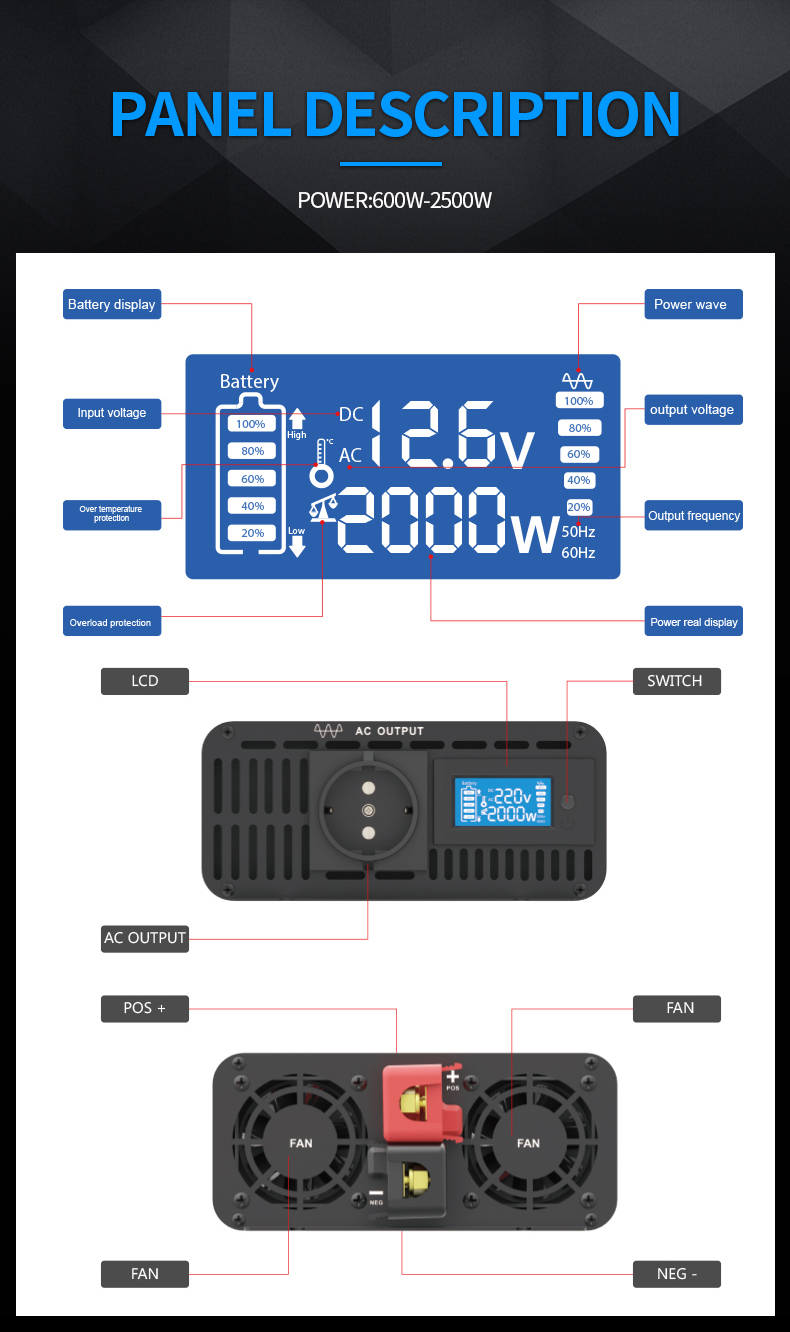

What does the LCD display show?

The LCD display provides real-time monitoring of the system status, including input voltage, output voltage, frequency, and load levels, allowing you to manage your power usage at a glance.

What is the conversion efficiency of these models?

These inverters offer a high conversion efficiency of approximately 90%, which minimizes energy loss during the DC to AC conversion process.
