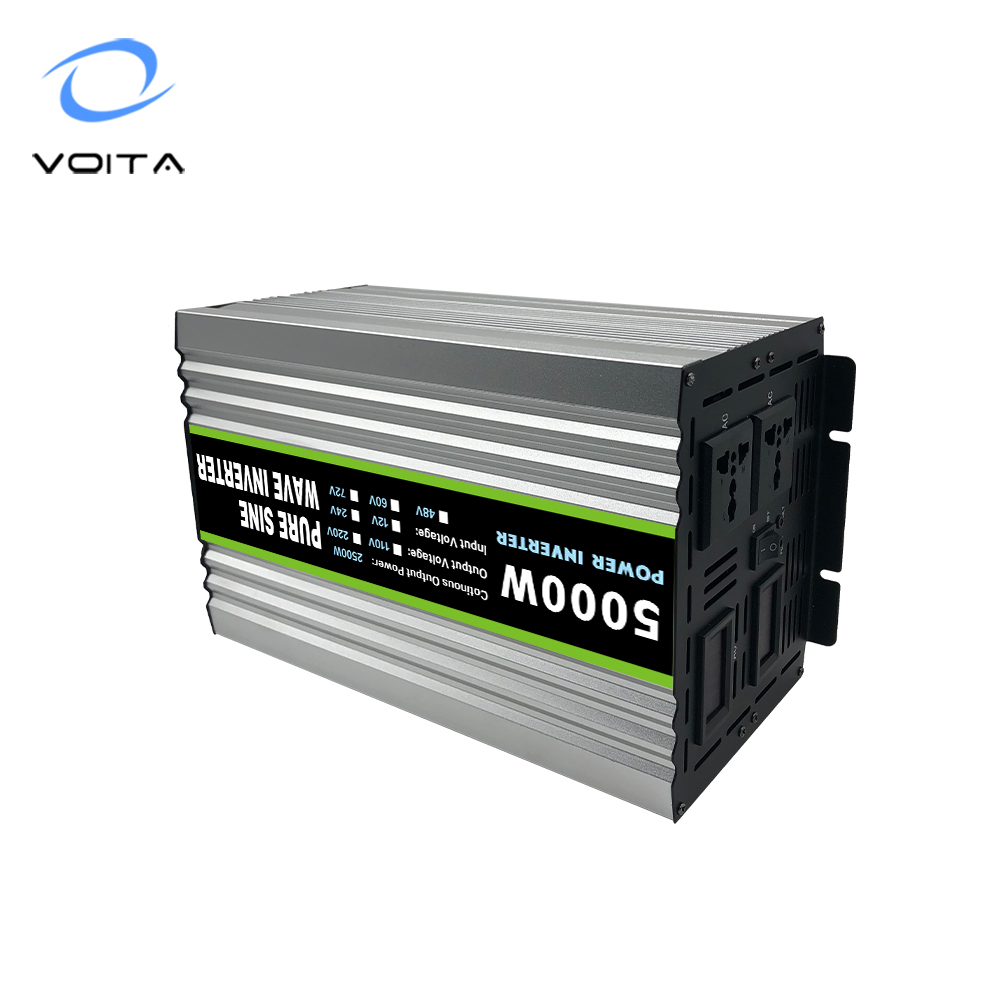

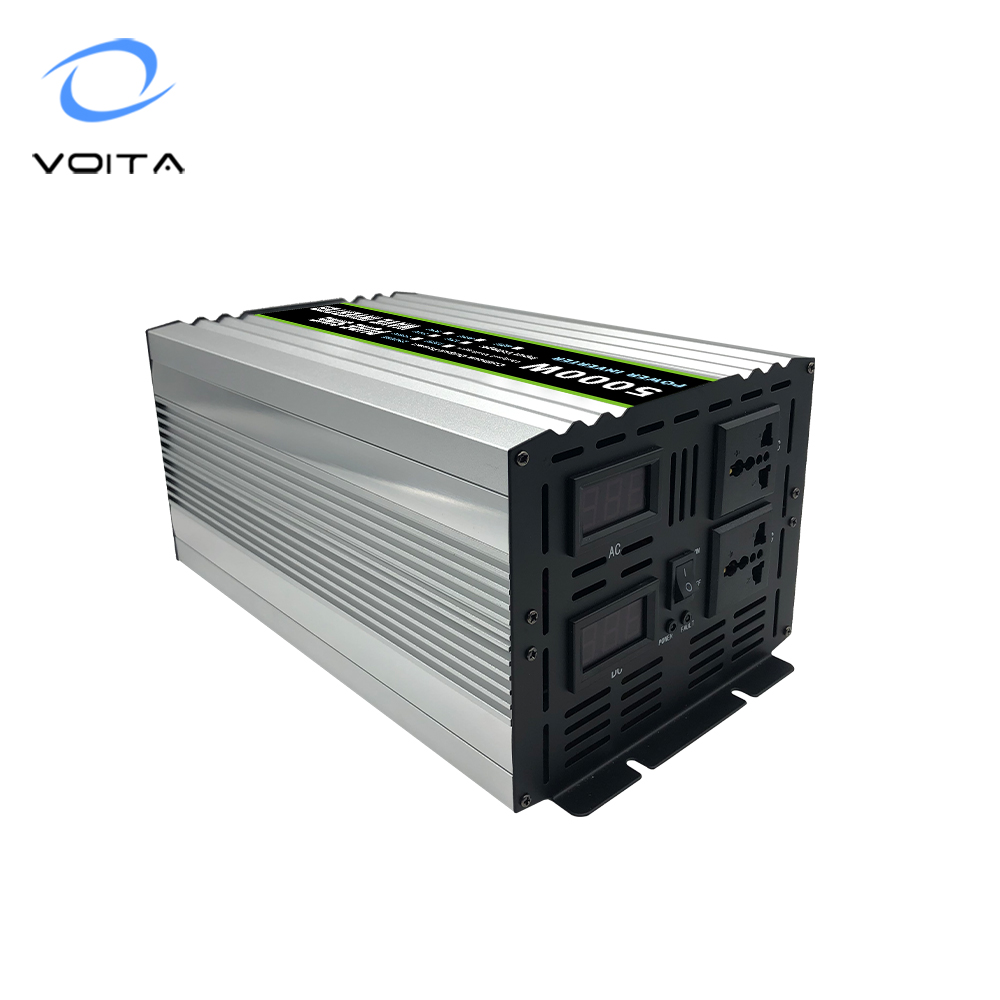

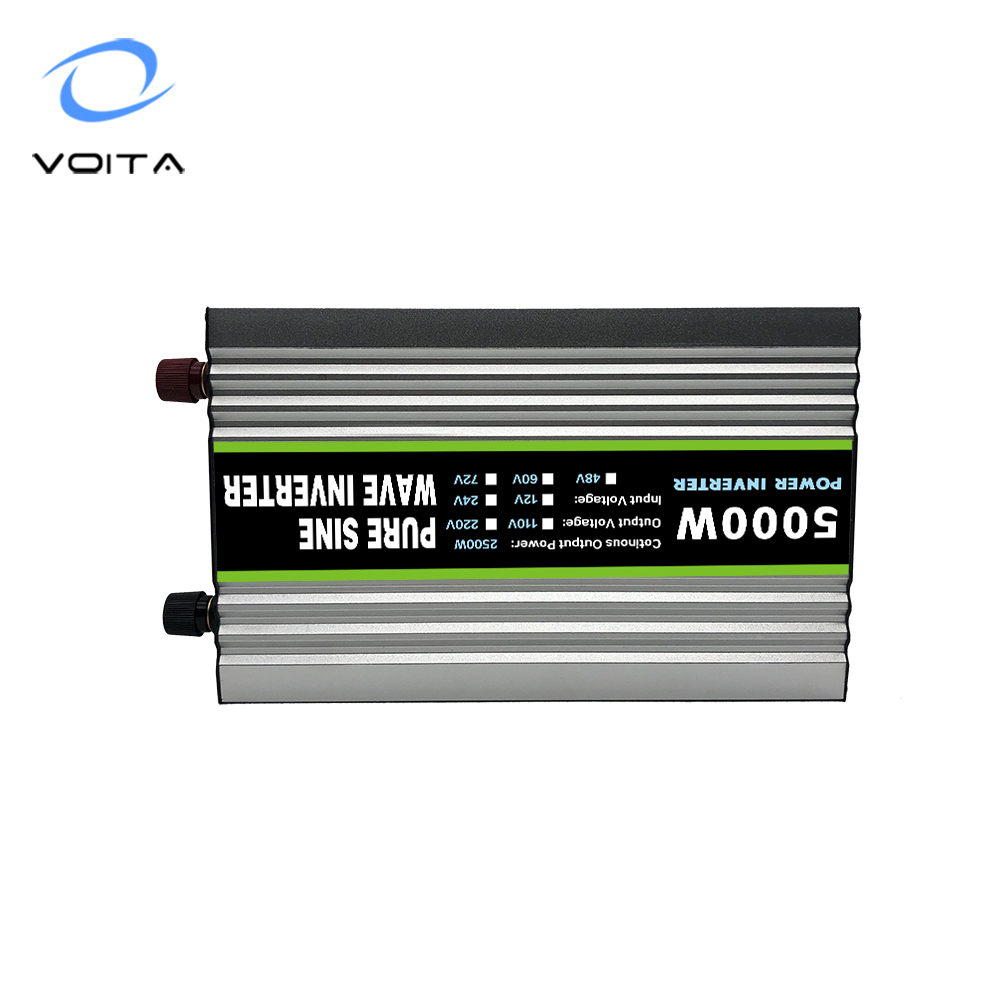

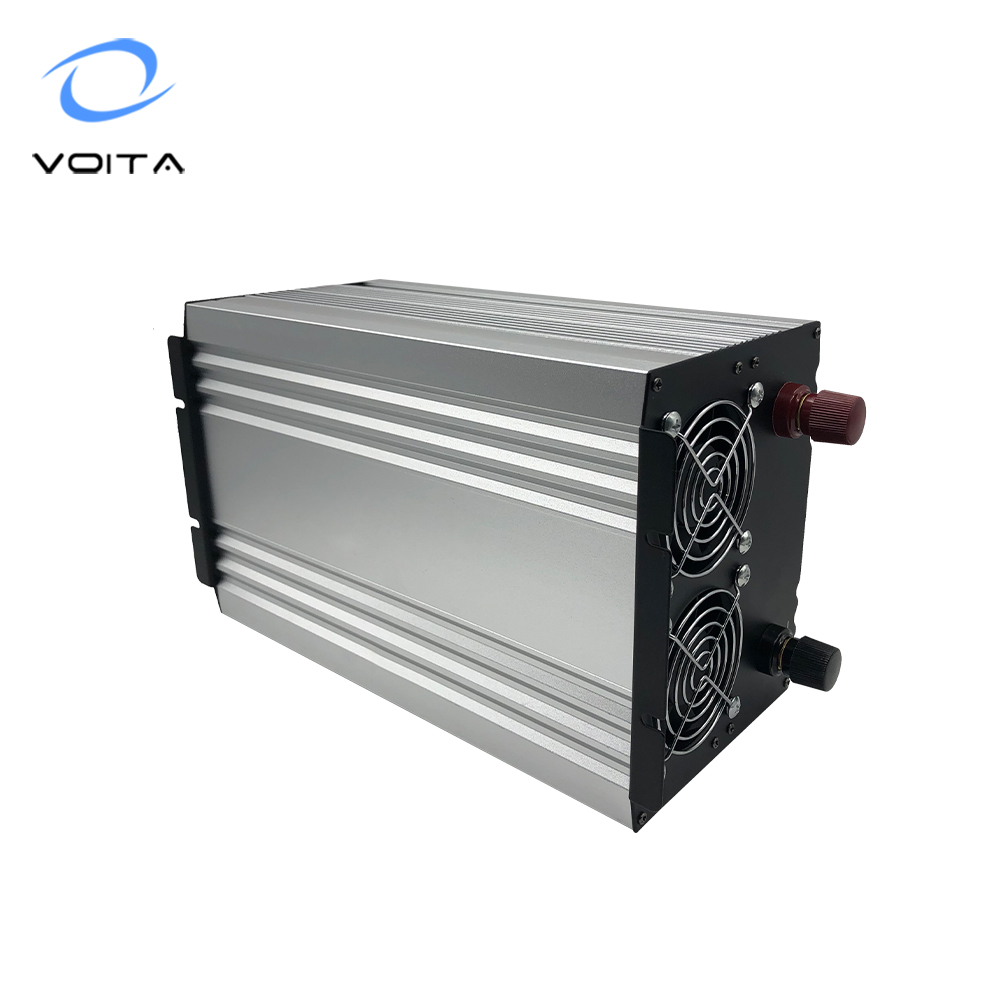

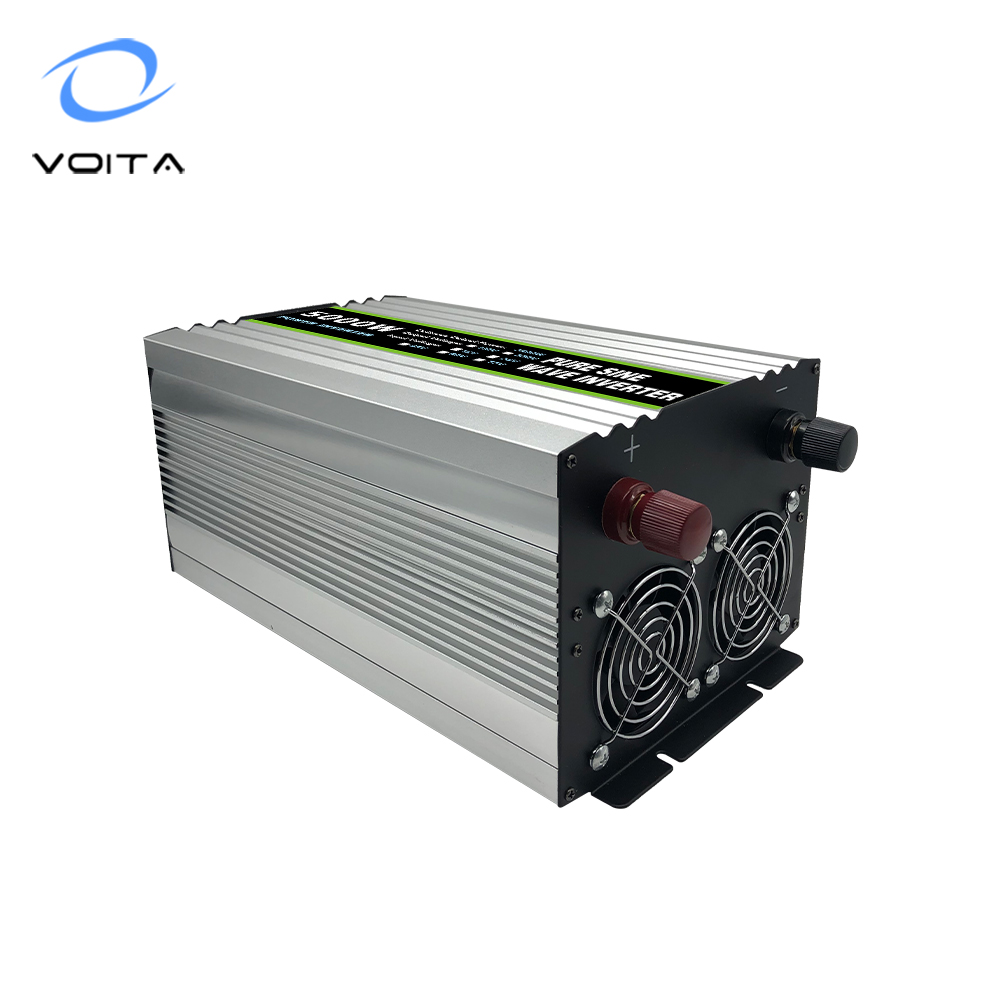

High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
1 / 5
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection
High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection

High Quality 12V 24V Inverter Pure Sine Wave 5000w With Over Temperature protection

Send Inquiry

Product Description

Product Banner
Specification
Key Features
  • The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.
  • The unique dynamic current loop control technology ensures reliable operation of the inverter.
  • The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.
  • Heavy load capacity and impact resistance.
  • It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.
  • Load adaptability, including inductive load, capacitive load, resistive load, mixed load.
  • Stable performance, safe and reliable, long service life.
Model VT-5000W
Output Power 5000W
Peak Power 5000W
Display method LCD
Continuous power 2500W
Input voltage 12V/24V/48V/60VDC
Low voltage protection 12V (≤9.5V) / 24V (≤19.5V) / 48V (≤39V) / 60V (≤53V)
Over voltage protection 12V (≥15.8V) / 24V (≥30V) / 48V (≥60V) / 60V (≥72.5V)
Low pressure alarm 12V (10.2±0.5V) / 24V (21±0.5V) / 48V (43.2±0.5V) / 60V (54±0.5V)
Overload protection >60%
Output voltage 220V±6V
Output frequency 50Hz±1Hz
Output waveform Pure sine wave
Conversion efficiency 90%
Cooling method Fan cooling
Dimensions 31.5*18*14cm
product weight 4.3kg
Warranty 24 Months
Protection function Short circuit protection, Reverse connection protection, Battery low voltage protection, Battery low pressure alarm, Battery high voltage protection, Overload protection, Over temperature protection
Description
Description Image 1
Description Image 2
Description Image 3
Description Image 4
Description Image 5
Description Image 6
Description Image 7

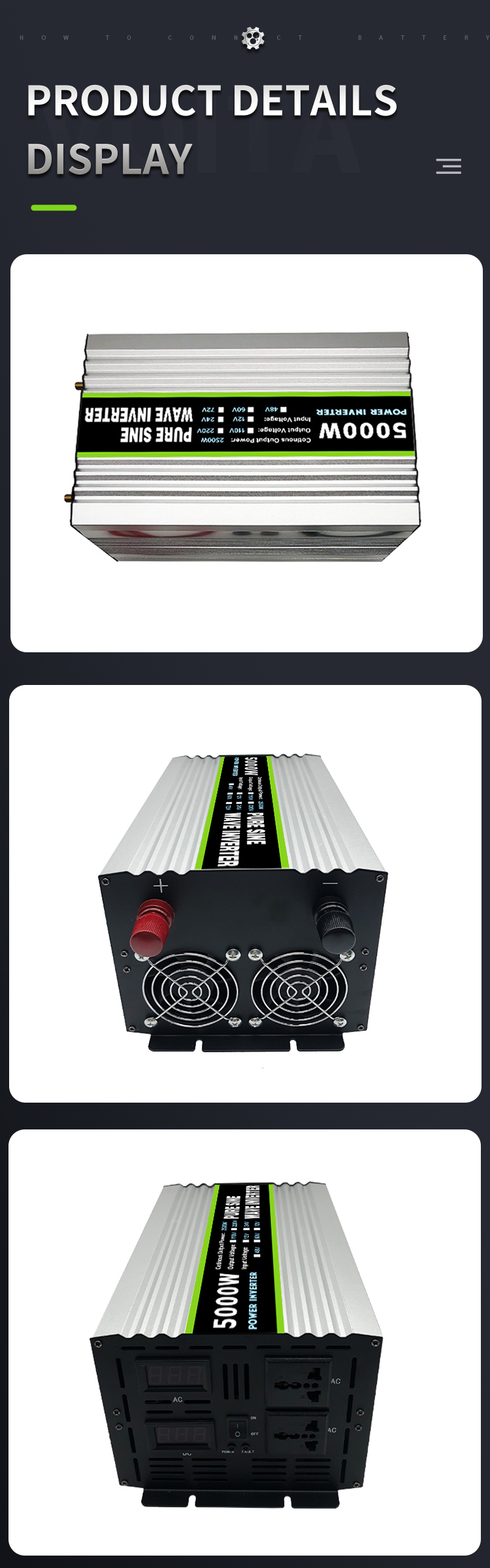

Description Image 8

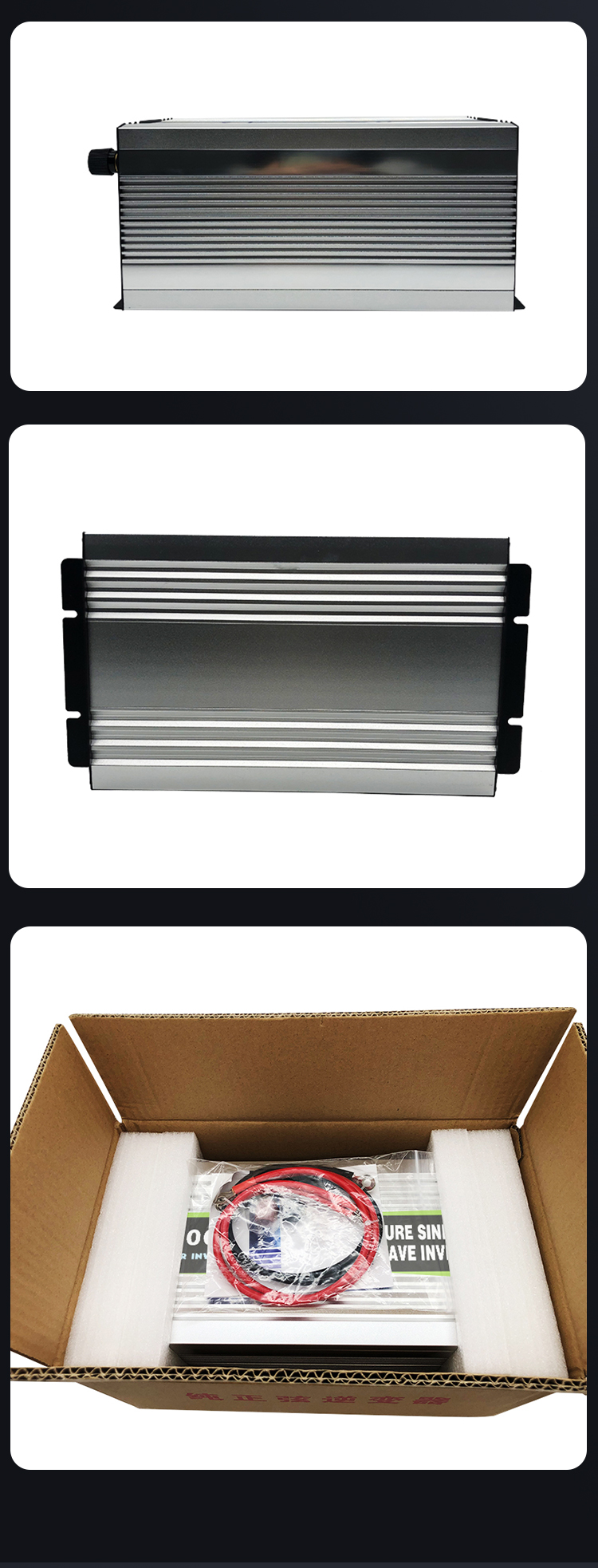

Description Image 9
Company Profile
Company Image 1
Company Image 2
Company Image 3
Company Image 4
Company Image 5
Company Image 6
Company Image 7
Company Image 8
FAQ
FAQ Image 1
FAQ Image 2
FAQ Image 3
What is the difference between a pure sine wave and a modified sine wave inverter?
A pure sine wave inverter produces clean, stable power equivalent to the utility grid, ensuring sensitive electronics and appliances run smoothly. Modified sine wave inverters are less expensive but can cause interference or damage to sensitive electronic devices.

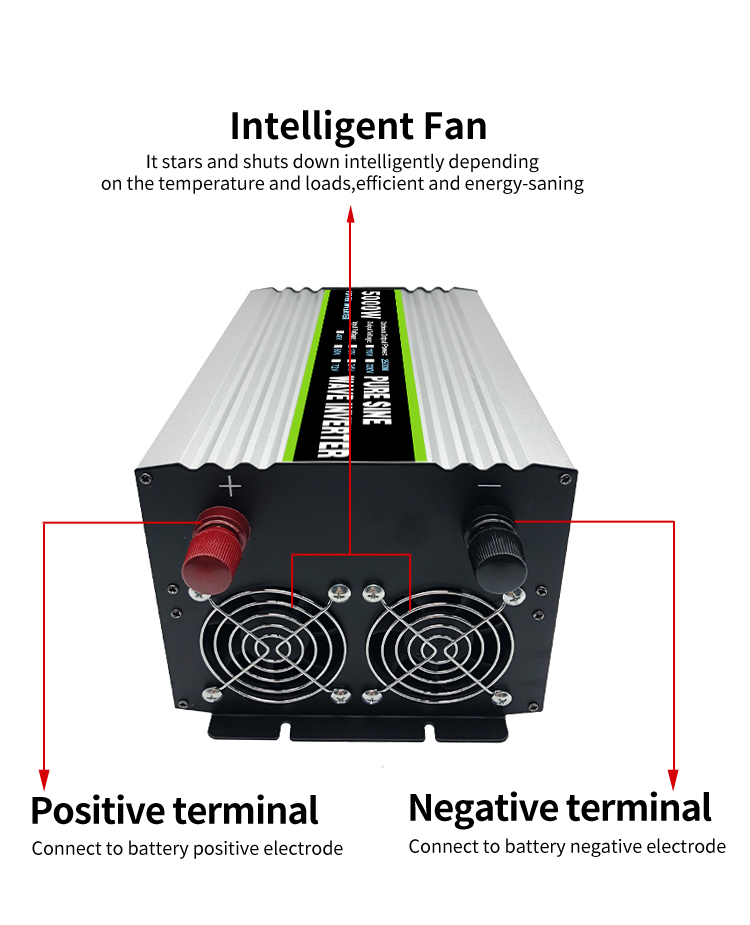

How does the automatic cooling fan system work?
The built-in smart cooling fan is temperature and load-controlled. It automatically activates when the inverter reaches a specific temperature or load threshold to ensure quiet and highly efficient thermal regulation.
What kinds of safety protections does this inverter offer?
This inverter features multiple protection layers: short circuit protection, input overvoltage and undervoltage protection, low pressure alarm, output overload protection, reverse polarity protection, and over-temperature protection.
Can this inverter run heavy loads like refrigerators or power tools?
Yes, with a continuous power rating of 2500W and a peak capacity of 5000W, it can comfortably run appliances like refrigerators, microwaves, and drills, provided their starting current does not exceed the surge capability.

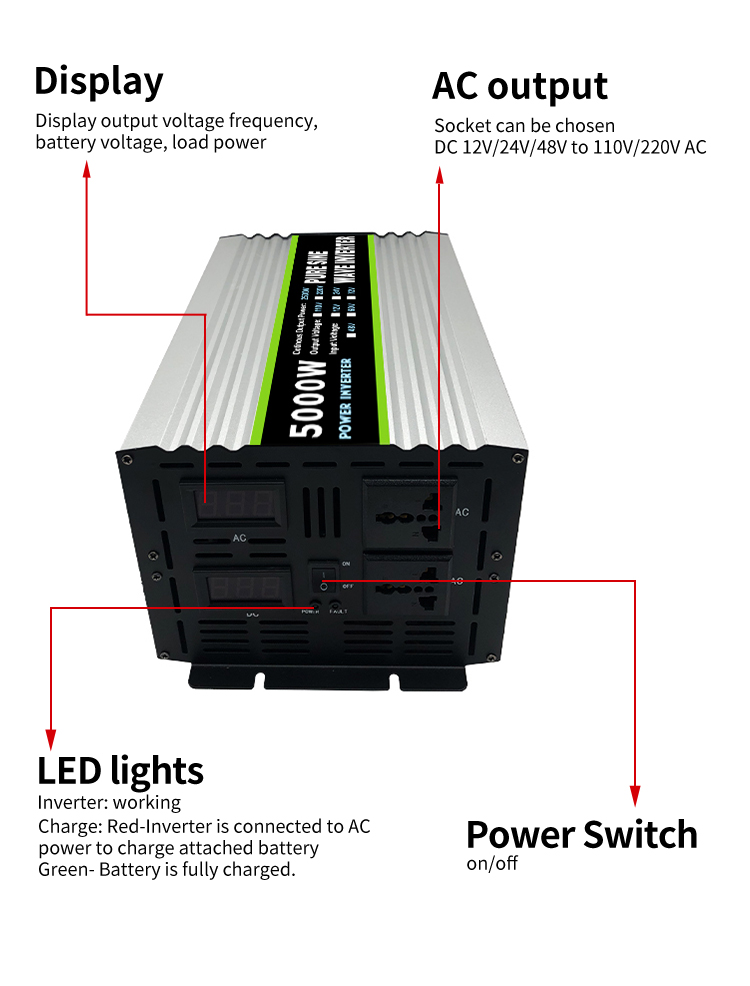

How does the LCD screen help monitor the inverter's status?
The integrated LCD screen displays real-time system parameters, including input voltage, output voltage, load level, battery status, and active protection modes, allowing you to manage your power usage at a glance.
Which battery voltage configuration should I select?
We offer models supporting 12V, 24V, 48V, and 60V DC inputs. Please ensure you choose the specific model that perfectly matches the DC voltage of your battery bank setup.
