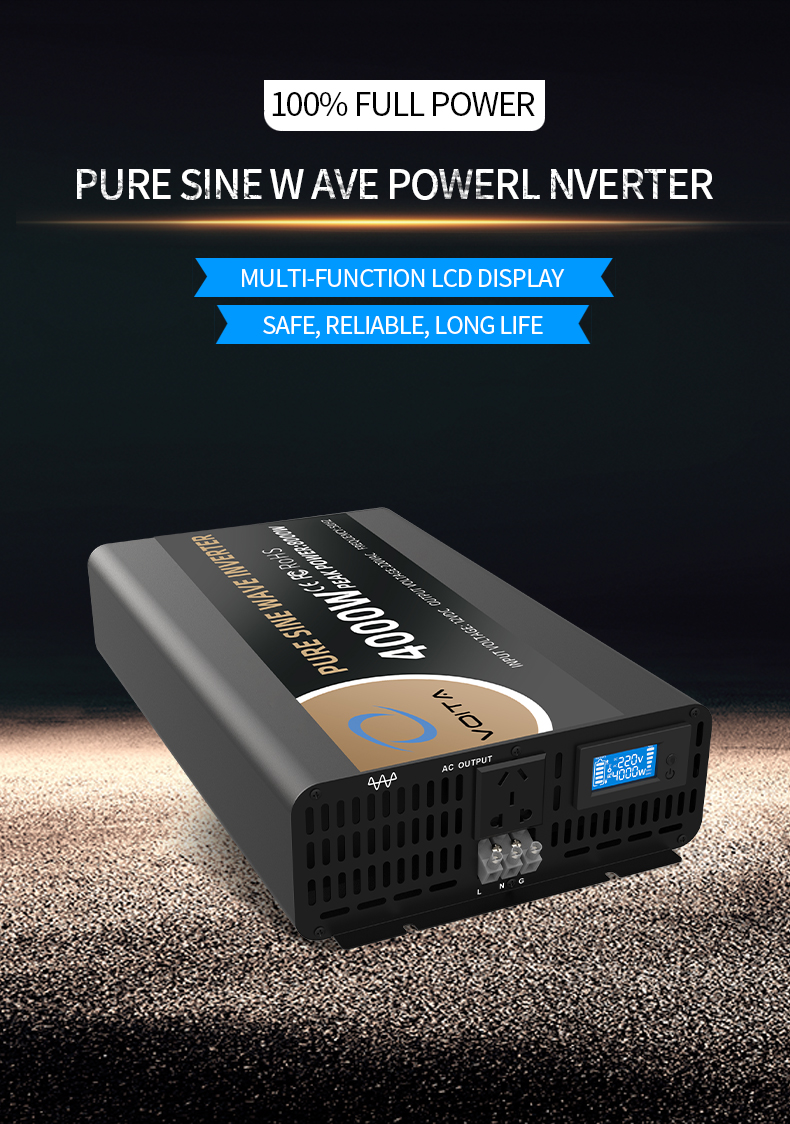

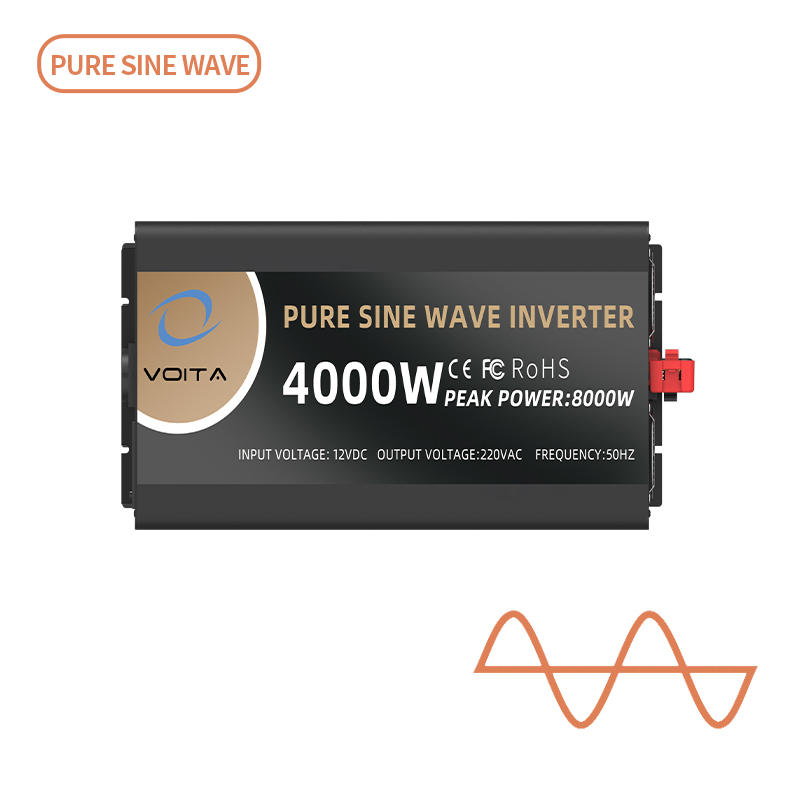

Power Inverter 4000w 12V/24V/48V/60V/72Vdc to 110/220Vac Inverter 4000 Watt

1 / 5

Power Inverter 4000w 12V/24V/48V/60V/72Vdc to 110/220Vac Inverter 4000 Watt

Send Inquiry

Product Description

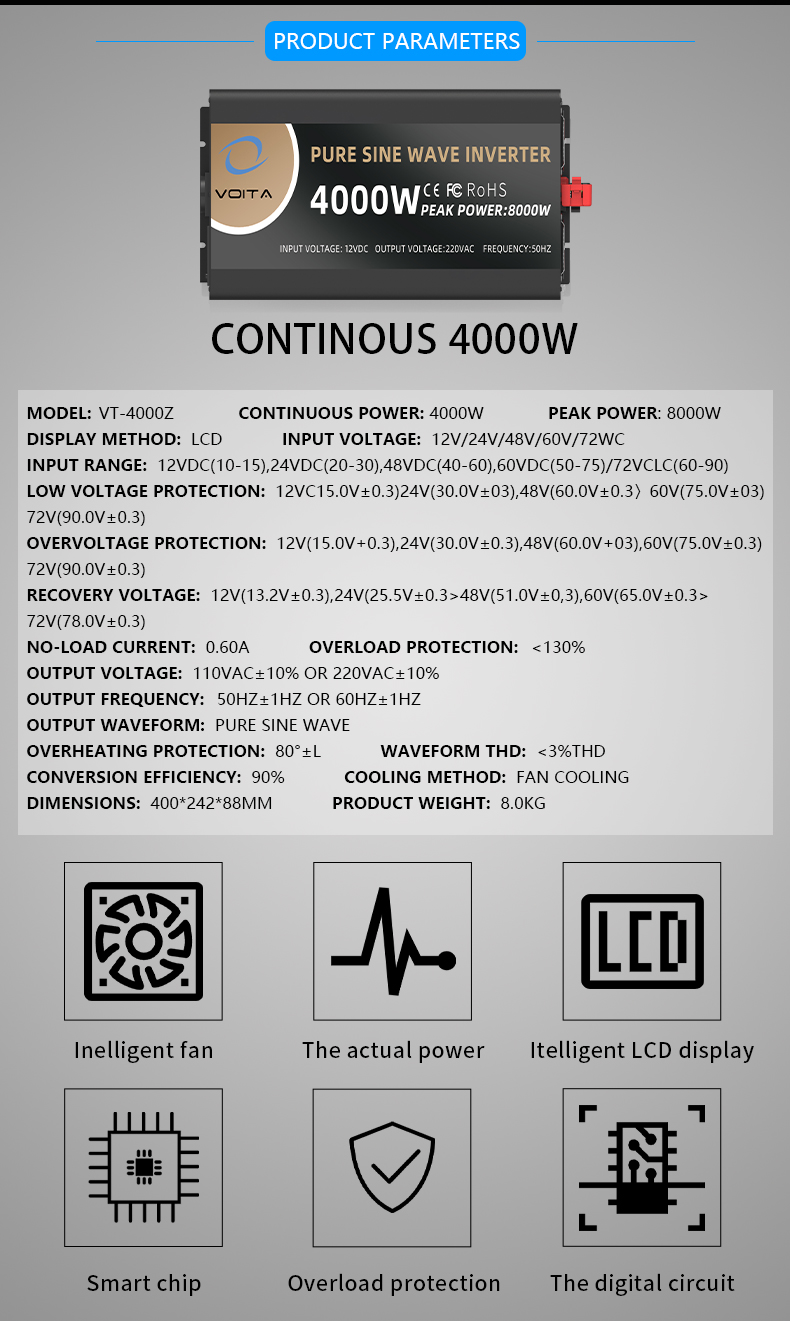

📊 Specification

Model	VT-2000Z	VT-3000Z	VT-4000W	VT-5000W
Output power	2000W	3000W	4000W	5000W
Display method	LCD Display	LCD Display	LCD Display	LCD Display
Input voltage	12V/24V/48V/60V/72Vdc
Input range	12Vdc(10-15), 24Vdc(20-30), 48Vdc(40-60), 60Vdc(50-75), 72Vdc(60-90)
Low voltage protection	12V(10.0V±0.3), 24V(20.0V±0.3), 48V(40.0V±0.3), 60V(50.0V±0.3), 72V(60.0V±0.3)
Overvoltage protection	12V(15.0V±0.3), 24V(30.0V±0.3), 48V(60.0V±0.3), 60V(75.0V±0.3), 72V(90.0V±0.3)
Recovery voltage	12V(13.2V±0.3), 24V(25.5V±0.3), 48V(51.0V±0.3), 60V(65.0V±0.3), 72V(78.0V±0.3)
No-load current	0.8A	1A	1A	1A
Overload protection	2000W ＞ 110%	3000W ＞ 110%	4000W ＞ 110%	5000W ＞ 110%
Output voltage	110V/220Vac
Output frequency	50Hz/60Hz
Output waveform	Pure sine wave
Overheating protection	80°±5°
Waveform THD	≤3%
Conversion efficiency	90%
Cooling method	Fan cooling
Dimensions	36017376mm	40024288mm	40024288mm	42024288mm
Product weight	4kg	8kg	8.5kg	9kg

💎 Key Features

1. The inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is pure.

2. The unique dynamic current loop control technology ensures reliable operation of the inverter.

3. Load adaptability, including inductive load, capacitive load, resistive load, mixed load.

4. Heavy load capacity and impact resistance.

5. It has perfect protection functions such as input overvoltage, undervoltage, overload, overheat, and output short circuit.

6. The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

7. Stable performance, safe and reliable, long service life.

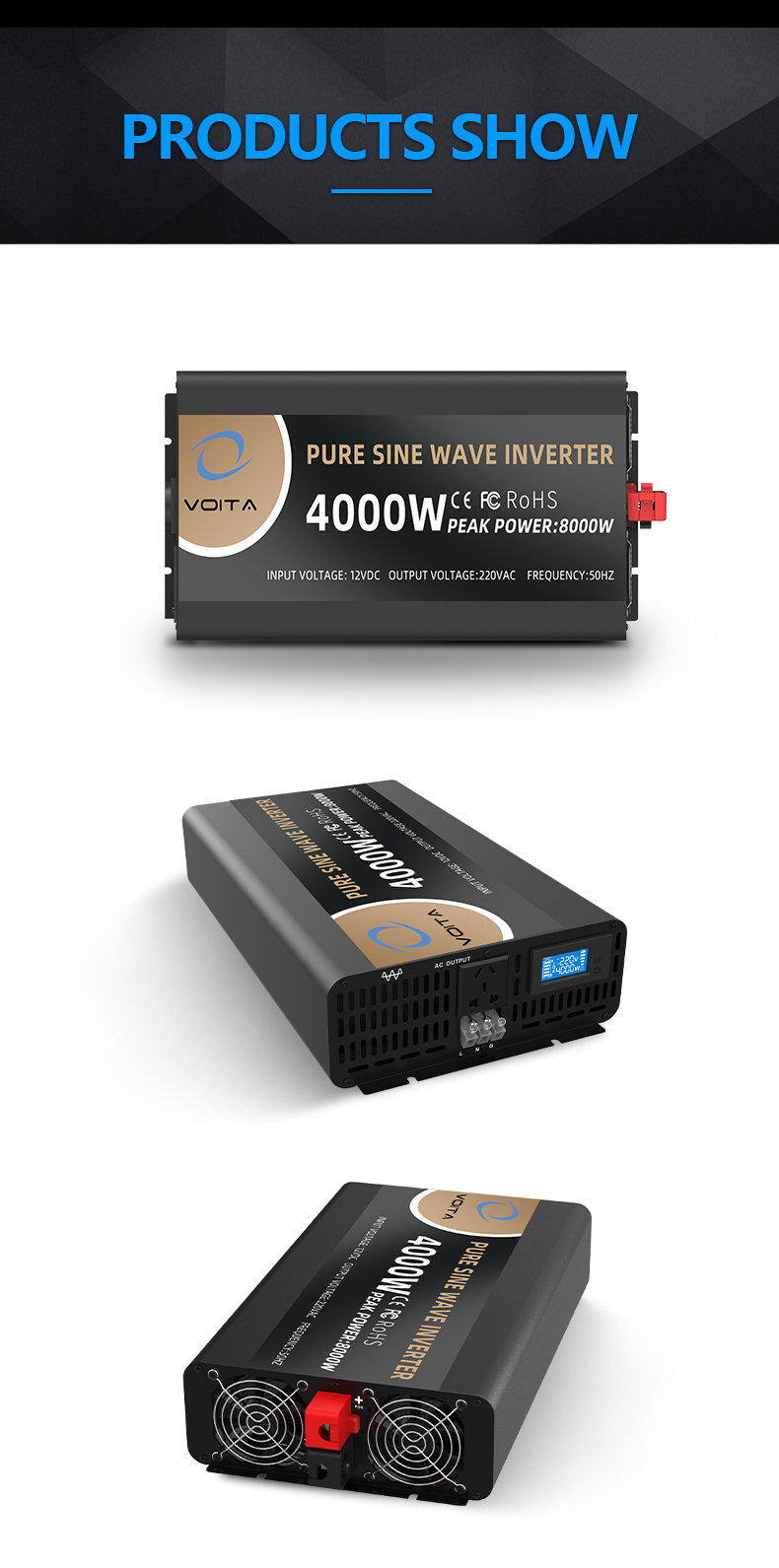

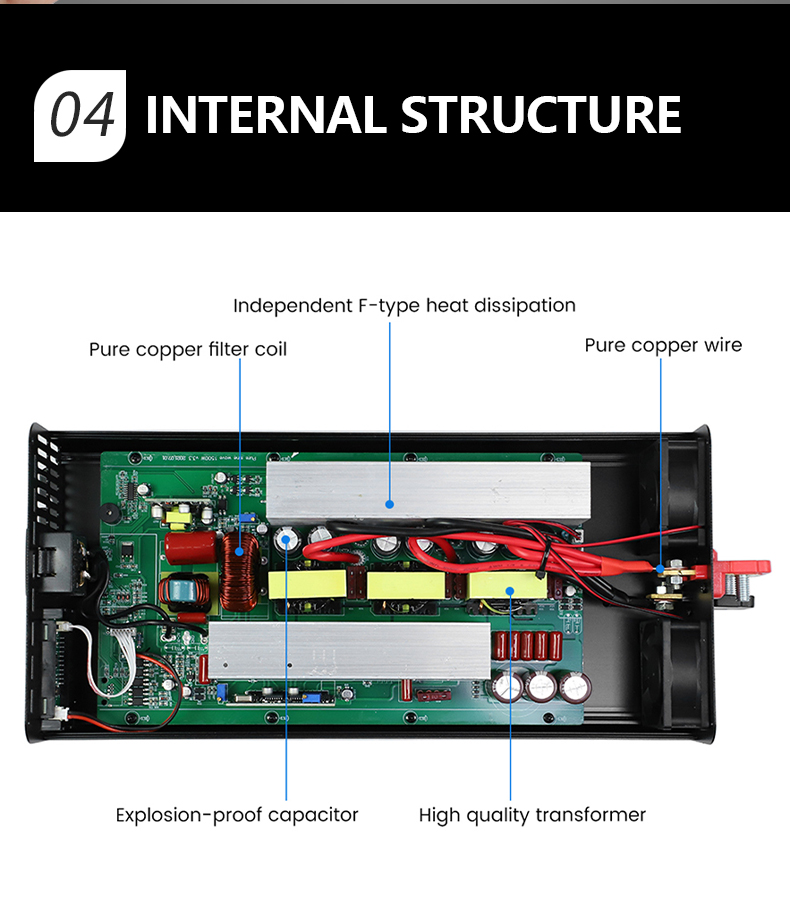

📷 Product Details

Frequently Asked Questions

What is the advantage of a Pure Sine Wave inverter?

A pure sine wave inverter provides high-quality electricity identical to the grid power. It ensures that sensitive electronics and inductive loads (like motors or refrigerators) run smoothly, quietly, and without interference or damage.

Can this inverter handle different types of loads?

Yes, thanks to the SPWM technology and MCU control, it features high load adaptability. It is compatible with inductive, capacitive, resistive, and mixed loads, making it highly versatile for various appliances.

What safety protections are built into the device?

The inverter is equipped with multiple protection layers, including input overvoltage, undervoltage, overload protection, overheating protection, and output short-circuit protection to ensure safe operation.

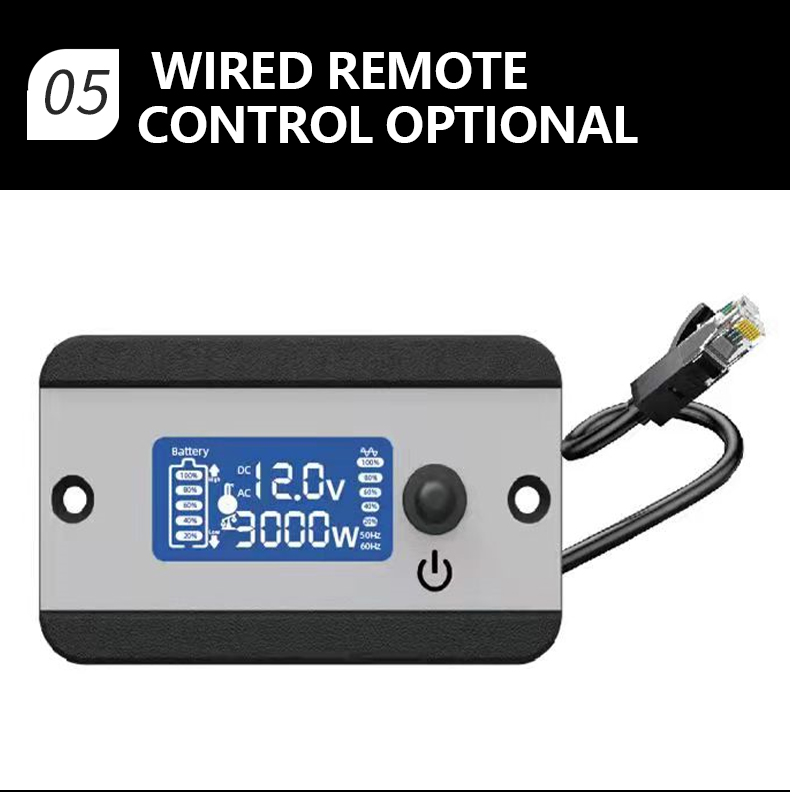

How does the LCD display function?

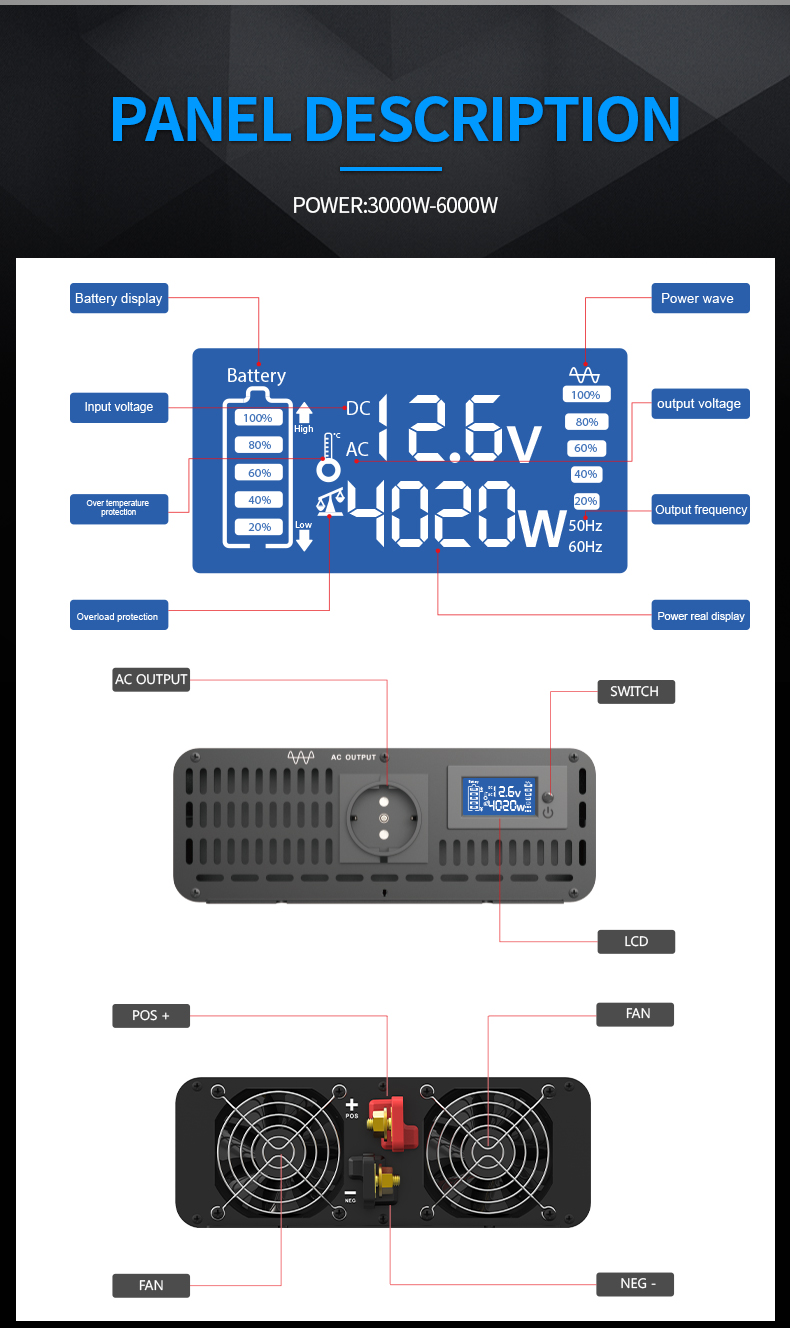

The integrated LCD screen provides a real-time visual interface, showing the operational status, input/output parameters, and any active protection modes, allowing users to monitor performance at a glance.

What is the conversion efficiency of these models?

These inverters achieve a high conversion efficiency of approximately 90%, minimizing energy loss during the DC to AC conversion process.

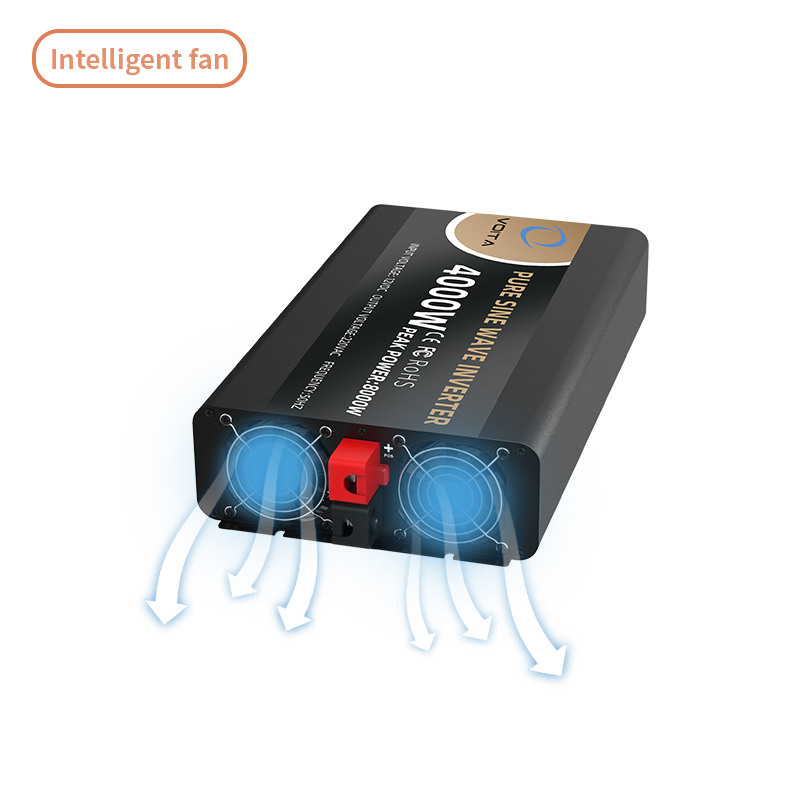

How is the heat managed during heavy usage?

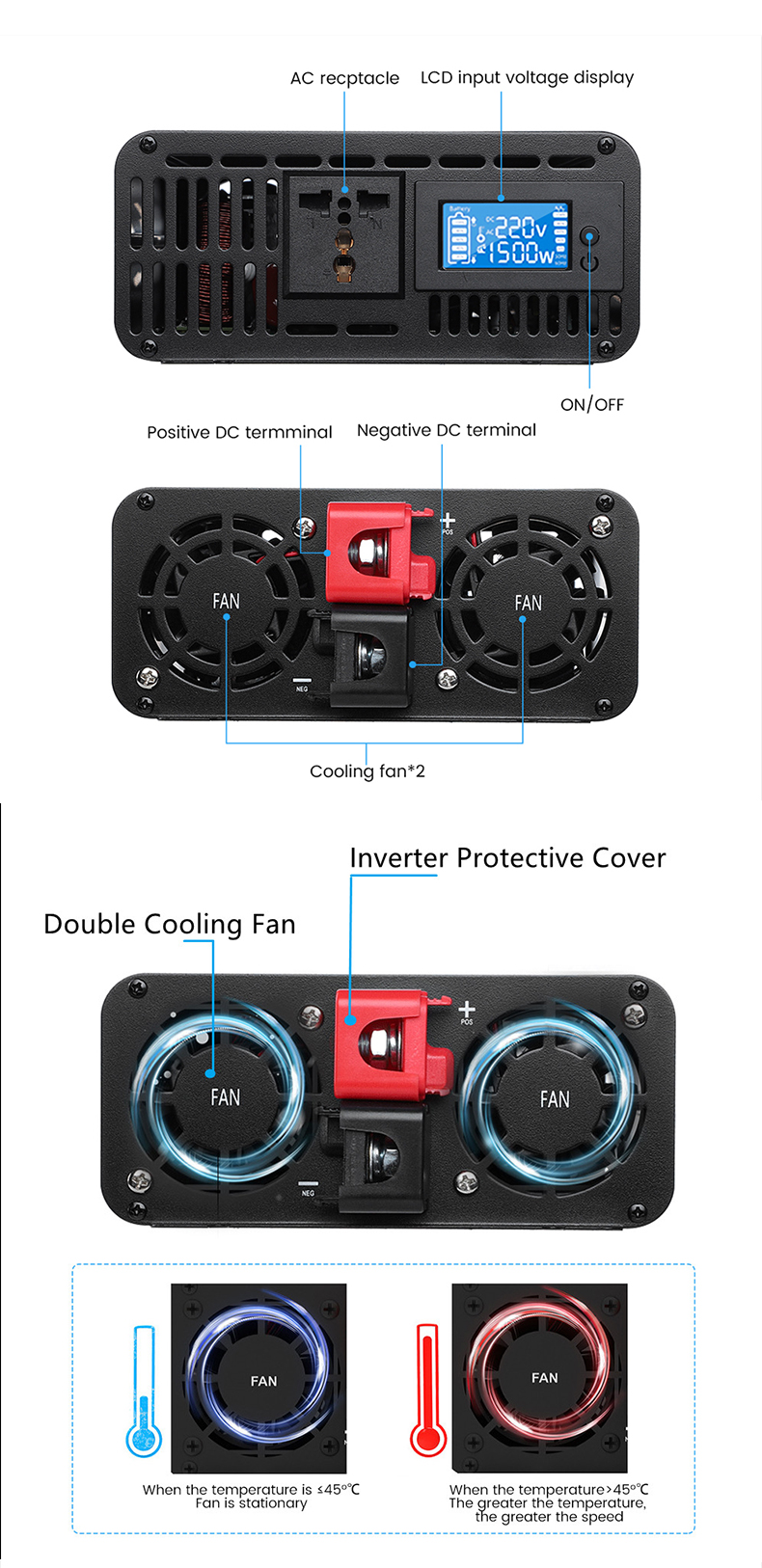

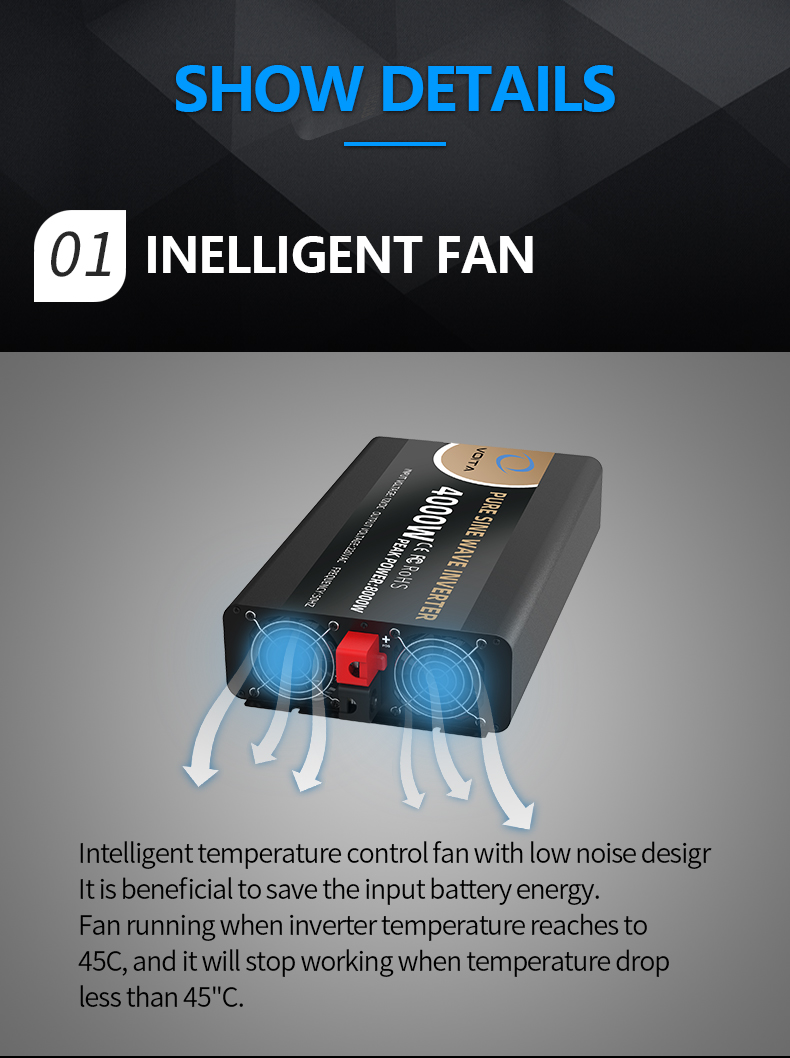

The system utilizes an intelligent fan cooling method combined with internal overheating protection (triggered at 80°±5°) to maintain a safe working temperature and prolong the service life of the components.
