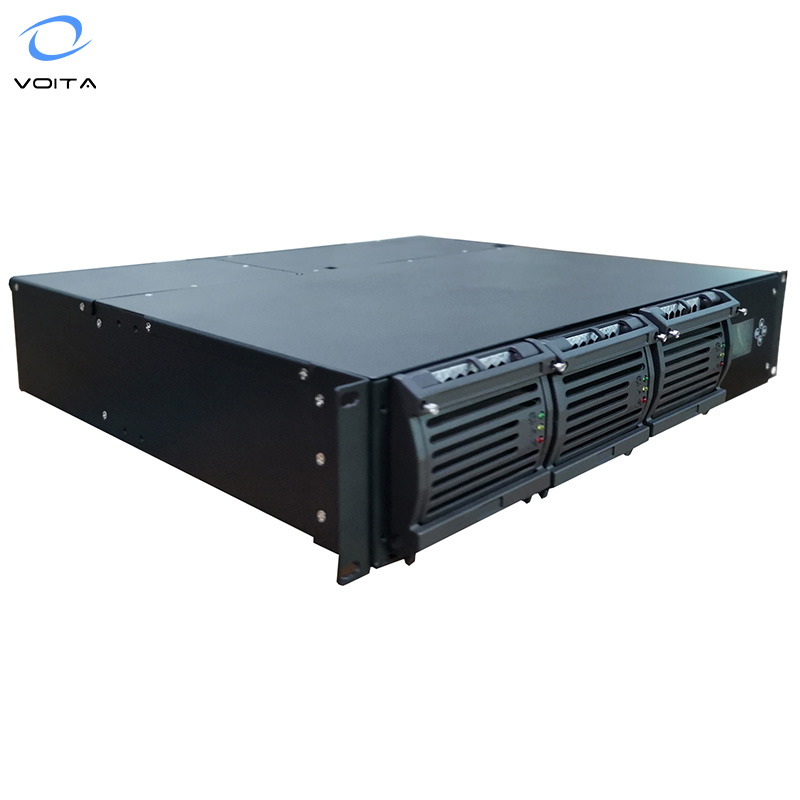

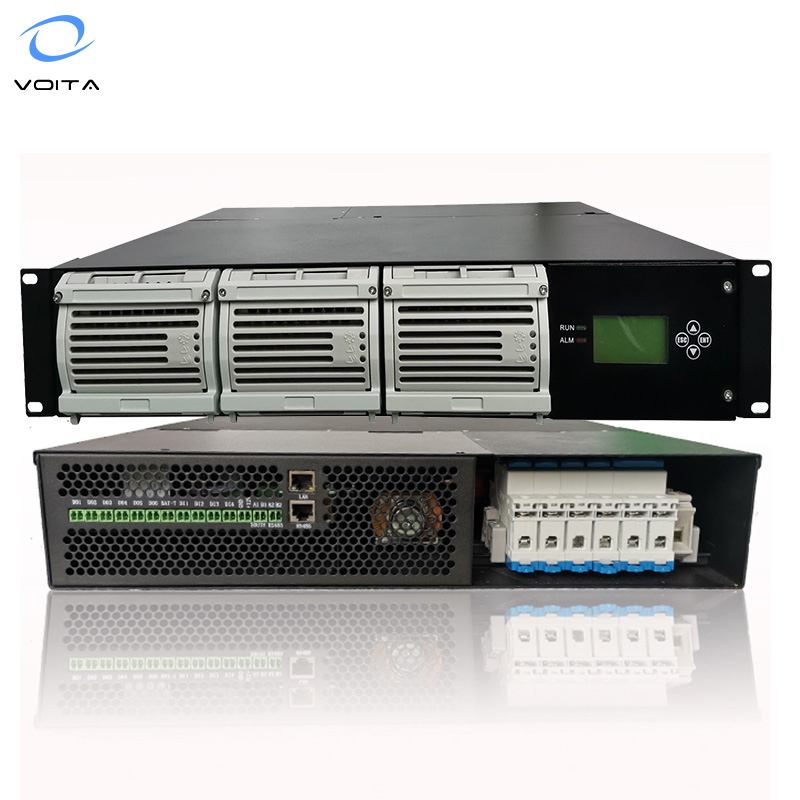

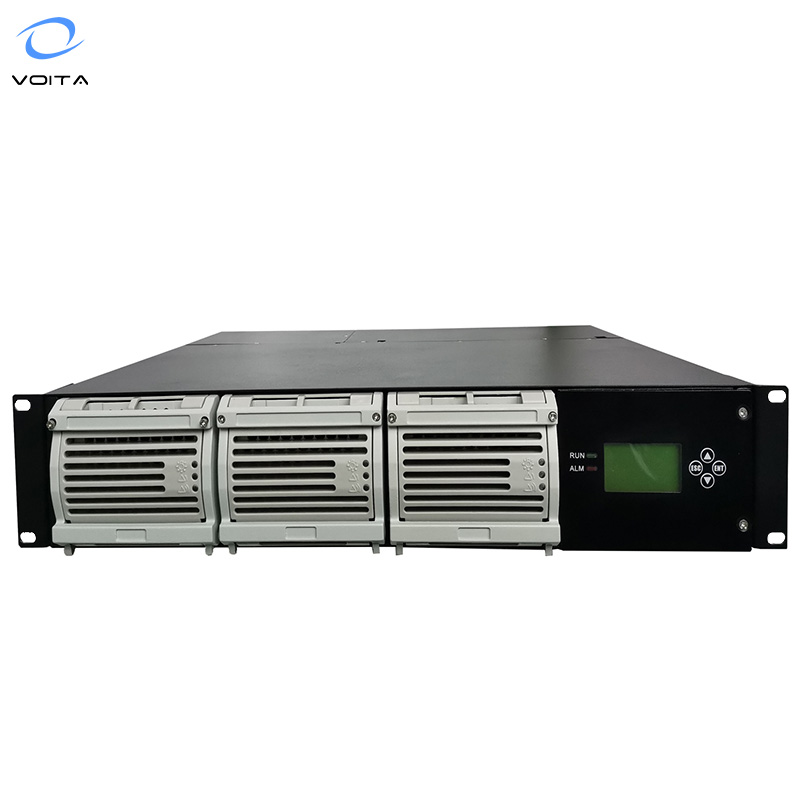

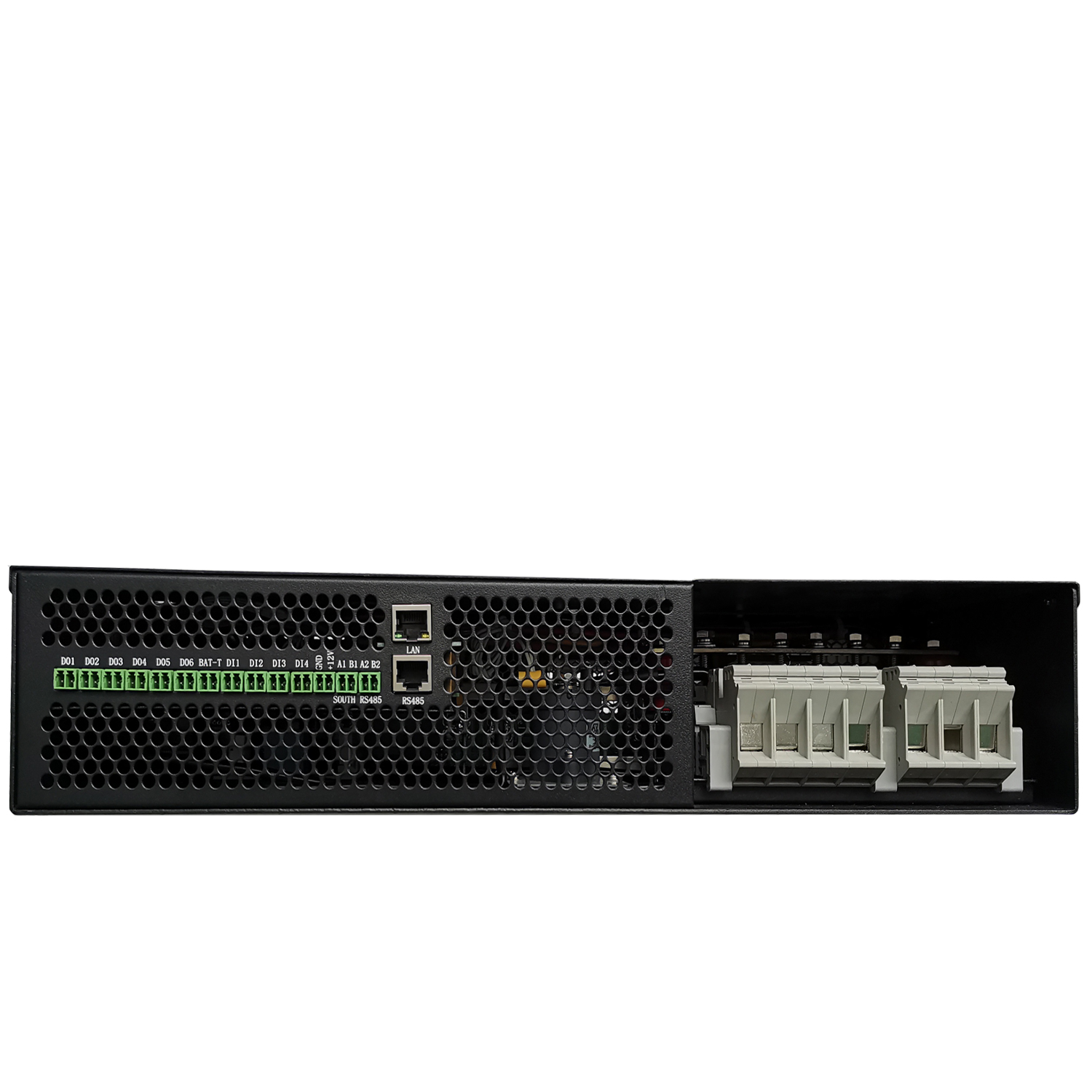

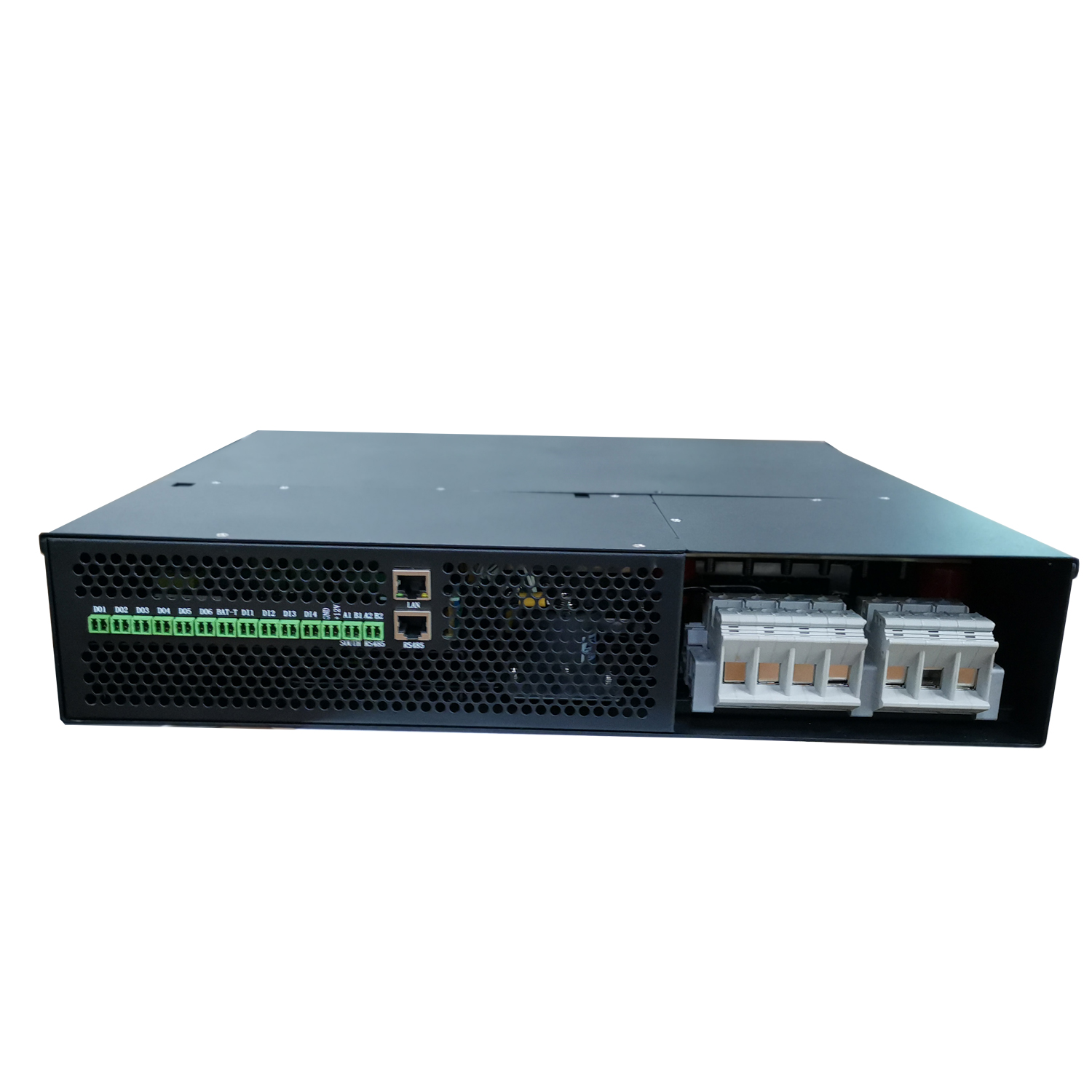

19'' Rack Mount Dc Power Supply 24v 3000w Rectifier 60a 120a 180a Rectifier Systems

Send Inquiry

Product Description

📋

Specification

Model	VT-R2460 VT-R24120 VT-R24180
Input Voltage Range	90~290Vac (derate≤176Vac)
Input Frequency	50/60HZ
Power Factor	>0.99
Output Voltage	24VDC
Output Voltage Range	21-29VDC
Output Current Range	60A 120A 180A
Output Efficiency	93.20%
Regulation	±2%
Load Regulation	±2%
Line Regulation	±1
Leakage Current	≤10mA
Work Temperature	-40~55°C
Storage Temperature	-40~70°C
Cooling Method	Forced cooling, front-in & rear-out, the fan is located inside the front panel, with programmable speed by the temperature.
Ingress Protection	The unit can operate when the diameter of dust particle is more than 5µm, with density ≤3*104 /m3. The dust shall not be conducting, electromagnetic or corrosive.

🔍

Product Description

📦

Packing & Delivery

🏭

Professional Facilities

Frequently Asked Questions

What is the input voltage range for this series?

The input voltage range is 90~290Vac, with a derating applied when the voltage is below 176Vac.

What is the maximum efficiency of these units?

These units achieve a high output efficiency of up to 93.20%.

Can the output voltage be adjusted?

Yes, while the nominal output is 24VDC, the adjustable output voltage range is between 21VDC and 29VDC.

What kind of cooling system is used?

The system utilizes forced cooling with a front-in and rear-out airflow. The internal fan's speed is programmable based on the operating temperature.

What are the environmental limits for operation?

The units can operate in temperatures ranging from -40°C to 55°C and are protected against dust particles larger than 5μm.

What are the available current options?

The series offers three different output current capacities: 60A, 120A, and 180A to suit various power requirements.
