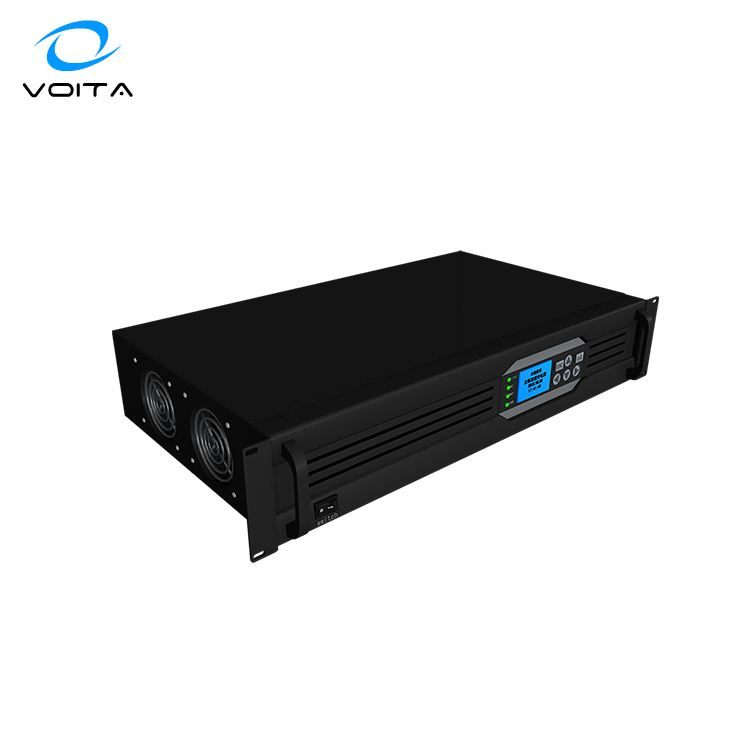

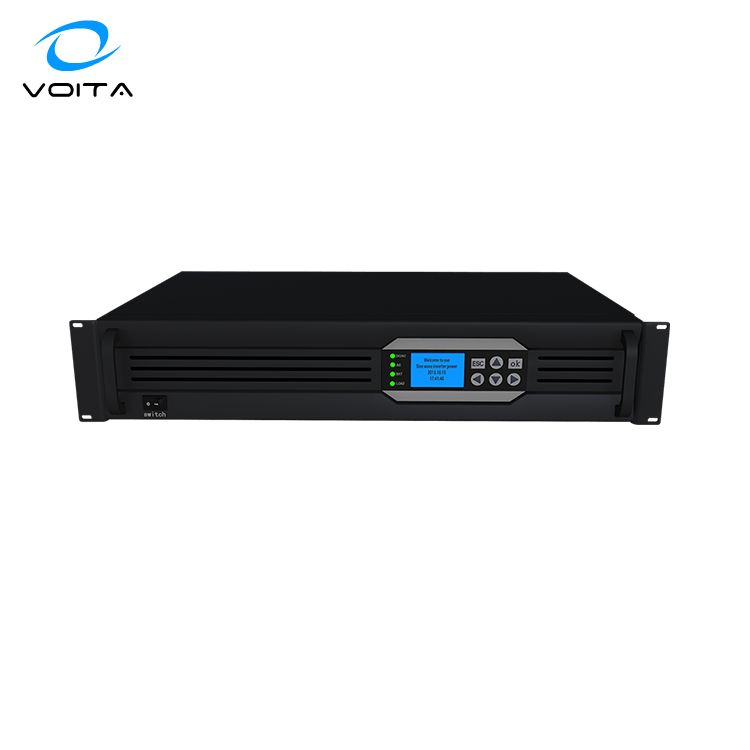

| Model | VT-HF24S220-2KVA | ||
| DC INPUT | Rated Input Voltage (Vdc) | 24V | |
| Rated Input Current (A) | 83A | ||
| DC Input Range (Vac) | 20-30V | ||
| Reflected Noise Current | ≤10% | ||
| AC Bypass Input | Bypass Voltage Range (Vac) | 270V-170V(±10V) | |
| Rated Input Current (A) | 9.1A | ||
| AC Output | Capacity (VA) | 2KVA | |
| Rated output Capacity (W) | 1600W | ||
| Output Voltage and Frequency | 220Vac 50Hz/60Hz | ||
| Output Current (A) | 7.3 | ||
| Voltage Accuracy (V) | 220±1.5% | ||
| Frequency Accuracy (Hz) | 50±0.1% or 60±0.1% | ||
| Waveform | Pure Sine Wave | ||
| THD | ≤3% (line load) | ||
| Dynamic Response Time | 5% (load 0←→100%) | ||
| Power Factor (PF) | 0.8 | ||
| Overload Capability | 100%-120% 60s | 121%-150% 10s | |
| Inverter efficiency (80% line load) | ≥85% | ||
| Inverter ←→ Bypass (ms) | ≤8ms | ||
| Working Environment | Dielectric Strength (Input & Output) | 1500Vac-10mA, 1 minutes | |
| Noise (1m) | ≤55dB | ||
| Ambient Temp. | -20℃ ~ +50℃ | ||
| Humidity | 0~90%, No condensation | ||
| Altitude (m) | ≤2000 | ||
| Indicate | LCD Display | Input/output Voltage/Frequency/Output Current/Temp/Capacity Rate etc | |
| Inverter Status | Off Grid Status, Inverter Status, Battery Under & Over Voltage, Output Over load | ||

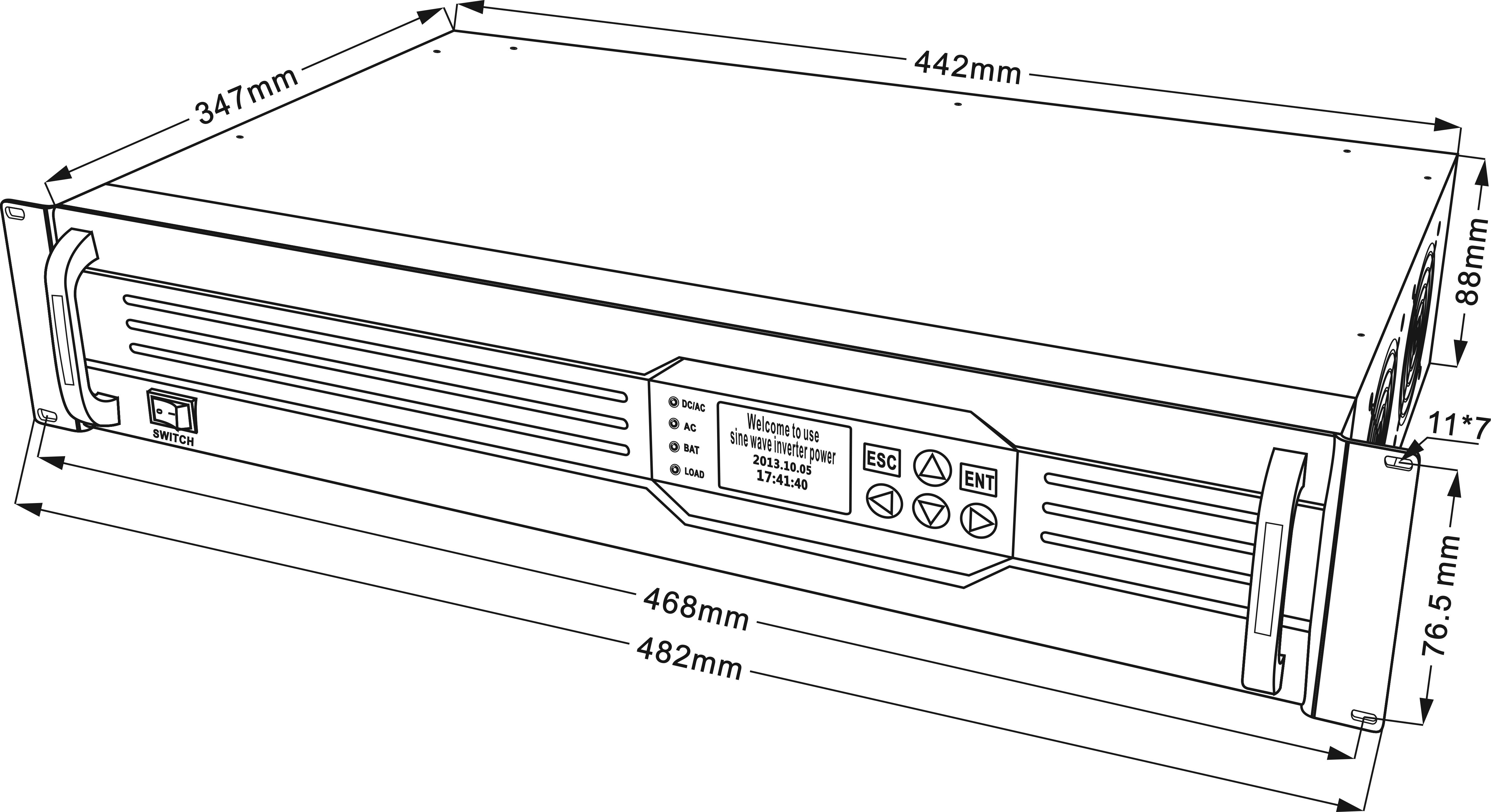

| Dimensions | Standard 19” Rack mount (D×W×H) (mm) | 482*347*88MM | |
| Package Dimension | 562*492*195mm | ||
| Weight | N.W | 9.00KG | |
| G.W | 11.00KG | ||
| Protection | Input under Voltage / Input over Voltage / Output Over load / Short circuit | ||
