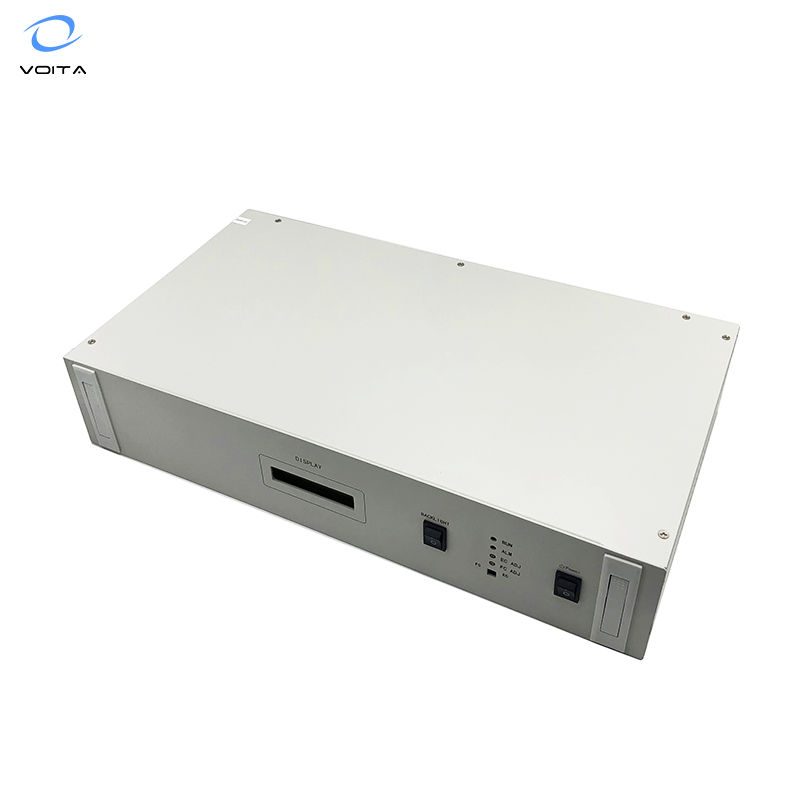

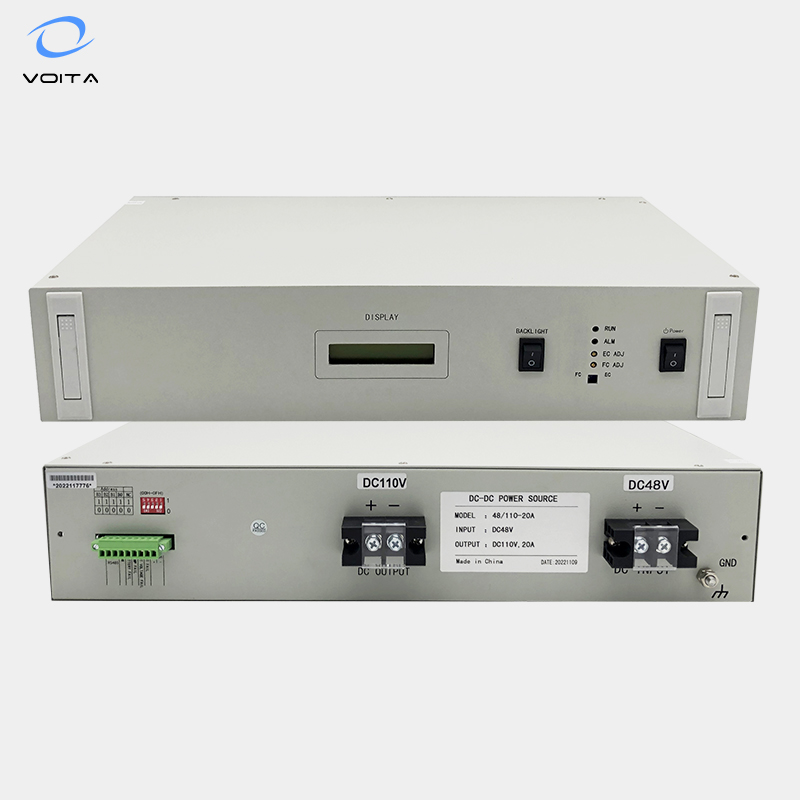

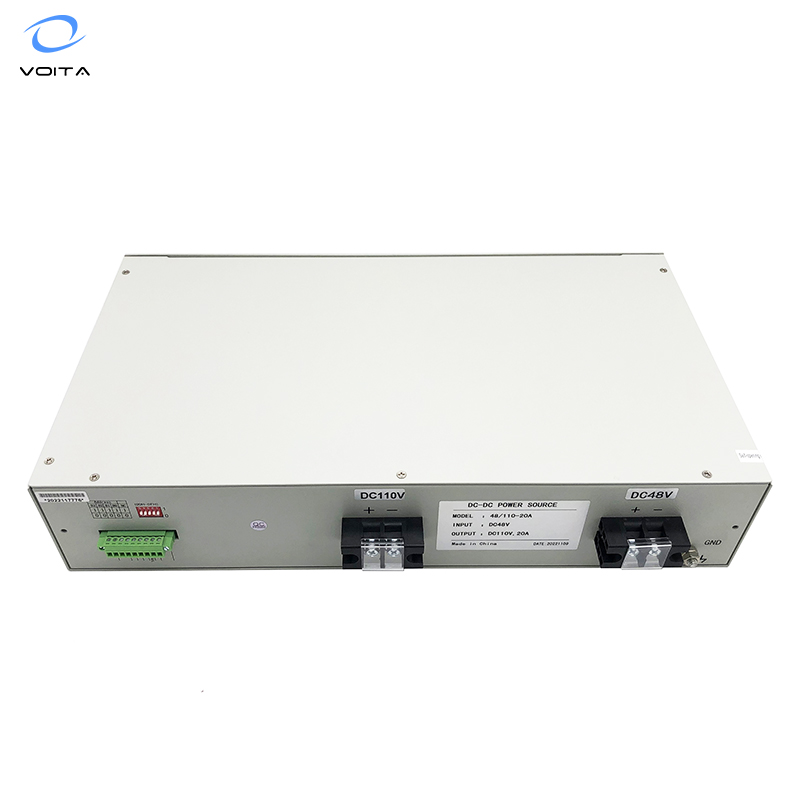

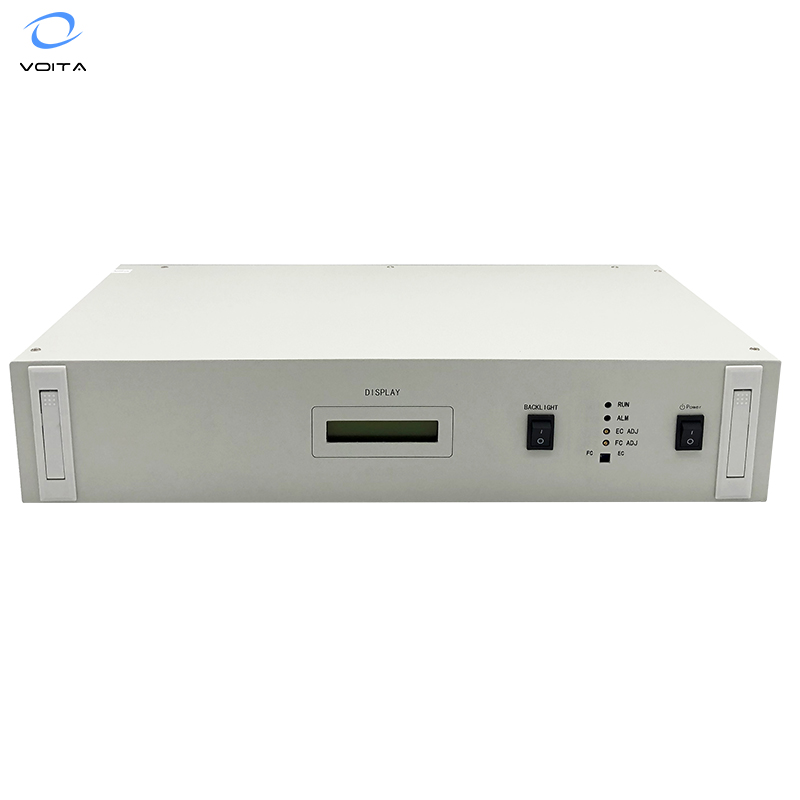

VOITA 19 Inch DC 48V to DC 110V 220V 10A 20A Rack Mount Dc Step up Converter with Warranty

1 / 5

VOITA 19 Inch DC 48V to DC 110V 220V 10A 20A Rack Mount Dc Step up Converter with Warranty

Send Inquiry

Product Description

Key Features

✔ Output overvoltage protection

✔ Output over-current protection

✔ Output short circuit protection

✔ High temperature protection

✔ Automatic current sharing technology for parallel output

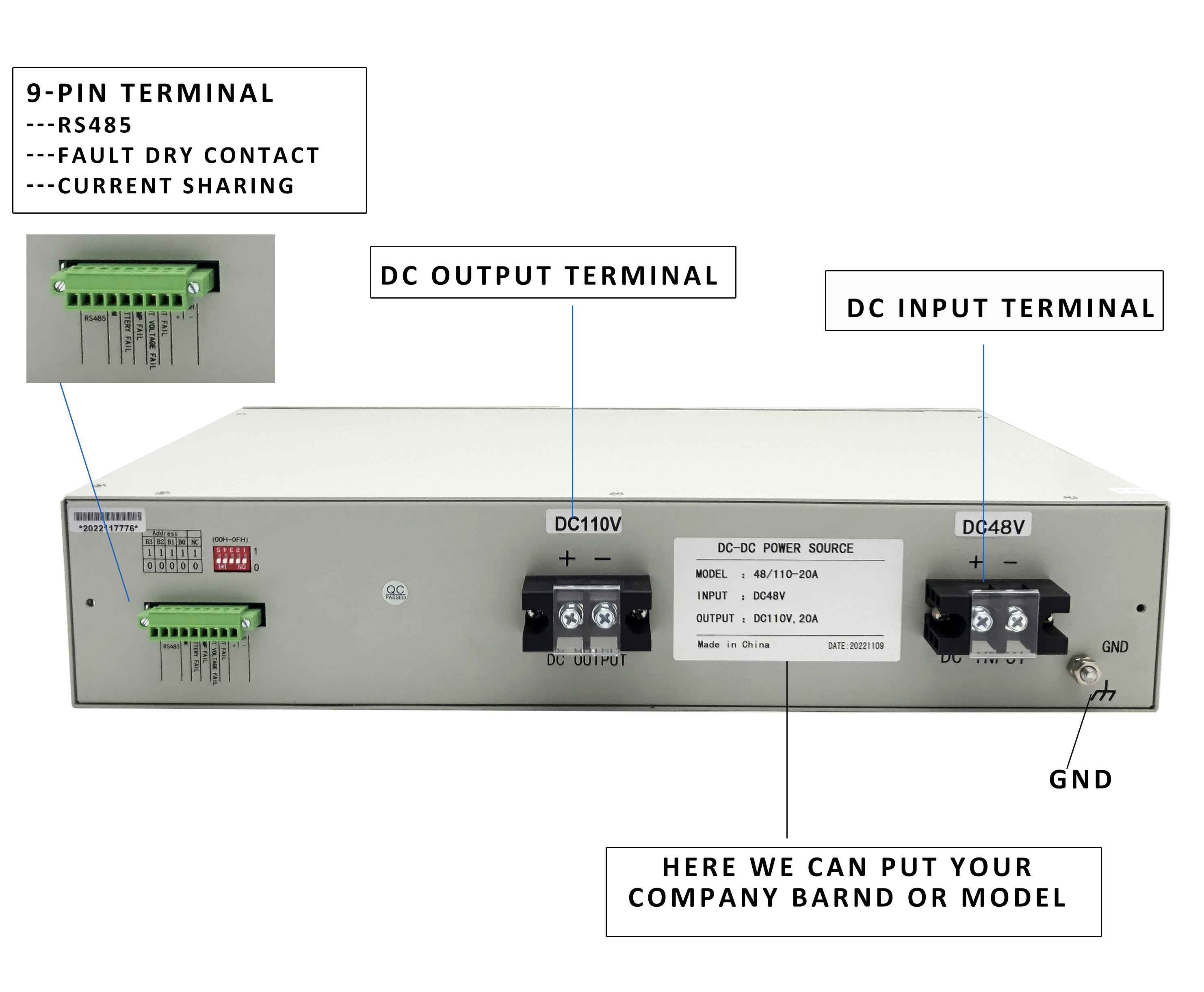

✔ RS485 communication function for real-time monitoring (optional)

✔ 4-way dry node: output state, abnormal voltage, temperature, low battery (optional)

Customize Range Options

• 24VDC Input to Multi-Output

• 48VDC Input to Multi-Output

• 110VDC Input to Multi-Output

• 220VDC Input to Multi-Output

*Output options include 220VDC / 110VDC / 48VDC / 24VDC

Technical Parameters

Parameter	VT-DD48S11020	VT-DD48S22010
Rated Output Voltage	110VDC	220VDC
Rated Output Current	20A	10A
DC Input Range (LVP-OVP)	40VDC - 60VDC
Floating Charge Range	99V - 132V	180V - 230V
Equalizing Charge Range	110V - 132V	192V - 245V
Output Protection (OVP)	145V ± 1V	245V ± 1V
Efficiency	≥ 85%
Peak Ripple Voltage	Vpp ≤ 100mV
Operating Temperature	0 ～ 45℃
Altitude / Humidity	≤ 2000m / ≤ 95% PH (Non-condensing)
Dimensions	482 * 88 * 245mm
Net Weight	6kg

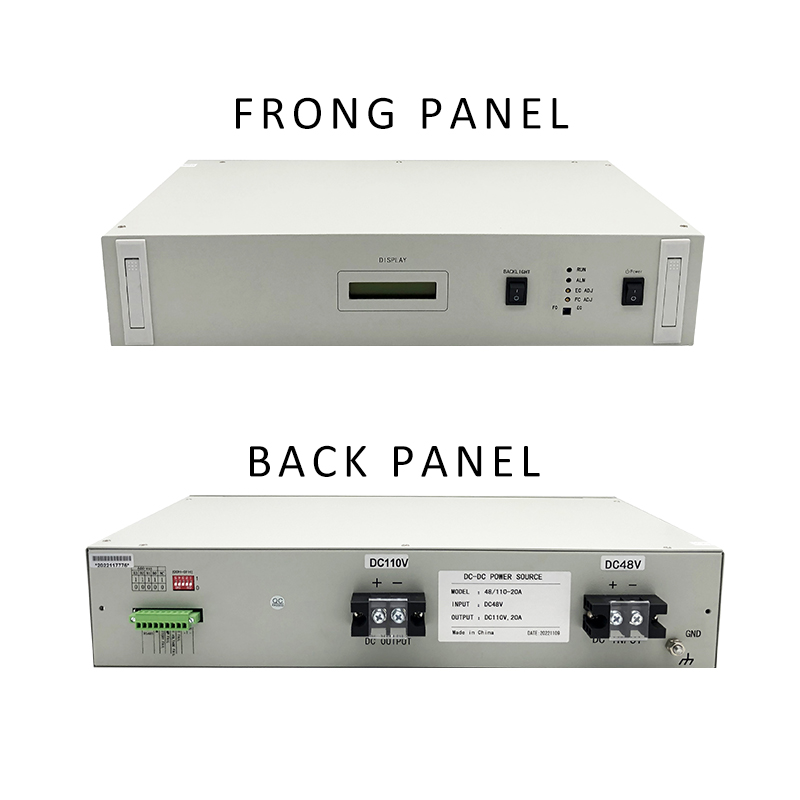

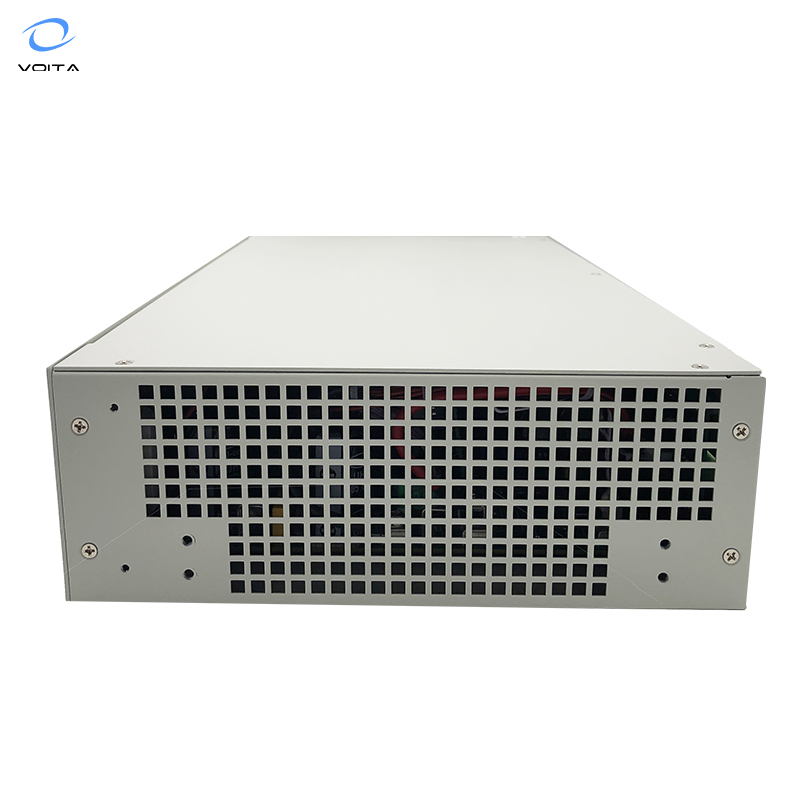

Product Gallery

Frequently Asked Questions

Q1: What are the main protection functions of this power supply?

A: The unit includes comprehensive protection against output overvoltage, over-current, short circuits, and high internal temperatures to ensure system safety.

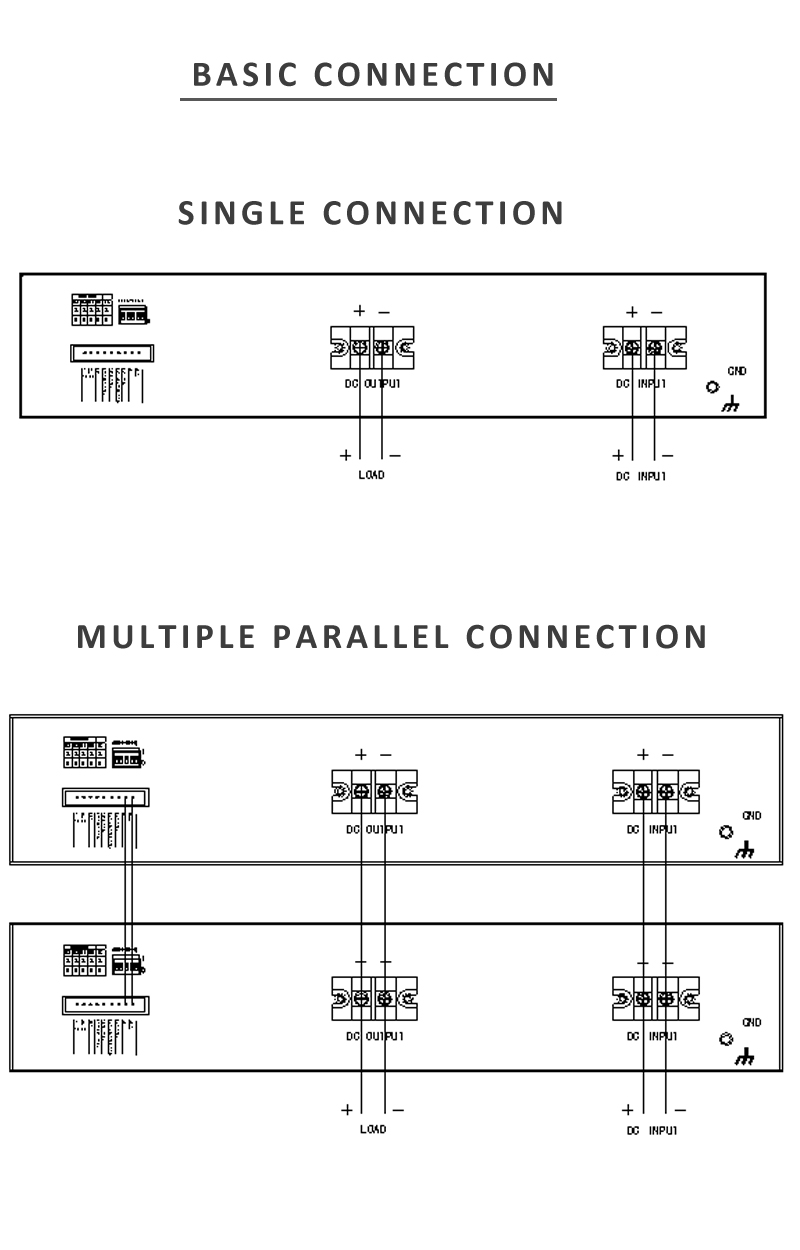

Q2: Can multiple units be used in parallel?

A: Yes, the system features automatic current sharing technology, allowing for parallel output configurations to increase total power capacity.

Q3: Is remote monitoring supported?

A: Yes, it supports RS485 communication (optional). Real-time monitoring software can be used to track the working conditions and health of the power supply.

Q4: What input and output voltage combinations are available?

A: We offer a wide customization range with inputs of 24VDC, 48VDC, 110VDC, or 220VDC, and outputs available in 24VDC, 48VDC, 110VDC, or 220VDC.

Q5: What is the efficiency and noise level of the converter?

A: The power supply operates with an efficiency of ≥85% and maintains a very low noise level of ≤1mV, ensuring stable performance for sensitive equipment.

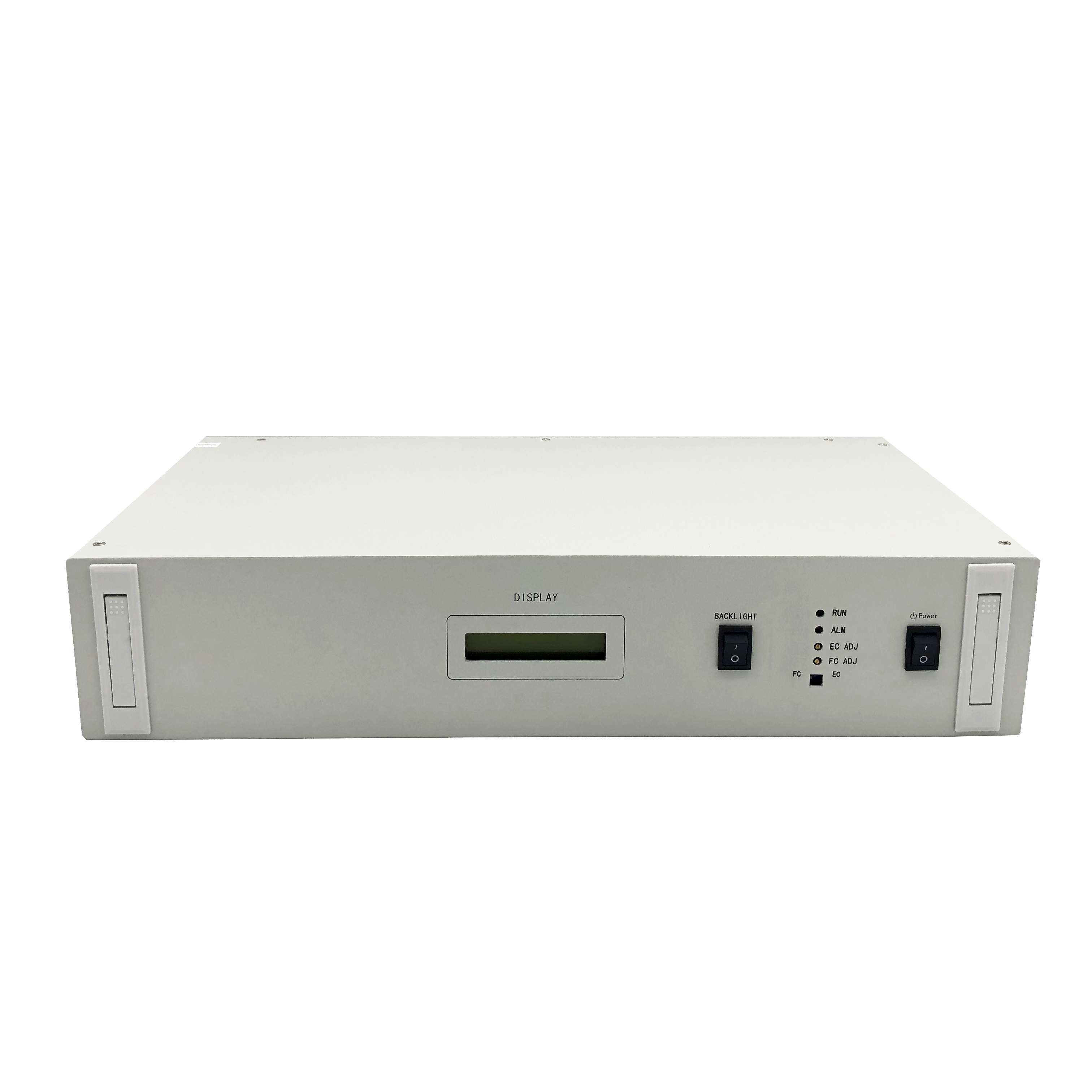

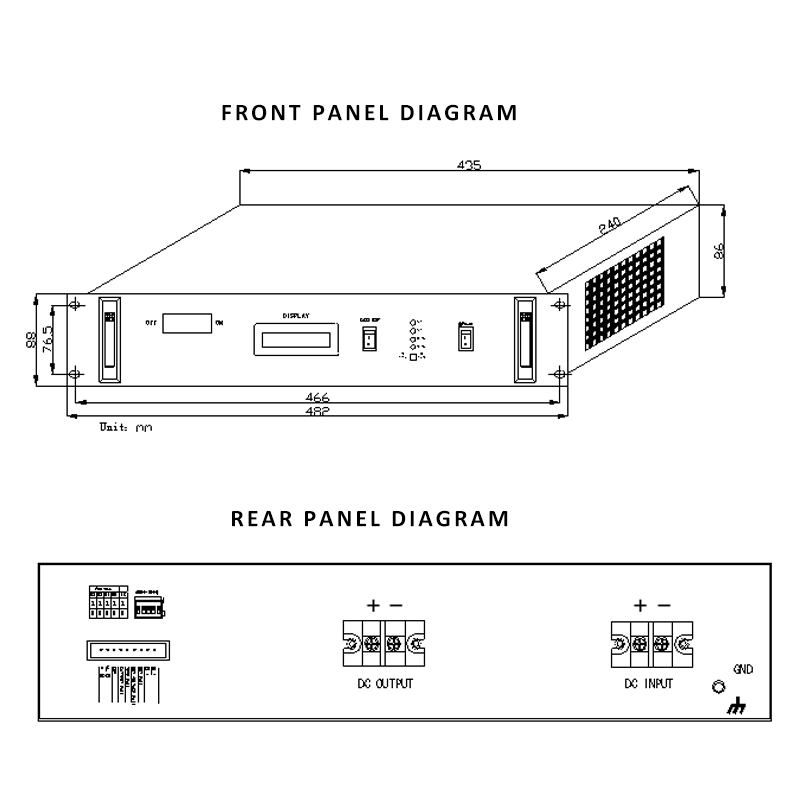

Q6: What are the physical dimensions of the rack unit?

A: The standard dimensions are 482*88*245mm, designed to fit typical industrial rack mounts, with a net weight of approximately 6kg.
