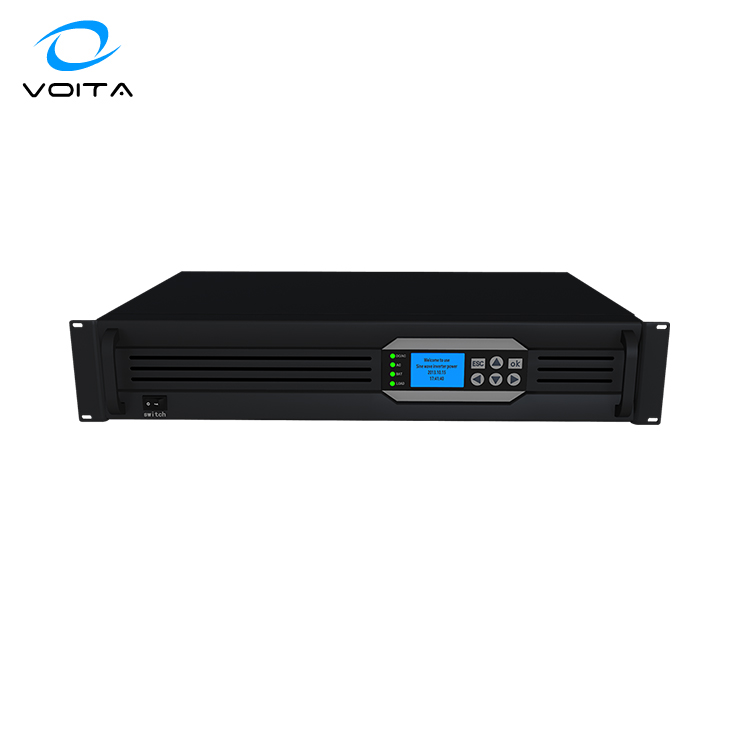

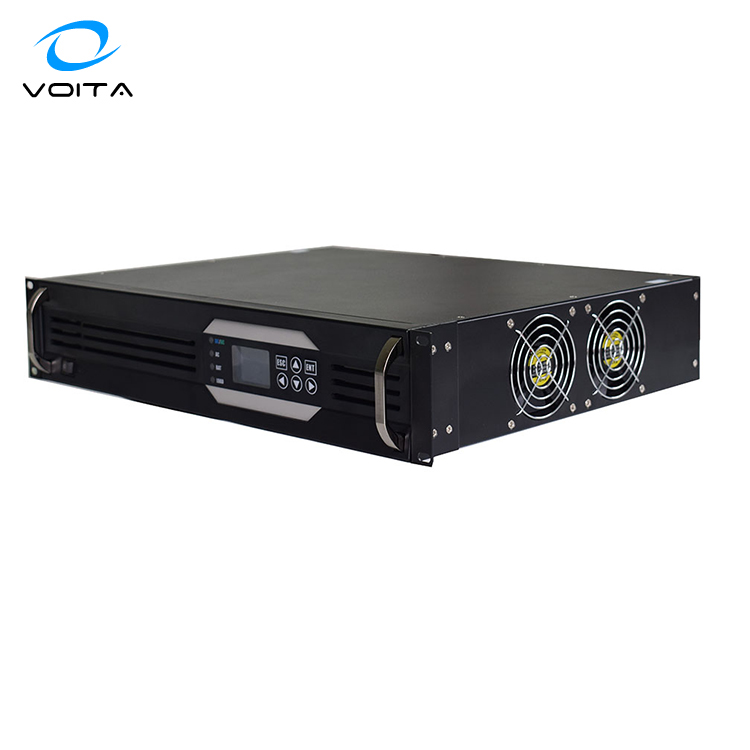

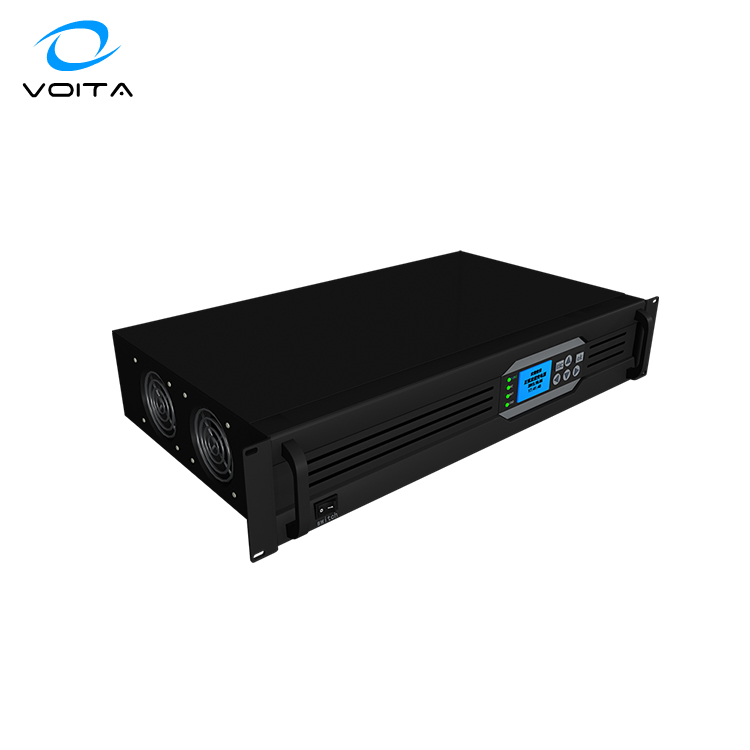

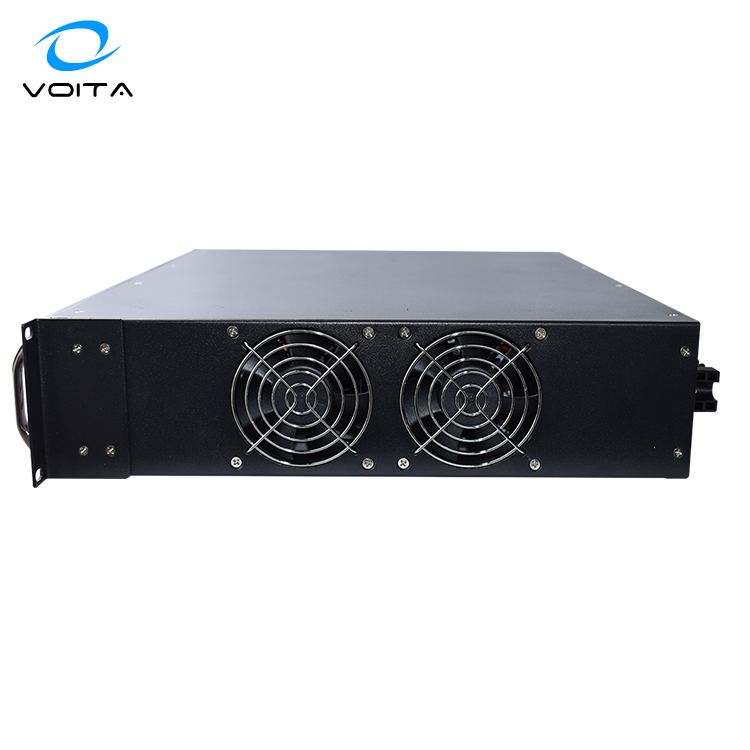

| Model | VT-HF48S220-1KVA | |
|---|---|---|
| DC INPUT | Rated Input Voltage (Vdc) | 48V |
| Rated Input Current (A) | 21A | |
| DC Input Range (Vac) | 40-60V | |
| Reflected Noise Current | ≤10% | |
| AC Bypass Input | Bypass Voltage Range (Vac) | 270V-170V(±10V) |
| Rated Input Current (A) | 4.5 | |
| AC Output | Capacity (VA/W) | 1KVA / 800W |
| Output Voltage and Frequency | 220Vac 50Hz/60Hz | |
| Voltage Accuracy | 220±1.5% | |
| Waveform & THD | Pure Sine Wave / ≤3% | |
| Power Factor (PF) | 0.8 | |
| Overload Capability | 100%-120% 60s; 121%-150% 10s | |
| Efficiency & Transfer Time | ≥85% / ≤8ms | |
| Environment | Noise (1m) | ≤55dB |
| Ambient Temp & Humidity | -20℃~+50℃ / 0~90% Non-condensing | |
| Altitude (m) | ≤2000 | |
| Dimensions | D×W×H (mm) | 482*347*88MM (19" Rack) |
| Weight | N.W / G.W | 8.00KG / 10.00KG |
| Protection | Input under/over Voltage, Output Overload, Short circuit | |
